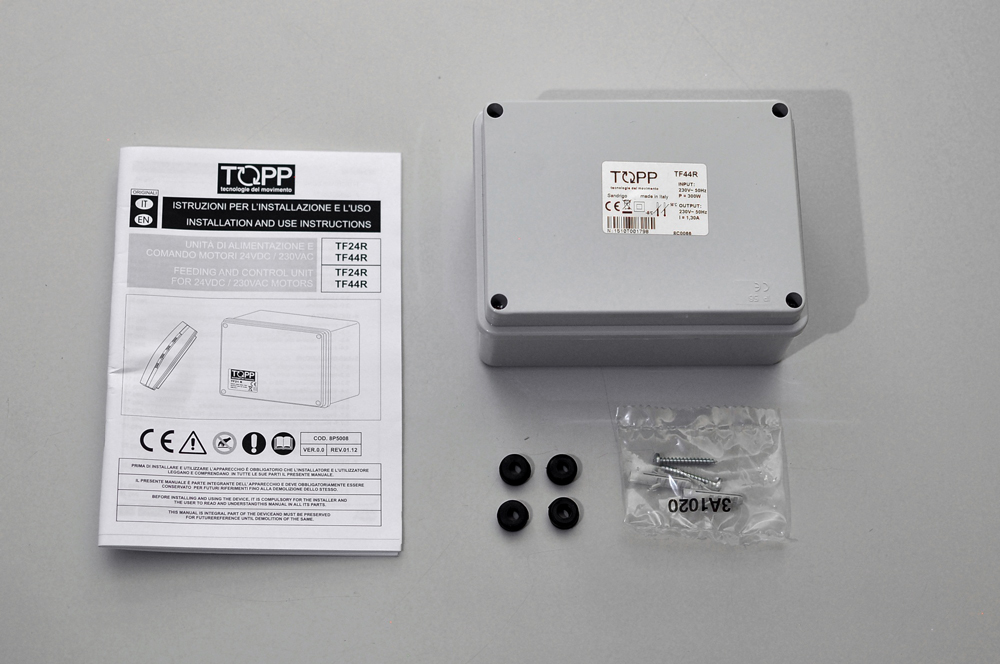

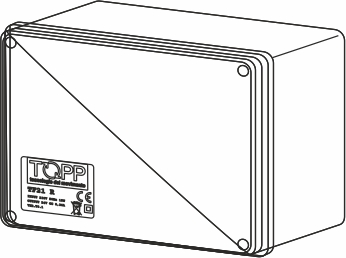

TF44R Topp Central Control and Power Unit 230V 4 Outputs

TF44R Topp - Control Unit and Power Supply 230V 4 Outputs

• TF44R control unit (230V output voltage) suitable for powering and controlling 230V TOPP motors.
• Built-in 433.92 Mhz rolling-code radio receiver.
• Wind sensor input RW and rain sensor RDC/12.
• CE marked.

Technical features TF44R Topp

• Model: TF44R;
• Power supply voltage: 230V~50Hz;
• Output voltage: 230V~50Hz;
• Max absorbed power: 300 W;
• Max Output Current: 1.3A;
• Service type: S1 – Continuous;
• Predispositions: wind, rain sensor and manual controls;
• Operating temperature: - 5 + 50 °C;
• Overall dimensions: 160x120x75 mm;
• Connectable C20 actuators: 16;
• Connectable tandem C20 actuators: 8;
• Connectable C30 actuators: 16;
• Connectable C40 actuators: 20;
• Connectable ACK4 actuators: 16;
• Connectable C130 actuators: 16;
• Connectable C240 actuators: 8;
• Connectable SL60 actuators: 16;
• Connectable T50 actuators: 16;
• Connectable T80 actuators: 8.

• INSTALLATION AND USE INSTRUCTIONS (2,73 MB)
