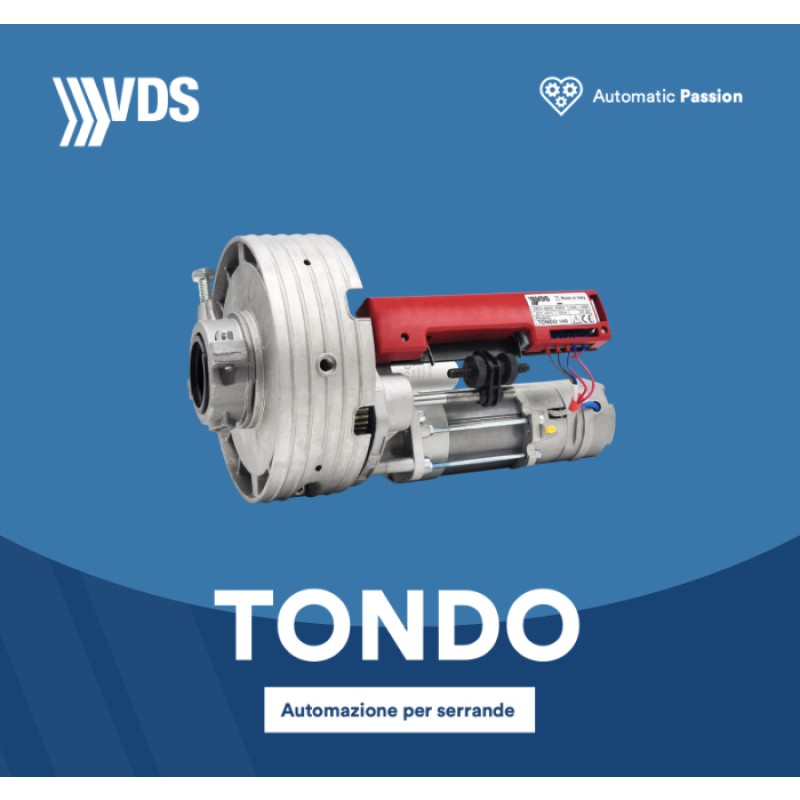

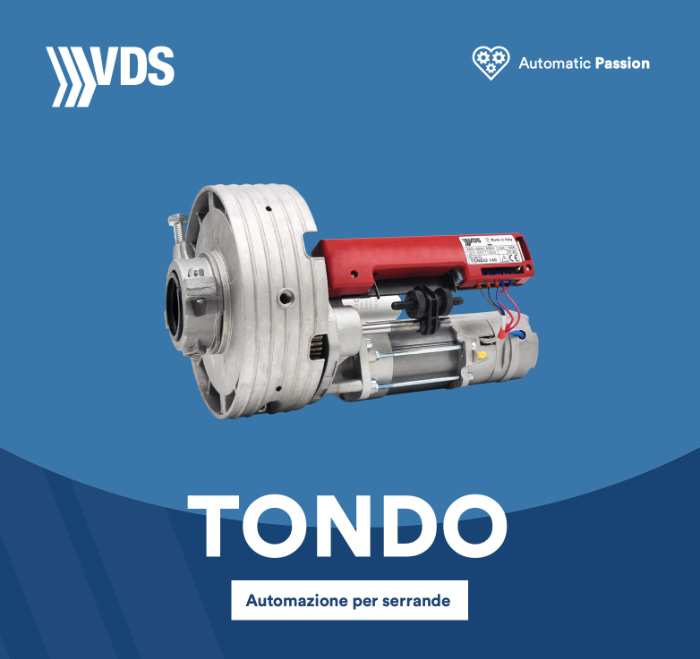

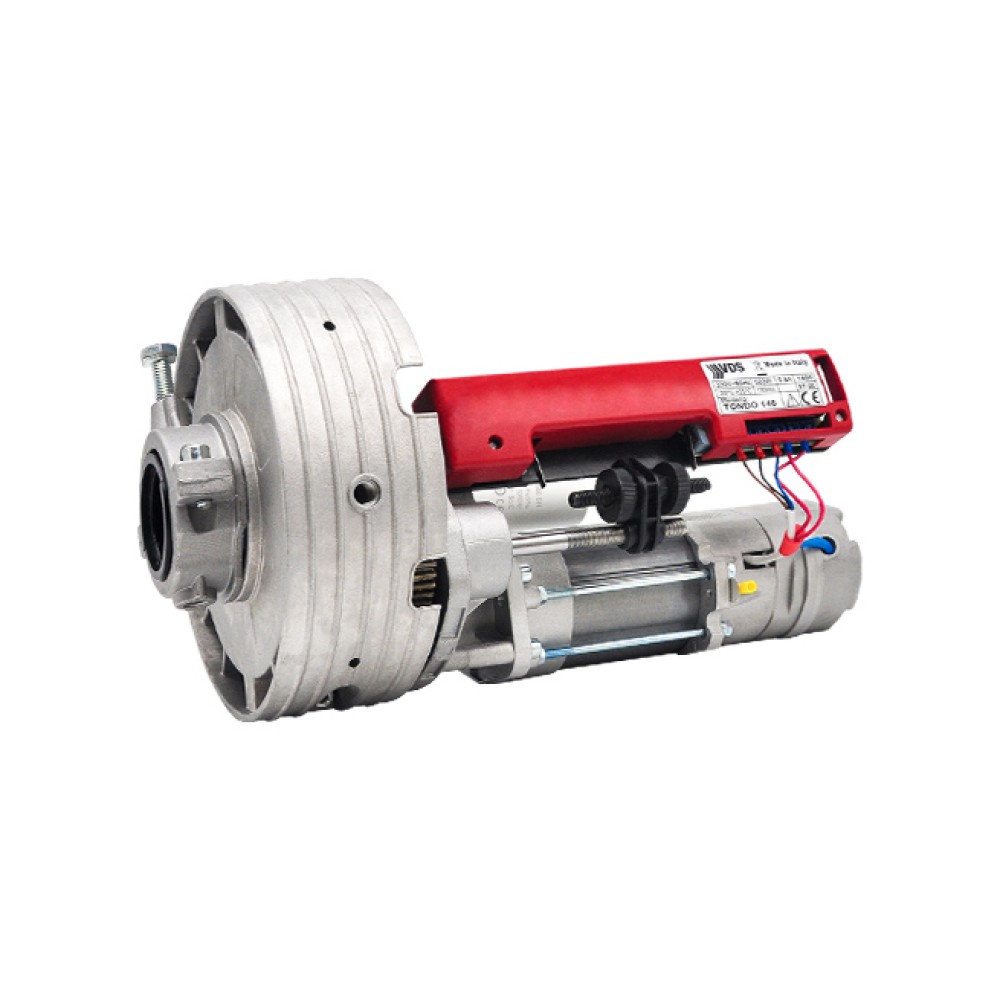

TONDO VDS - Automation for Rolling Shutters up to 180 Kg
TONDO VDS is an
automation for rolling shutters up to 180 kg (select the variant you want between TONDO 140 or TONDO 180).
What are the advantages of TONDO VDS shutter automation?
- New design;
- Quick assembly even on existing shutters;
- Irreversible;
- Manual release;
- Electrobrake;
- Easily adjustable built-in mechanical limit switch;
- Fast, silent and reliable;
- Power supply 230 V.

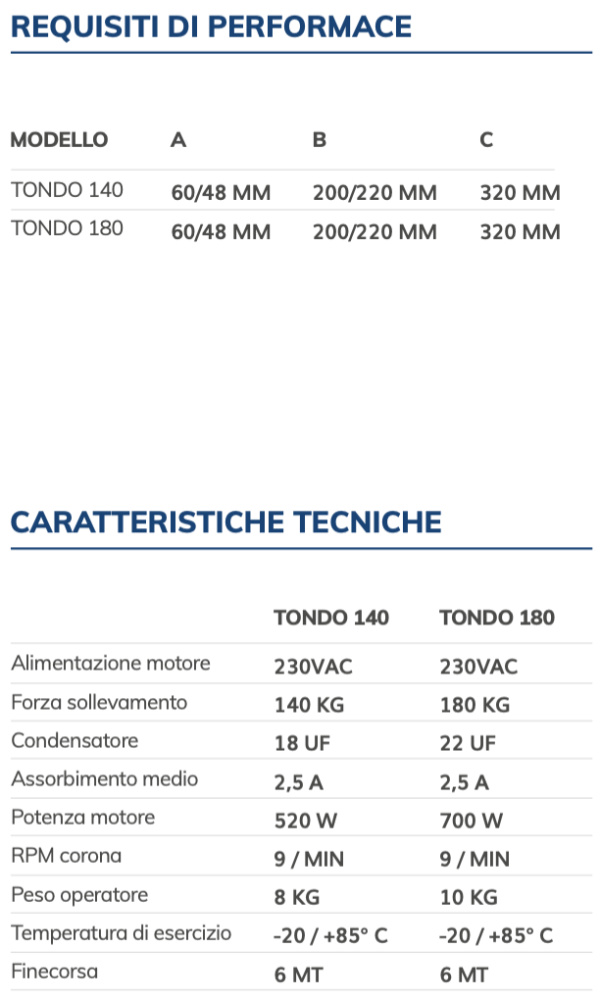

Technical features of automation for VDS ROUND shutter
- Motor power supply: 230 Vac;
- Max leaf weight: 140 kg or 180 kg (your choice);
- Capacitor: 18 UF (ROUND 140) or 22 UF (ROUND 180);
- Average absorption: 2.5 A;
- Motor power: 520 W (ROUND 140) or 700 W (ROUND 180);
- Crown RPM: 9 / min;
- Operator weight: 8 kg (ROUND 140) or 10 kg (ROUND 180);
- Operating temperature: -20 / + 85 ° C;
- Limit switch: 6 mt.
For better radio reception we recommend the use of an external antenna cod. 210/1.
In cold temperatures, the performance of the actuator can be considerably reduced.
VDS Automation for Rolling Shutters
- The VDS company has been operating in the field of automation for shutters for more than 30 years;
- Each VDS roller shutter motor is produced in Italy by specialized personnel with quality materials;
- Find the best VDS Automations shutter automations on Windowo.
