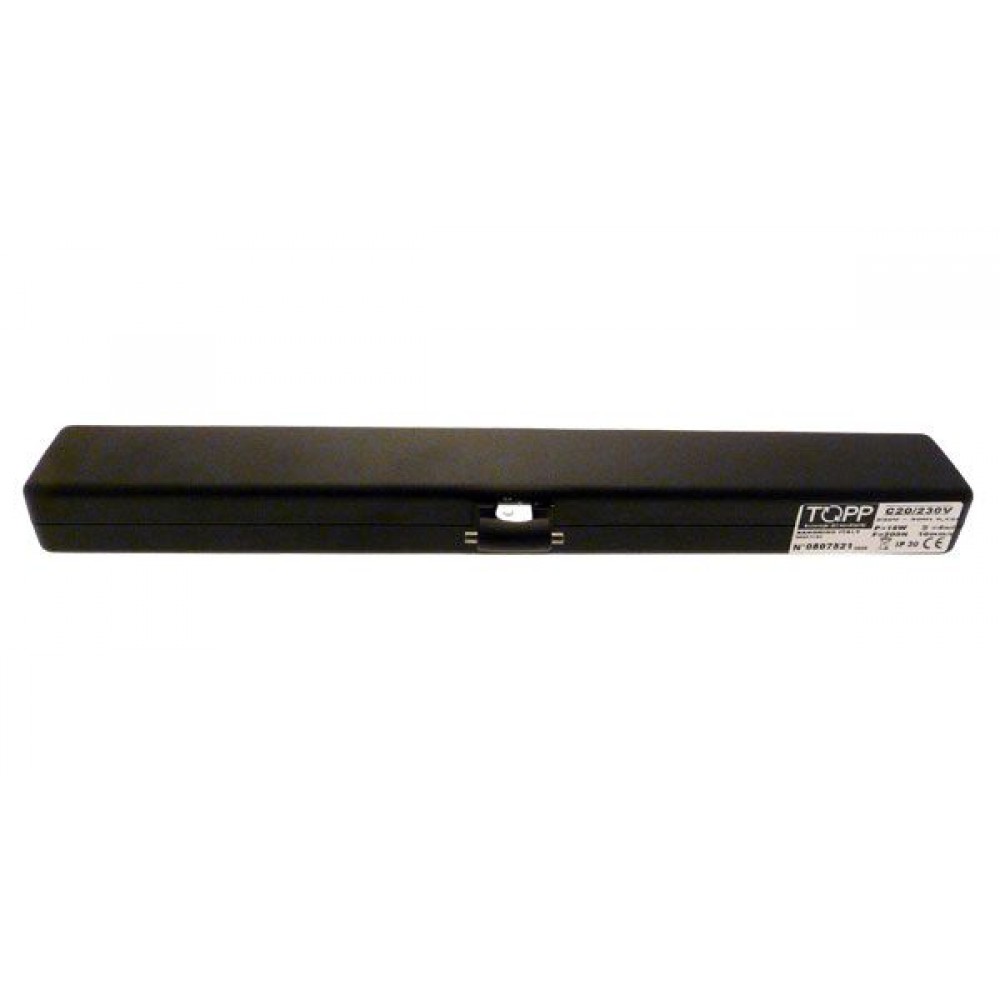

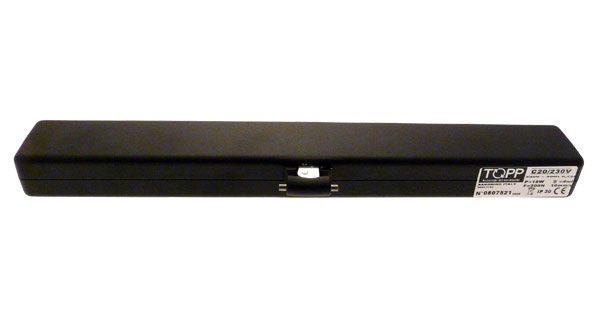

Electric Chain Motor - Topp C20 24V - 1 Push Point - Black Gray or White Color
Actuator with double-link articulated chain and accessories for top-hung or bottom-hung windows

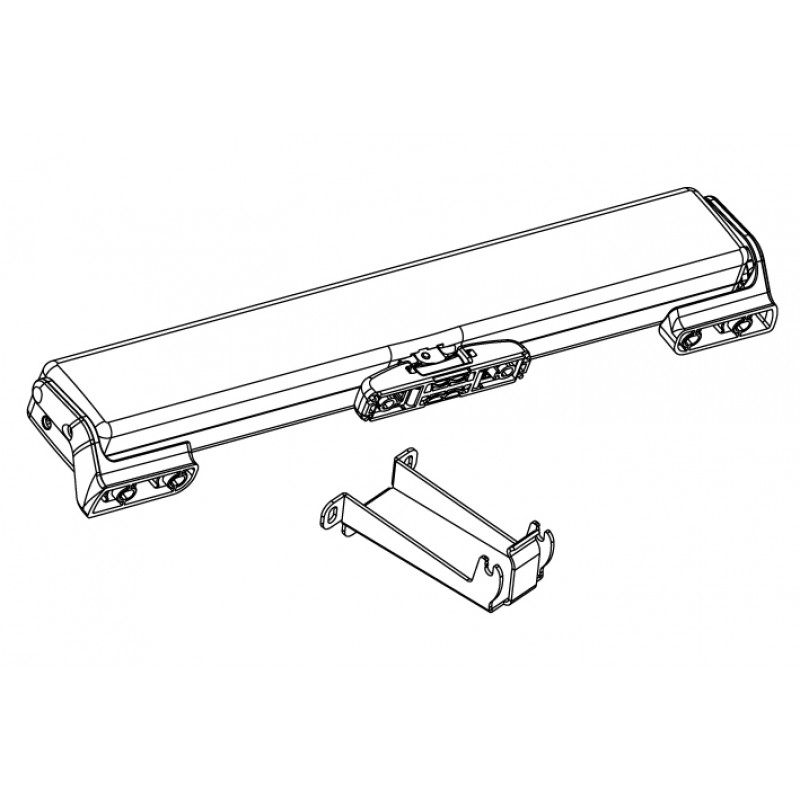

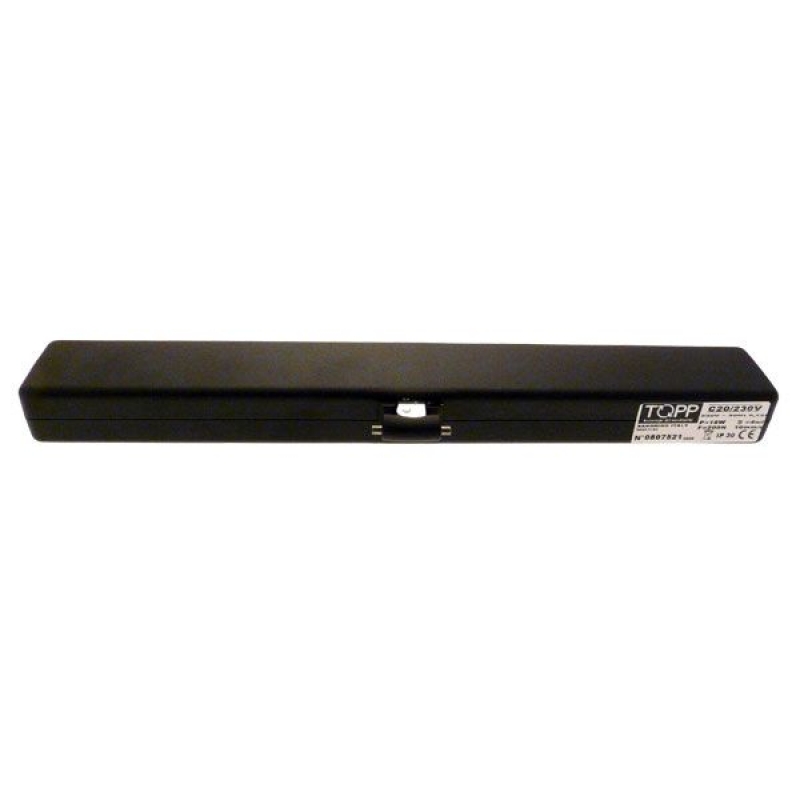

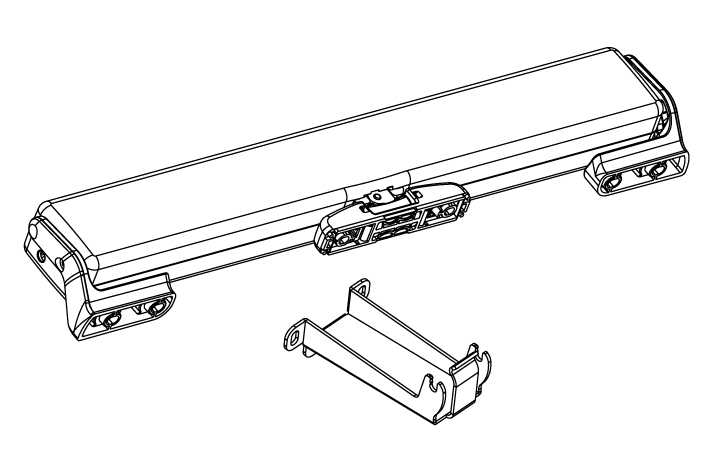

Topp electric actuator model C20 24V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or top-hung opening.
- 24V 50Hz operation.
- Maximum applicable load 300N.
- Quick coupling attachment to the frame.
- Stroke adjustable from outside by selector switch with stops at 240mm and 360mm.
- CE marked device.
Technical characteristics of the motor for windows C20 24V Topp
- Supply voltage: min 21V - max 28V dc;
- Maximum applicable thrust load: 300N;
- Maximum applicable load in traction: 200N;
- Strokes (selectable at any time): 240 and 360mm;
- Absorption: 0.43A;
- No-load translation speed: 7.5mm/s;
- Duration of idle run: 48s;
- Type of service: S2 of 4min;
- Operating temperature: - 5 / + 50 °C;
- Degree of protection for electrical devices: IP30;
- Adjustment of the attachment to the frame: not necessary;
- Parallel connection of 2 or more actuators: yes;
- Limit switch: electronic in opening, amperometric absorption in closing;
- Dimensions: 362x48x34mm;
- Weight: 0.940Kg.
Applications: bottom-hung windows, top-hung windows, cupolas, dormer windows, roof windows.

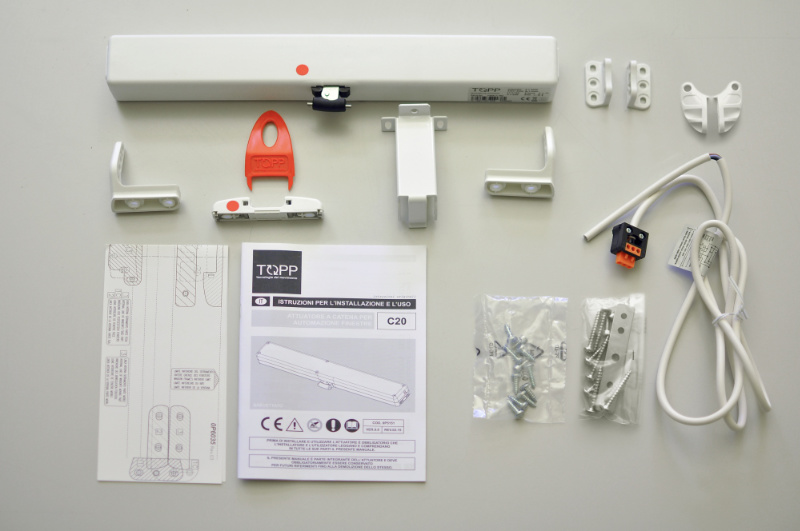

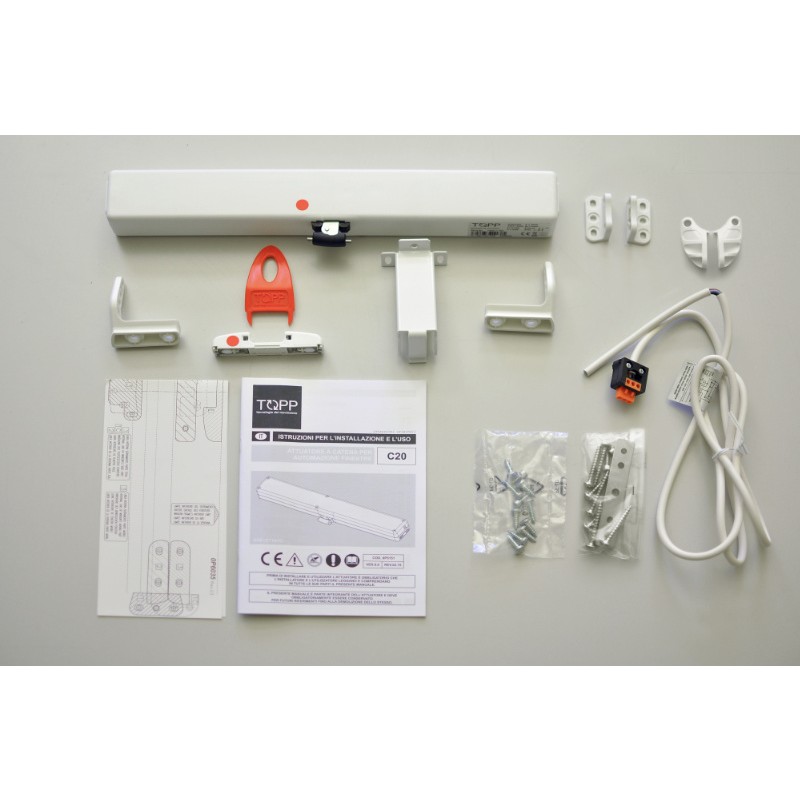

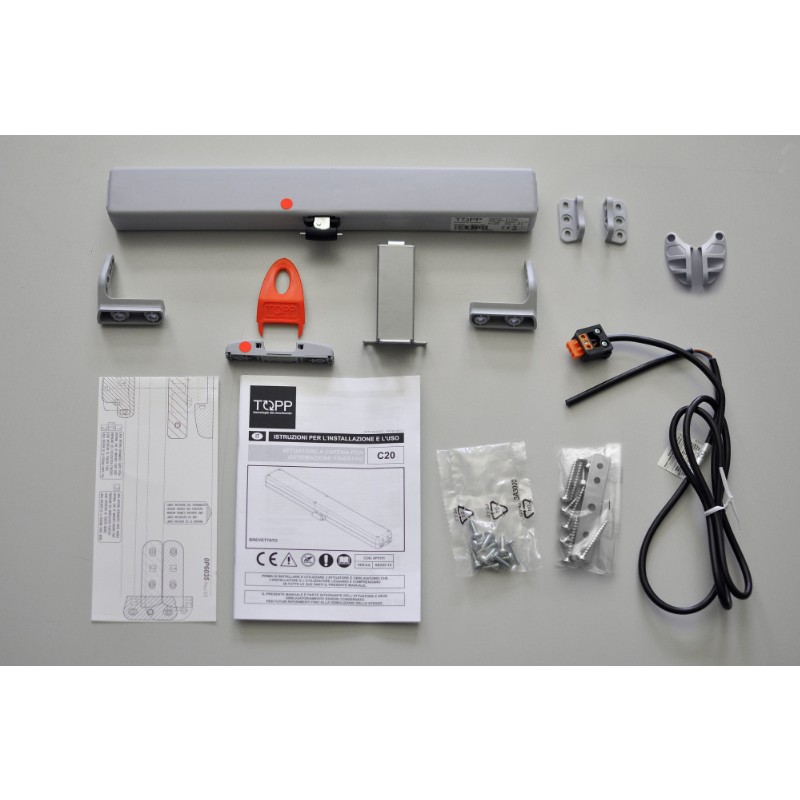

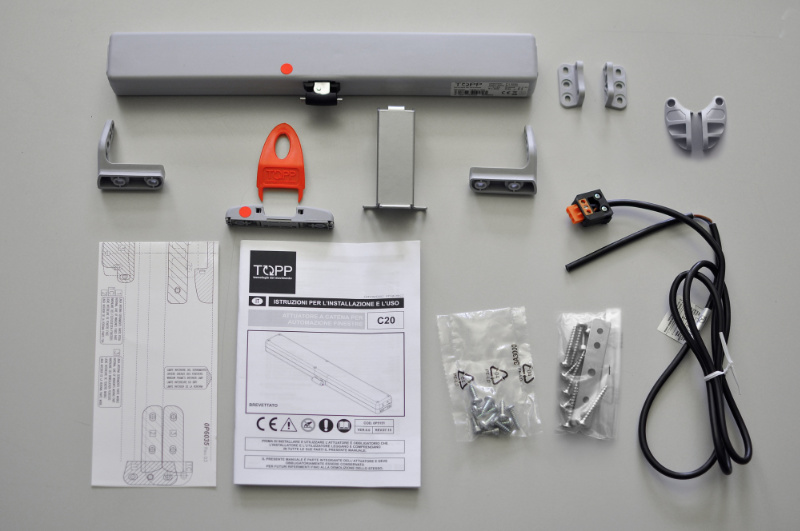

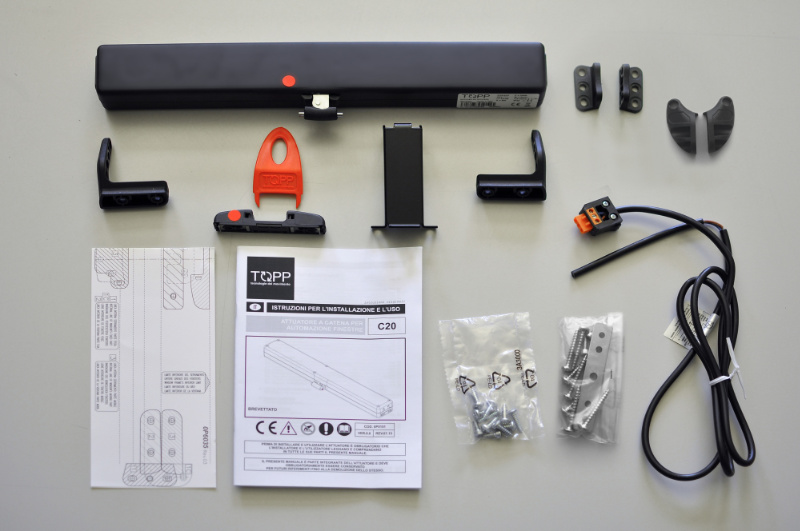

Included in the package: chain actuator, pair of tilting front mounting brackets, bottom hung bracket, ARS quick connection to the window, small parts pack. Actuator and brackets are black, gray or white (depending on the color chosen).
Why choose the Topp C20 chain actuator:
- Double link chain with very high resistance to peak loads;
- High stroke combined with reduced dimensions of the actuator to allow applications that require minimum dimensions (international patent on the chain path);
- Current absorption limit switch in closing to avoid adjustments in closing and remedy any positioning errors of the actuator;
- Quick hooking and unhooking system of the chain to the window (international patent).
C20 24V standard 1 push point
| Code |
Description |
| 3A3#000000282 |
C20 24V Chain Actuator - Black |
| 3A3#000000283 |
C20 24V Chain Actuator - Grey |
| 3A3#000000253 |
Chain actuator C20 24V - White |
