Chain Motor ACK4 24V Topp 1 Push Point Black Gray or White
ACK4 Topp with double link chain in stainless steel

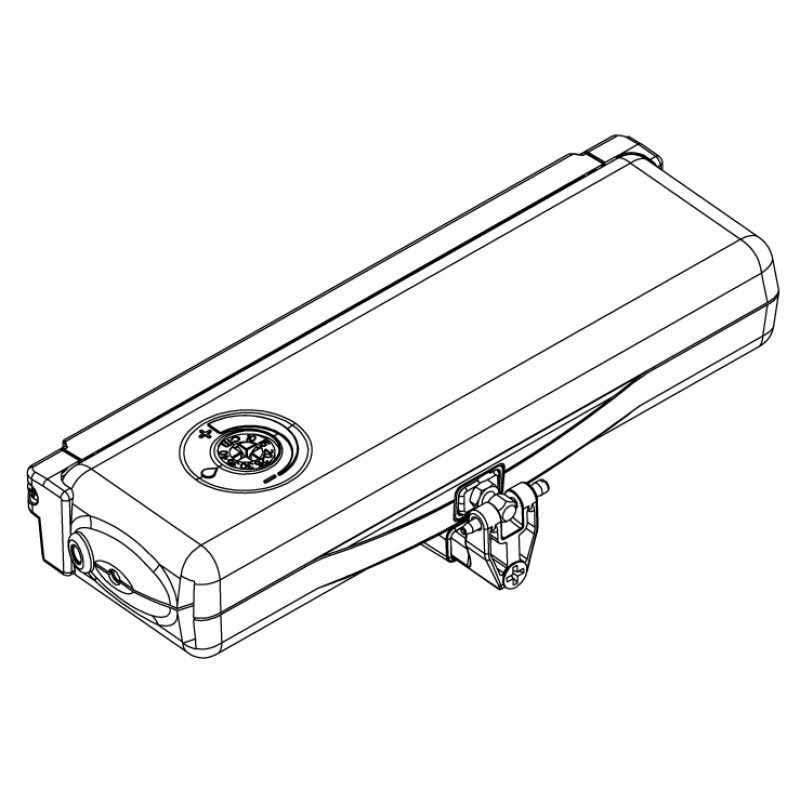

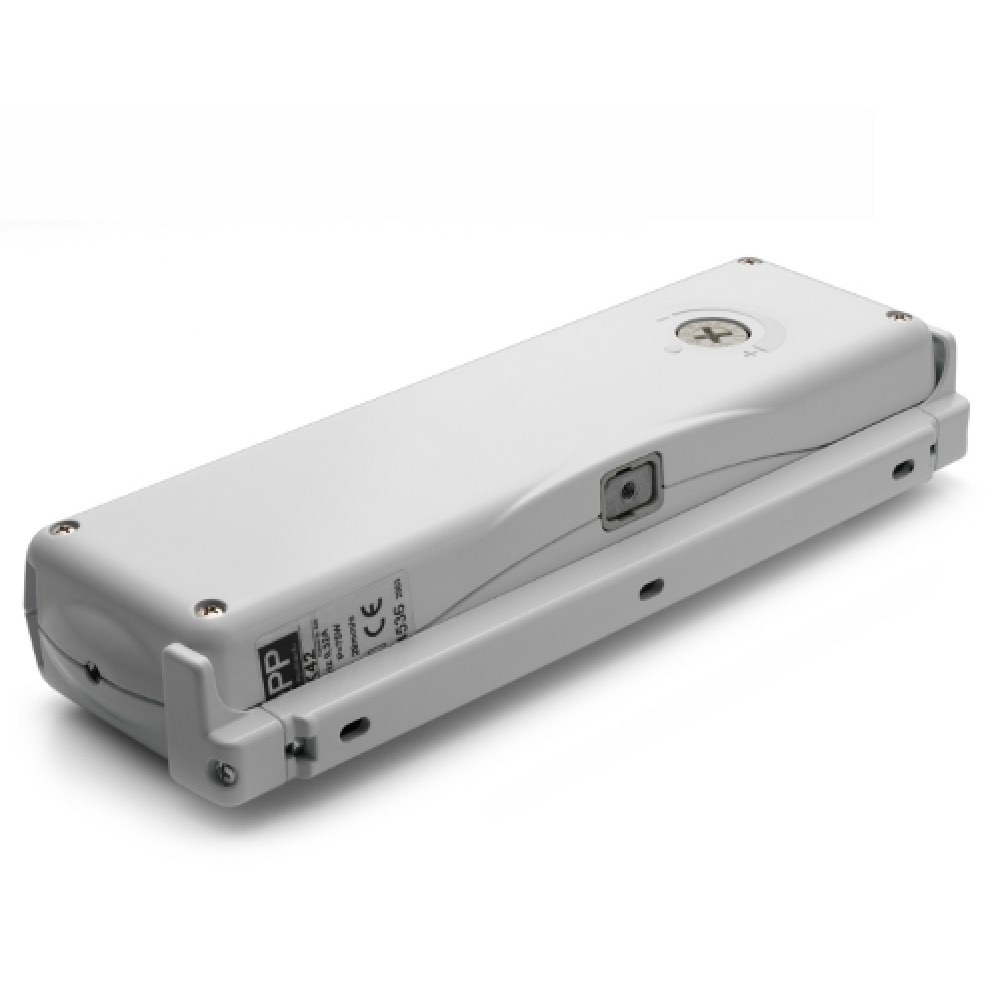

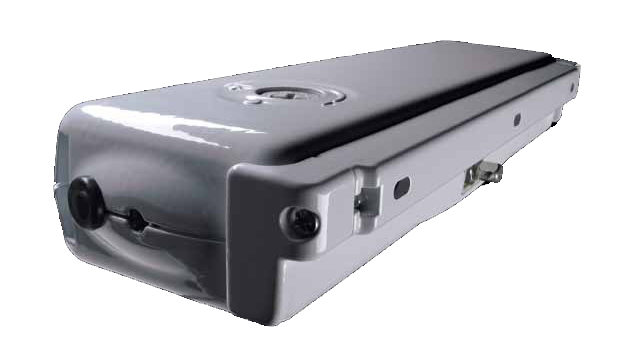

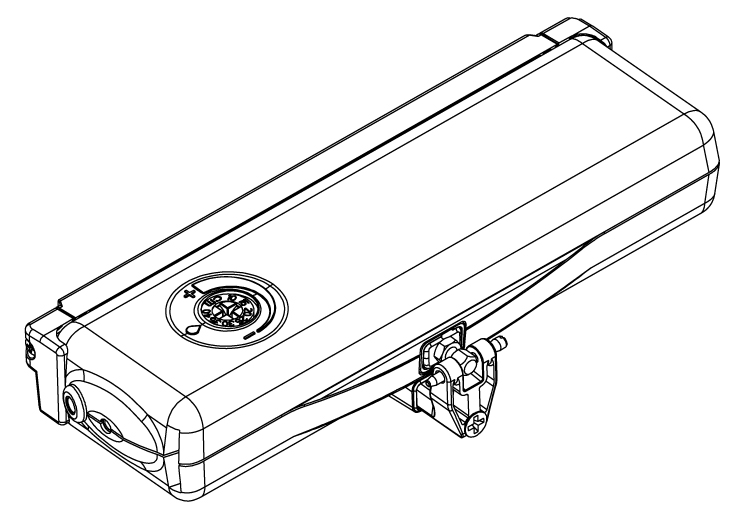

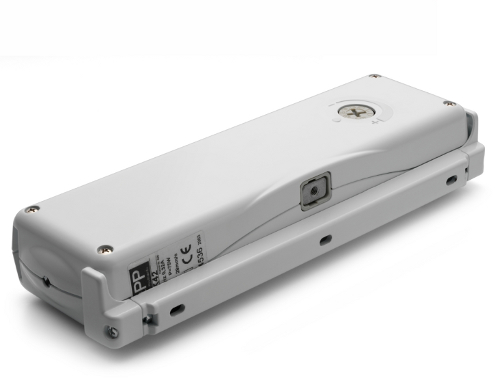

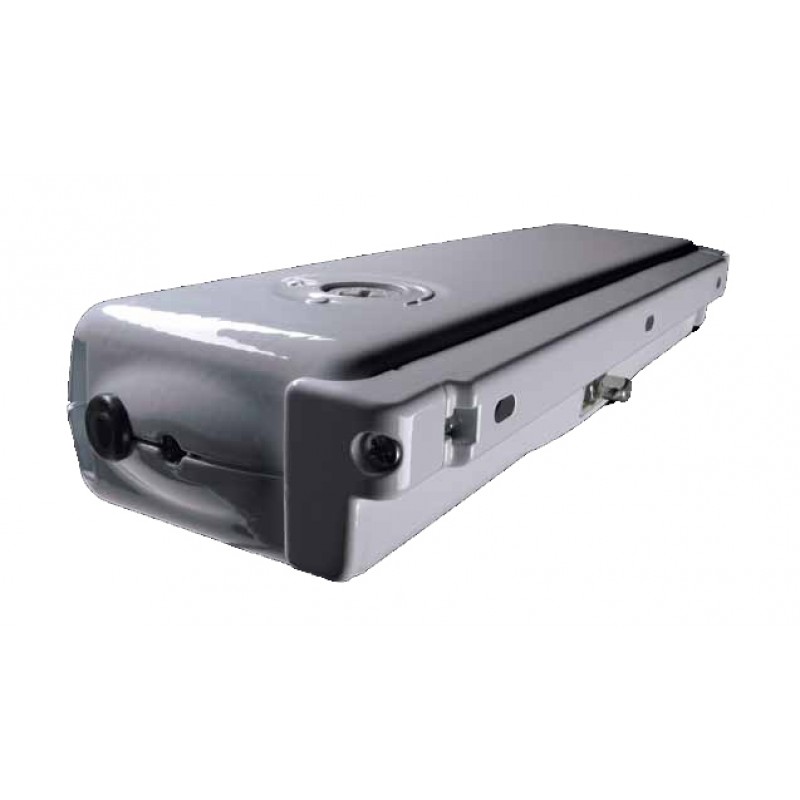

Topp electric actuator model ACK4 24V with double link articulated chain in stainless steel, contained in a special die-cast aluminum case painted with epoxy powders, complete with support and accessories.
- 24V DC operation
- Maximum applicable load 300N.
- Max stroke of 400mm with stroke adjustment in 7 positions (100, 150, 200, 250, 300, 350, 400mm) by means of a special adjusting knob.
- Electronics with buzzer for user signaling incorrect assembly.
- Degree of protection for electrical devices IP55.
- CE marked device.
ACK4 Topp 24V version technical features:
- Supply voltage: 24V dc;
- Maximum applicable thrust load: 300N;
- Maximum applicable load in traction: 300N;
- Strokes: 100, 150, 200, 250, 300, 350, 400mm;
- Absorption: 1.35A;
- No-load travel speed: 17mm/s;
- Duration of idle stroke: 23s;
- Type of service: S2 of 3min;
- Operating temperature: - 5 / + 50 °C;
- Degree of protection for electrical devices: IP55;
- Fixture attachment adjustment: 10mm;
- Parallel connection of 2 or more actuators: yes;
- Chain position control: yes;
- End stop: encoder;
- Electronics with buzzer for user signal incorrect assembly: yes;
- Dimensions: 288.5x83x47.8mm;
- Weight: 1.9Kg.
Applications: bottom-hung windows, top-hung windows, cupolas, dormer windows, roof windows.
Included in the package: chain actuator, fixed front mounting bracket, bottom hung bracket, connection to the window frame with pin and small parts pack.
Actuator and brackets are black, gray or white (depending on the color chosen).
Why choose ACK4 Topp?
- Possibility of adjusting the stroke in 7 positions from 100 to 400 mm (international patent).
- Double link chain in stainless steel.
- Acoustic device for signaling incorrect assembly (buzzer).
- High degree of protection IP55.
ACK4 24V standard 1 push point
| Code |
Description |
| 3A1#000000008 |
Chain actuator ACK4 24V - Black RAL 9005 |
| 3A1#000000010 |
Chain actuator ACK4 24V - Gray RAL 9006 |
| 3A1#000000009 |
Chain actuator ACK4 24V - White RAL 9010 |
