Chain Actuator C130 230V 50Hz Topp 1 Push Point Max Stroke 36cm

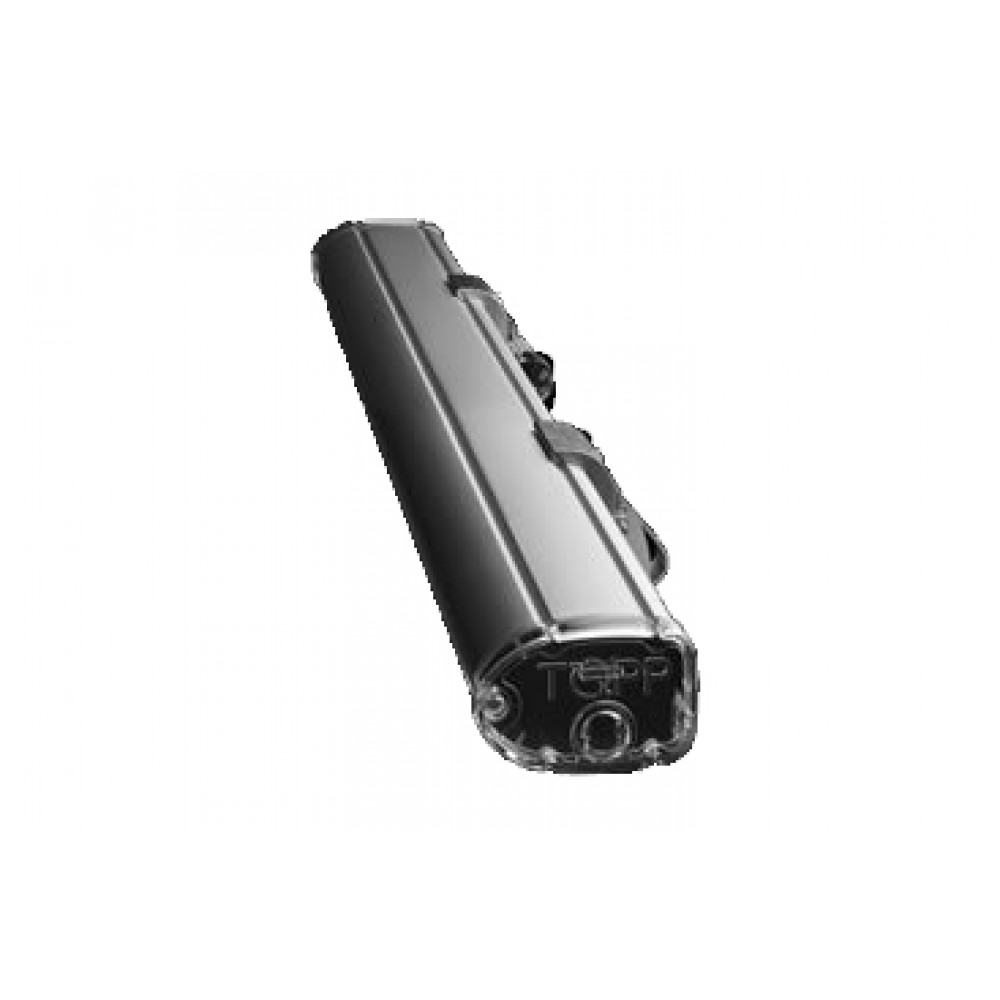

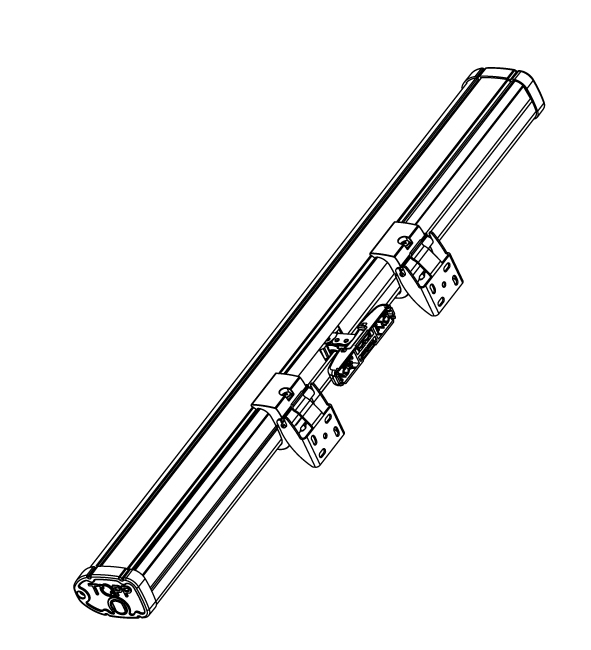

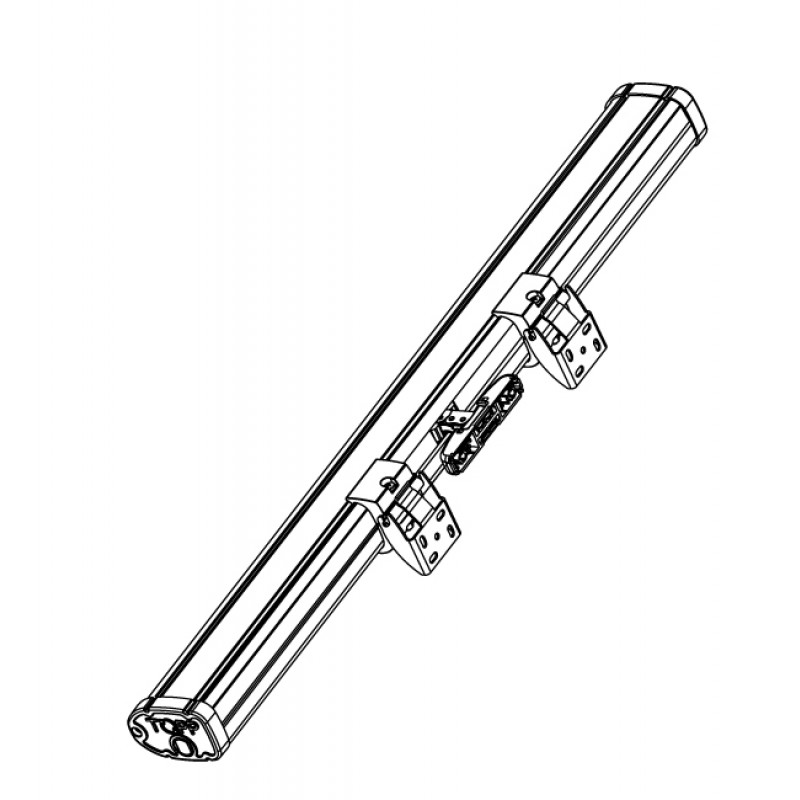

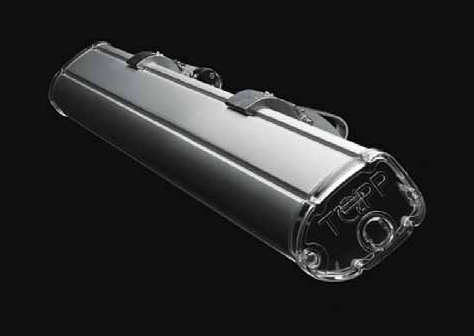

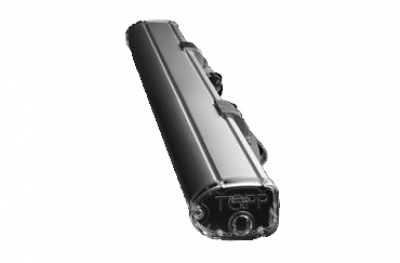

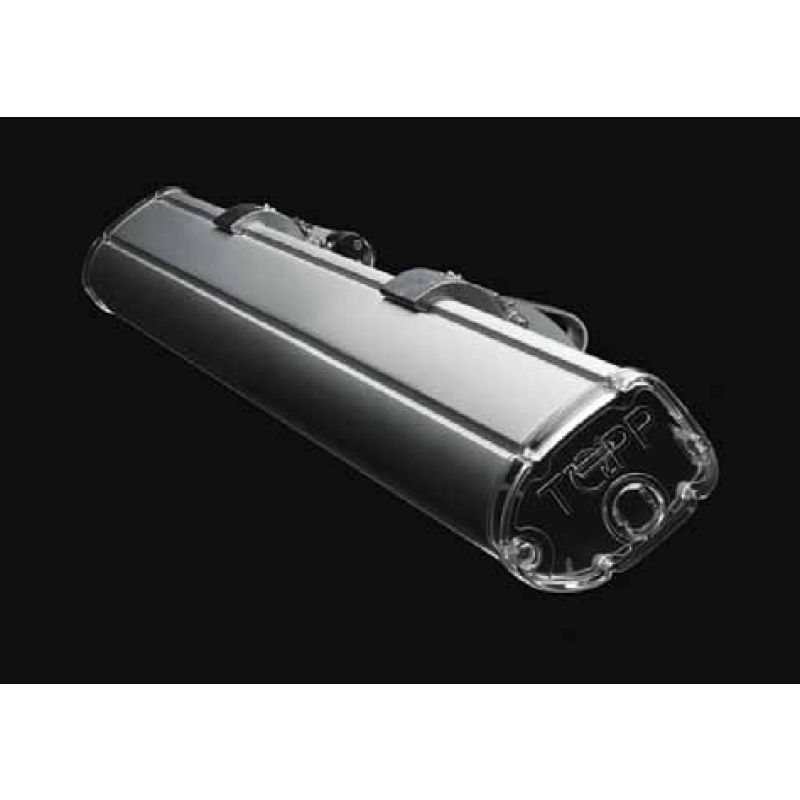

Electric actuator Topp model C130 with double-link chain, in an elegant die-cast aluminium profile, with custom-made length from 60 cm to 120 cm, complete with brackets and accessories for top and bottom hung windows.
Operation at 230V 50Hz.
Max thrust force 300N.
Fast hooking and unhooking system to the window frame.
Max stroke 36 cm.
CE marked device.
Technical characteristics:
- Power supply voltage: 230V 50Hz;
- Max recommended load in thrust: 300N;
- Max recommended load in traction: 200N;
- Stroke: up to 360 mm;
- Absorbed current: 0,12A;
- Idle translation speed: 8 mm/sec;
- Duration of the idle stroke: 46 sec;
- Double electrical insulation: yes;
- Service type: S2 of 4 min;
- Operating temperature: - 5° + 50° C;
- Protection degree of electric devices: IP30;
- Stroke end regulation in closure: not necessary;
- Connection of two or more actuators in parallel: yes;
- Stroke end: electronic in opening, by amperometric absorption in closing.

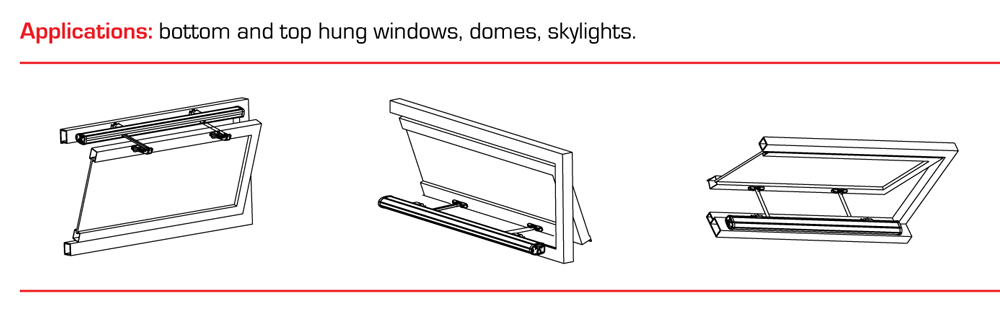

Applications: bottom and top hung windows, domes, skylights.
What is included?
C130 chain actuator, frontal bracket for top hung windows (2 pcs), clamps set for top hung brackets (2 pcs), ARS fast hooking device to the frame.
