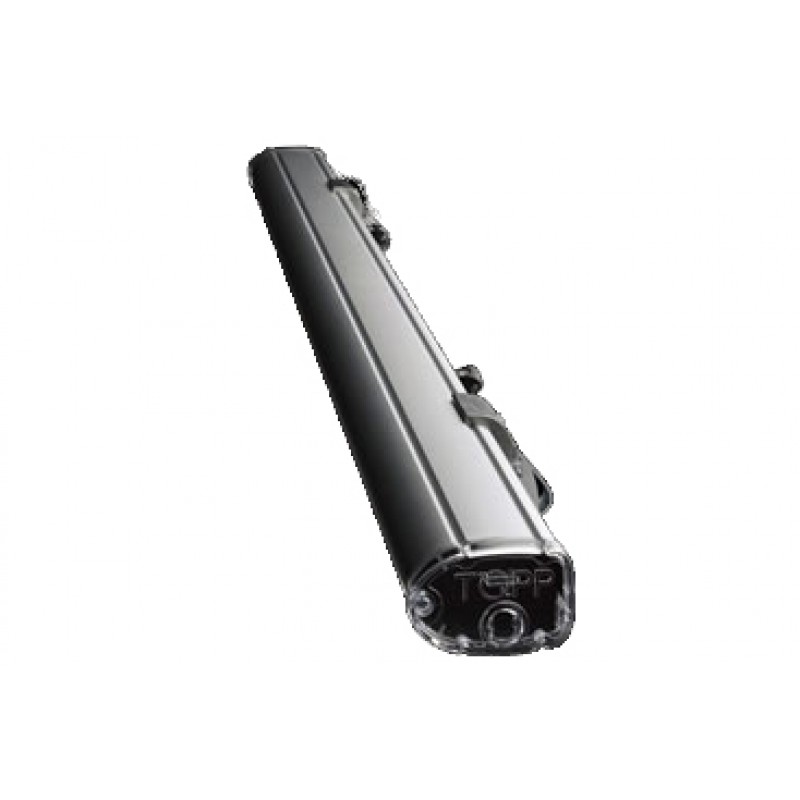

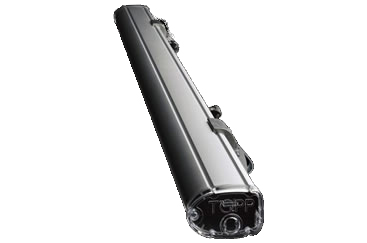

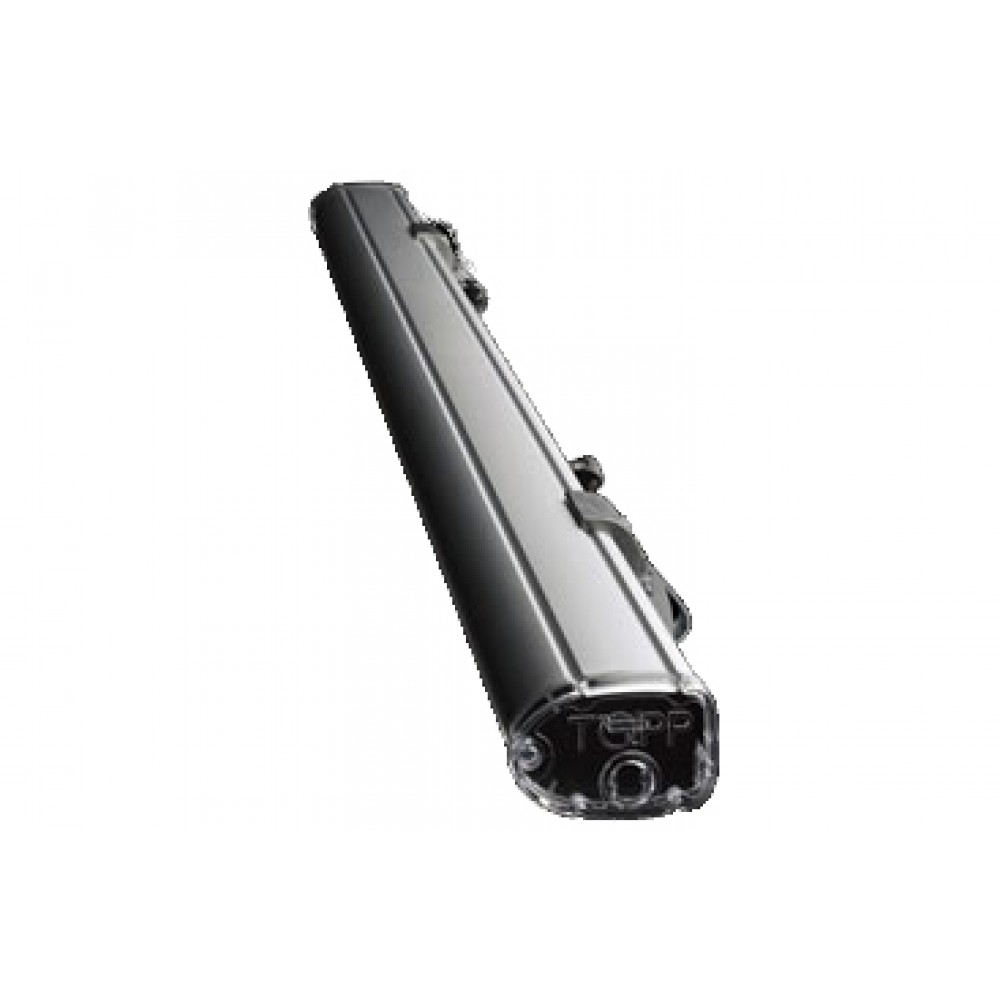

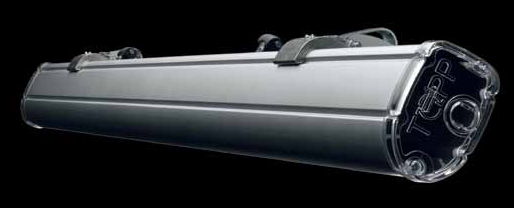

Topp C240 230V Double Chain Actuator 2 Push Points to Protrude

Topp C240 230V - Double Chain Actuator 50Hz - 2 Protruding Push Points

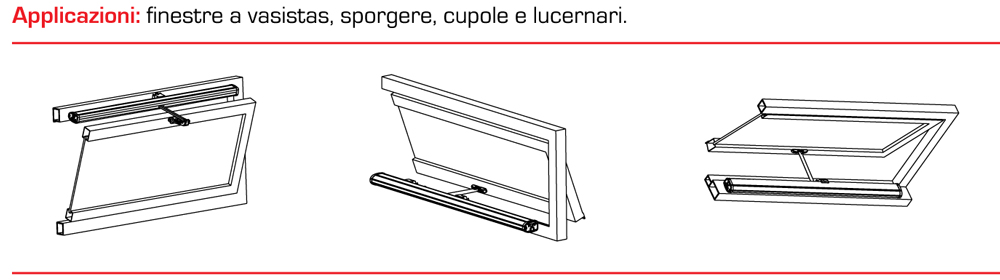

Topp C240 Stroke 36cm - Ideal for overhanging applications

• Operation Topp C240 230V 50Hz.
• Maximum applicable load 400N.
• Quick coupling attachment to the frame.
• Stroke 360mm.
• Length of the C240 Topp actuator: from 1.2m to 1.5m or from 1.5m to 2m or from 2m to 2.5m or from 2.5m to 3m or from 3m to 4m (optional).
• CE marked device.

Technical features Topp C240 230V

• Supply voltage: 230V 50Hz;
• Maximum applicable thrust load: 400N;
• Maximum applicable load in traction: 300N;
• Stroke: 360mm;
• Absorption: 0.22A;
• No-load translation speed: 8mm/s;
• Duration of idle run: 46s;
• Double electrical insulation: yes;
• Type of service: S2 of 4min;
• Operating temperature: - 5 / + 50 °C;
• Degree of protection for electrical devices: IP30;
• Adjustment of the attachment to the frame: not necessary;
• Parallel connection of 2 or more actuators: yes;
• Limit switch: electronic in opening, amperometric absorption in closing.

Why choose C240 Topp?

1. Customization of the length of the extrusion according to the width of the window (international patent).
2. Adjustable tilting brackets on the length of the extrusion.
3. Cable supplied with the possibility of output from both sides.
4. Quick hooking and unhooking system of the chain to the window.
5. Innovative design.
