Linear Stem Actuator SL60 230V 50Hz Topp 1 Push Point Stroke 18-75cm
ATTENTION: This product is no longer available and has been replaced by the S80 230V Topp actuator.
Go to the page of the new actuator that can be purchased on Windowo.

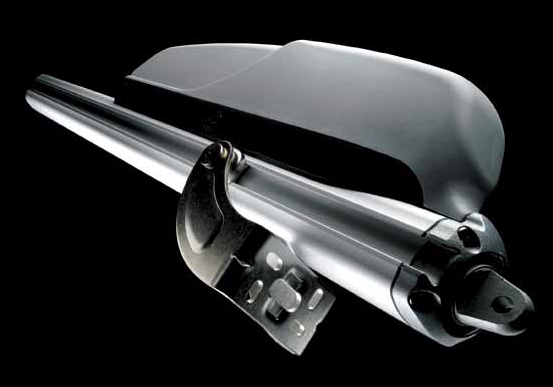

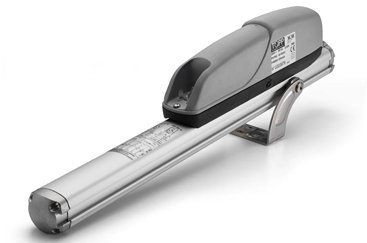

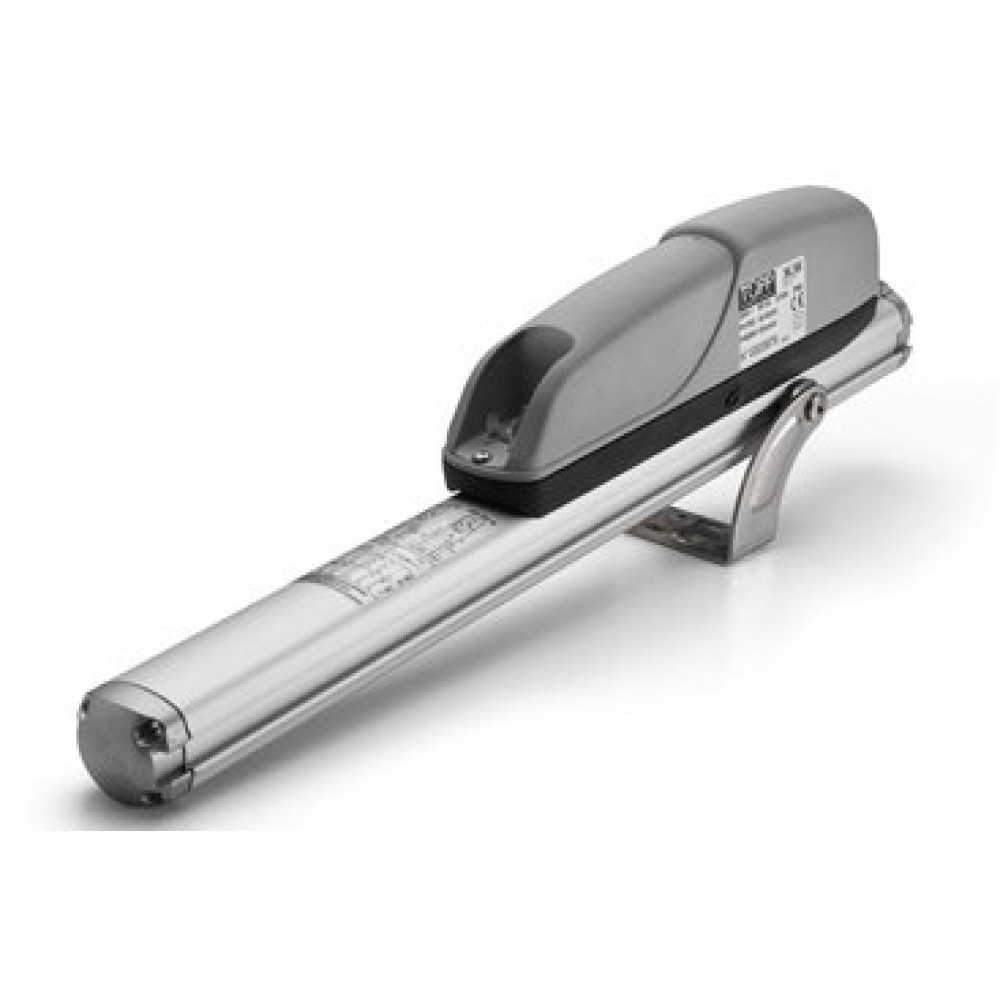

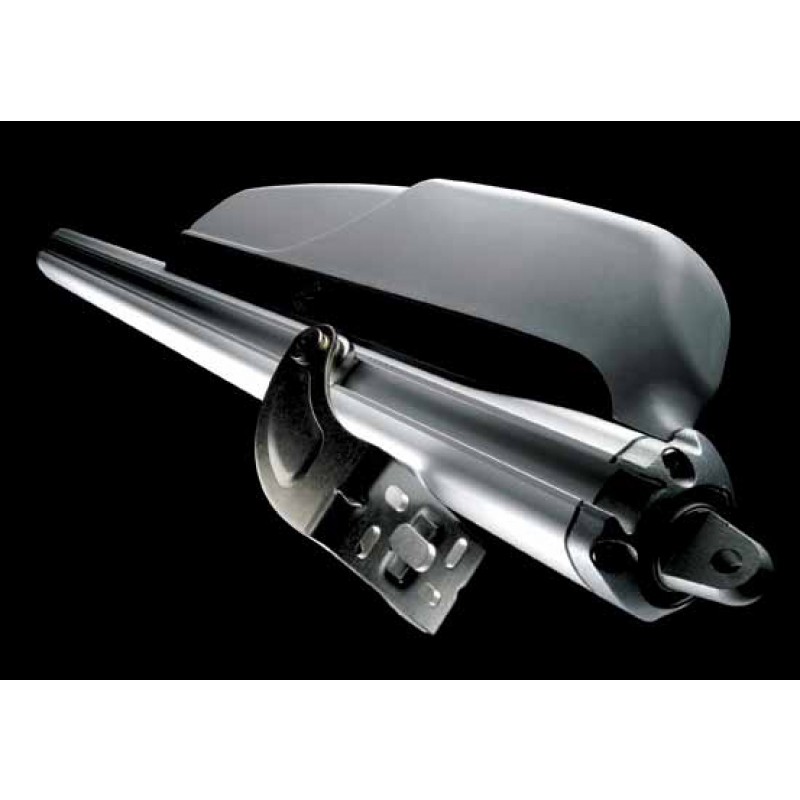

Linear electric actuator Topp model SL60 with self-aligning tilting movement, complete with support and fitting accessory for top hung windows
Operation at 230V 50Hz.
Max traction and thrust force 600N.
Preset for the connection in parallel of two or more actuators, with stroke end microswitches.
Available strokes: 180, 230, 350, 550, 750 mm.
CE marked device.
Technical characteristics:
- Power supply voltage: 230V 50Hz;
- Maximum applicable load in thrust: 600N;
- Maximum applicable load in traction: 450N;
- Stroke: 180, 230, 350, 550, 750 mm;
- Absorbed current: 0,33A;
- Idle translation speed: 12mm/sec;
- Duration of the idle stroke: stroke/idle translation speed;
- Double electrical insulation: yes;
- Service Type: S2 of 3 min;
- Operating temperature: -5° +50° C;
- Protection degree of electrical devices: IP55;
- Parallel connection of 2 or more actuators: yes;
- Stroke end: micro switch;
- Dimensions: from 337 up to 907x47x104 mm.

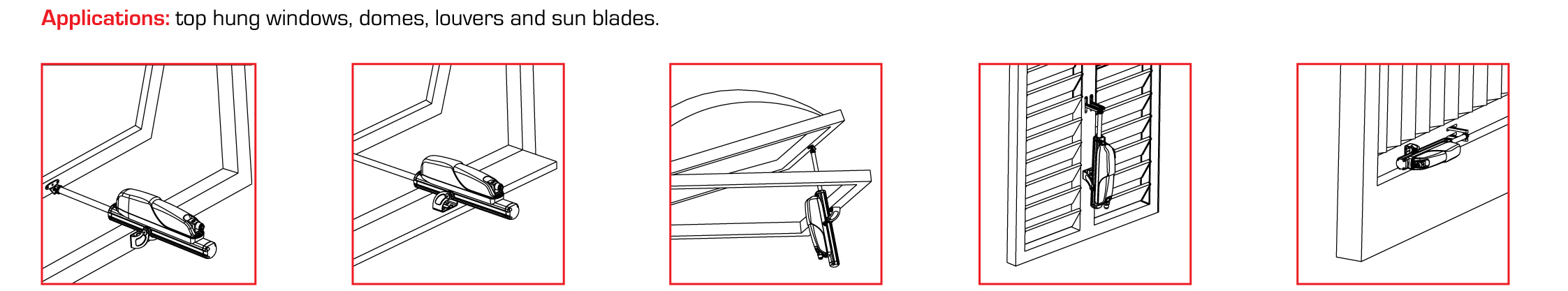

Applications: top hung windows, domes, louvers and sun blades.

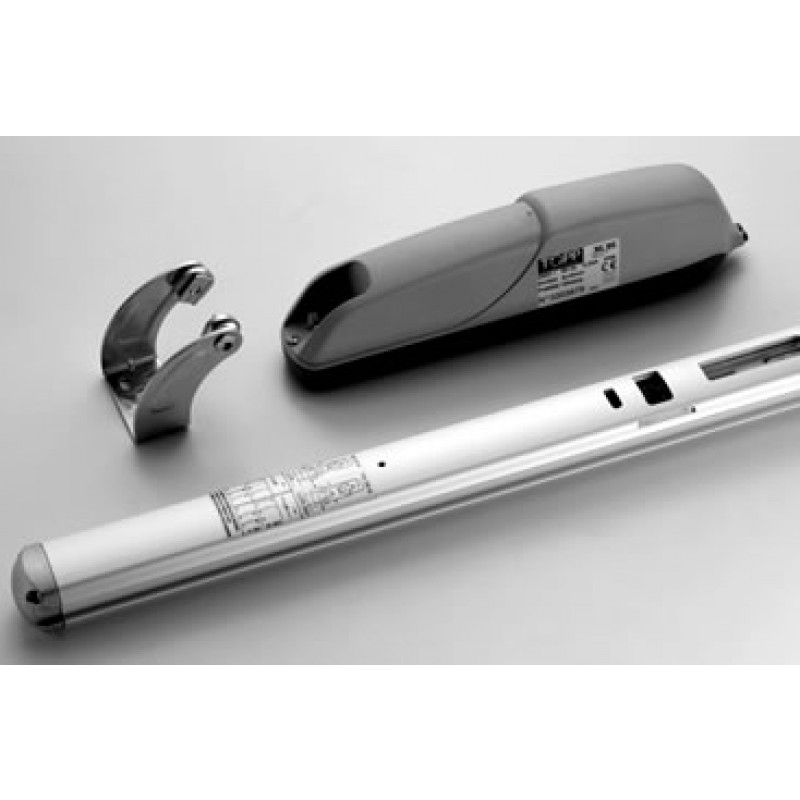

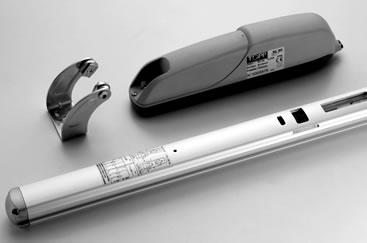

What is included? SL60 linear stem actuator, actuator supporting bracket, fitting bracket to the frame, spare parts.
Why choose SL60 Topp?
- Machine composed by an electrically operated geared motor and a thrust actuator, which can be assembled, to reduce warehousing costs;
- Rapid hooking system between electrically operated geared motor and thrust actuator;
- Easy and fast assembly and adjustment thanks to the pathways for the connection of the strong steel support;
- Electric parts in double insulation (no ground cable required);
- High protection degreeIP55.
