Rack Actuator T80 24V Topp 1 Push Point Stroke 18-100cm
ATTENTION: This product is no longer available and has been replaced by the S80 24V Topp actuator.
Go to the page of the new actuator that can be purchased on Windowo.

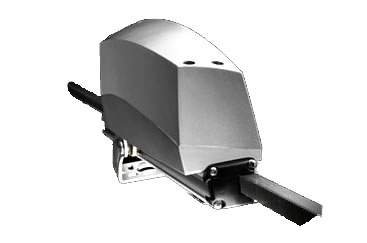

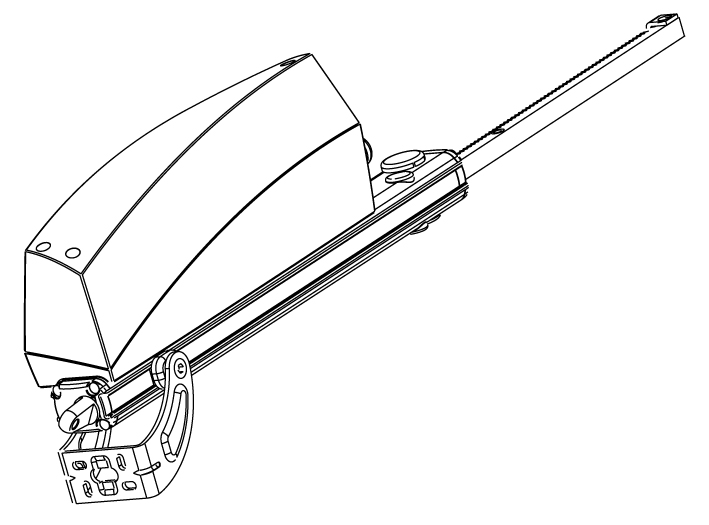

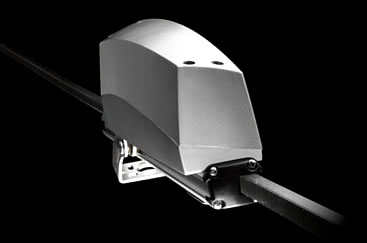

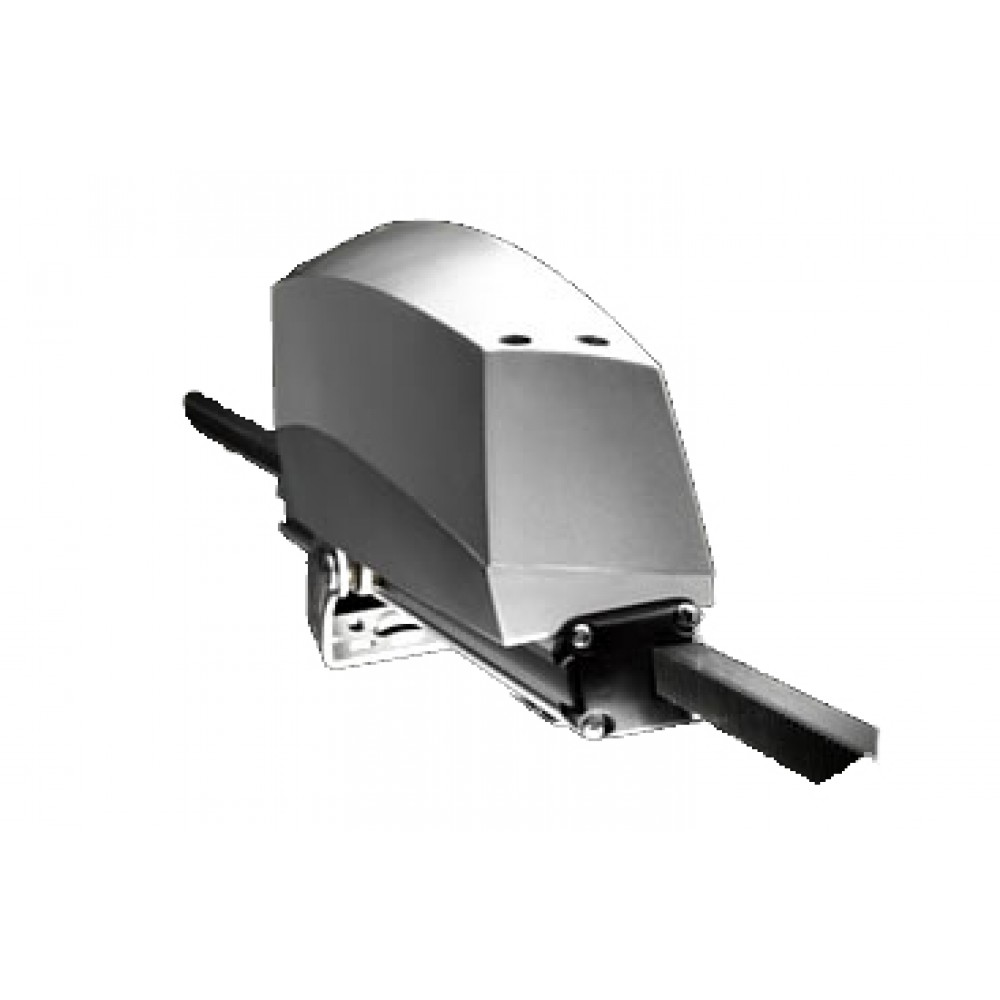

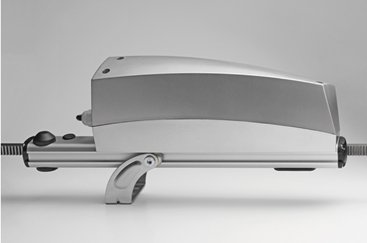

Electrical linear actuator Topp model, with tilting self-aligning movement, with rack, with brackets and accessories for top hung windows
Operation at 24V DC.
Max traction and thrust force 800N.
Limit switch by Diodo hall.
CE marked device.
Technical characteristics:
Power supply voltage: 24V;
Max recommended load: 800N;
Strokes: 180 - 230 - 350 - 550 - 750 - 1000mm;
Absorbed current: 1,35A;
Idle translation speed: 12mm/s;
Double electrical insulation: yes;
Service type: S2 of 4min;
Operating temperature: -5° +55°C;
Protection degree of electric devices: IP55;
End of stroke: electronic;
Dimensions: from 571,6 up to 1391,6x68,7x137,4mm.

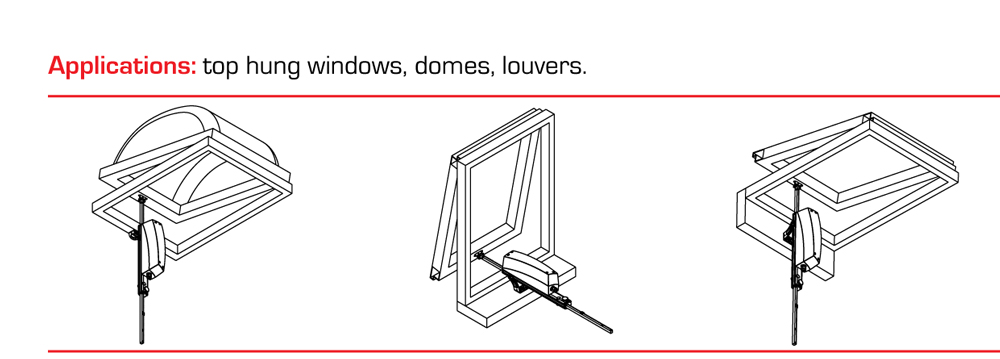

Applications: top hung windows, domes, louvers.
What is included?
T80 rack actuator, brackets set for 1 single push point, spare parts for 1 single push point.
Why choose T80 Topp?
Fast installation also without power assured by the steel bracket easily adjustable along the dovetail guides.
High protection degree IP55.
Special rack with very high resistance on top loads.
Innovative design.
