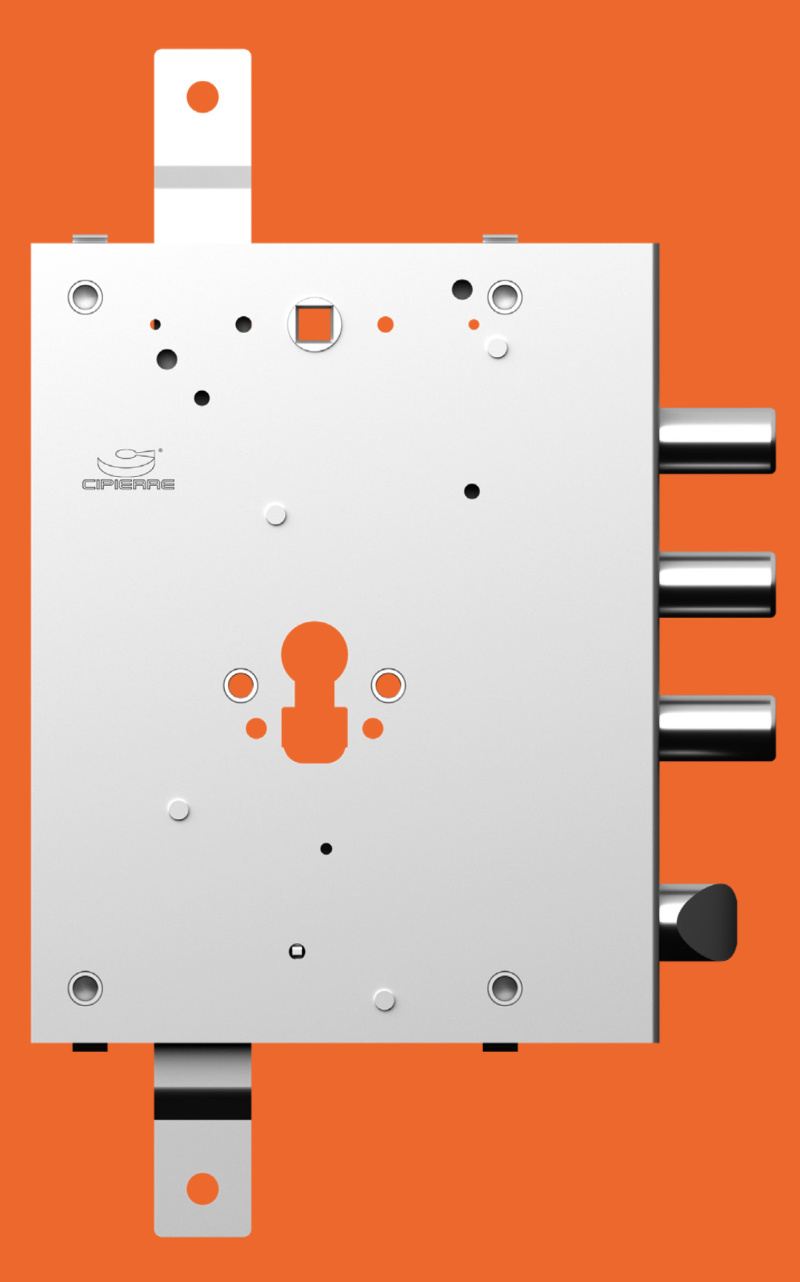

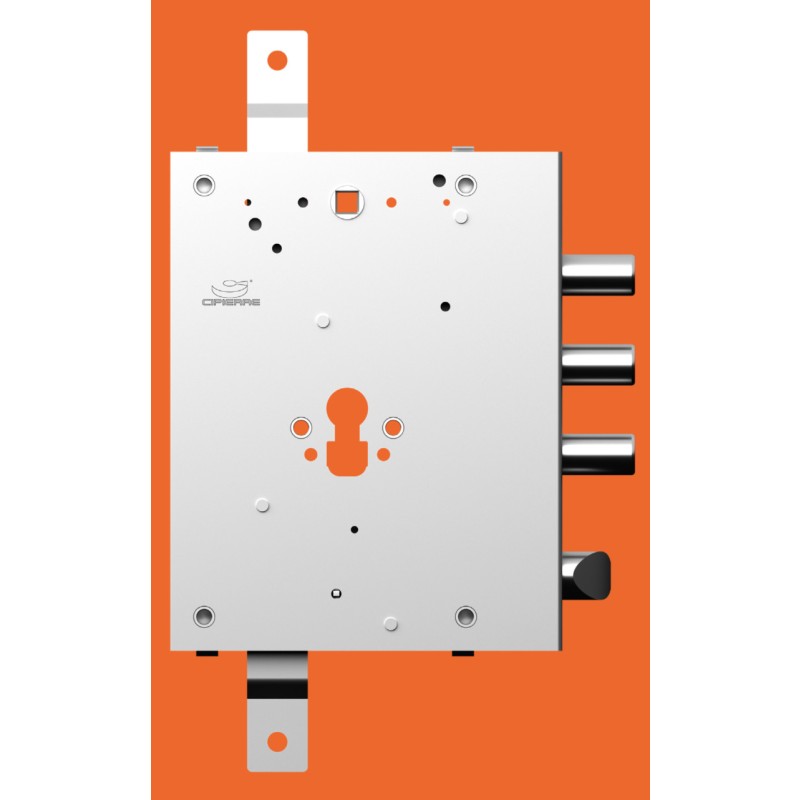

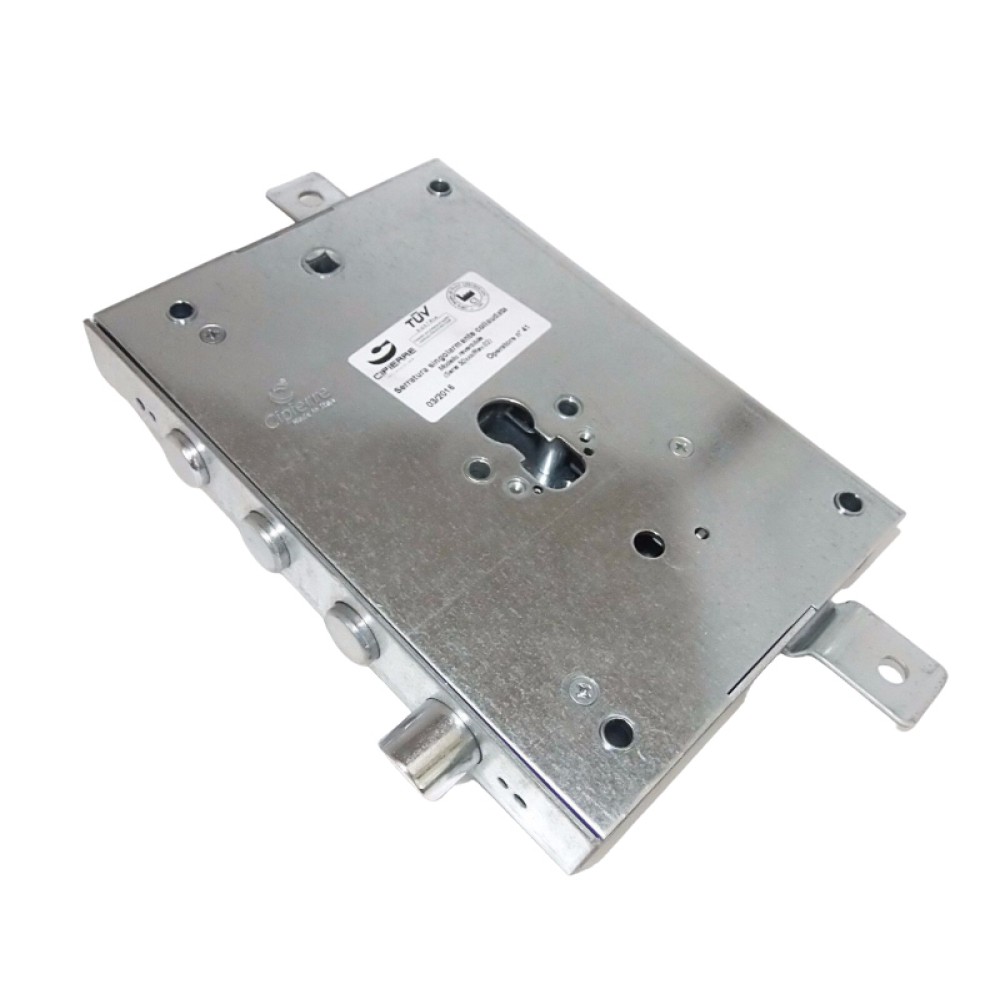

Triple Cylinder Lock with Lever Mechanism GA137/90 - Series GA Cipierre
The
GA137/90 triple cylinder lock with lever mechanism from the Cipierre series is an advanced solution to ensure maximum security for your armored doors. This lock is designed for armored doors with a 90 mm backset and is equipped with three locking points.
The GA137/90 lock is made in Italy with high quality materials. The lever mechanism ensures quick and effective opening and closing, while the three locking points increase the security level of your armored door.
Triple cylinder lock with lever mechanism
- Resistance to axial load > 6KN;
- Planar version;
- 90mm backset;
- Deadbolt distance 37 mm;
- Ø18 rotating bolts;
- Ø20 reversible latch;
- With throws made, the handle does not operate the latch bolt;
- Double anti-handling system with ejected cylinder and quickdraws block (only version/AB);
- 4 caged dice;
- Cylinder fixing with supplied support and screws.
