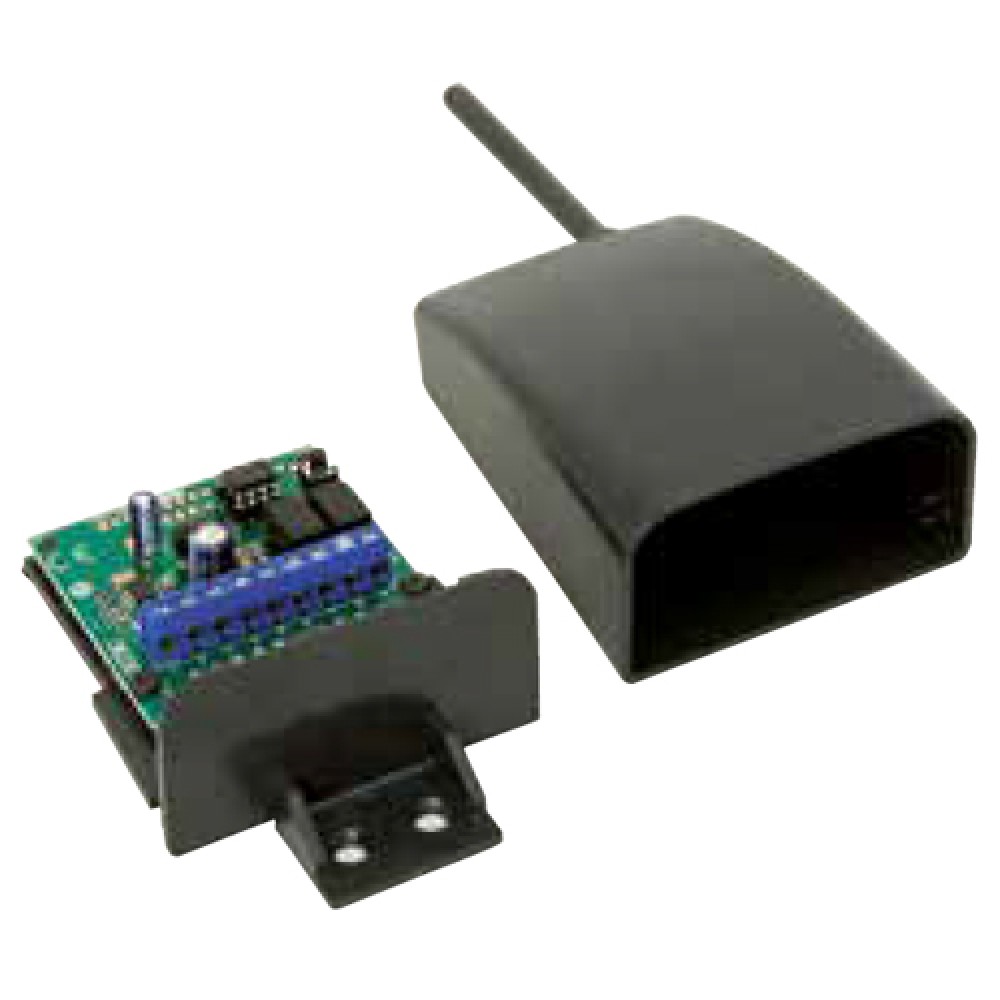

Two Channel Receiver for Management of Two Separate Opening Commands 55416 Profilo Series Opera
Use
Two channel self learning receiver for two separate opening commands (example: separate opening of the two doors in any interlocking system).
Characteristics
Container in grey or black ABS.
Container size: 200 x 75 x 40.
Circuit dimensions (mm): 58 x 58.
Operating voltage: 12/24 Vac/Vdc.
Current: 50 mA max with relays active.
Frequency 433.92 MHz.
Programmable codes: 199 different codes with standard 12-64 bit or Rolling Code.
Output: via C./N.A relay contacts in pulse, bistable or timed bistable mode.
1 C./N.O./N.C switching relay with 1A rating.
1 C./N.O contact relays with 1A rating.
Rating: 50/80 metres with wire antenna supplied in the package.
Applications example
Profilo Series Opera
Elegant and innovative indicator lamps serie.
High efficiency LED lighting.
Standard Red / Green version as door status indicators.
White / Blue version as lighting system or step light.
Reduced dimensions for insertion on narrow doors.
External intercom version with the same dimensions.
