Ultraflex Rack 24Vdc - Rack Actuator - Push force 750N

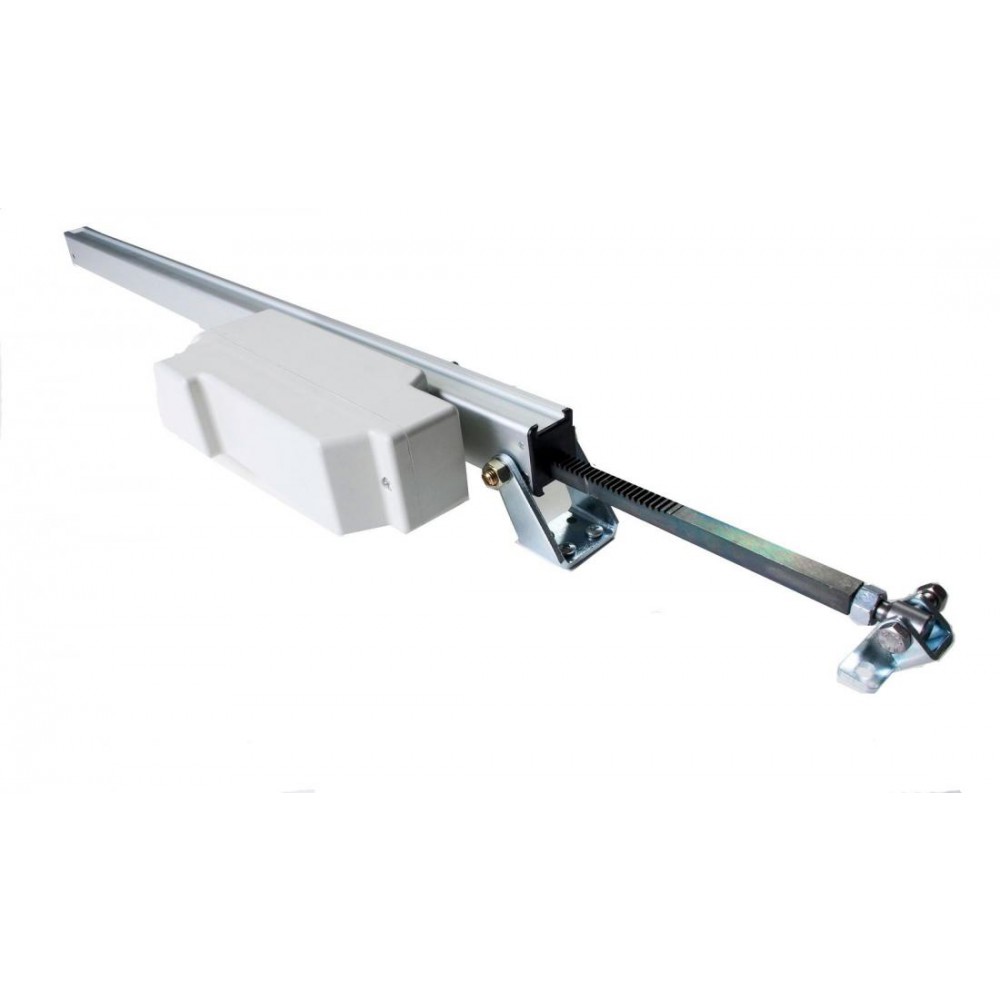

Ultraflex Rack, linear electric actuator with rack movement
- Stroke (to choose between): 180 - 350 - 550 - 750 - 1000 mm;
- Color: anodized silver;

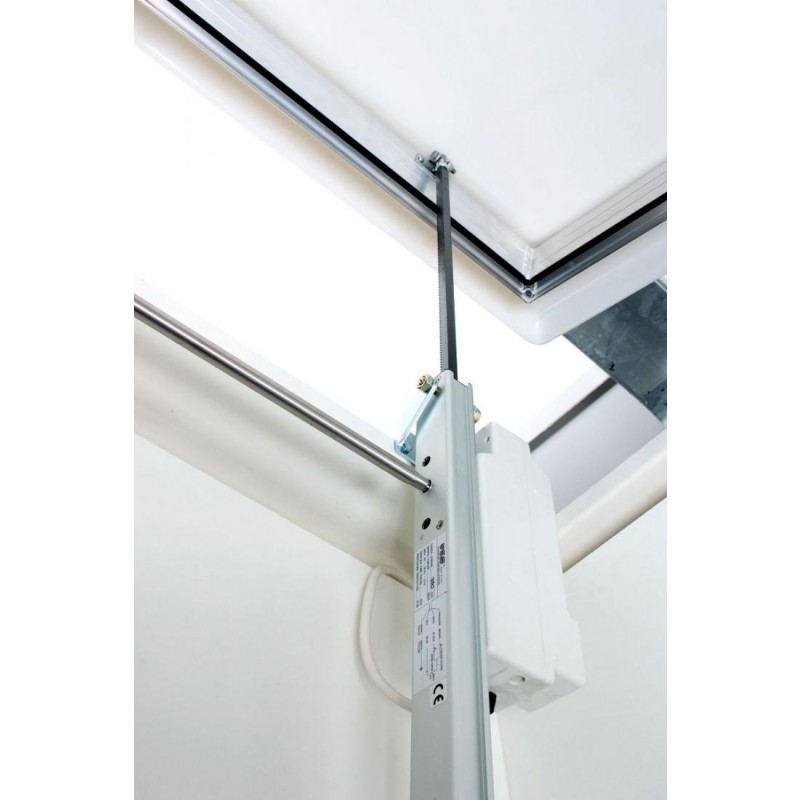

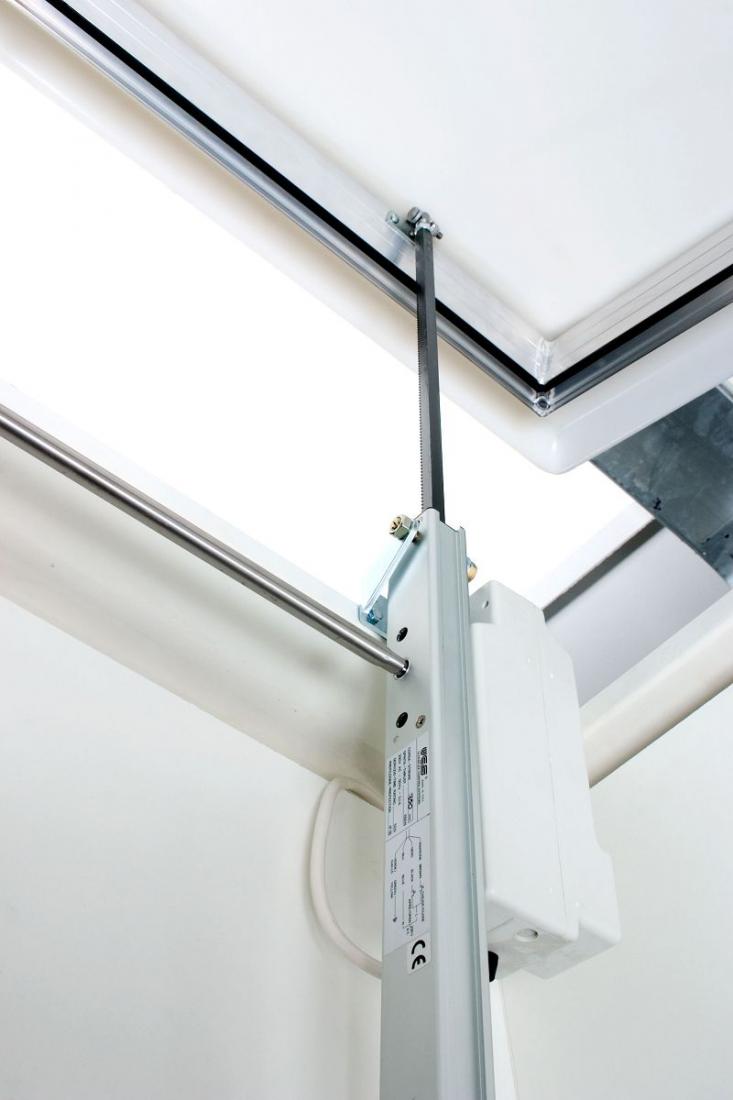

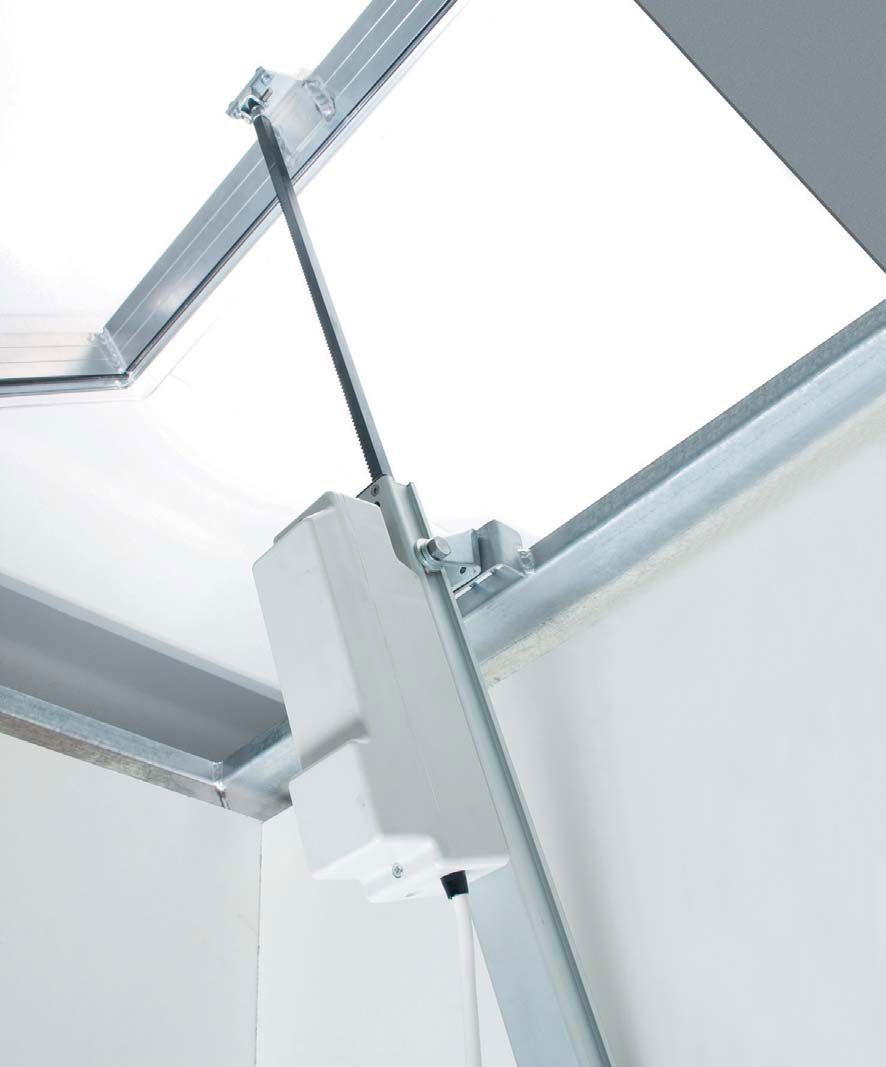

- Possible applications: on top-hung windows, on domes, on sunshade blades, etc.

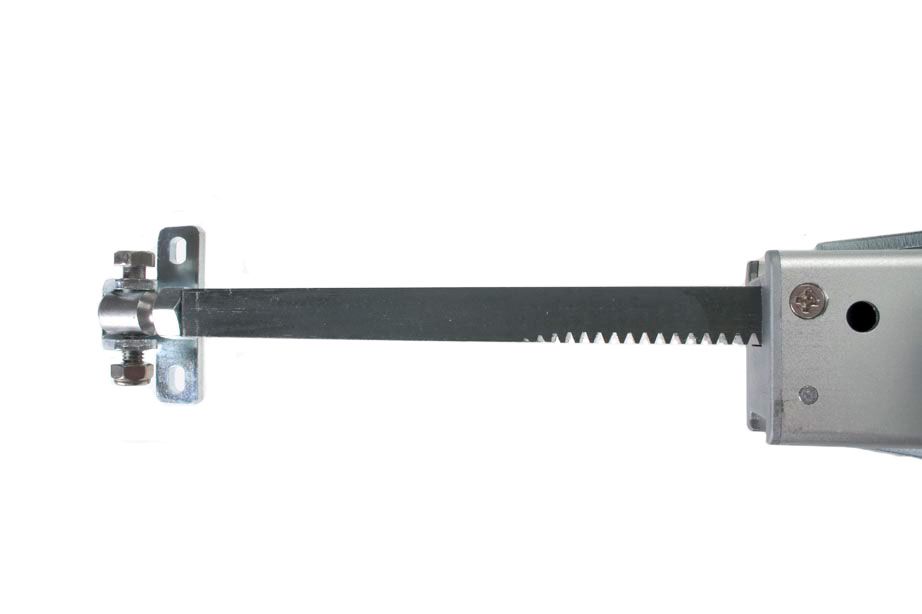

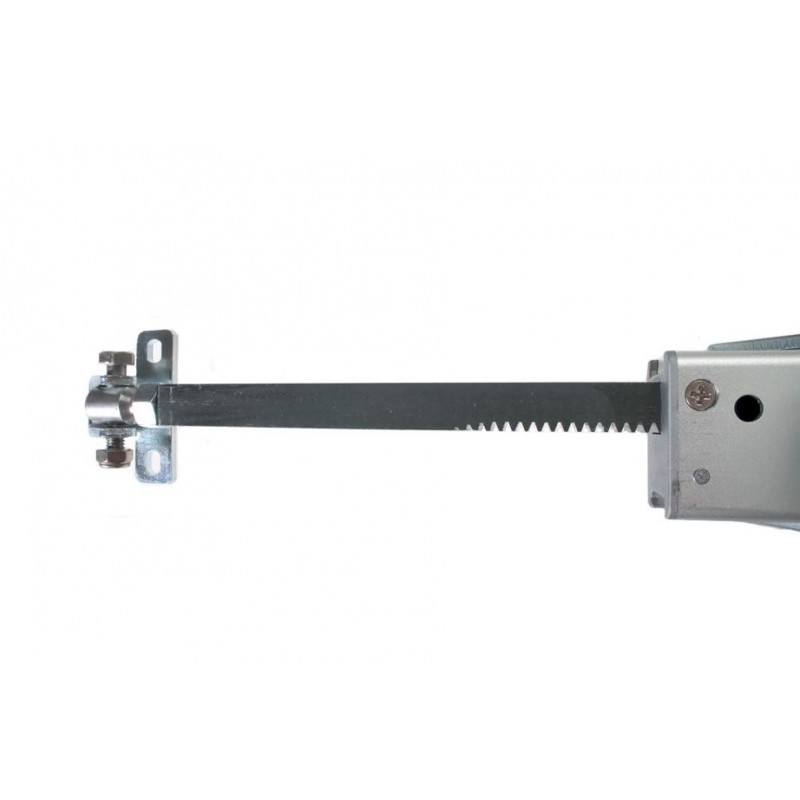

Movement transmission by 10 mm square rack for 180 mm, 350 mm and 550 mm strokes and 12 mm square rack for 750 mm and 1000 mm strokes.
Supplied with 1.5m of electric cable.
To be ordered separately, the brackets for front-rear fixing or sliding within the dovetail guides for fixing the actuator along its entire length.
The 24 Vdc version is suitable for use on smoke and heat extractors in compliance with the UNI EN 12101-2 standard.
(*) RACK 24 Vdc approved by TÜV test (Nr. KH00.1.2). Jordan Institute (243341).
Technical features Ultraflex Rack 24Vdc
- POWER SUPPLY 24 Vdc ± 10%
- ELECTRICAL CONNECTION 2 wires + signaling
- COMMAND with polarity inversion
- PUSH FORCE 750 N
- FORCE IN TRACTION 650 N
- SPEED ~8 mm/s
- ABSORPTION (at maximum load) 1 A
- CAN BE CONNECTED IN PARALLEL YES
- LIMIT SWITCH electronic stop
- PROTECTION electronic shutdown
- OPENING/CLOSING LIMIT SWITCH POSITION SIGNALS
- PROTECTION DEGREE IP 55
- ANODIZED SILVER COLOUR.
| CODE |
MODEL |
DESCRIPTION |
| 40400A |
DC racks |
Rack actuator 24 Vdc 180 stroke 180mm |
| 40217D |
DC racks |
Rack actuator 24 Vdc 350 stroke 350mm |
| 40219H |
DC racks |
Rack actuator 24 Vdc 550 stroke 550mm |
| 40791F |
DC racks |
Rack actuator 24 Vdc 750 stroke 750mm |
| 40792G |
DC racks |
Rack actuator 24 Vdc 1000 stroke 1000mm |
Supplied accessories: zinc-plated steel sliding bracket cod. 40235F (makes it possible to fix the entire length of the actuator), galvanized steel connector for fixing the stem to the mobile leaf.
