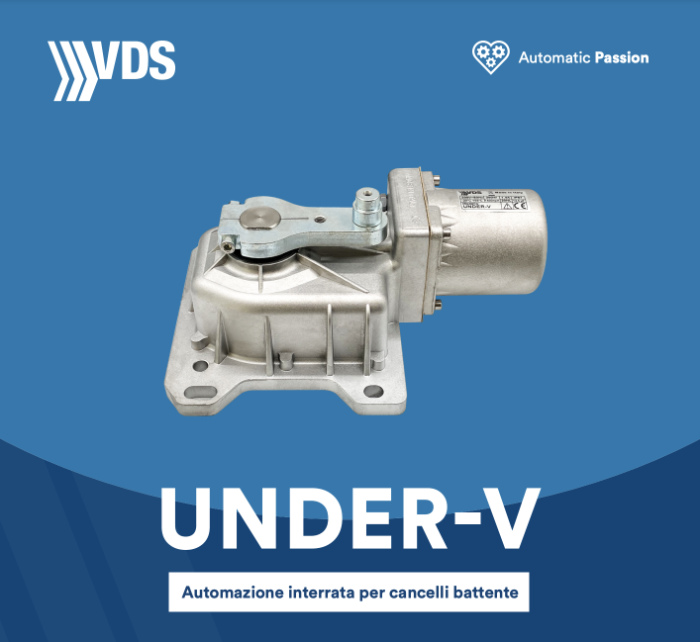

UNDER-V VDS - Swing Gate Actuator - Underground Motor
UNDER-V VDS is an
actuator for swing gate with underground motor. This allows an aesthetically "cleaner" entrance to the house.
The UNDER-V VDS electromechanical actuator is sold online in
the motor-only version or in kit with control equipment plus accessories.

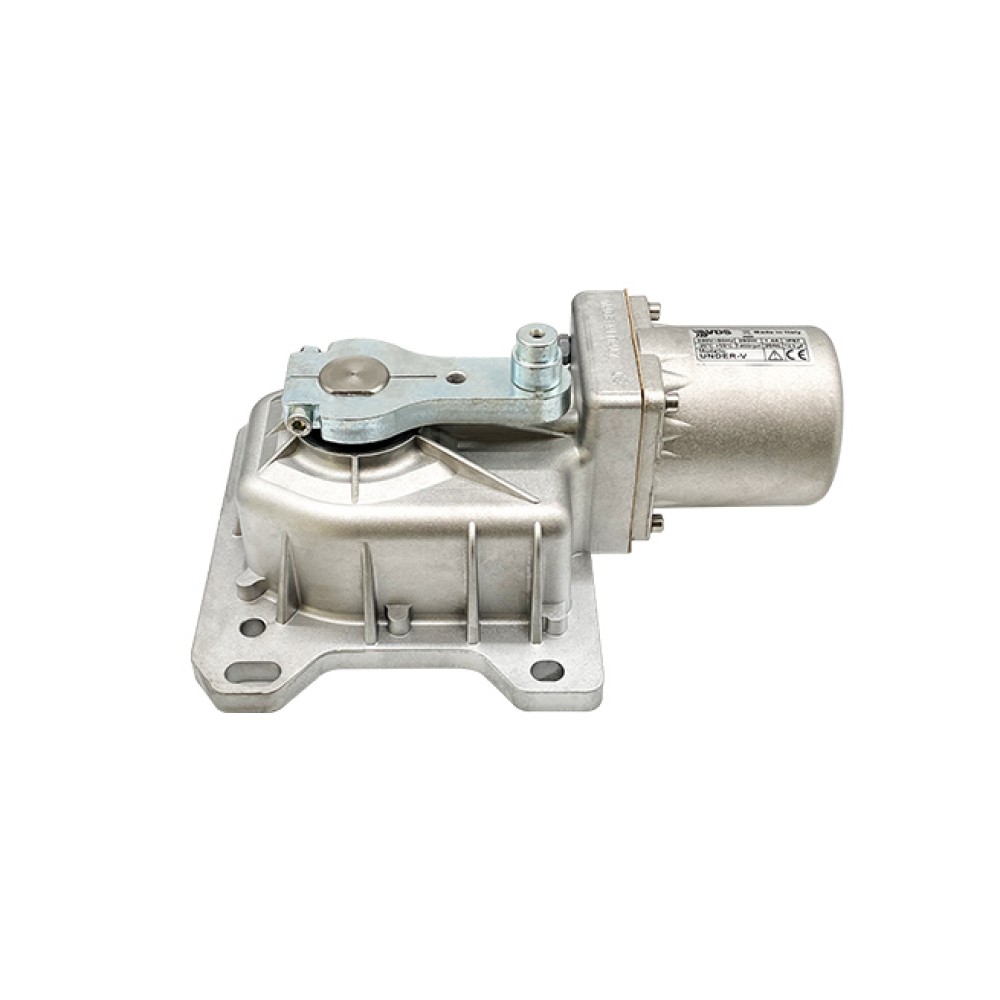

The UNDER-V VDS underground motor has a
thrust force of 250 NM and lifts a maximum of 500 kg in the 230V or 24V version.
Advantages UNDER-V VDS actuator for underground gate
- Gearmotor made of die-cast aluminum Gears in steel, cast iron and bronze machined from solid;
- Self-supporting automation, ideal for large gates ;
- 90 ° opening lever kit;

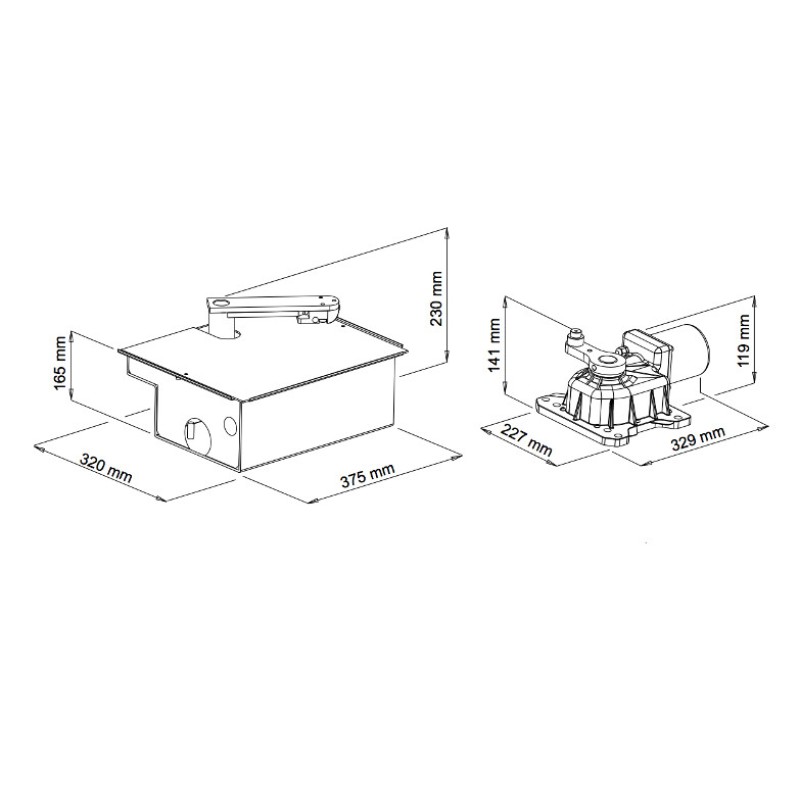

- Foundation box in galvanized sheet;
- Maximum silent operation;
- High Performance electric motor;
- Mechanical release for emergency operation with the lever supplied;
- Transmission shaft and screws in stainless steel;
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust;
- 90 ° opening;
- Anti-crushing device (EN 12453);
- Speed slowdown (EN 12453);
- Optional battery back-up kit;
- Power supply 230V - 24V.
UNDER-V VDS actuator performance requirements
- SEMI-INTENSIVE use 230VAC, INTENSIVE 24VDC;
- Frequency of use 50% (230VAC) - 90% (24VDC);
- Opening time 16 SEC;
- Torque yield 250 Nm;
- Pinion rotation 90 °.
In the UNDER-V series, for better radio reception we recommend the use of an external antenna cod. 210/1.
In strong winds and cold temperatures, the performance of the actuator can be considerably reduced

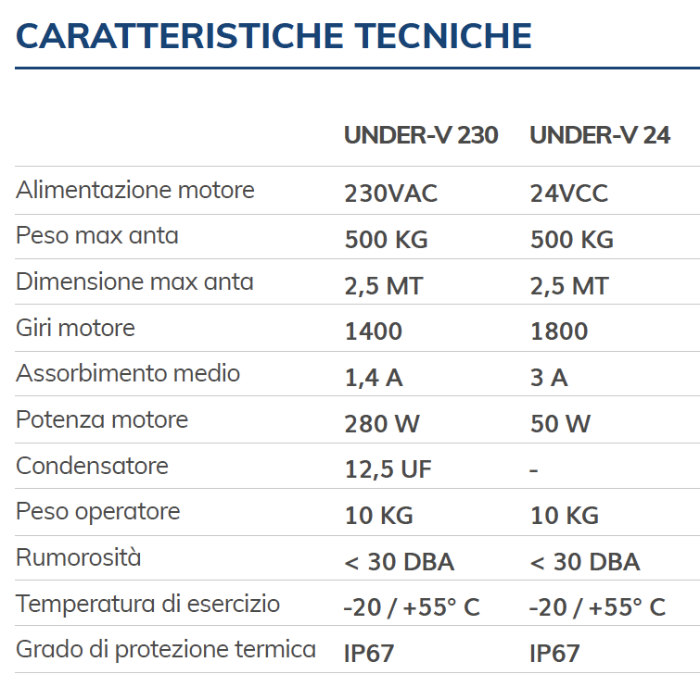

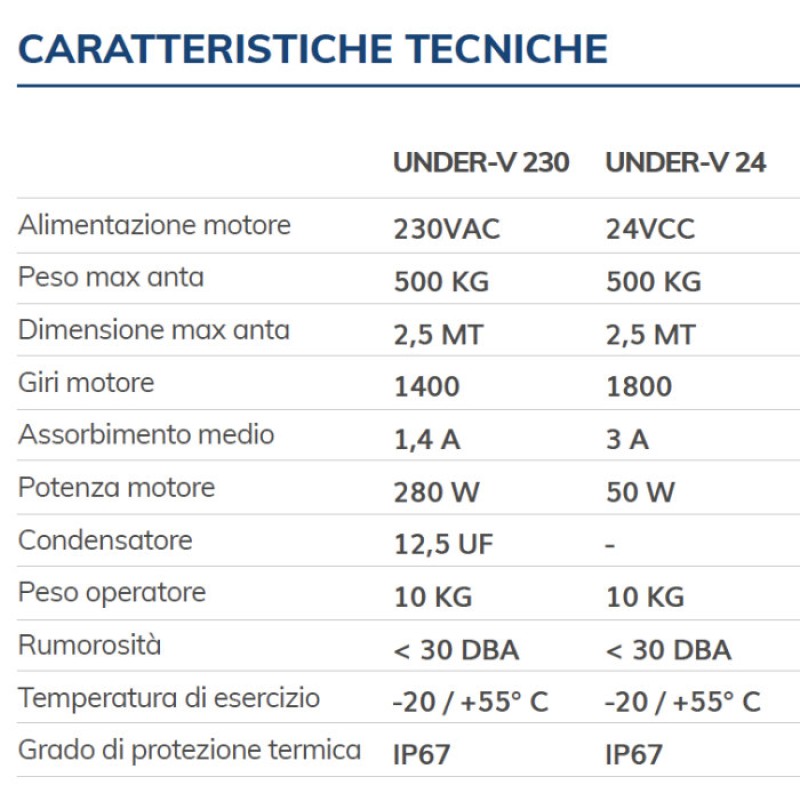

Features actuator for UNDER-V VDS swing gate
- Motor power supply: 230V or 24V (by choice);
- Max leaf weight: 500 kg (both 230V and 24V);
- Max leaf size: 2.5 meters;
- Engine revolutions: 1400 rpm (230V) or 1800 rpm (24V);
- Average absorption: 1.4 A (230V) or 3 A (24V);
- Motor power: 280W (230V) or 50W (24V);
- Capacitor: 12.5 UF or zero;
- Operator weight: 10 kg;
- Noise: <30 DBA;
- Operating temperature: -20 / + 55 ° C;
- Degree of protection: IP67.
Photo of what the UNDER-V 2-leaf 230V Kit includes.
What does the UNDER-V VDS gate automation kit include?
This motor can be purchased both in the single version and in kit with accessories included.
Here
's what the UNDER-V VDS KIT includes :
- Gearmotor;
- Control unit 230V or 24V;
- Pair of photocells;
- LED flasher;
- Key selector;
- Transmitter;
- Warning sign.
These accessories can also be purchased separately on Windowo.
What are underground motors for swing gates?
The
underground motors differ in their sturdiness and discretion which makes them
almost invisible .
This type of motor does not alter the aesthetics of the entrance. It is a solution that is also perfectly suited to condominium gates that require a significant amount of work.
In the VDS catalog you will find the UNDER-V model - 230V-24V Underground Electromechanical Actuator.
VDS Actuators for Swing Gates for Sale Online
The
VDS company has been operating in the gate automation sector for over thirty years.
Each
VDS swing gate actuator is manufactured in Italy by specialized personnel with quality raw materials.
