Electromagnet Variants Fire Control Series Opera
Use
Electromagnet variants Fire Control series Opera
Items are optionals to add to the elettromagnets
Electromagnets are disponible on our website
IMPORTANT
Contact us to add these optionals to your electromagnets
Variants
- 12 Vdc power
- 12 Vac power
- 24 Vac power
- 48 Vdc power
- 230/240 Vac power
- Reduced holding force 20 Kg
- Screw connector
- Status sensor
12 Vdc power
Use: for all electromagnets of
01620, 01630, 180, 190 series
Special coil for voltage 12 Vdc
Absorbed current: 120 mA

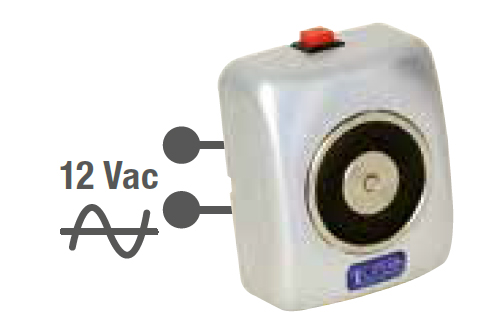

12 Vac power
Use: for all electromagnets of
01620, 01630, 180, 190 series
Special coil and rectifier circuit for operation of the electromagnet at 12 Vac
Absorbed current: 130 mA

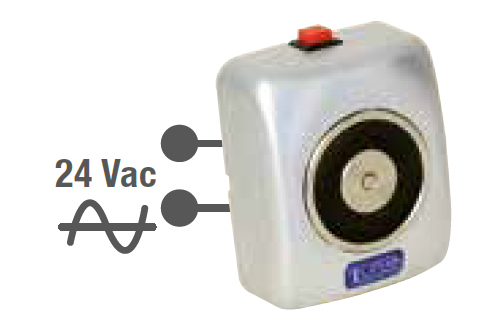

24 Vac power
Use: for all electromagnets of
Fire Control series
Rectifier circuit for voltage at 24 Vac
Absorbed current: 100 mA

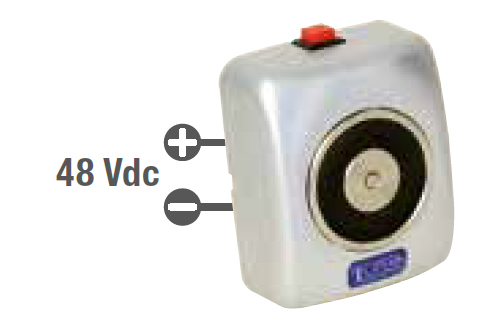

48 Vdc power
Use: for all electromagnets of
180, 190 series
Special coil for voltage at 48 Vdc
Absorbed current: 40 mA

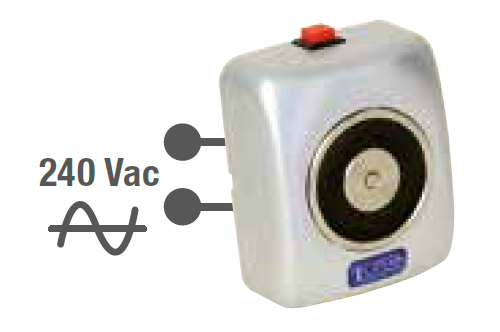

230/240 Vac power
Use: for all electromagnets of
180 series
Special coil for voltage at 230/240 Vdc
Absorbed current: 30 mA
Reduced holding force 20 Kg
Use: for all electromagnets of
01620, 01630, 180, 190 series
Current reducer to bring the holding force for the standard electromagnets to 20 Kg.
Screw connector
Use: for all electromagnets of
01620, 01630, 01820, 01830 series
Power connector with screw terminal block and anti-disturb varistor fixed on the body of the electromagnet

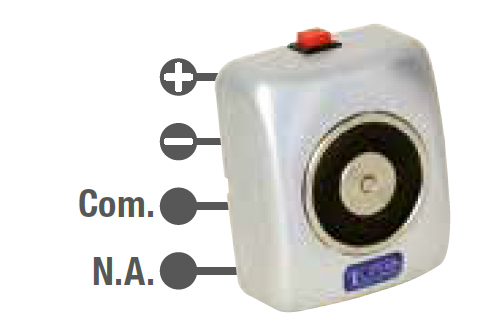

Status sensor
Use: for all electromagnets of
01620, 01630, 180, 190 series
Internal magnetic sensor with N.O. contact for indication of attracted Armature plate
