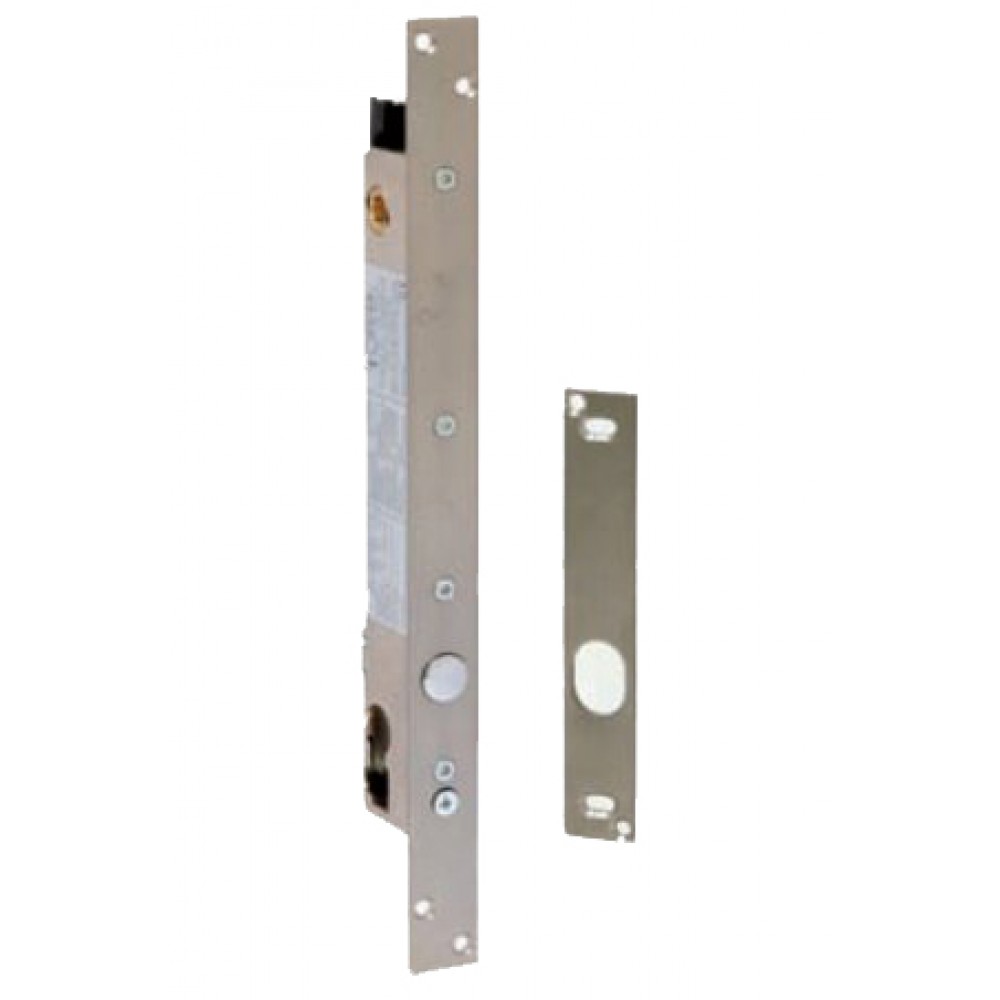

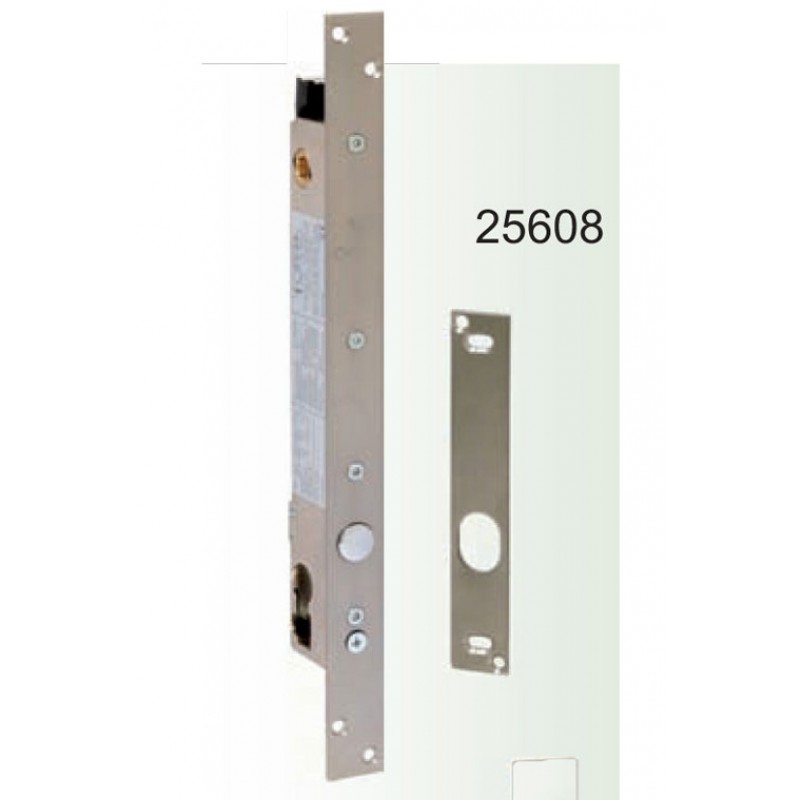

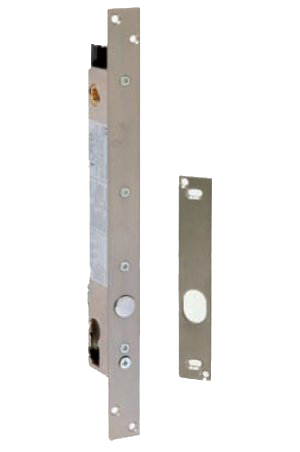

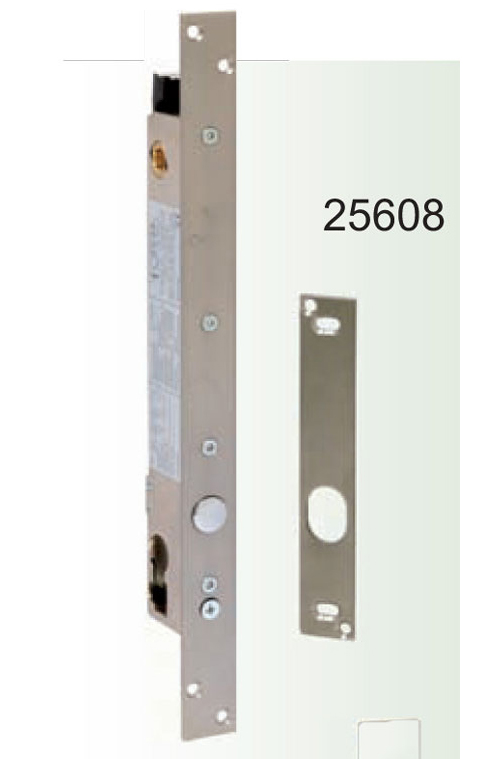

Vertical Safety Electrocution Opera 25608 with 8mm Handle Square
Vertical safety electrolock, Opera 25608 : this is an advanced device designed to
guarantee the safety and access control of swing doors , particularly useful in environments where high security is required.
This Opera electric lock model is equipped with an 8 mm handle square, which makes it compatible with a wide range of doors.
- Safety electrolock for single door. With 8mm handle square.
![](/data/image/Opera/prima-base.jpg)
- Deadbolt open in the absence of power.
- The package includes: electropiston, counterplate, connector and cylinder screw.
- The package does not include the power supply.
Variants and vertical safety electrode Opera 25608
- Standard Version : normal and without modifications;
- XL version : with +5mm increased extension deadbolt;
- SA version : with anti-bounce alignment ball mounted directly on the counterplate, with front ABS slide.
Technical characteristics of Opera 25608 vertical safety solenoid valve
- Mechanical opening with European cylinder (cylinder with internal knob cannot be used);
- Stainless steel front 320 x 25 x 3mm;
- Stainless steel strike plate 150 x 25 x 3mm with alignment magnet;
- Rotating deadbolt in anti-cut tempered steel with mechanical lock in the closed position;
- Deadbolt dimensions: 20mm extension (25mm in the XL version), 16mm diameter;
- Power supply: 12/24 Vdc;
- Absorbed current: 2.5/3 A peak - 130/230 mA electronically controlled maintenance;
- Internal microprocessor control electronics;
- Connection via quick-fit connector;
- Predisposition for interlocking connection between 2 or more doors;
- NA Opening Command;
- C./NO/NC contact for deadbolt position;
- Opto-electronic control of the deadbolt position;
- Internal magnetic sensor for door position;
- Buttons for monitoring and adjusting the closing times from 0-5 sec. when the door approaches and from 0-60 sec. if the door is not opened;
- The timings can be deactivated for the use of the solenoid valve with external management electronics;
Operation: vertical.
Available entries : 25-30-35mm.
NOTE: Complete your solenoid valve by considering the purchase of the Switching Power Supply Art.05320 Opera, available on Windowo in the same section.
It is also possible to purchase the Retractable Cable Grommet Art.08600 separately, for the direct passage of the wires between the door and the frame.
