Wall-Mounted Extractor Hood in Stainless Steel with Electric Fan Motor

Brands: OndaInox

Code: CPM

-20%

£ 509,18 £ 636,48

Prices excluding VAT

Depth hood (cm)

Hood length (cm)

Notes on stainless steel hoods:

They are custom made in Italy;
Includes wooden crate that protects during transport.

Right of withdrawal not applicable (Article 59 Consumer Code).

Quantity

- +

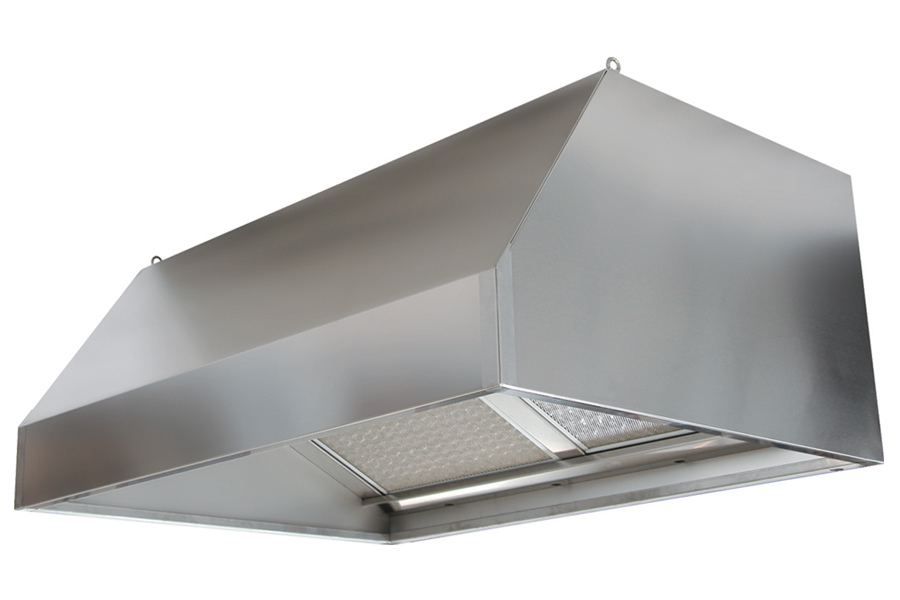

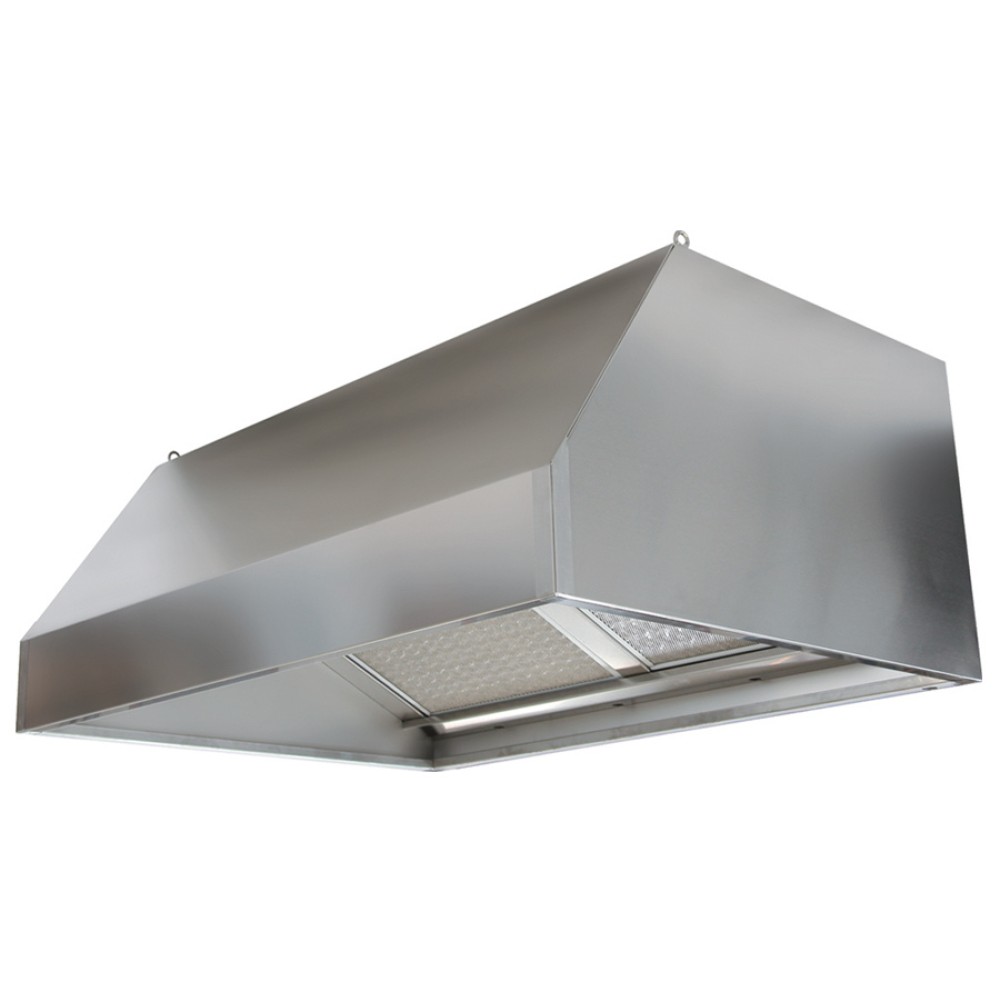

Wall-Mounted Extractor Hood - in Stainless Steel - with Electric Fan Motor

The stainless steel wall-mounted extractor hood with electric fan motor is an effective solution for extracting fumes in your kitchen.

Extractor hood made of elegant and resistant stainless steel , this hood is wall mounted for a space saving solution.

Hood with integrated electric fan motor, this hood guarantees efficient extraction of fumes, keeping the kitchen fresh and clean.

With a versatile design, this hood can be integrated easily into any type of kitchen.

Wall-Mounted Extractor Hood - in Stainless Steel - with Electric Fan Motor

Wall-mounted stainless steel extractor hoods for sale online

The wall-mounted extractor hood has a particular profile which makes it ideal for cooking blocks with a depth of 60-70-90 cm , positioned against the wall.

Construction in AISI 430 , Scotch-Brite satin finish. Completely rimbordata, even in the internal parts.

Including electric fan. Assembled by electro-welding.

Special executions (execution in AISI 304, assembly by welding) on request.

The wall-mounted extractor hood is supplied

Labyrinth filters in AISI 430 stainless steel;
1/2” condensate drain.

Notes on the wall-mounted extractor hood

Packaging included in the price;
Hanging kit and flange not included;
The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CS711 = CS712).

Wall-mounted self-suction hood in stainless steel

Cappa Aspirante a Parete - in Acciaio Inox - con Motore Elettroventilatore

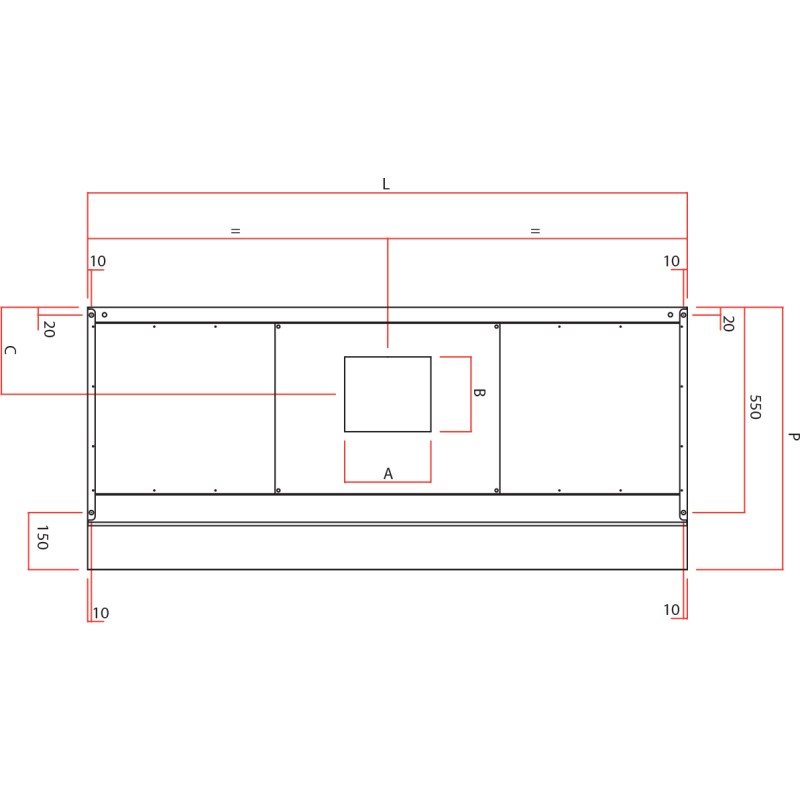

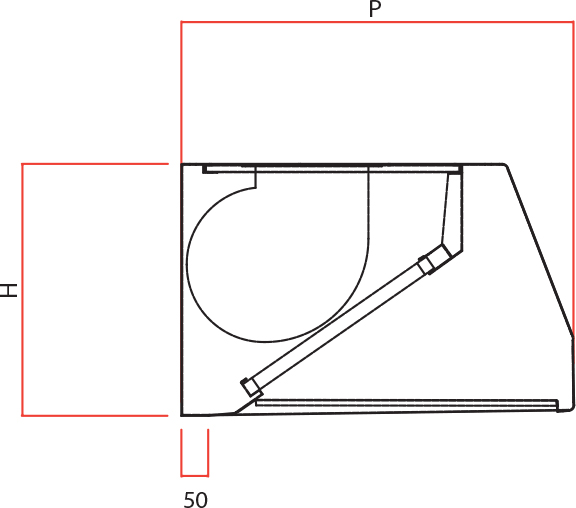

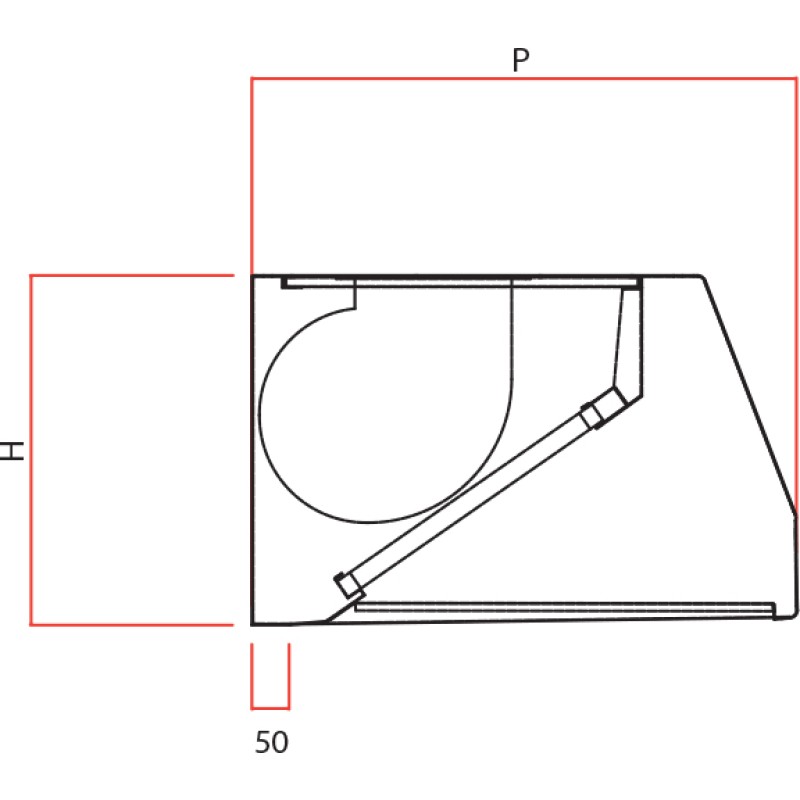

Wall-Mounted Extractor Hood - in Stainless Steel - with Electric Fan Motor - Depth 700 mm

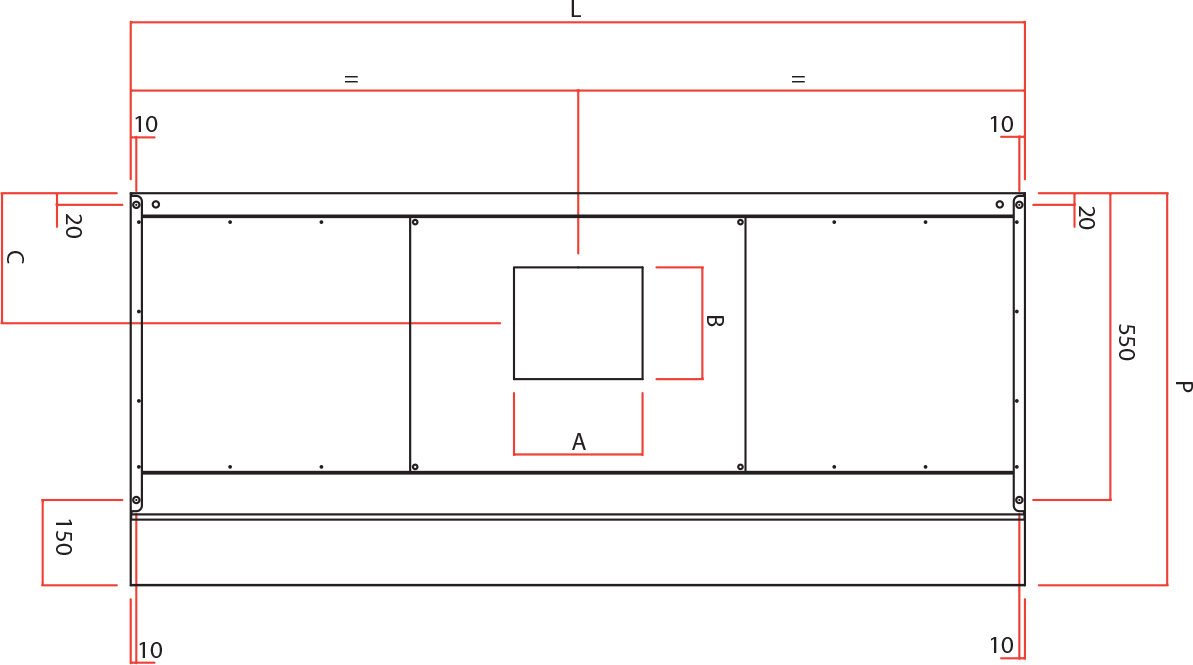

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor
CPM 7/10	700x1000x450	230x200	190	2a	38	7/7
CPM 7/12	700x1200x450	230x200	190	2b	42	7/7
CPM 7/14	700x1400x450	230x200	190	2b	45	7/7
CPM 7/16	700x1600x450	230x200	190	3a	49	7/7
CPM 7/18	700x1800x450	230x200	190	3b	52	7/7
CPM 7/20	700x2000x450	300x260	170	4a	57	8/9T
CPM 7/22	700x2200x450	300x260	170	4a	60	8/9T
CPM 7/24	700x2400x450	300x260	170	4b	63	8/9T
CPM 7/26	700x2600x450	300x260	170	4b	66	8/9T
CPM 7/28	700x2800x450	300x260	170	5b	72	8/9T
CPM 7/30	700x3000x450	300x260	170	5b	76	8/9T

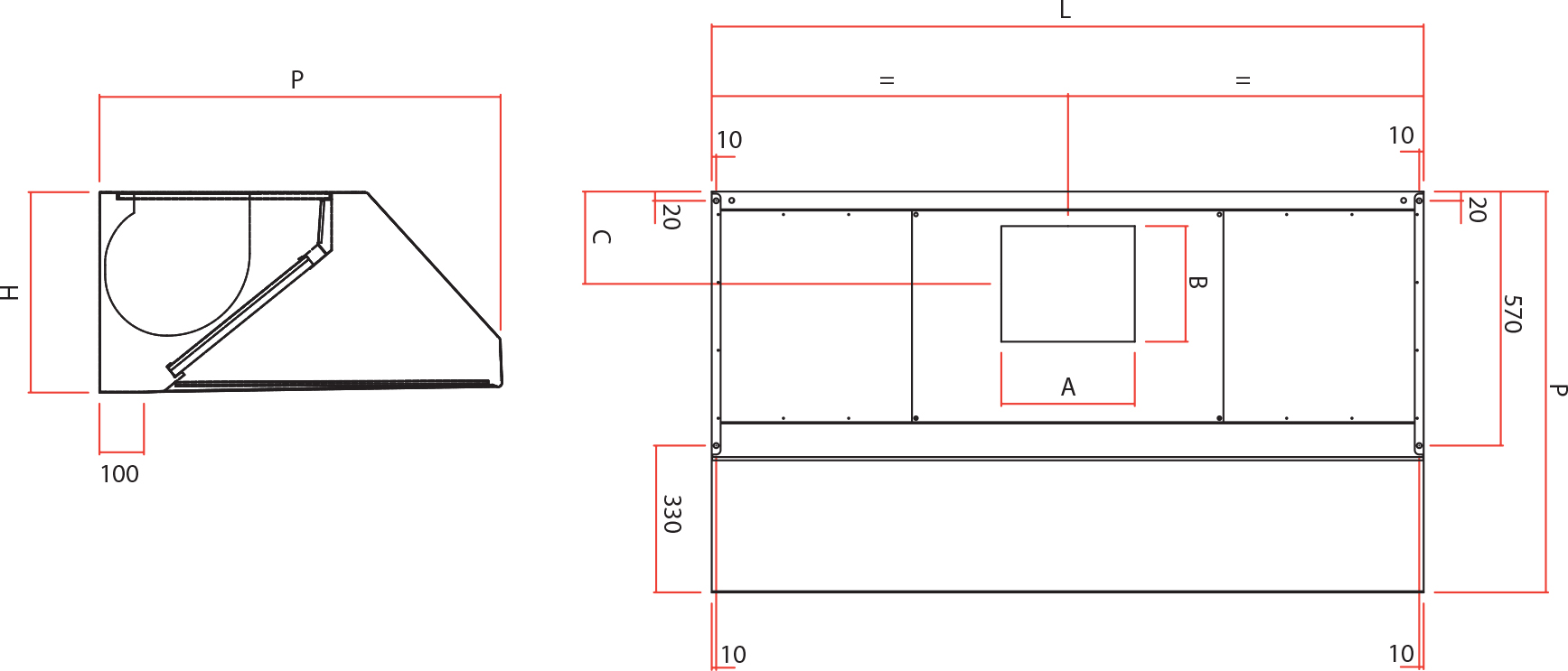

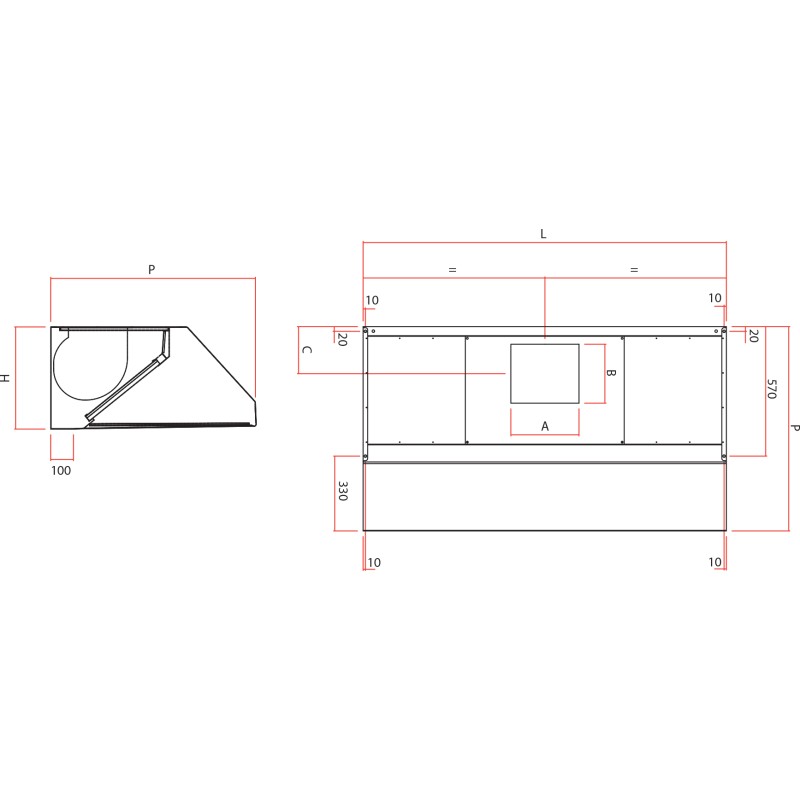

Wall-Mounted Extractor Hood - in Stainless Steel - with Electric Fan Motor - Depth 900 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor
CPM 9/10	900x100x450	230x200	190	2a	42	7/7
CPM 9/12	900x120x450	230x200	190	2b	45	7/7
CPM 9/14	900x140x450	230x200	190	2b	48	7/7
CPM 9/16	900x160x450	300x260	170	3a	53	8/9T
CPM 9/18	900x180x450	300x260	170	3b	56	8/9T
CPM 9/20	900x200x450	300x260	170	4a	61	8/9T
CPM 9/22	900x220x450	300x260	170	4a	64	8/9T
CPM 9/24	900x240x450	300x260	170	4b	67	8/9T
CPM 9/26	900x260x450	300x260	170	4b	70	8/9T
CPM 9/28	900x280x450	300x260	170	5b	75	8/9T
CPM 9/30	900x300x450	300x260	170	5b	79	8/9T

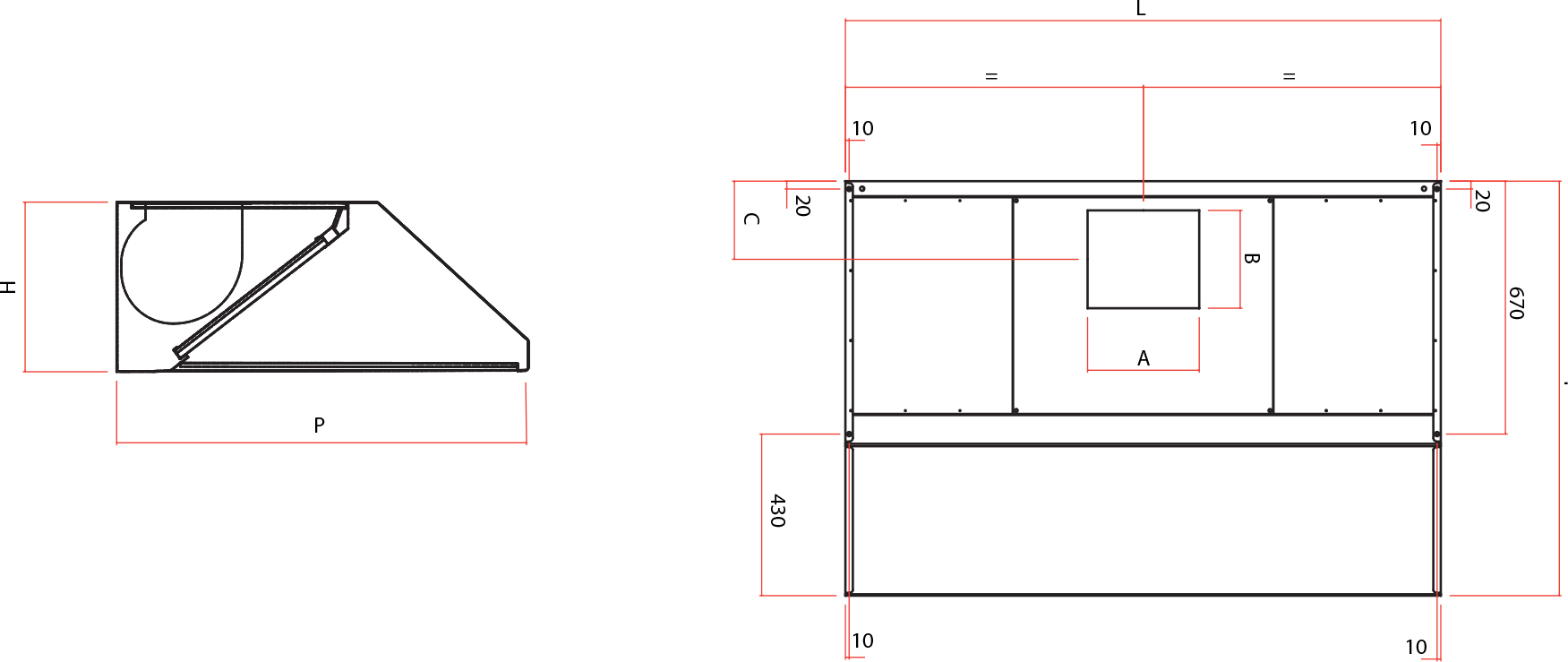

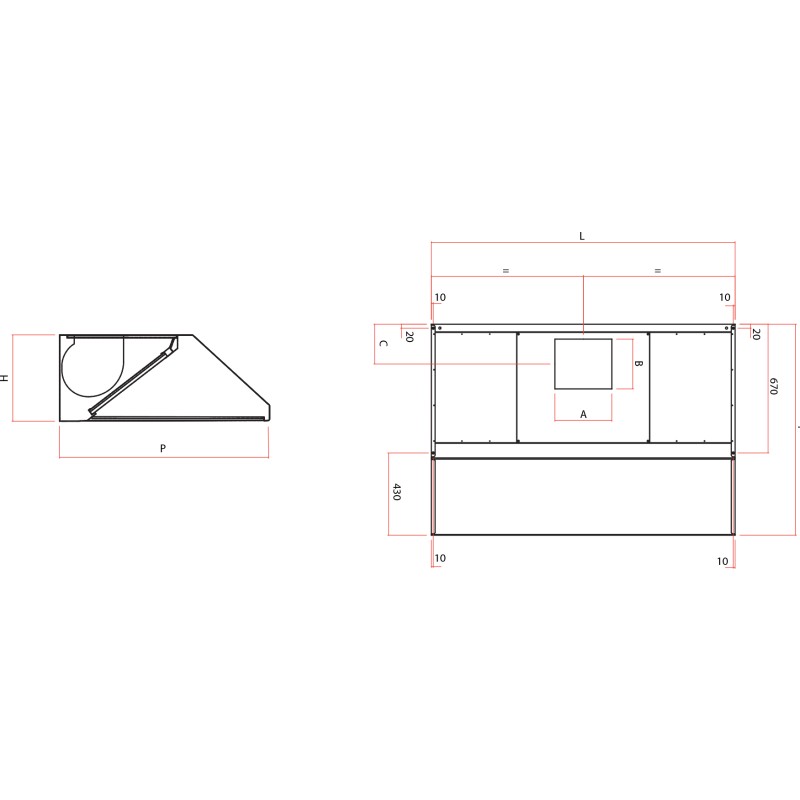

Wall-Mounted Extractor Hood - in Stainless Steel - with Electric Fan Motor - Depth 1100 mm

Model	Dimensions WxLxH (mm)	A x B (mm)	c (mm)	n° Filters	Weight (kg)	Motor
CPM 11/12	1100x1200x450	230x200	190	2d	48	7/7
CPM 11/14	1100x1400x450	300x260	170	2d	53	8/9T
CPM 11/16	1100x1600x450	300x260	170	3c	59	8/9T
CPM 11/18	1100x1800x450	300x260	170	3d	64	8/9T
CPM 11/20	1100x2000x450	300x260	170	4c	69	8/9T
CPM 11/22	1100x2200x450	300x260	170	4c	74	8/9T
CPM 11/24	1100x2400x450	300x260	170	4d	79	8/9T
CPM 11/26	1100x2600x450	300x260	170	4d	83	8/9T
CPM 11/28	1100x2800x450	300x260	170	5d	89	8/9T
CPM 11/30	1100x3000x450	300x260	170	5d	93	8/9T

The electric fans installed on the hood are made up of single-phase, 230 Volt, 50 Hz motors.

Filter legend:
a: 400x400mm
b: 500x400mm
c: 400x500mm
d: 500x500mm
