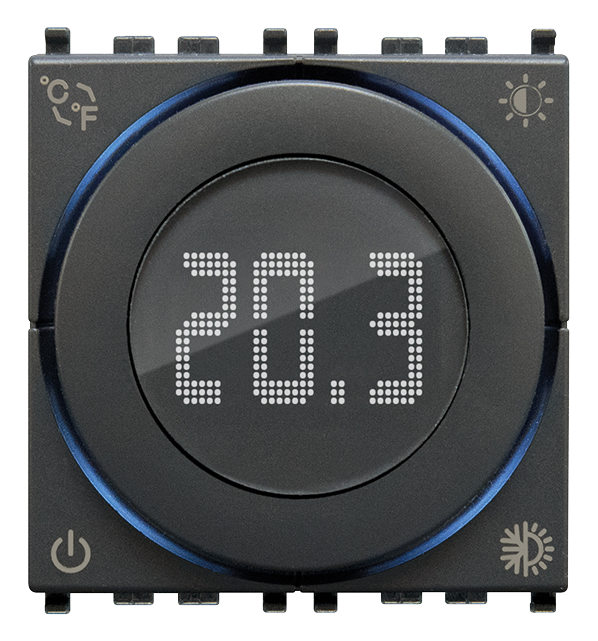

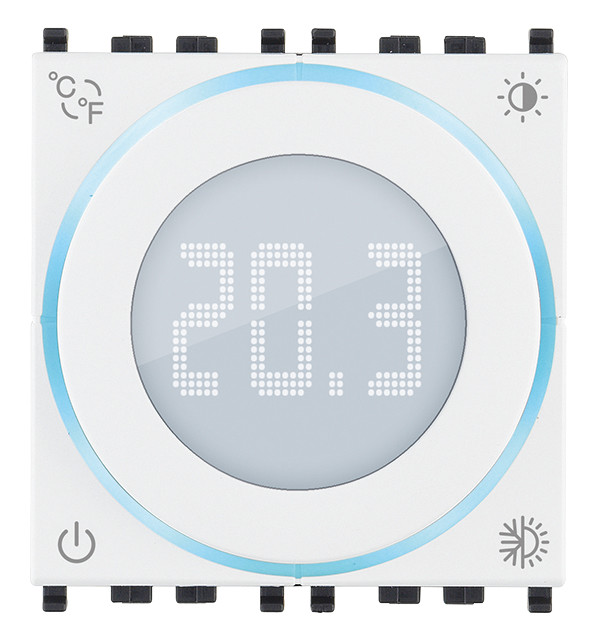

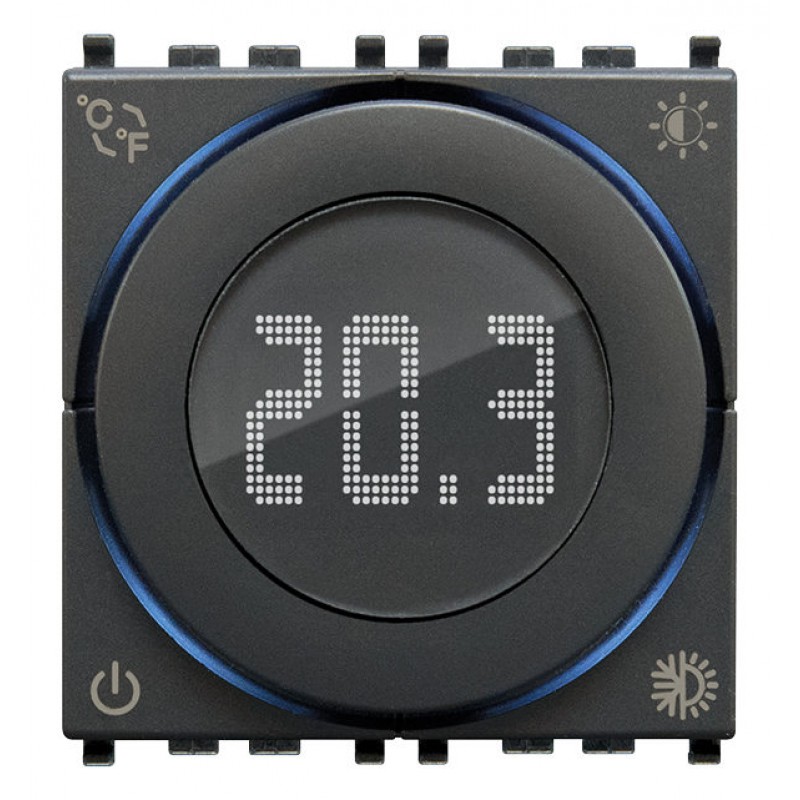

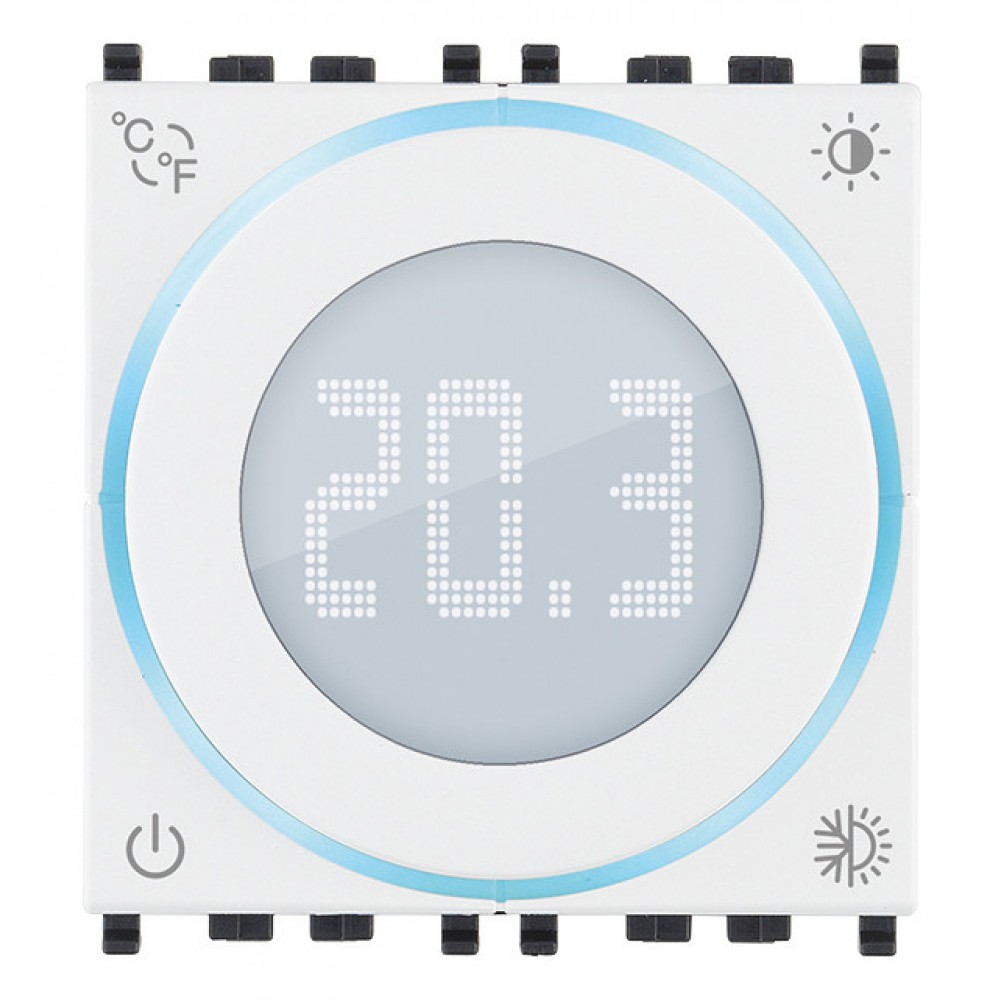

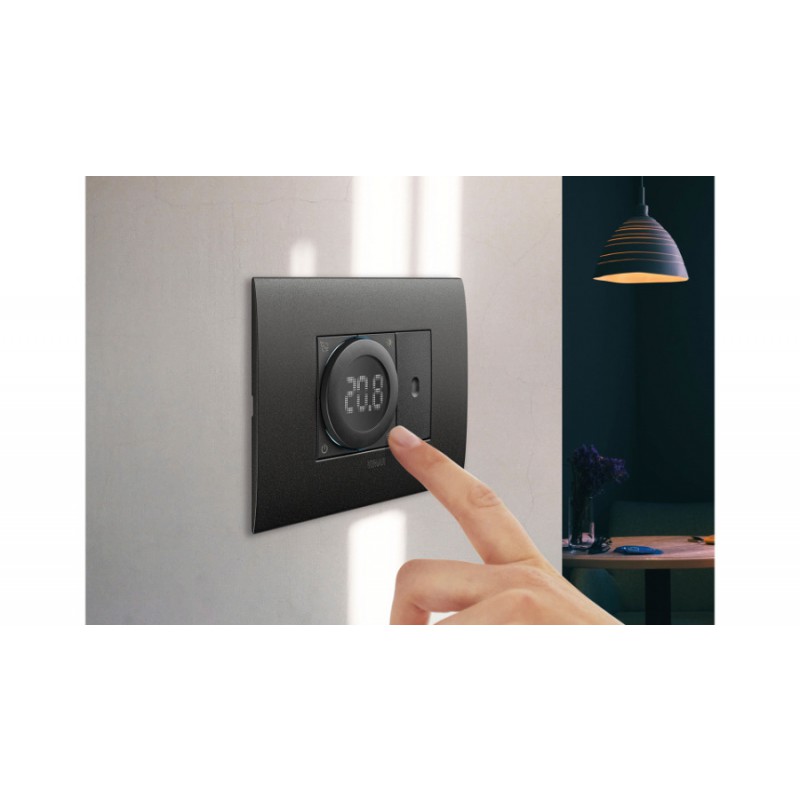

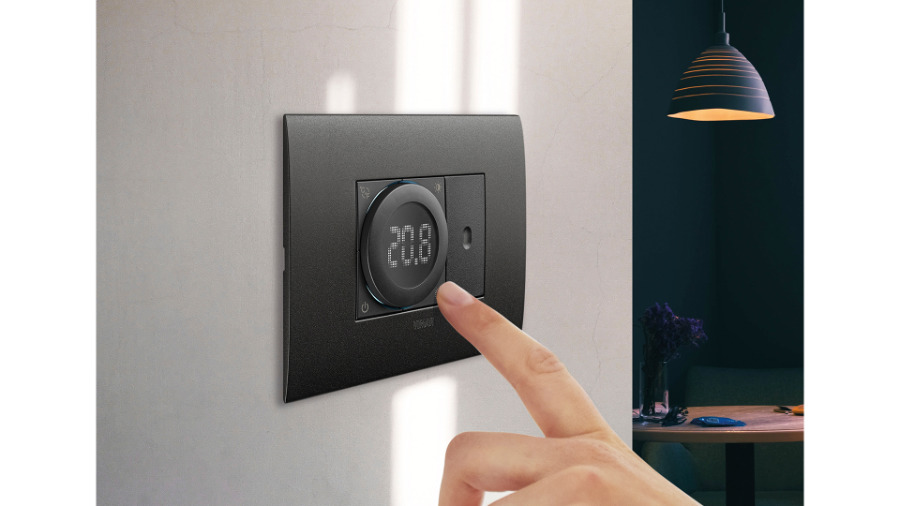

Wheel thermostat connected IoT 2 Modules Vimar - White or Gray
Wheel thermostat with NO 5 (2) A 240 V ~ relay output, IoT technology on Bluetooth technology 5.0 standard for creating the View Wireless mesh system, 1 input for external temperature sensor, heating and air conditioning in ON / OFF and PID mode.
This Vimar thermostat has a class I temperature control device (contribution 1%) in ON / OFF mode, class IV (contribution 2%) in PID mode, white LED backlight with intensity adjustment, power supply 100-240 V 50/60 Hz, gray or white -
2 modules .
To be completed with Eikon, Arké, Plana plates. For Idea it can be installed with dedicated support 16723.
- Compatible with Alexa, Google Home and IFTTT, through the appropriate gateway;
- Configuration from “VIEW Wireless” App for Bluetooth technology system;
- Hotkeys allow for quick interaction.
Vimar wheel thermostat features
- Nominal supply voltage: 100-240 V ~, 50/60 Hz.
- Power dissipated: 0.55W
- Transmitted RF power: <100mW (20dBm).
- Frequency range: 2400-2483.5 MHz.
Clamps:
- 2 terminals (L and N) for line and neutral
- 2 terminals for external temperature probe (art.02965.1 and 20432-19432-14432)
Maximum length of the external sensor connection cable: 10 m.
Use a twisted cable with a minimum section of 0.5 mm2 (item 01840).
2 relay terminals C-NO.
- Relay output with clean contact: 5 (2) A 240 V ~
- Current settable setpoint: 4 ° C - 40 ° C.
- Measurement accuracy temp. (integrated probe): 0.5 ° C between + 15 ° C and 30 ° C, 0.8 ° C at the extremes
- Can be used for heating / air conditioning (winter / summer).
- Operating modes of operation: Automatic, Manual, Reduction, Away, Protection, Off, Timed Manual.
- Thermoregulation algorithms: configurable ON / OFF or PID.
- 4 front keys for command and configuration / reset.
- RGB LED for configuration status (flashing blue) and output status (configurable color).
- Operating temperature: T40 (0 ° C +40 ° C) (indoor use).
- Degree of protection: IP30.
- ErP classification (EU Reg. 811/2013): - ON / OFF: class I, contribution 1%. - PID: class IV, contribution 2%.
- Class II device
- Number of manual cycles: 3,000
- Number of automatic cycles: 100,000
- Reading resolution: 0.1 ° C
- Settings resolution: 0.1 ° C
- Displayed temperature update: every 10 s
- Ambient temperature display: 0 ° C +40 ° C
- Temperature differential adjustable via app: from 0.1 ° C to 1 ° C
- Hourly temperature setting (via app)
- Ambient temperature during transport: -25 ° C +60 °
- Clock error: ≤ 1 s per day
- With the View Wireless app the Installer configures the thermostat and creates the climate programs.
- With the View Wireless app and the View app, the Administrator creates or modifies climate programs.
- Can be controlled from the View app, Alexa, Google, Siri and Homekit voice assistant.
IoT connected wheel thermostat operation
- Through the View Wireless app it is possible to set the following parameters:
- Standby lighting: high, medium, low, off; default = average
- Selection of bezel indications: automatic or monochrome; default = automatic
- RGB color selection: in the monochromatic case it is possible to set the color
- Temperature calibration for heating: from -5 ° C to + 5 ° C with default = 0 ° C
- Temperature calibration for conditioning: from -5 ° C to + 5 ° C; default = 0 ° C
- Use of the external probe: deactivated, averaged with the internal one, replacing the internal one; default = disabled
- Relay output status: normally open, normally closed; default = normally open
- Regulation type: On / Off, PID; default = On / Off
- Hysteresis for On / Off regulation: from 0.1 ° C to 1 ° C; default = 0.2 ° C
- Proportional band for PID control: from 0.5 ° C to 5 ° C; default = 3 ° C
- Integrative time for PID regulation: from 5 min to 120 min; default = 20 min
- Derivative time for PID regulation: from 0 to 255 s, disabled; default = 0
- Cycle time for PID regulation: from 10 min to 30 min; default = 10 min
Using the View Wireless app, it is also possible to associate a magnetic or wired contact of the art. 03980 to turn off the temperature control system in the event of an open window; in this case it is possible to set the reaction time and reactivation of the opening and closing of the contact:
- Reaction time: from 0 minutes (instantaneous) to 30 minutes; default = 0 minutes
- Reactivation time (time after which the thermostat is reactivated even without closing the window): from 0 (disabled) to 12 hours; default = 1 hour.
Using the View or View Wireless app you can set:
- Time schedules (times and temperature levels T1, T2 and T3)
- Setpoint for all operating modes (Manual, Economy, Away, Protection)
- Manual operating time: from 1 min to 23 hours (in 1 min steps); default = 60 min
Use of Vimar connected thermostat

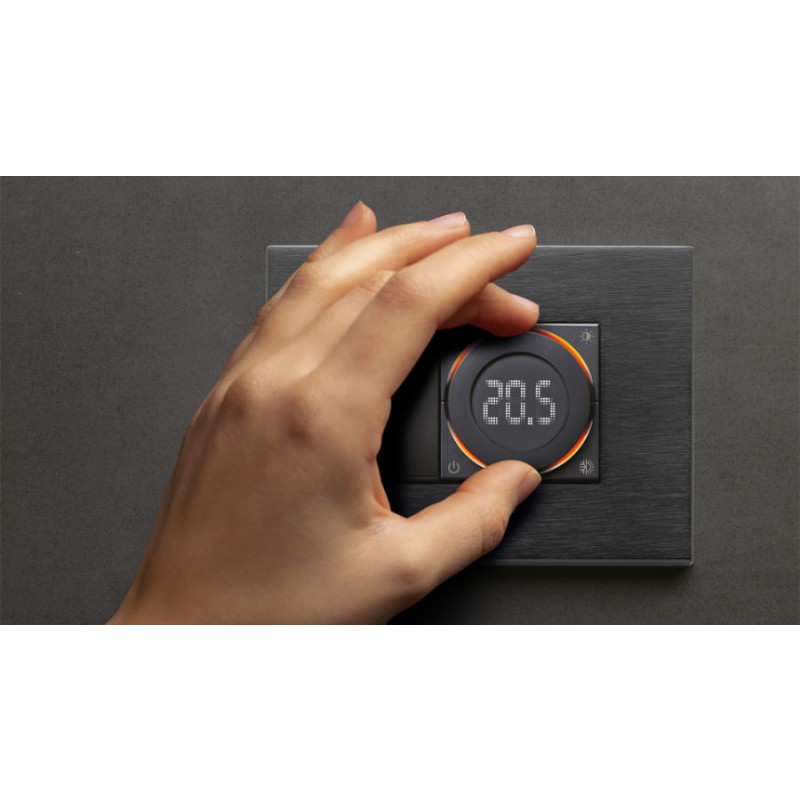

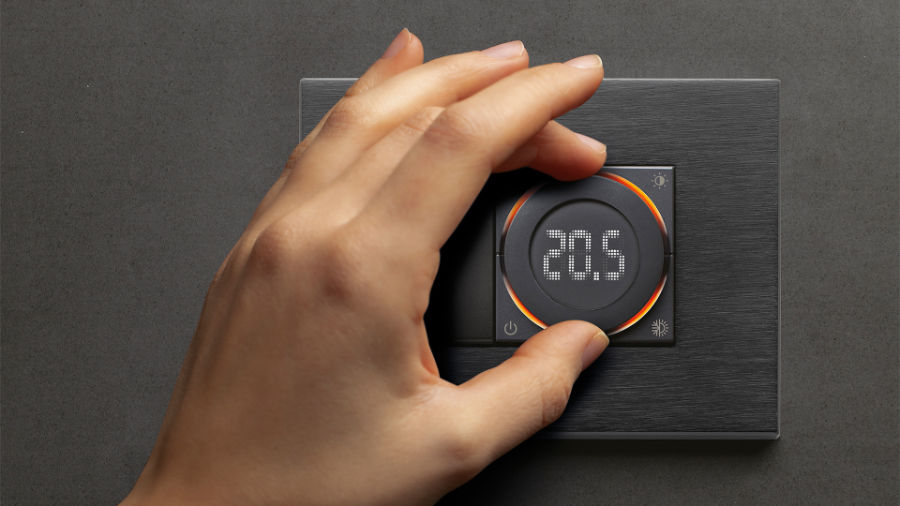

Using the front keys, the display, the wheel and the illumination of the ring that delimits it, it is possible to set and display all the operating modes of the thermostat.
By turning the wheel, a new setpoint is set. In particular, for operation in Bluetooth technology:
- with automatic operation mode, by turning the wheel, the thermostat switches to manual operation for a time value set on the View app;
- in manual or reduction mode, the thermostat remains in this mode and the setpoint is the one set using the knob.
IoT connected wheel thermostat technical data
- Group: field devices for recording and processing
- Room thermostat class
- On / off execution
- Type of power supply 230 V AC
- Three / four wire connection
- With receiver No
- Measuring range lower value 0 ° C
- Measurement range above 40 ° C
- External sensor Yes
- Parallel thermal strike
- PID control features
- Heating Yes
- Number of heating outputs 1
- Cooling Yes
- Number of cooling outputs 1
- Differential value 0.00 - 1.00 k
- Adjustable difference Yes
- Readable temperature Yes
- With noise level indicator No
- Resistance sensor detector / probe version
- Built-in mounting type
- Number of modules (for modular construction) 2
- With display Yes
- Swivel control
- With drinking water circuit No
- Contact type NO contact
- Max voltage of contacts 230 v
- Max. Contact load 5 A
- Degree of protection (IP) IP30
- Explosion proof No
- Gray or white color

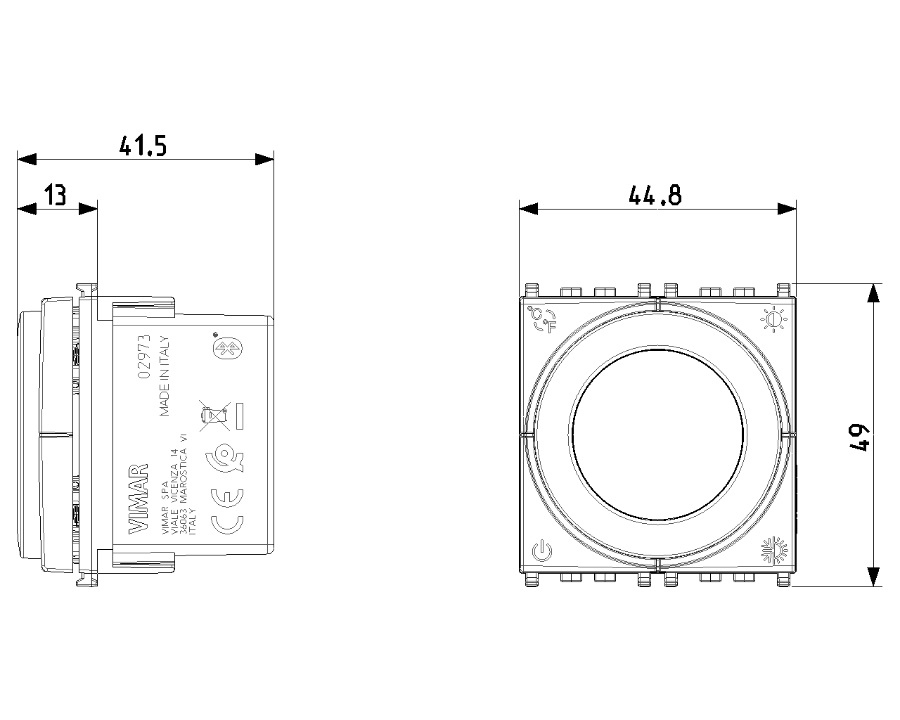

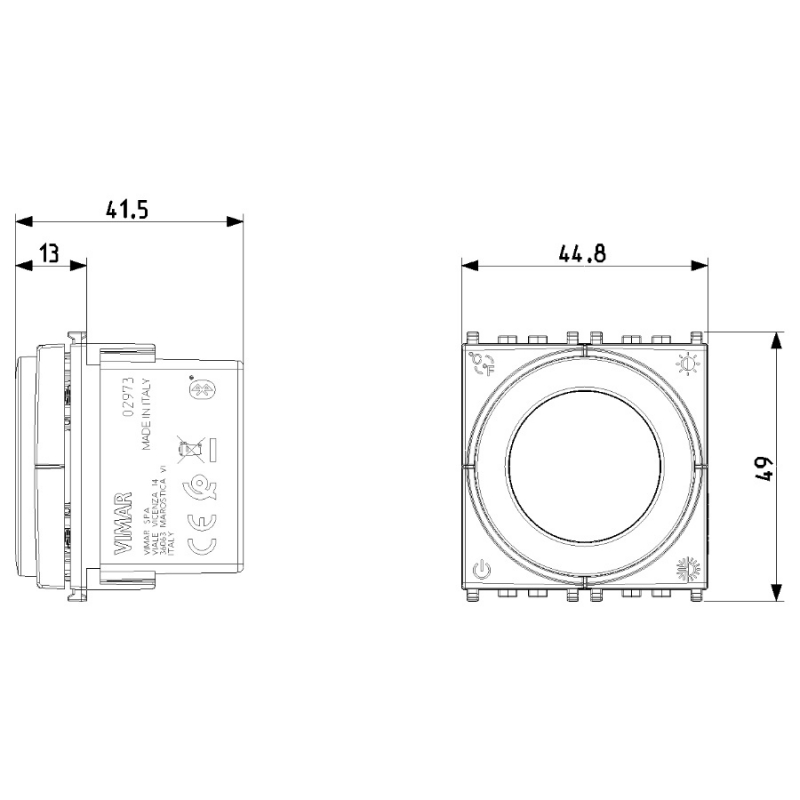

- Height 49.00 mm
- Width 44.80 mm
- Depth 41.50 mm
- Diameter 0 mm
Thermostat class: IV.
