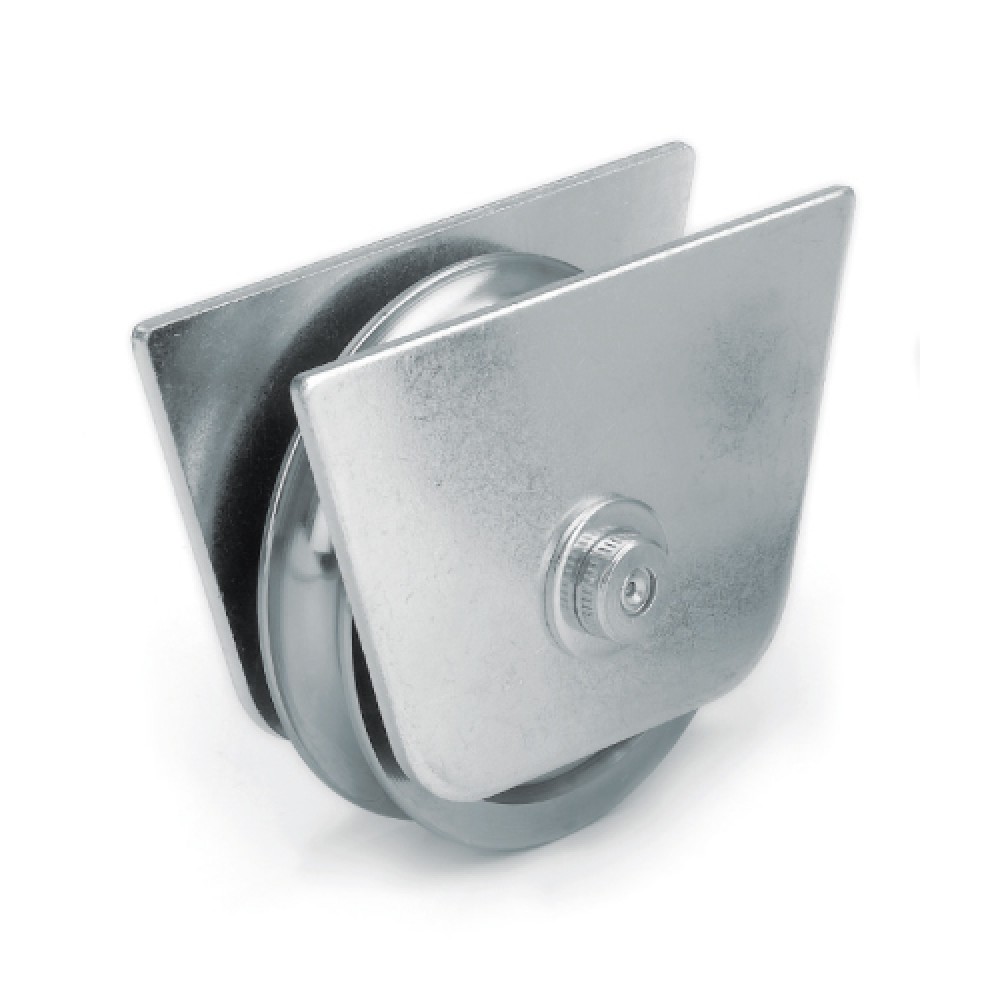

Wheel with External Support and Lubricating Pin Brevetti Adem
Our selection of
wheels with external plate and grease pin from Brevetti Adem is ideal for sliding gate systems that require robustness and easy maintenance.
These wheels are designed for long-term use and are equipped with an
efficient lubrication mechanism thanks to the grease pin, which allows you to keep the product in excellent condition with less effort.
The external plate offers a secure and stable installation, while the grease pin ensures quick and easy maintenance. Whether you are installing a new sliding gate or replacing existing wheels, our wheels with external plate and grease pin represent the optimal choice for durability and performance. Choose the
Italian quality of Brevetti Adem for your sliding gate solution.
Select the variant you want: the characteristics of the wheel purchased change depending on the code.
Features wheel with external plate and grease pin
- Wheel diameter (D): 65mm to 180mm to suit various types and weights of gates;
- Wheel width (A): 20mm to 28mm, ideal for supporting the smooth and stable movement of the gate;
- Center hole diameter (C): 33mm to 53mm, designed for a wide range of installations;
- Tube Length (Tube): 40mm to 60mm, allows for different mounting options;
- Distance between plates (E): 85mm to 220mm, providing a wide choice for mounting distance;
- Overall height (F): 85mm to 220mm, to ensure adequate ground clearance;
- Groove: With V or U design, these wheels fit perfectly into tracks with matching grooves;
- Load capacity (kg capacity): from 200 kg to 800 kg, these wheels can handle the weight of your gate with ease.

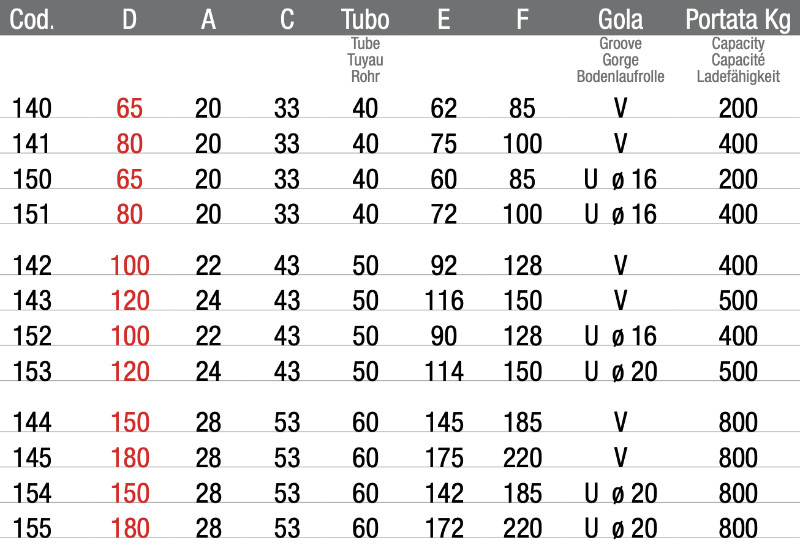

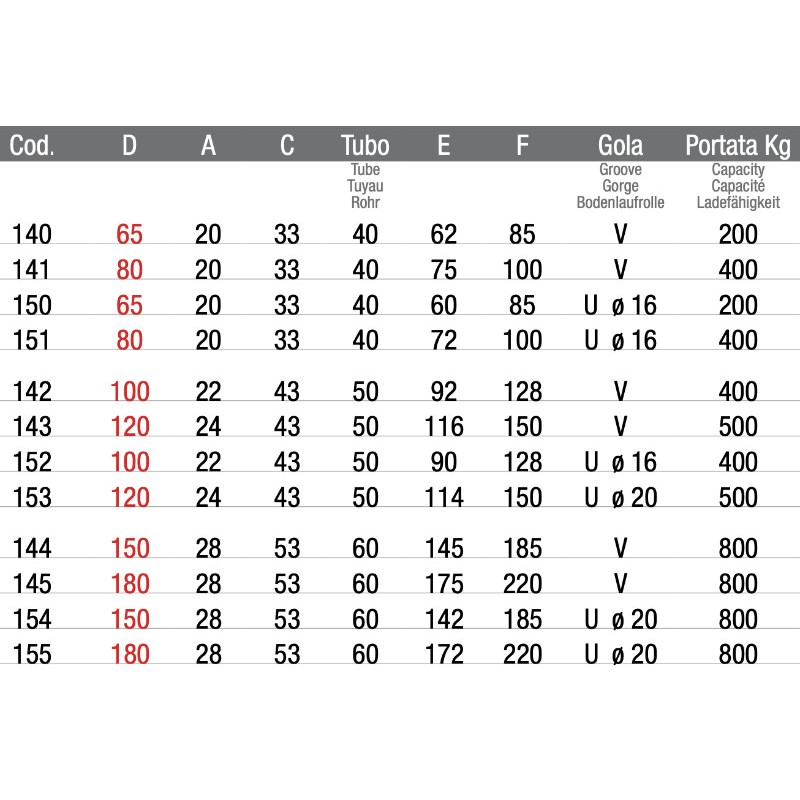

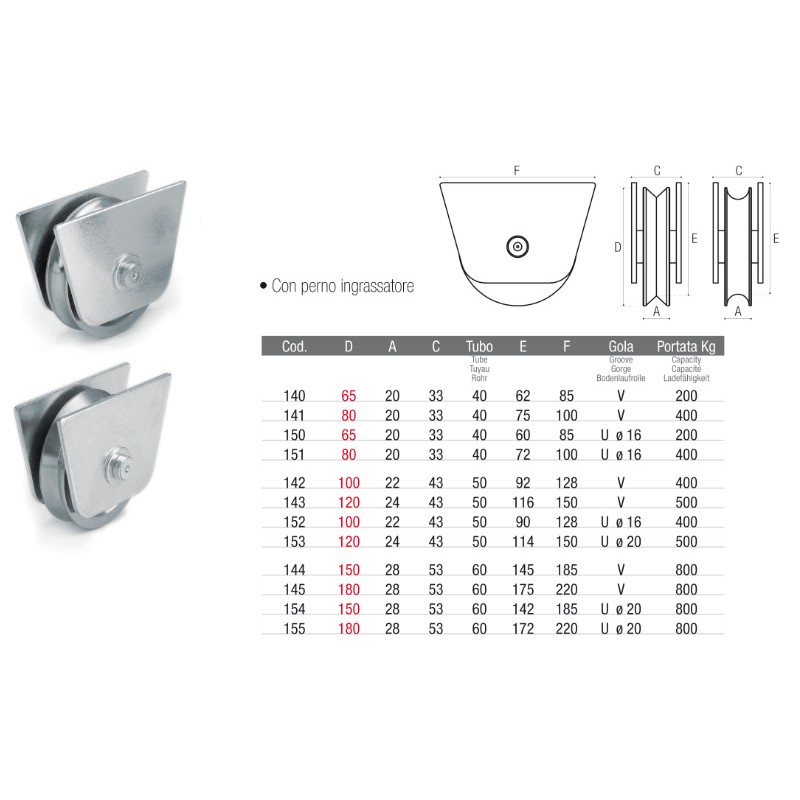

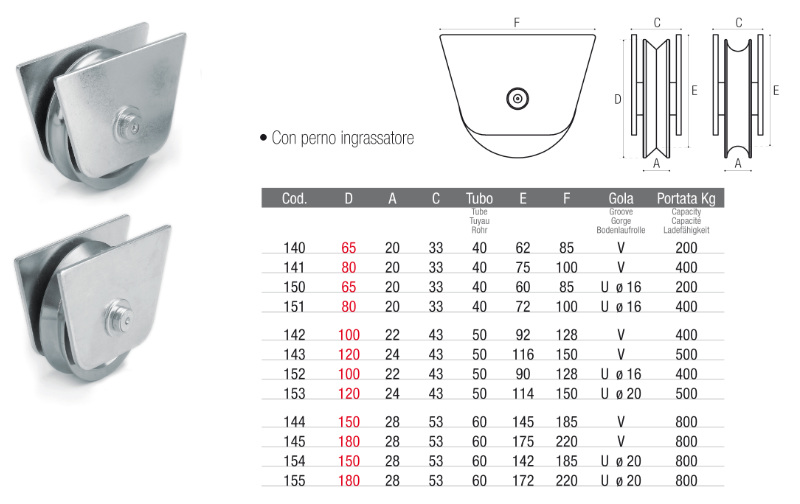

Wheel measurements with external plate and grease pin Adem:
Wheels with external plates and grease pin
Explore our wide
range of sliding gate wheels sold online in the Windowo store.
Find the perfect model that meets your needs and proceed with the purchase. Choose your preferred option and check the cost immediately.
For any Adem item not present in our online assortment, do not hesitate to request a no-obligation quote.
