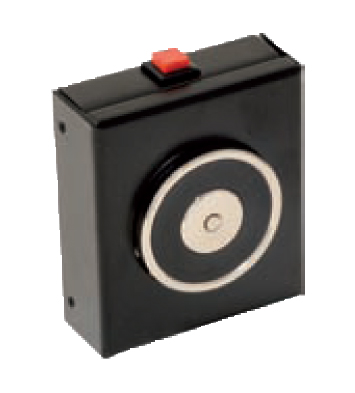

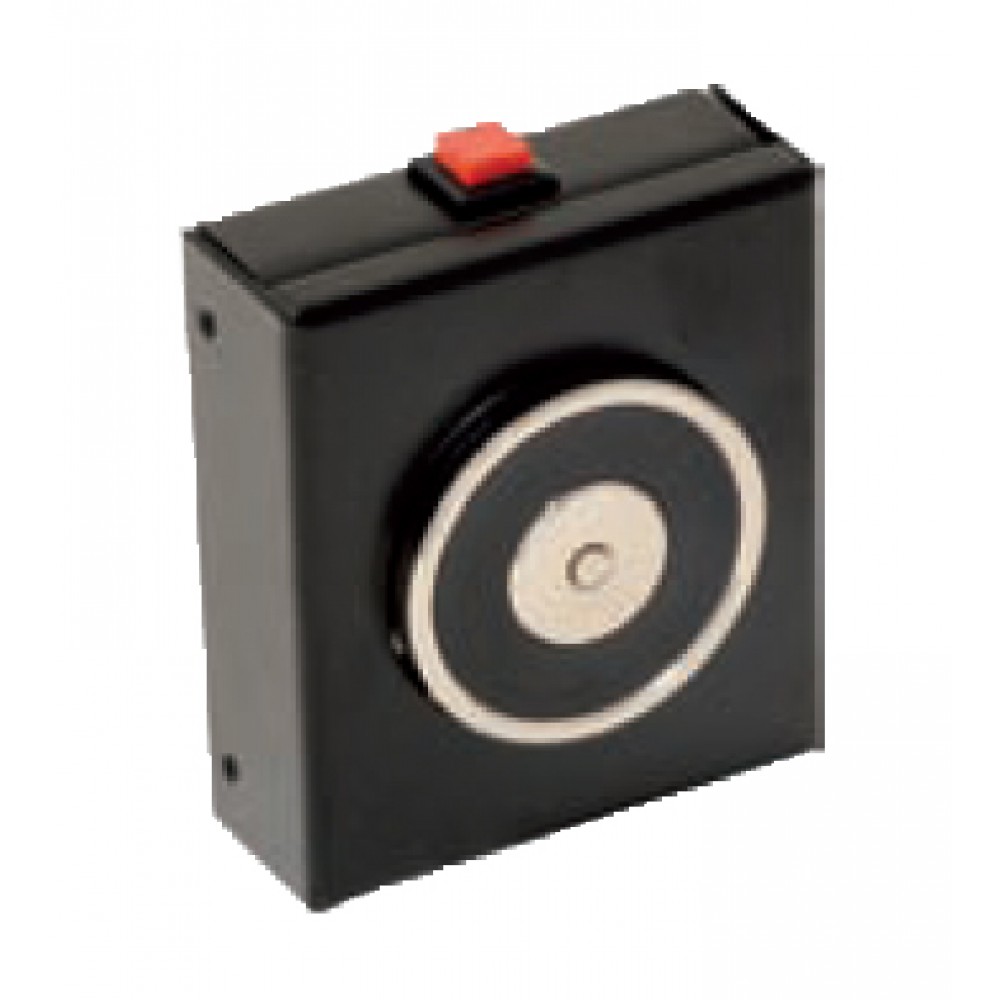

Withholding Electromagnet with Release Button 18001 Opera
Technical features:
Wall mounting;
Body in black painted steel;
Block electromagnet nickel;
Size: 85x75x35mm;
Power supply: 24 Vdc;
Current consumption: 70 MA;
Holding force:> 55Kg;
Pivot anti-residual magnetism on the electromagnet;
Connection terminals screw;
Varistor anti-internal disturbance;
With release button.
Compliance: UNI EN 1155.
Occupation: electromagnet for fire doors swing.
The product is sold without backplate.
The backplate is sold on Windowo separately: you can choose between Counter Fixed (Art.01800Z Opera) or Counter twists (Art.01805Z Opera).
