Case for Alarm Activation for Single Zone Fire Control Panel - Opera 05110R - EN54 Compliance
The
Opera 05110R alarm activation case is designed for use with single-zone fire control panels, ensuring safe activation and compliant with European standards EN54.
This device is essential for the effective management of fire emergencies, offering a reliable and easily accessible activation mechanism.
Use of alarm cabinet for fire prevention system
This fire alarm system
conforms to EN54 standards , ensuring that it meets European requirements for fire alarm systems, ensuring reliability and safety.
Pressure on the plastic front plate activates the switching of the electrical contact. For single zone control unit Opera with EN54 compliance.
IMPORTANT: Full EN54 Compliance
To obtain full EN54 compliance you must have the complete kit consisting of:
- 52002 Single-zone fire alarm control unit (1 unit)
- 05110R Case for pressure alarm activation with manual reset (2 units)
- 05115 Reset button (1 unit)
- 05207 Electronic siren (1 unit)
- Choice of 05203 Combined heat and smoke detector (2 units)
- Choice of 05204 Rate-of-motion heat detector (e.g. for kitchens) (2 units)
- 00112 Battery for alarm control panel (2 units)
Do you want to make sure you have EN54 compliance? On Windowo you can also find the complete kit ready for purchase.

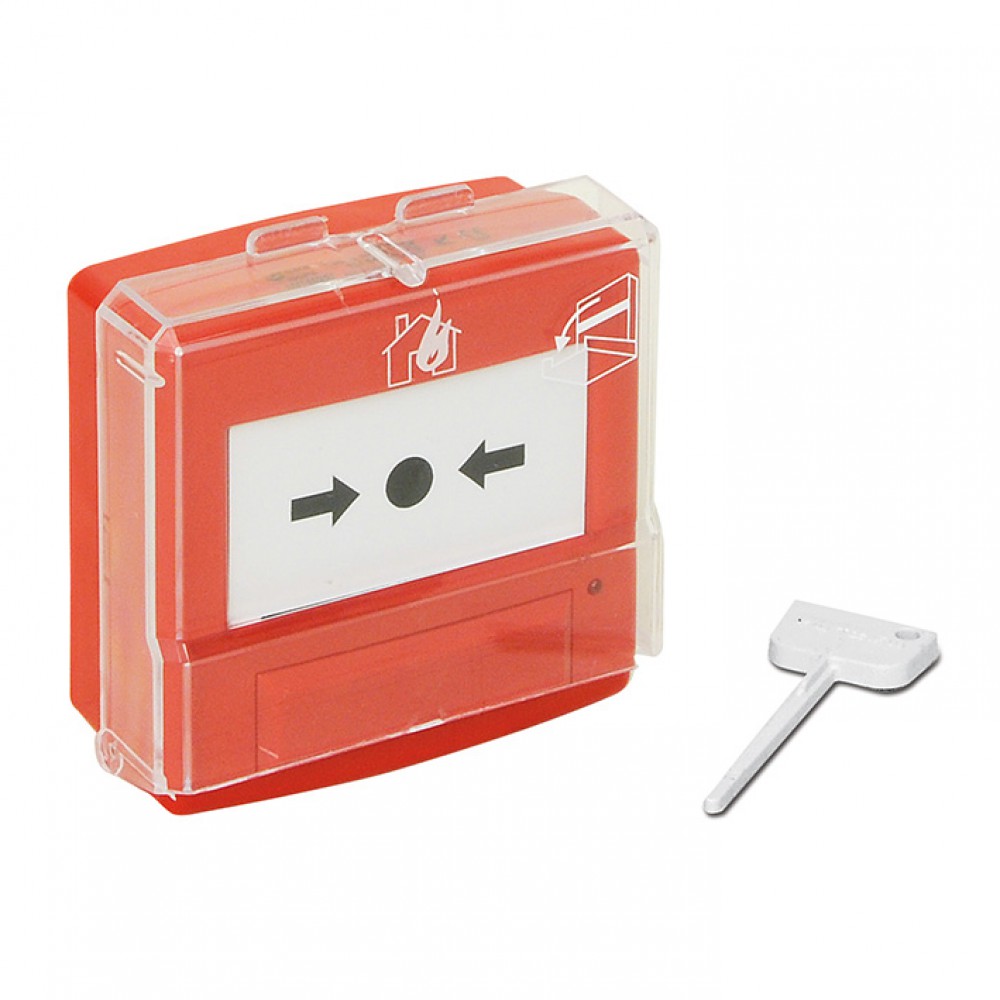

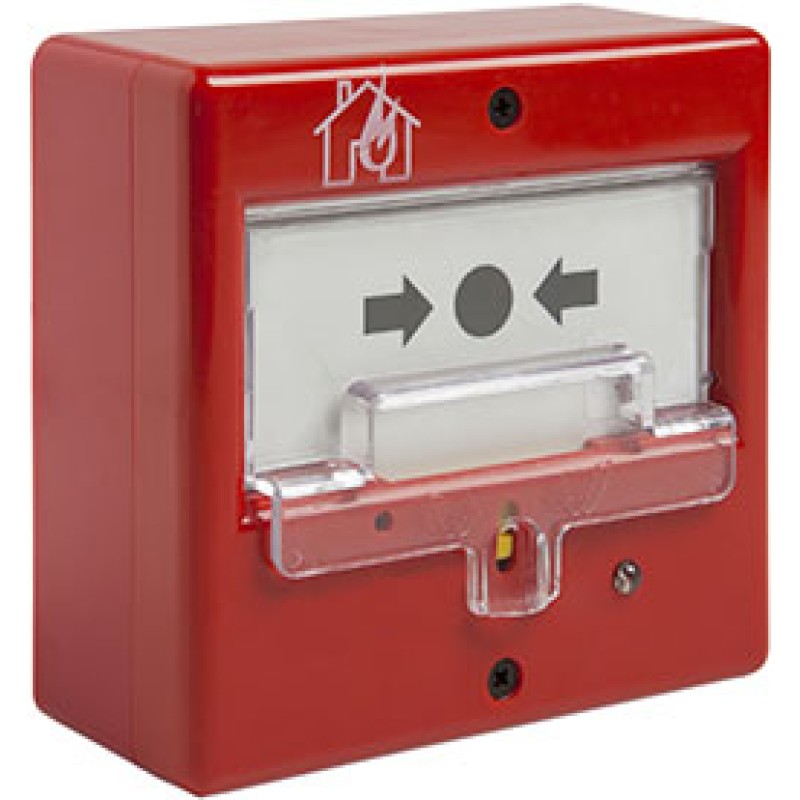

05110R Case for Pressure Alarm Activation with Manual Reset
Technical characteristics of the Opera alarm case
- ABS box
- Dimensions mm. 99 x 95 x 43
- Internal exchange contact C./NO/NC
- Manual reset of the contact
- Degree of protection: IP41
- Transparent plexiglass cover to protect the display activation button
- Red box (for connection to fire prevention systems)
Compliance : EN54-11
