Biometric Indoor Stand Alone Access Control System 58200SA Access Series Opera
Use

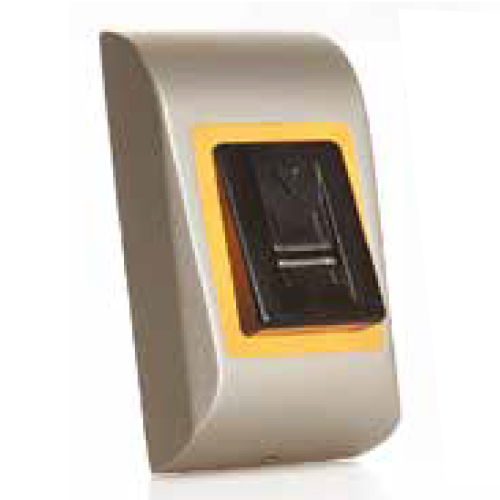

The Biometric reader is a simple one-door standalone biometric system. The programming is fast and easy. The reader can store up to 100 finger templates (97 users and 3 administrators). It has one relay output and one exit button input.
If secure installation is needed, the reader can be connected to a remote relay unit in the secured area (item 58200SB) which also plays the role of an exit push button. The complete setup and programming can be done only by scrolling and tapping on the sensor.
Version
Stand alone.
Characteristics
Mounting: Surface mount.
Housing Moulded Aluminium.
Colour Silver, Red, Green, Dark Grey, Blue, White.
Fingerprint Capacity: 97 + 3 templates.
Output 1 x Relay (1 A /24V AC/DC).
Push Button Input: Yes.
Door Open Time Pulse (1 to 60sec) or Toggle(ON/OFF).
Entry Mode: Finger.
Programming: By scrolling and tapping on the sensor.
Master/Admin Fingers: 1 Master and 2 Admin Fingers.
Image resolution Up to 508 DPI.
Backlight ON/OFF: Yes.
Buzzer ON/OFF: Yes.
Firmware upgrade: via RS485 converter and windows application.
Current Consumption 100 mA max.
Power Supply 9-14 V DC.
Indication Tricolor Status LED and 4 x Programming LEDs.
IP Factor: IP65.
Storage/Operating Temperature: -20°C to +50°C.
Storage/Operating Humidity:5% to 93% RH without condensation.
Dimensions (mm): 92x51x25.
Application example
Access Series Opera
Access control systems.
Code Keypads, Magnetic Tape Card Readers and RFID.
Stand-alone version for single applications.
Online version managed by PC for multi-port systems.
Accounting systems for libraries, museums, malls.
