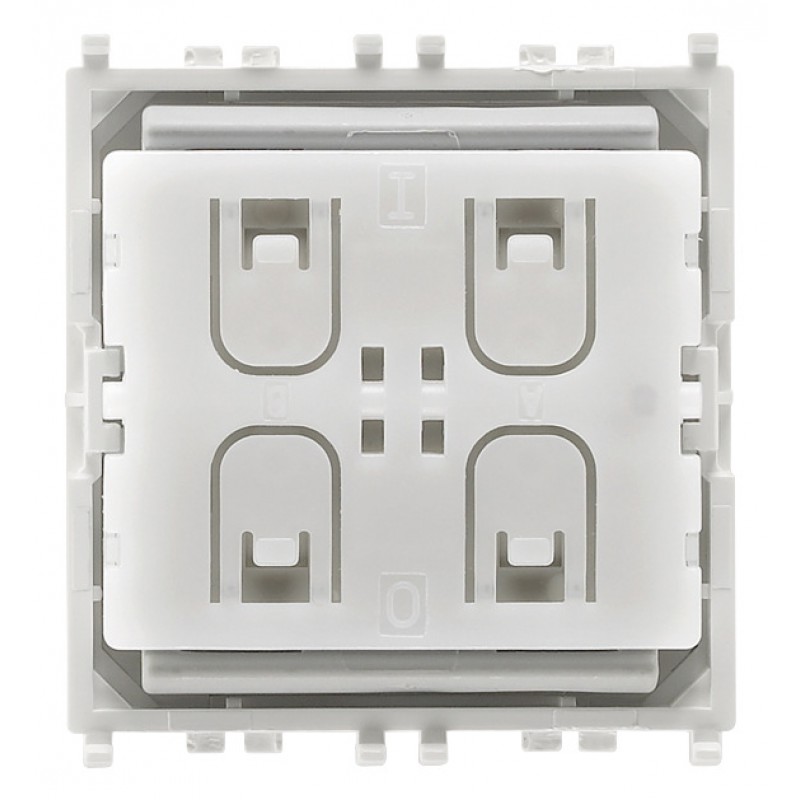

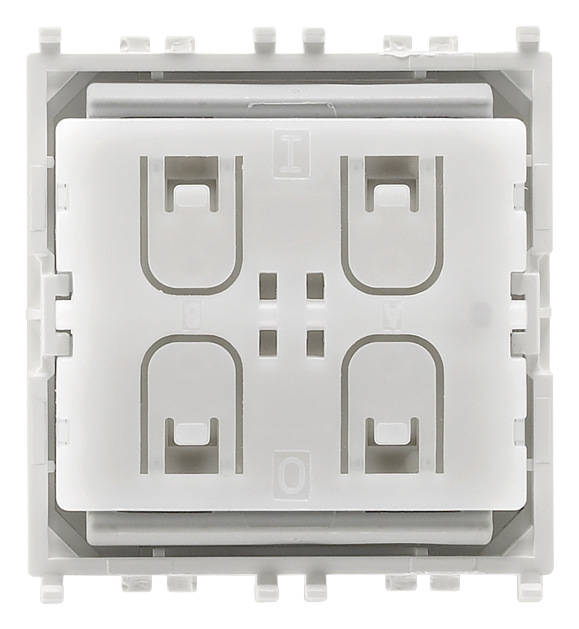

Vimar 03925 Bluetooth Low Energy Radio Control for Wireless Switches
Flat four-button control with 2.4 GHz radio frequency transmitter,
Bluetooth Low Energy standard, energy harvesting power supplied by the built-in electrodynamic generator.
The Bluetooth Low Energy Radio Control must be completed with the color version of the dedicated keys Eikon 20506 or 20506.2, Arké 19506 or 19506.2, Idea 16526 or 16526.2 or Plana 14506 or 14506.2 - 2 modules.
Module 03925 allows the implementation of
wireless remote controls without batteries . It transmits data telegrams compliant with Bluetooth technology Low Energy (BLE).

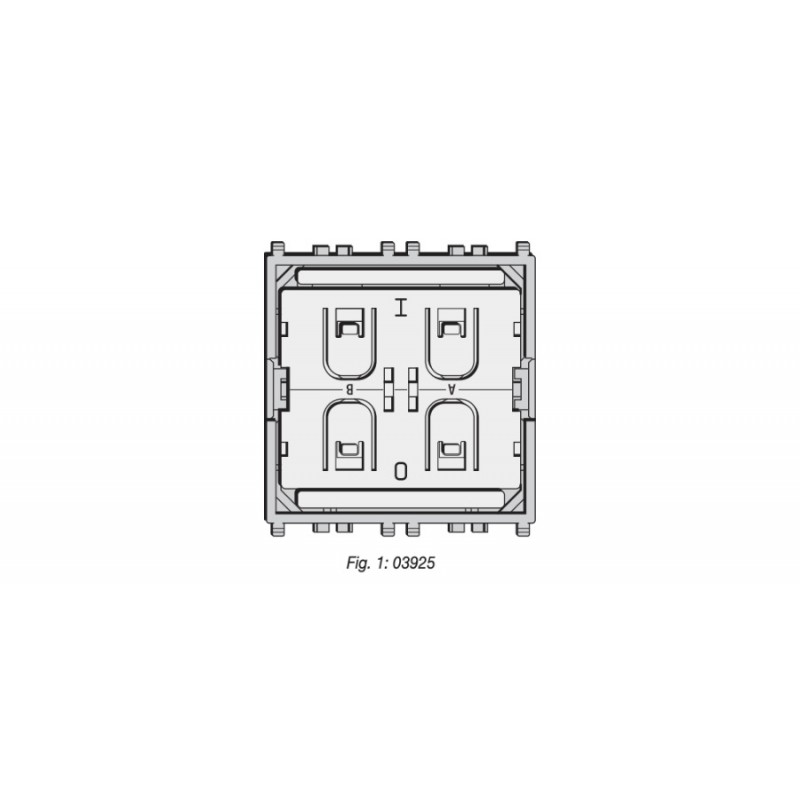

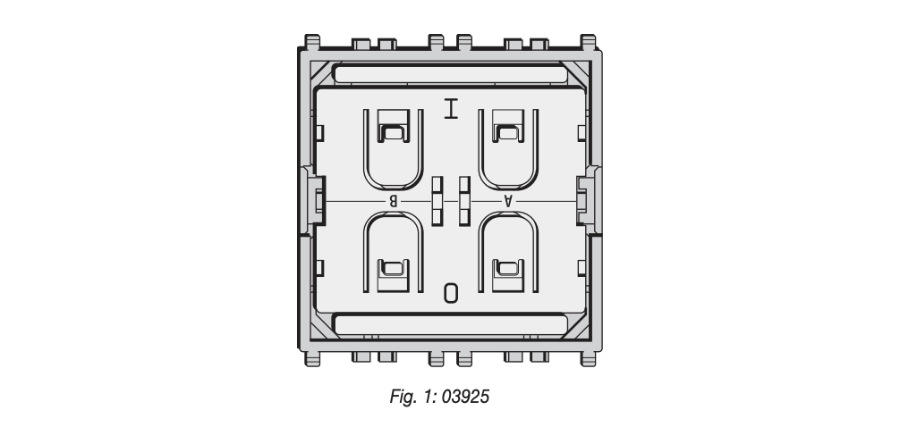

General description of radio control 03925 Vimar
- Module 03925 allows the creation of wireless switches to create systems that communicate via Bluetooth technology Low Energy .
- The buttons of module 03925 are self-powered (without batteries) and do not require maintenance.
- They can therefore be used in all environments, including hard-to-reach places or in hermetically sealed housings. The required energy is generated by an electrodynamic transducer operated by an activation bar located in the lower and upper part of the module; it can be pressed from outside the module by means of an appropriate push button or rocker button.
- When the activation bar is pressed or released, electricity is created and a radio telegram compliant with the Bluetooth technology Low Energy standard is transmitted.
- The radio telegram transmits the status of all four contacts when the activation bar is pressed or released.
- The radio telegrams of module 03925 are protected by AES-128 encryption with a unique private key.
Technical data of module 03925 Vimar
- Antenna: Integrated antenna;
- Transmission power: maximum measured 0.4dBm / 1.1mW;
- Communication range (indicative): 75 m in free field;
- Communication standard: Bluetooth technology Low Energy (BLE);
- Radio frequency (min / max): 2402 MHz / 2480 MHz;
- Preset radio channels: CH 37/38/39 (2402 MHz / 2426 MHz / 2480 MHz);
- Events for pressure or release (min / max): 2/3;
- Data transmission rate and modulation type: 1 Mbit / s GFSK;
- NFC Forum Type 2 Tag Configuration Interface (ISO / IEC 14443 Part 2 and 3)
- Device identification ID: 48-bit single device (factory programming);
- AES128 security (CBC mode): with sequential code;
- Power supply: Integrated kinetic energy recovery system, Energy Harvesting technology;
- Button inputs: Up to four buttons or two rocker buttons.
