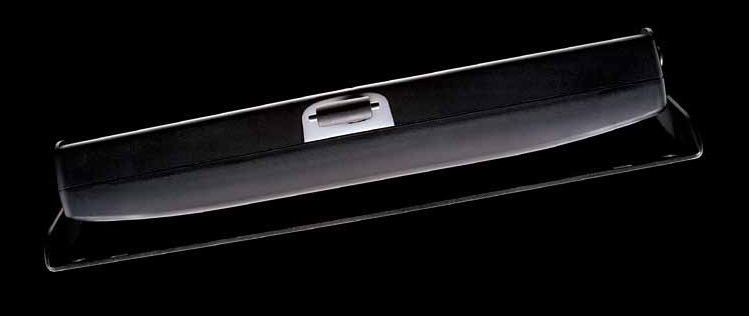

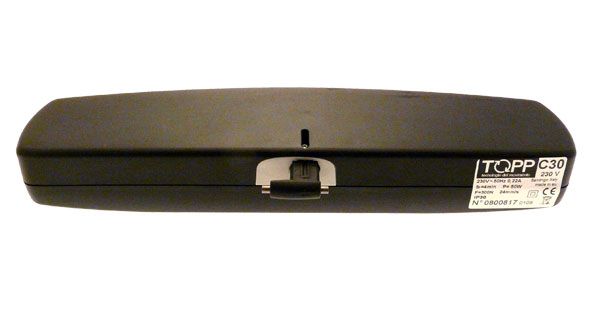

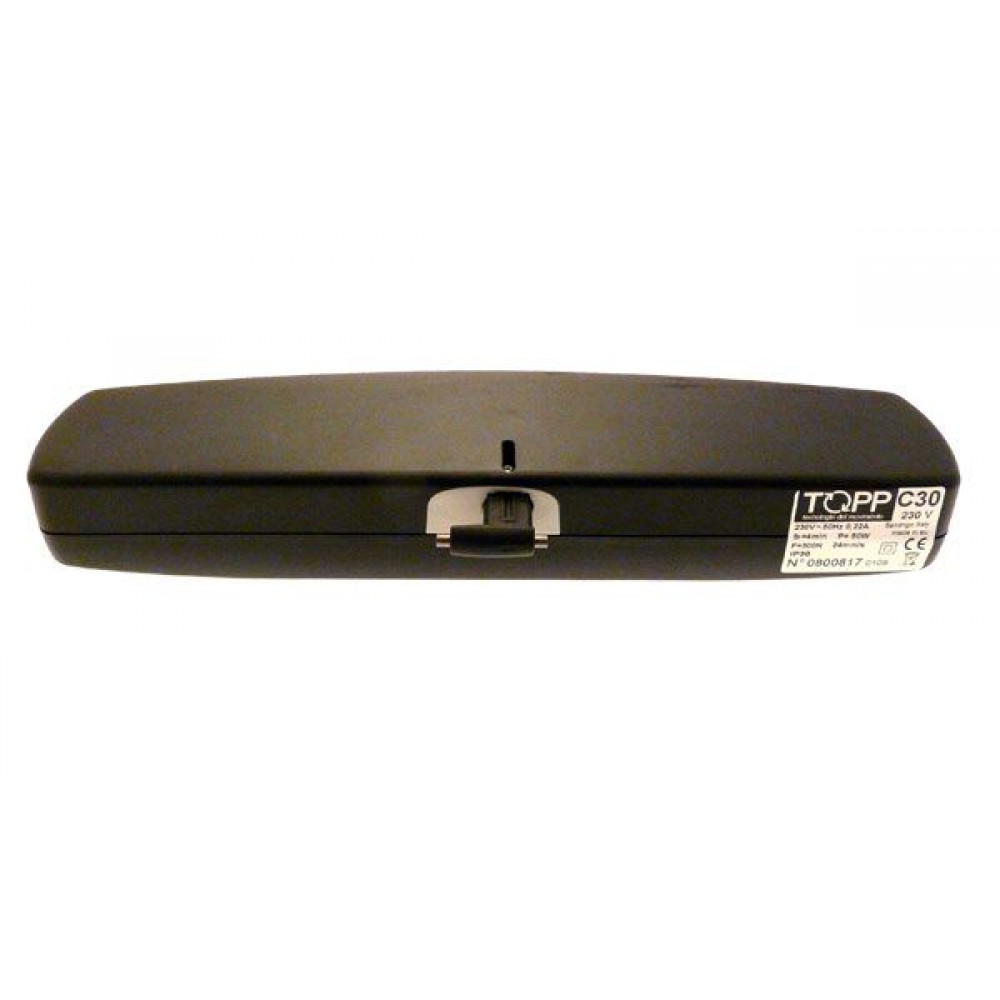

Topp C30 Chain Actuator - 230V 50Hz - 1 Push Point - Black Gray or White Color
C30 Topp is equipped with a double link chain with very high resistance to peak loads

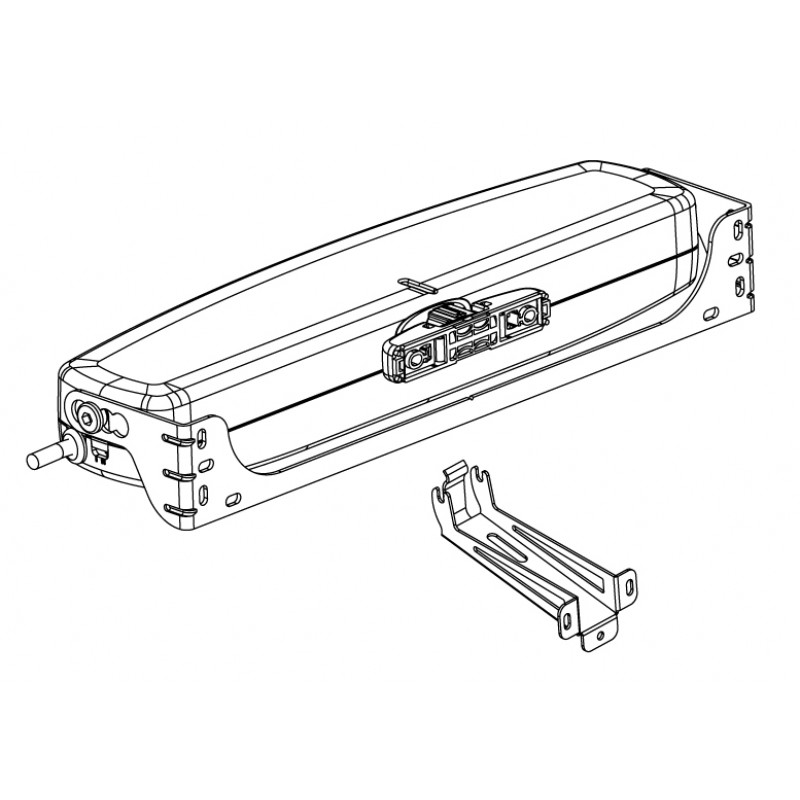

Topp electric actuator model C30 230V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or bottom-hung opening.
- Operation 230V 50Hz.
- Maximum applicable load 300N.
- Quick coupling attachment to the frame.
- Stroke adjustable from outside by selector switch with stops at 200mm and 380mm.
- Electronics with buzzer for user signaling incorrect assembly.
- CE marked device.
Technical characteristics of the Topp C30 230V motor
- Supply voltage: 230V 50Hz;
- Maximum applicable thrust load: 300N;
- Maximum applicable load in traction: 300N;
- Strokes (selectable at any time): 200 and 380mm;
- Absorption: 0.26A;
- No-load travel speed: 27mm/s;
- Duration of idle stroke: 14s;
- Double electrical insulation: yes;
- Type of service: S2 of 4min;
- Operating temperature: - 5 / + 50 °C;
- Degree of protection for electrical devices: IP30;
- Fixture attachment adjustment: 15mm;
- Swing bracket pin adjustments: 15mm;
- Chain position control: yes;
- End stop: encoder;
- Electronics with buzzer for user signal incorrect assembly: yes;
- Dimensions: 337.2x80x49mm;
- Weight: 1.1Kg.
Applications: bottom-hung windows , projecting windows, domes, dormer windows, roof windows.

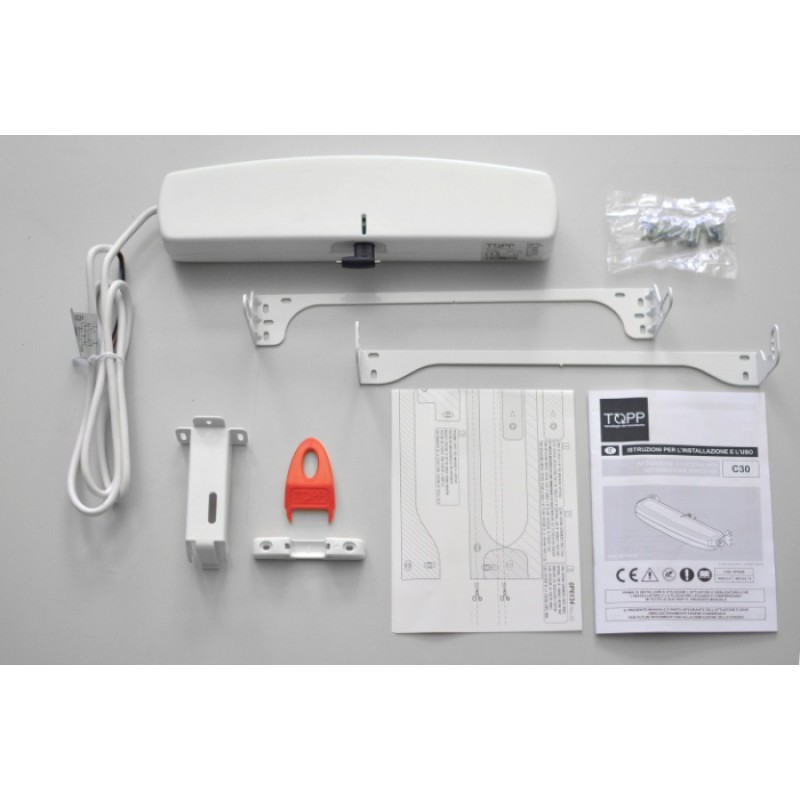

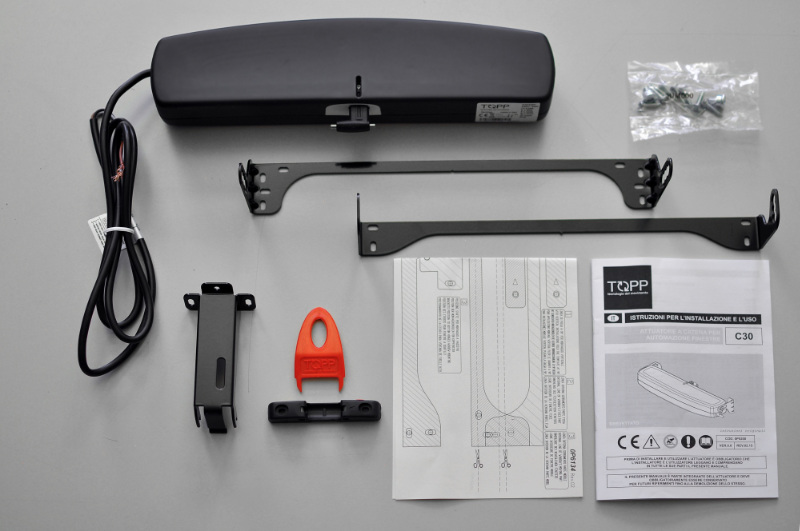

Included in the package: chain actuator (small parts included), tilting front mounting bracket, bottom hung bracket, ARS quick connection to the window.
Actuator and brackets are black, gray or white (depending on the color chosen).
What are the reasons for choosing a Topp C30 actuator?
- Double link chain with very high resistance to peak loads;

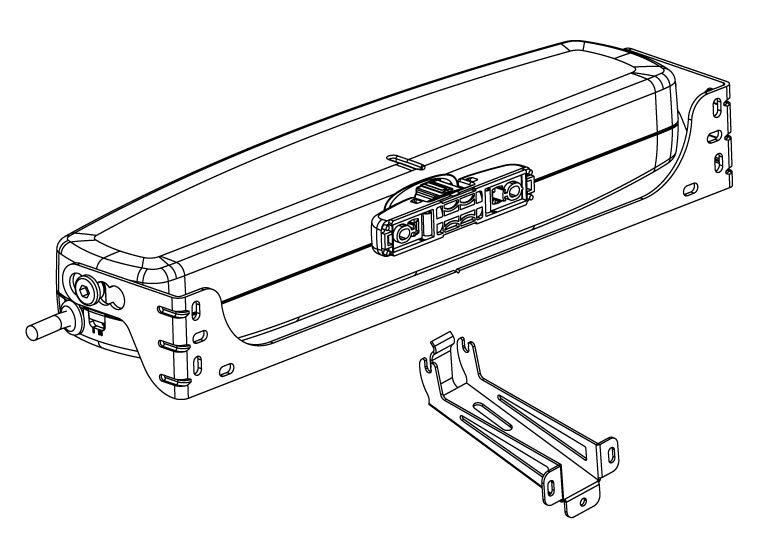

- Simple tilting bracket, fast and suitable for windows of all types and sizes;
- Telescopic chain terminal with quick adjustment (from 0 to 15mm), also with chain completely retracted, for application on windows with overlap (international patent);
- Tilting bracket with additional adjustment system for application on overlapping windows;
- Quick hooking and unhooking system of the chain to the window (international patent).
C30 230V standard 1 push point
| Code |
Description |
| 3A4#000000219 |
C30 230V Chain Actuator - Black |
| 3A4#000000211 |
Chain Actuator C30 230V - Grey |
| 3A4#000000201 |
Chain actuator C30 230V - White |
