Chiaroscuro SL 80 230Vac - Automation Kit - Motor for Sliding Shutters - Max 160Kg
Chiaroscuro SL 80 230Vac (ex Chiaroscuro Slide 80) is a motor for sliding shutters with 110 ÷ 230 Vac power supply - Max total weight 160 Kg - Force 80 N.

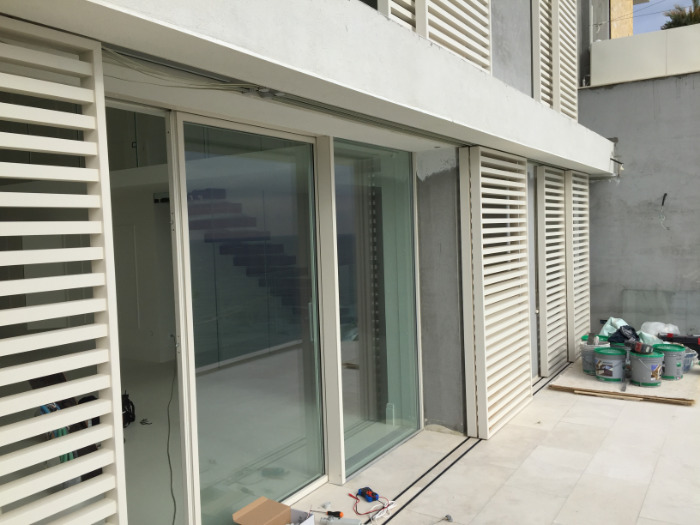

Chiaroscuro SL80 is a shutter automation suitable for operating external wall sliding shutters. Thanks to its low profile of only 38mm. it is also perfect for integrating into existing windows.
Kit Slide SL 80 Chiaroscuro: what does it include?

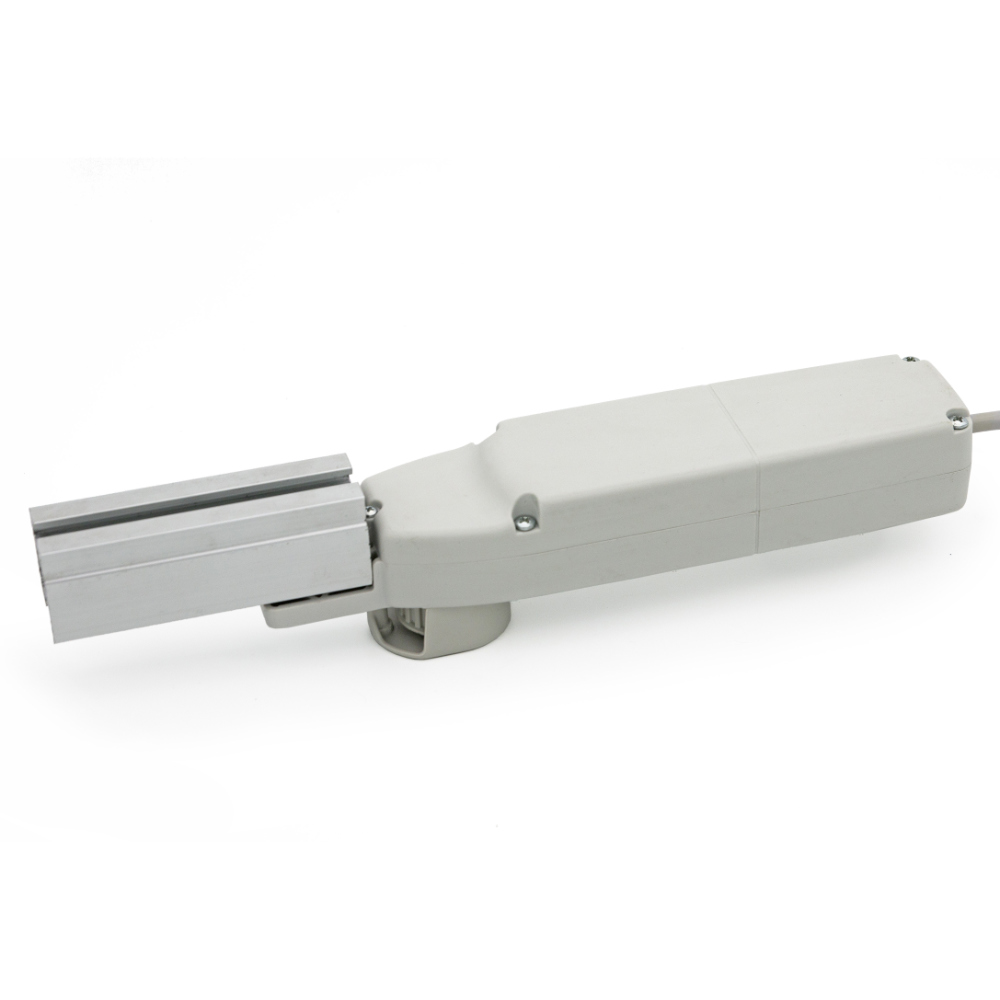

Motor for sliding shutters with plate for rails with internal groove max 15mm - Pieces: 1;
Belt T5H10 - Meters: 10;
Straight dragging bracket - Pieces: 2;
Tensioner with idle transmission pinion - Pieces: 1;
Use and maintenance manual.
SL80 Chiaroscuro is the compact and versatile shutter motor
Slide SL 80 Chiaroscuro is the ideal solution for comfort and practicality of life at home.
The advantages of the SL-80 Chiaroscuro motor for sliding shutters
Convenient: no cold, rain and wind in winter or heat and mosquitoes in summer, the doors close by pressing a button inside the house without opening the windows.
Ultra compact: recommended for installations with limited space.
Safe: thanks to the irreversible 230V motor.
Practical: designed to fit perfectly into systems with aluminum cover and rail.
Integrated control unit: self-learning system. Automatic movement control unit that can be fully integrated with all home automation systems; it complies with the safety requirements in the event of an impact and allows movement with partially closed scenarios or intermediate stops with a simple click.
This motor can also be purchased on Windowo in the Slide 80 24V version.
Template
SL 80 (formerly Slide 80)
Motor power supply
110 ÷ 230 Vac
Max total weight
160 Kg
light max
300cms
Speed
10cm/s
Double electrical insulation
Yup
Average absorption
~ 0.18 ÷ 0.08A
Force
80 No
Working cycle
10 cycles/hour
Noisiness
50dB
Degree of protection
IP56
Irreversible
Yup
Electric lock
Yup

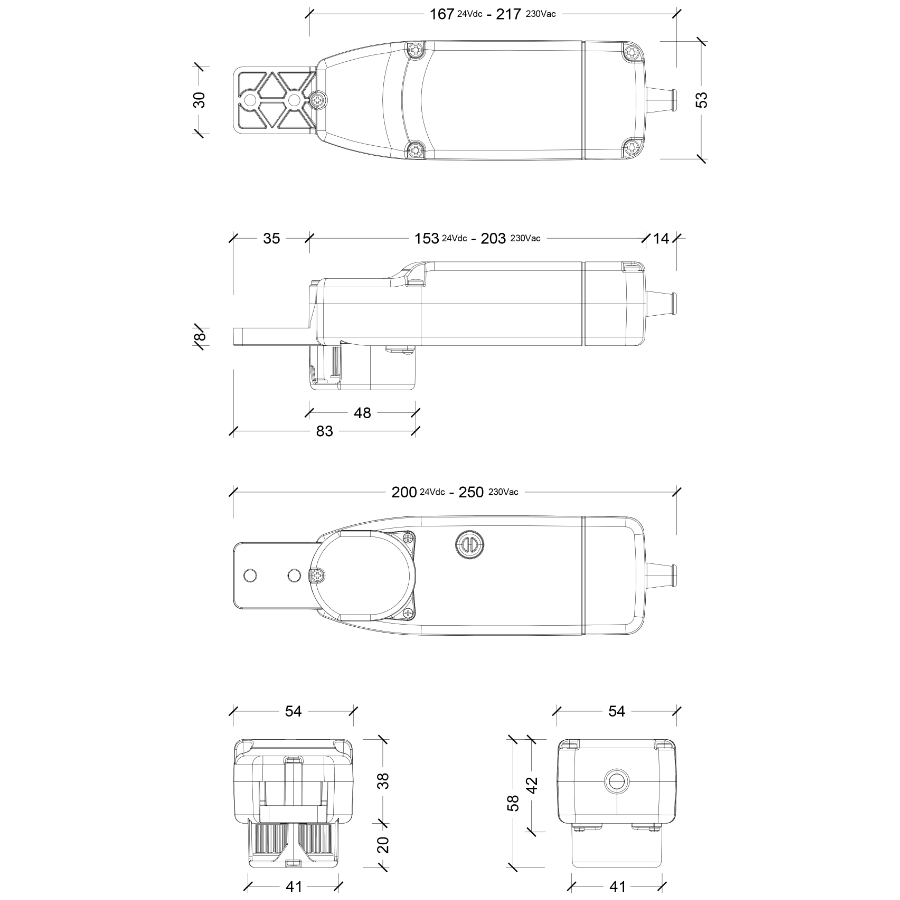

Dimensions
200x54x38mm
Power cord length
1.5m
Maximum stroke
7.5m
Maximum push and pull force
145 No
Checking the overall dimensions of the shutter automation
Check that the motor housing compartment or the space beyond the track is sufficient for installing the product, otherwise installing the item will decrease the travel of the leaf.
Slide 80 Engine Instruction Manual Chiaroscuro
We recommend reading the " Slide 80 Instruction Manual ", which you can find in PDF format by clicking on "Documents", at the top of this sheet.
In this manual you can find the guide for installing the motor , divided in turn into the following phases:
Fixing the motor on the rail;
Opening the clamp and inserting the motor into the track;
Positioning and fastening of the belt;
Completion of the mechanical installation of the sliding system;
