Chiaroscuro ST50 - Automation for Swing Shutters - 110-230 Vac
Chiaroscuro ST50 Chiaroscuro is an automation designed to simplify use and management.
Chiaroscuro ST 50 is easy to install and wire, with simple, powerful and silent operation.

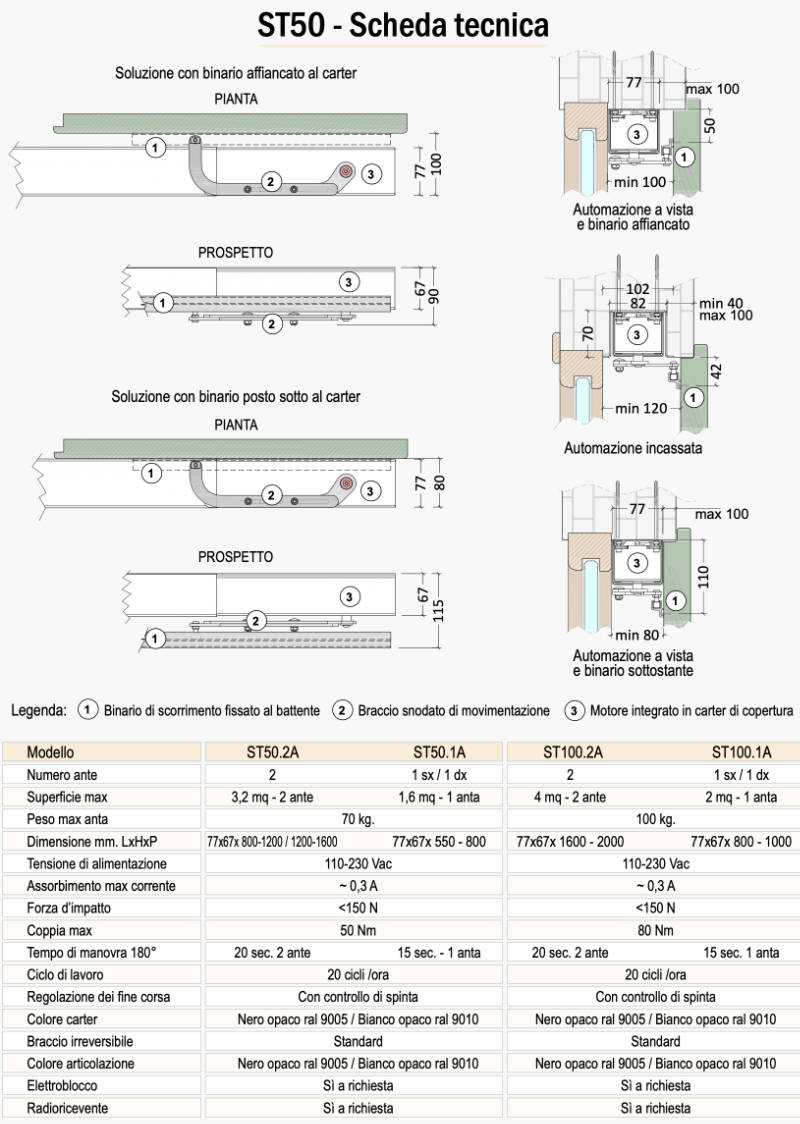

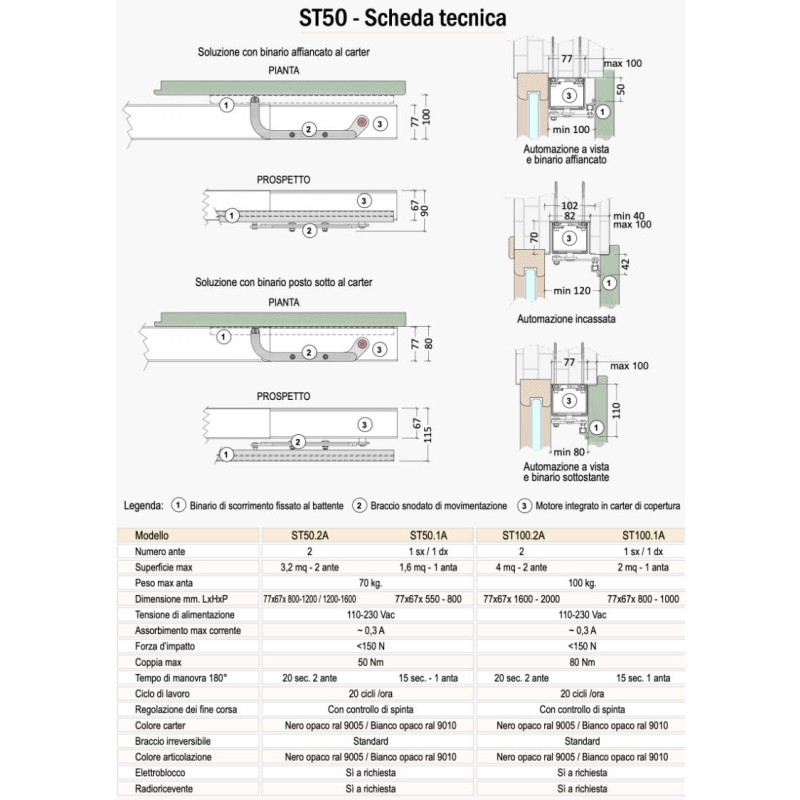

ST50 Chiaroscuro - Technical Characteristics

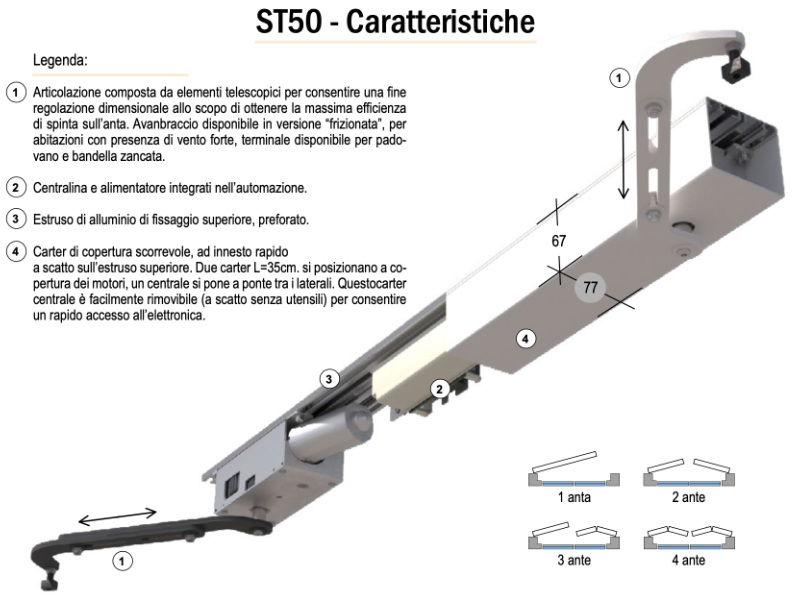

Articulation composed of telescopic elements to allow a fine dimensional adjustment in order to obtain the maximum thrust efficiency on the leaf. Forearm available in “frictioned” version, for homes with strong winds, terminal available for Paduan and zancata strip;
Control unit and power supply integrated in the automation;
Extruded aluminum top fixing, pre-drilled;
Sliding cover carter, with quick snap connection on the upper extrusion. Two carter L=35cm. they are positioned to cover the engines, a central bridge is placed between the lateral ones. This central casing is easily removable (snap without tools) to allow quick access to the electronics.
What are the main advantages of the ST50 Chiaroscuro blind automation?
Comfortable:
No cold, rain or wind in winter or heat and mosquitoes in summer, the doors close by pressing a button inside the house without opening the windows.
Easily applicable:
The overall dimensions in section of only 77 mm. makes it easy to apply.
In case of limited space it is possible to install it with only 80 mm. of useful space!
Sure:
Thanks to its standard irreversible closing system, which can be increased with the optional electric lock or the possibility of commanding external electric closings.
Practical:
The telescopic cover also makes the automation adaptable to existing frames.
The telescopic arm and the Paduan arm are optional and broaden the field of applicability.
Integrated control unit:
Movement control unit with sequence between the two leaves that can be perfectly interfaced with all home automation systems. Complies with safety requirements in the event of an impact, it is possible to adjust the force and the delay between the leaves.
Certificate:
Product for professional use, certified with CE mark, compliant with free-standing European directives and standards, compliant with low-energy directives.
Made in Italy:
100% of the components are made in Italy.
ST50 Chiaroscuro - Home automation system compatibility
The automation is compatible with almost all home automation systems and existing home automation management modules that manage the opening and closing of the rolling shutters (modules that can be purchased from specialized retailers).
As for rolling shutter control, it is in fact sufficient to set a holding time of more than 60 seconds using your favorite application: the automation will carry out the movement and will automatically stop when the leaves are opened / closed.
The integrated board is in fact able to stop the motorisations when the movement is complete, identify any obstacles or presences during operation, in order to ensure maximum safety during operation and protect the motorisations from strain. This streamlined usage makes automation extremely easy to manage and configure!
Why choose Chiaroscuro automation for shutters?
Chiaroscuro has been providing its customers with mechatronic solutions for the automation of doors and windows since 1998, developing dynamic solutions, integrating unique and patented features into its products.
It bases its success on the complete assistance of its customers: design and pre-sales assistance, production and after-sales assistance; It is also the only one that adapts the automations to the customer's needs by creating specific customized variants.
For years it has been involved in developing automation for the home , renewing itself, adopting new technologies, joining and integrating with simplicity to any home automation system. The automations can easily be managed via remote control, through home automation or with a command button, making our lives easier every day.
All automations can be easily integrated into home automation systems. Chiaroscuro is a strong supporter of ecology: the materials used, the packaging and the processes employed in the production phases are eco-sustainable. Chiaroscuro is a company that continues to invest to improve the quality of its products and the level of services offered.
Thanks to Chiaroscuro you can automate sliding or swing shutters of all kinds , both new and already installed. In fact, Chiaroscuro offers different types of automation, each of which is dedicated and designed to deal with a specific use: this variety of solutions allows the automations to integrate optimally with any type of shutter, managing their movement with maximum efficiency.
You will be able to forget the shutters that constantly slam at every slightest thwart!
