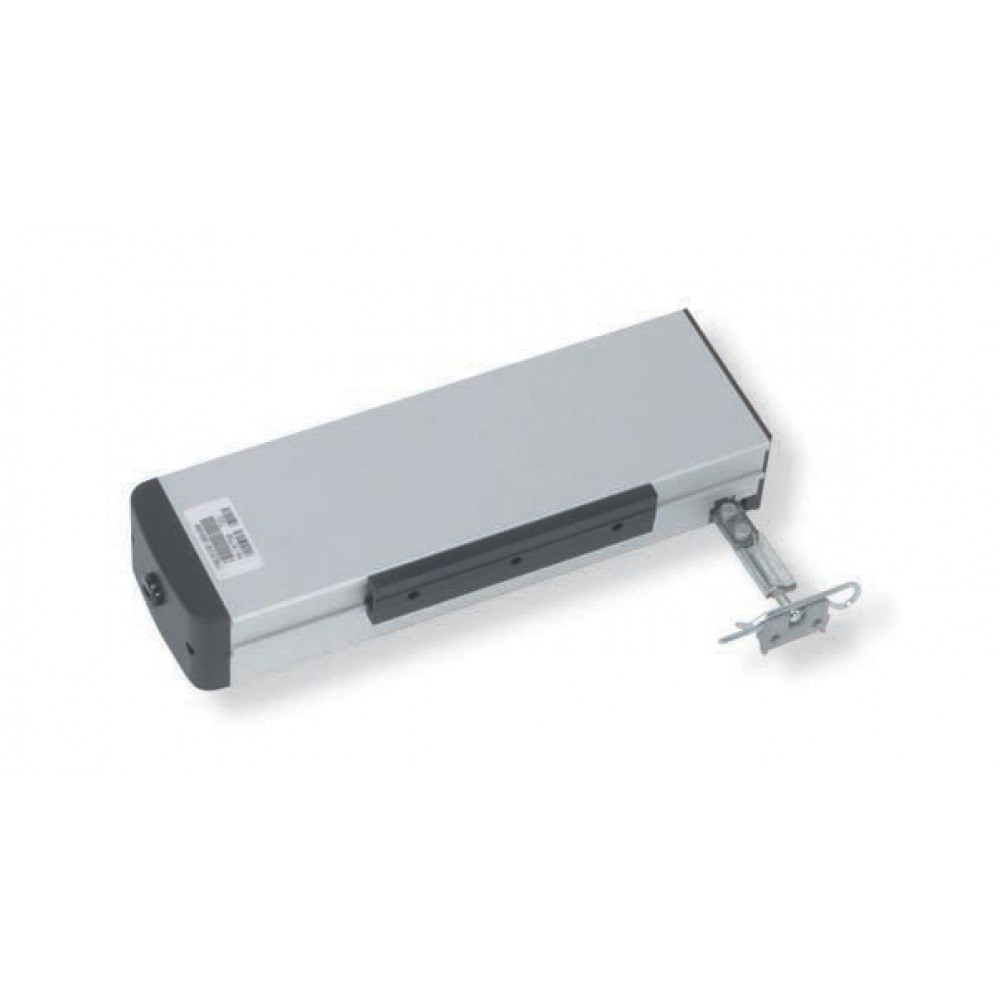

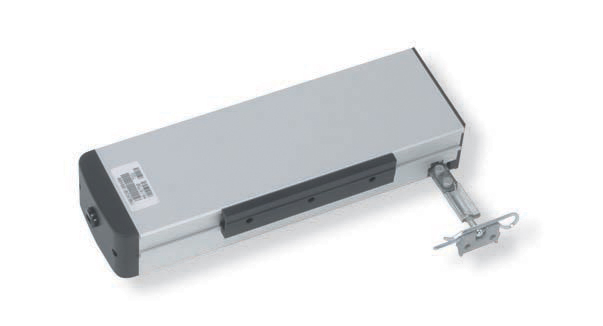

Micro 02 WAY Mingardi 230V Stroke 250/365mm - Chain Actuator Window Motor
Micro 02 Mingardi - Chain window motor for top hinged windows and bottom-hung windows

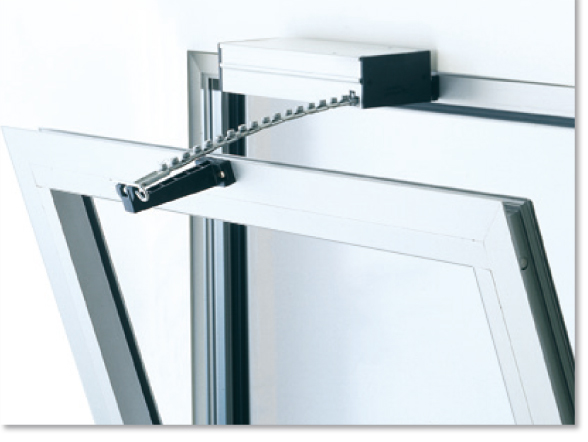

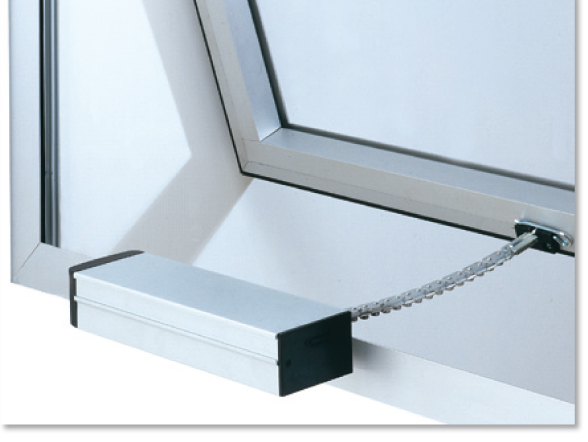

Mingardi Micro 02 230V is a chain motor for the automatic opening and closing of bottom-hung and top-hung windows.
ATTENTION:

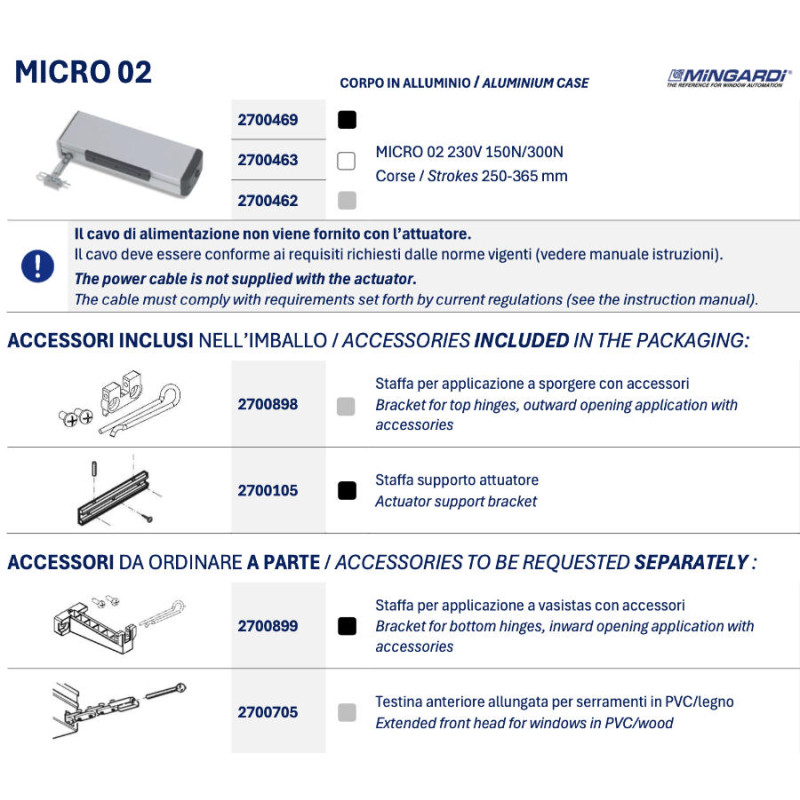

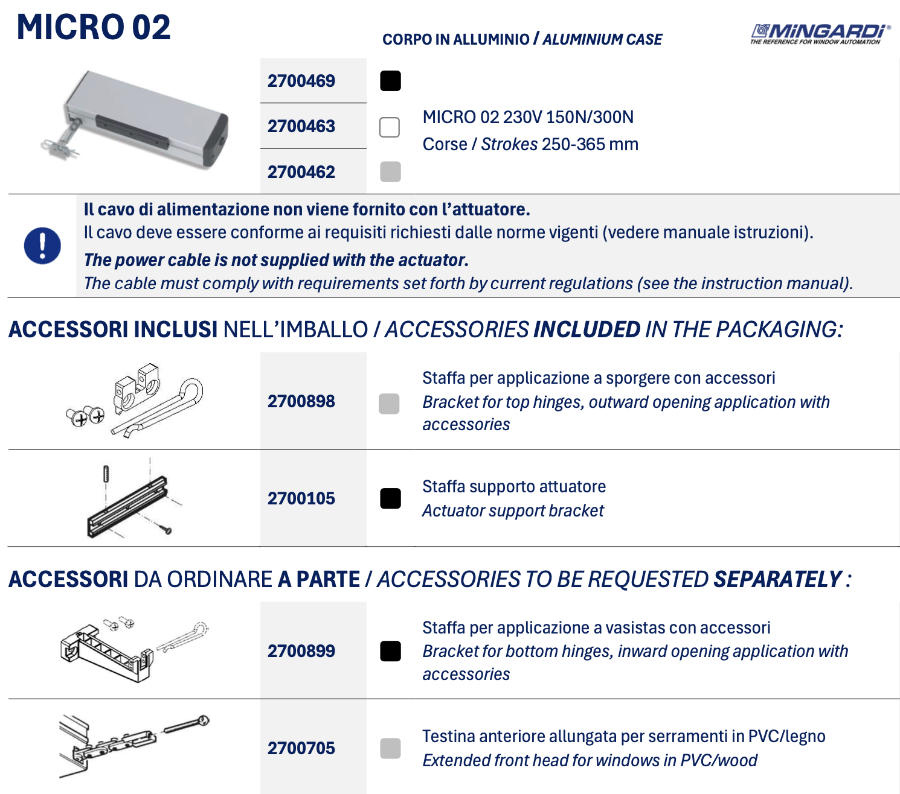

- The bracket for bottom-hung application (art.2700899) must be purchased separately on the site;
- The bracket for projecting application (art.2700898) is included.

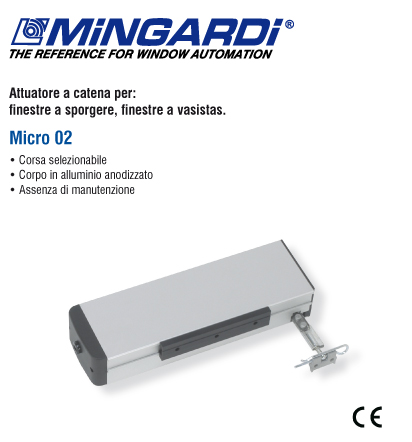

Micro 02 Mingardi is a linear electric window motor with articulated chain movement contained inside the casing.
- Operation with 230V~ / 50Hz power supply voltage.
- Compliant with Directives 2006/95 LVD - 2004/108 EMC.
- Equipped with electronic limit switch system in opening and microswitch in closing.
- Stroke selectable from the outside using a selector.
- Can be connected in parallel with signal output.

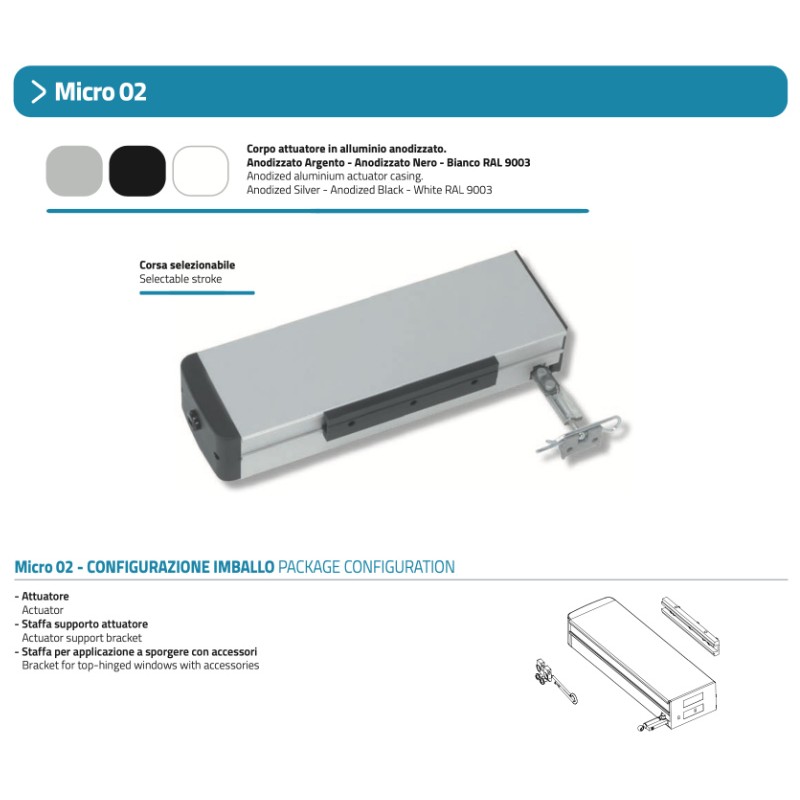

- Colours: anodized silver - black - white RAL 9010.

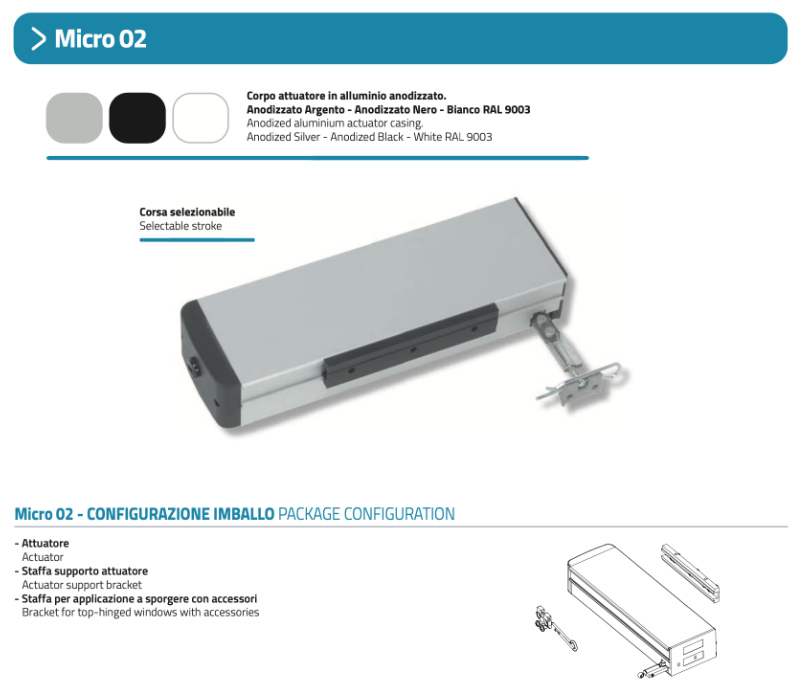

- Complete with accessories for installation on top hinged windows.
Chain window motor - Micro 02 Mingardi technical characteristics:

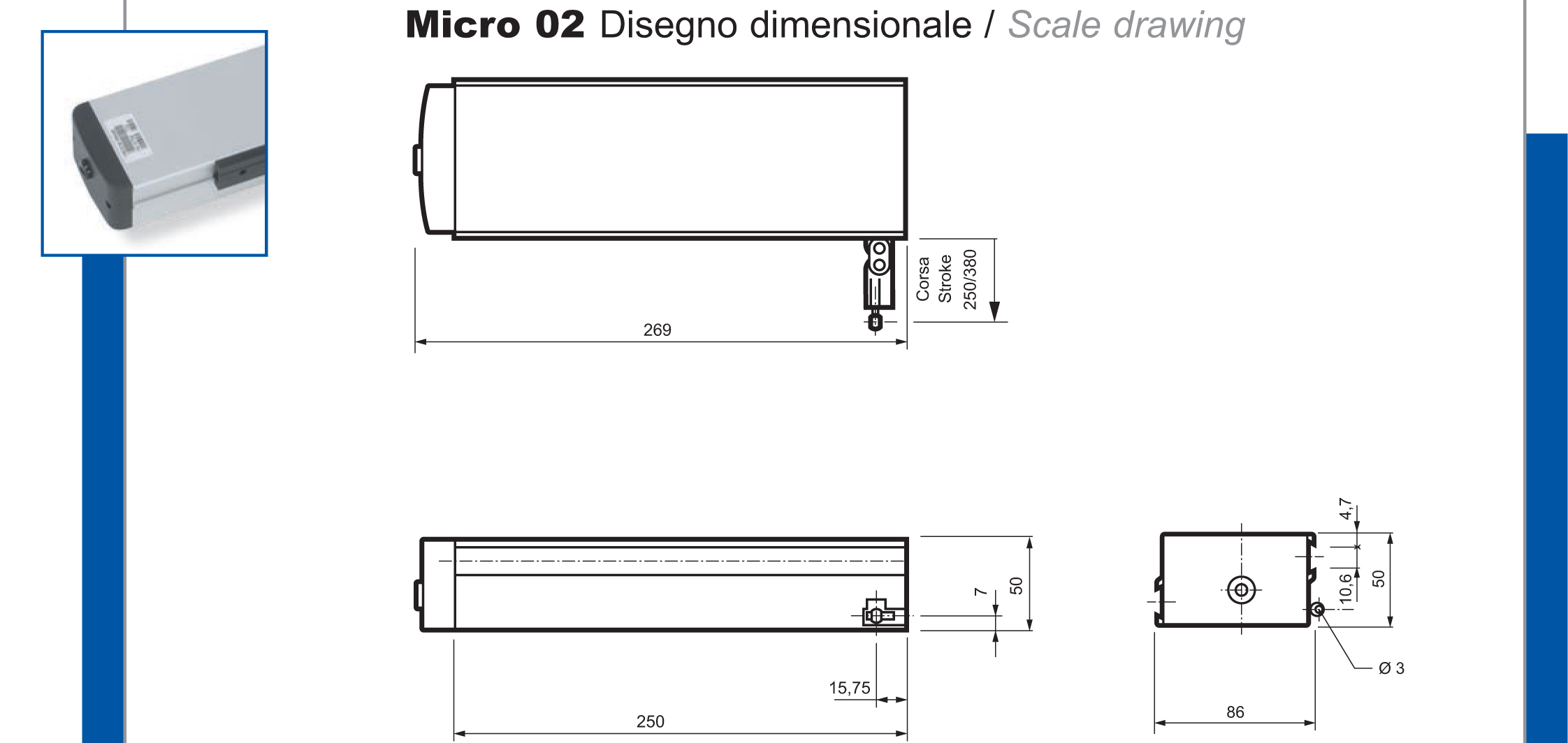

- Selectable stroke (250/365mm);
- Absence of maintenance;
- Anodized aluminum body;
- Degree of protection: IP 20;
- Closing - opening limit switch: electronic microswitch;
- Colour: silver anodized, black anodized, Ral 9010 (optional).
Micro 02 Mingardi Technical data*
| Description |
Voltage |
push
Traction |
Race |
Power
Absorbed |
Speed
min. |
| Micro 02 250/380mm |
230V ~ /50Hz |
150/300N |
250/365mm |
135W |
approx. 35mm/s |
THE PERFORMANCE VALUES SHOWN IN THE TABLE ARE VERIFIED AT AN OPERATING TEMPERATURE FROM -10°C/+40C° WITH A MAXIMUM RELATIVE HUMIDITY OF 60%.
