Chiaroscuro WH25 Retractable Automation for Swing Shutters

Chiaroscuro
Brands: Chiaroscuro
Code: WH25
£ 308,50
Prices excluding VAT
Are you looking for a product of Chiaroscuro catalog not present on our site? Contact us and ask for a quote.

- +

Chiaroscuro WH25 - Retractable Automation for Swing Shutters - Total Recessed on Façade

Chiaroscuro WH25 : the fully built -in concealed automation on the facade that replaces a wall-in hinge and is ideal for prestigious applications with total aesthetic cleanliness.

Chiaroscuro WH25 - Automazione a Scomparsa per Persiane Battenti - Incasso Totale su Facciata

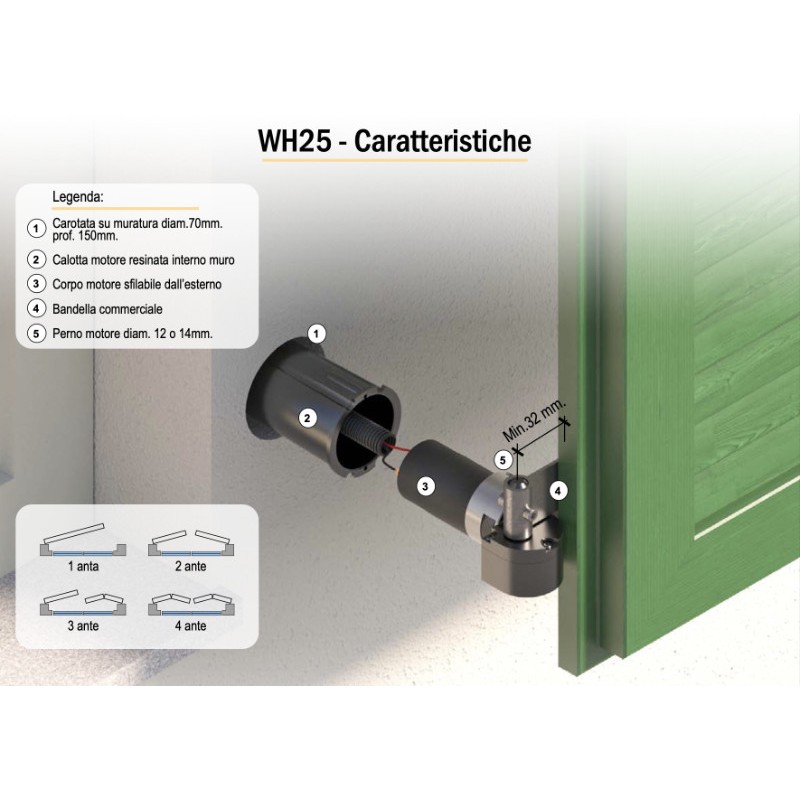

Legend:
  1. Core drill on masonry diam.70mm. prof. 150mm.
  2. Internal wall resin coated motor cap
  3. Engine body removable from the outside
  4. Commercial band
  5. Engine pin diam. 12 or 14mm.

Chiaroscuro WH25 - Automazione a Scomparsa per Persiane Battenti

Chiaroscuro WH25 is comfortable:
No cold, rain or wind in winter or heat and mosquitoes in summer, the doors close by pressing a button inside the house without opening the windows.

Chiaroscuro WH25 is invisible:
Totally concealed, it replaces a bricked-in hinge and is ideal for applications of value and clean aesthetics.

Chiaroscuro WH25 is safe:
Can be increased with the optional electric lock.

Chiaroscuro WH25 is practical:
Built-in to the wall like a normal chemical plug makes the automation easy to install, even in the presence of a thermal coat.

With advanced control unit:
Self learning system. Automatic movement control unit that can be completely interfaced with all home automation systems: it complies with safety requirements in the event of impact and allows movement with partially closed or intermediate stop scenarios with a simple click. Separate control unit (can be housed in a 3-module built-in box type bticino 503E)

Certificate:
Product for professional use on the European market since 2010, CE certified, compliant with European directives and standards.

Made in Europe:
100% of the components are made in Europe.

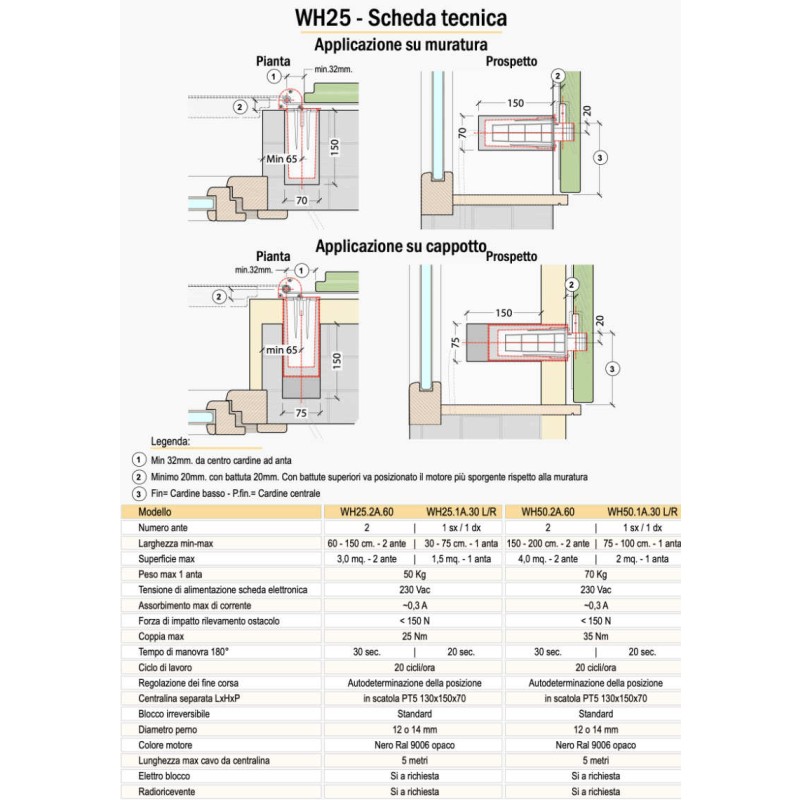

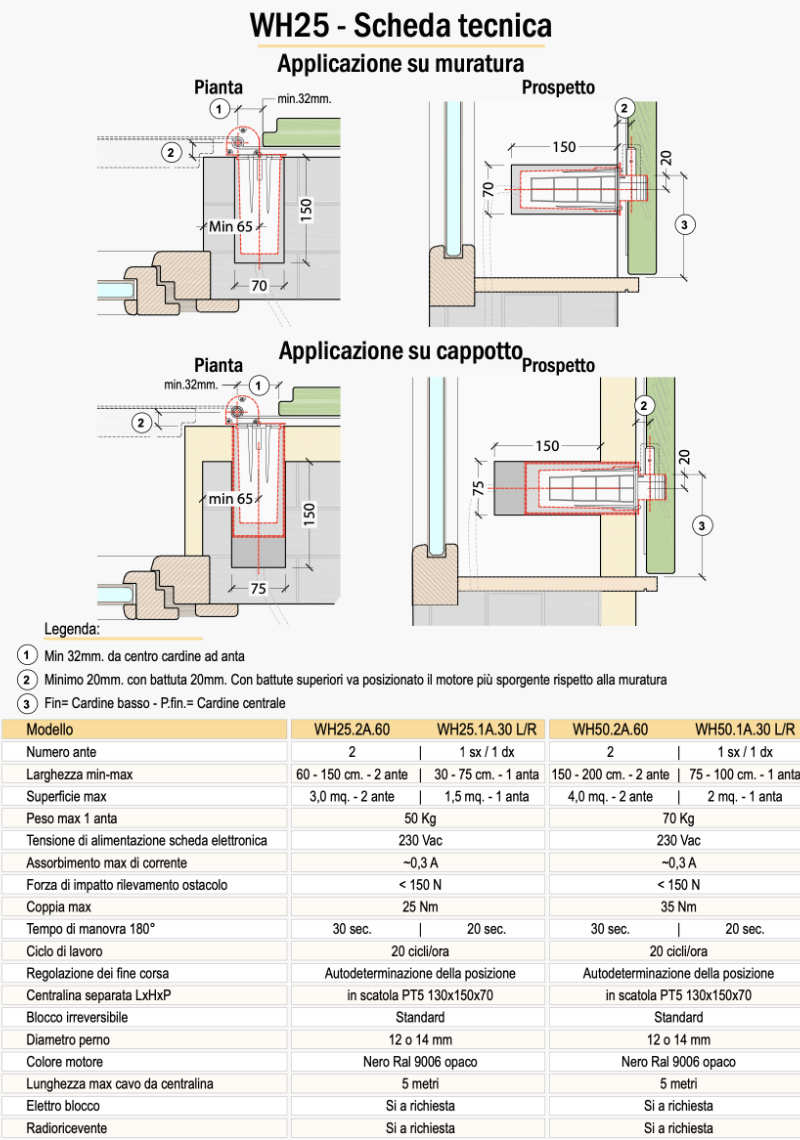

Chiaroscuro WH25 - Scheda Tecnica

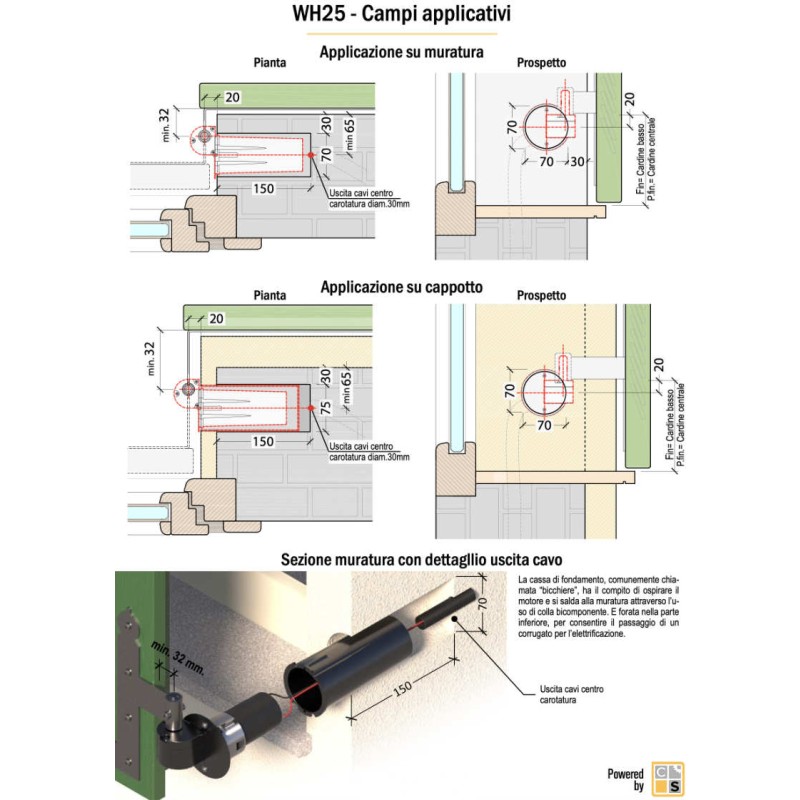

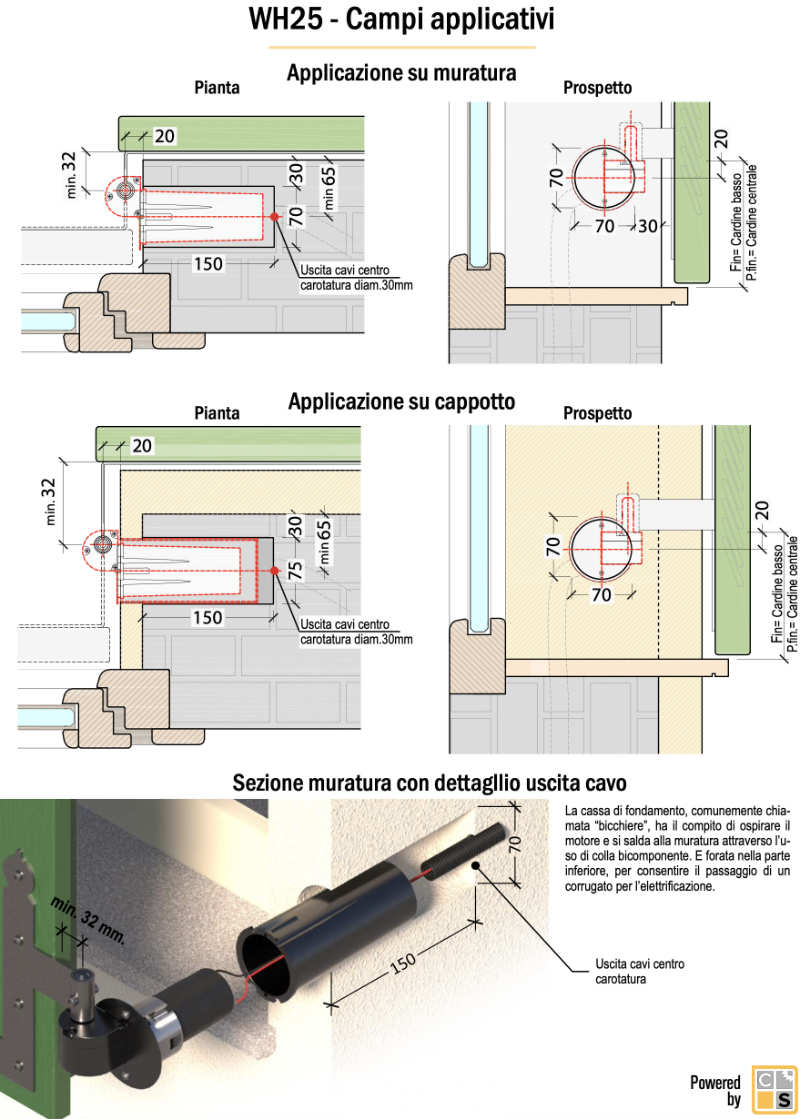

Chiaroscuro WH25 - Campi Applicativi

Chiaroscuro WH25 - Home automation system compatibility

The automation for shutters is compatible with almost all home automation systems and existing home automation management modules that manage the opening and closing of the shutters (modules that can be purchased from specialized retailers).

As for rolling shutter control , it is in fact sufficient to set a holding time of more than 60 seconds using your favorite application: the automation will carry out the movement and will automatically stop when the leaves are opened / closed.

The integrated board is in fact able to stop the motorisations when the movement is complete, identify any obstacles or presences during operation, in order to ensure maximum safety during operation and protect the motorisations from strain. This streamlined use makes automation extremely easy to manage and configure.

Chiaroscuro solutions: discover the best automations for shutters

Chiaroscuro has been providing its customers with mechatronic solutions for the automation of doors and windows since 1998, developing dynamic solutions, integrating unique and patented features into its products.

It bases its success on the complete assistance of its customers: design and pre-sales assistance, production and after-sales assistance; It is also the only one that adapts the automations to the customer's needs by creating specific customized variants.

For years it has been involved in developing automation for the home , renewing itself, adopting new technologies, joining and integrating with simplicity to any home automation system. The automations can easily be managed via remote control, through home automation or with a command button, making our lives easier every day.

All automations can be easily integrated into home automation systems. Chiaroscuro is a strong supporter of ecology: the materials used, the packaging and the processes employed in the production phases are eco-sustainable. Chiaroscuro is a company that continues to invest to improve the quality of its products and the level of services offered.

Thanks to Chiaroscuro you can automate sliding or swing shutters of all kinds , both new and already installed. In fact, Chiaroscuro offers different types of automation, each of which is dedicated and designed to deal with a specific use: this variety of solutions allows the automations to integrate optimally with any type of shutter, managing their movement with maximum efficiency.

You will be able to forget the shutters that constantly slam at every slightest thwart!
Please accept marketing cookies to view this content.
Chiaroscuro WH25 - Persiane a Libro
Chiaroscuro WH25 Automazione a Scomparsa per Persiane Battenti
