Liwin L25 Chain Actuator 230V 50Hz L=<1250 Comunello Mowin
Comunello Liwin L25 , electric
chain actuator motor for opening and closing
top hinged windows, sheds, skylights, bottom hung windows in wood, PVC and aluminium.
Inside the package you will find all the elements and tools that make the assembly and connection operations of the Liwin L25 electric actuator with the electrical system simple.
The chain actuators of the Comunello Liwin series comply with the EC Directives (EMC, LVD and R&TTE Directives) and subsequent amendments.

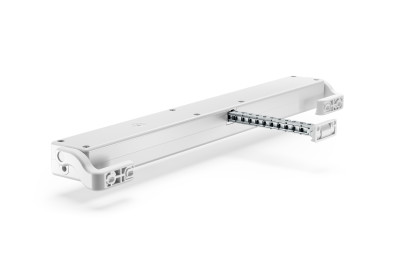

Liwin L25 Comunello chain actuator for windows and skylights
What's in the box?
- Comunello Liwin L25 chain actuator with electric cable;
- support brackets;

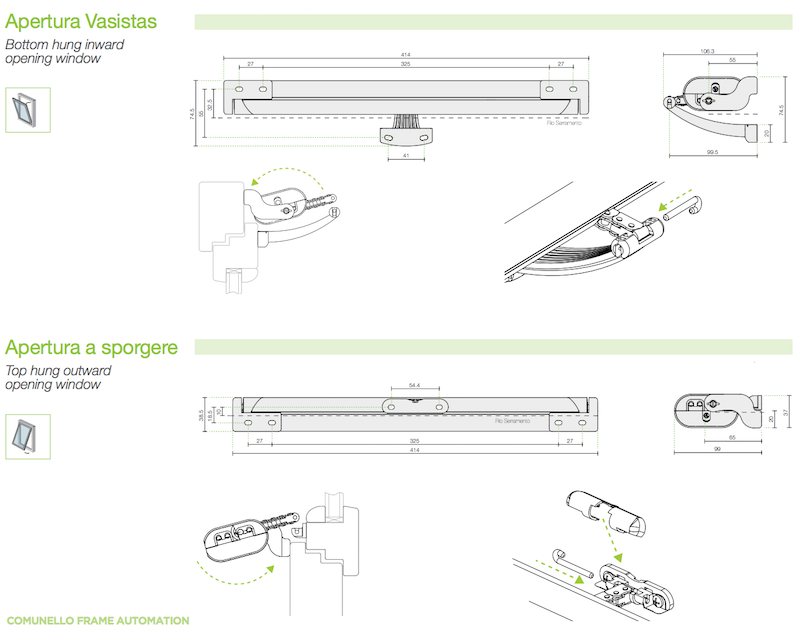

- attachment for bottom-hung and top-hung windows;
- adhesive template included;
- multilingual instruction booklet.
Technical Characteristics of the Comunello Liwin L25 Chain Actuator
- Model: Comunello L25 230Vac actuator;
- VAC power supply: 230VAC;
- Frequency 50Hz;
- Service: S2 4min;
- Push force: 250N;
- Pulling force: 250N;
- No-load translation speed: 18 mm/s;
- Degree of protection: IP44;
- Double AC insulation: Yes;
- VAC Current: 0.14A;
- Power: 22W;
- Operating temperature: -5° / +50°;
- Strokes: 200 – 250 – 380mm;
- Closing limit switch: by absorption;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Parallel connection: yes (max 30 actuators);
- Synchronization: no;
- Dimensions: 390x38x73mm.
Comunello Liwin L25 chain actuator advantages
- Immediate stroke adjustment;
- Quick coupling;
- Quick and easy attacks;
- Double link chain;
- Details in the foreground.
Comunello Mowin chain electric actuator
Buy Comunello Mowin chain actuators online in a simple and safe way. The
Comunello Frame Automation project was born from Comunello's experience in the mechanical handling of doors and windows.
A modern design with attention to all its details presents the Comunello Mowin series as a product capable of becoming the protagonist even in residential environments.
