Double Chain Actuator Liwin L35 2W-Net 230V L=1250<2500 Comunello Mowin
Comunello Liwin L35 2W-Net 230V double electric chain actuator for opening and closing top hinged windows, sheds, skylights, bottom hung windows in wood, PVC and aluminium.
2W-Net: Control the movement of multiple window motors
2W-Net version , the innovative dialogue system that guarantees coordination and movement control. No external electronic coordination unit is required and the connection takes place on the RS485 serial port. These versions are to be used on frames with a particularly wide or particularly heavy base.
Inside the package you will find all the elements and tools that make assembly and connection operations with the electrical system simple.
The Liwin series actuators comply with the EC Directives (EMC, LVD and R&TTE Directive) and subsequent amendments.
The package contains: double chain actuator Liwin L35 2W-Net 230V

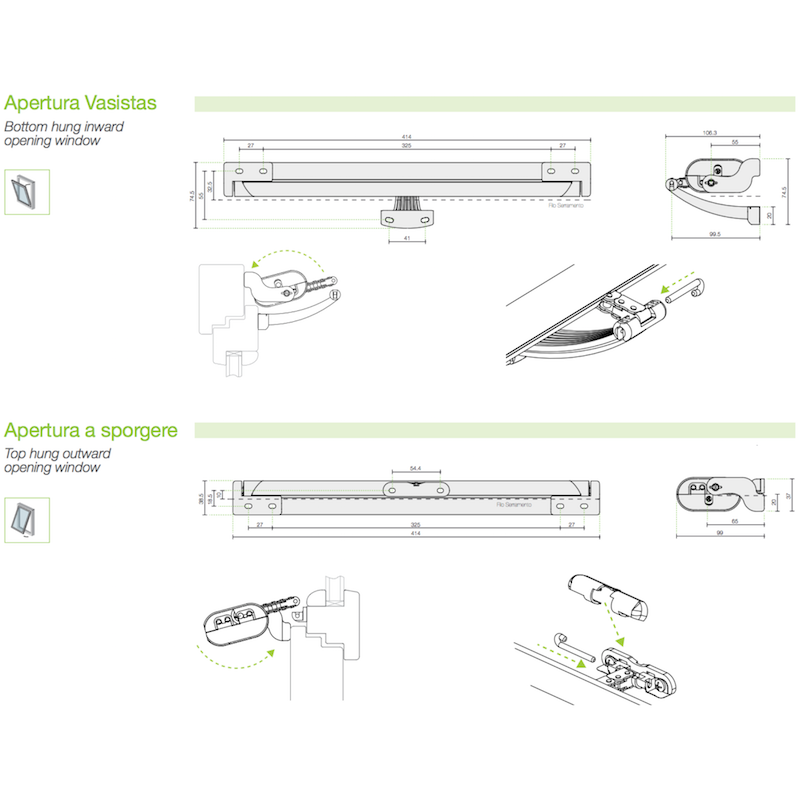

with electric cable, support brackets, attachment for top-hung and top-hung windows, adhesive template included and multilingual instruction booklet.
Technical characteristics Comunello Liwin L35 2W-Net 230V
- Model: L35 230V 2W-NET;
- VAC power supply: 230VAC;
- Frequency 50Hz;
- Service: S2 4min;
- Pushing force: 350N x 2 x 0.7 = 490N;
- Pulling force: 350N x 2 x 0.7 = 490N;
- No-load translation speed: 18 mm/s;
- Degree of protection: IP44;
- Double AC insulation: Yes;
- VAC Current: 0.19A;
- Power: 28W;
- Operating temperature: -5° / +50°;
- Strokes: 50 – 100 – 150 – 200 – 250 – 300 – 350 – 400 – 420 mm;
- Closing limit switch: by absorption;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Parallel connection: yes (max 30 actuators);
- Sync: Yes;
- Dimensions: 390x38x73mm.
Immediate stroke adjustment - Quick coupling.
Quick and easy attachments - Double link chain - Details in close-up.
Comunello Mowin motorized windows
The guarantee of high quality and durability, recognized on Comunello products, continues in the brand new Mowin electromechanical actuators thanks also to a careful development of the electronic and programming parts, offering stable and highly flexible products, suitable for multiple applications for windows, domes, skylights, sunscreen blades, curtains, shutters.
A modern design with attention to all its details presents the Mowin series as a product capable of becoming the protagonist even in residential environments.
