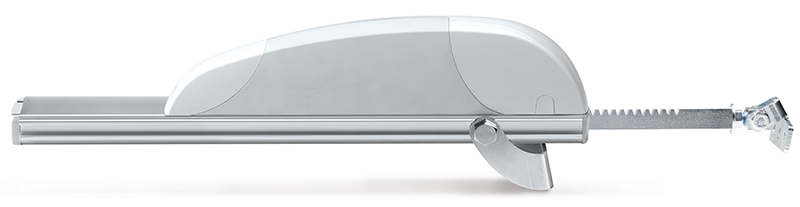

Rack Actuator Airwin A65 650N 24V L=<1250 Comunello Mowin
Airwin A65 STANDARD 24V
L = < 1250 mm

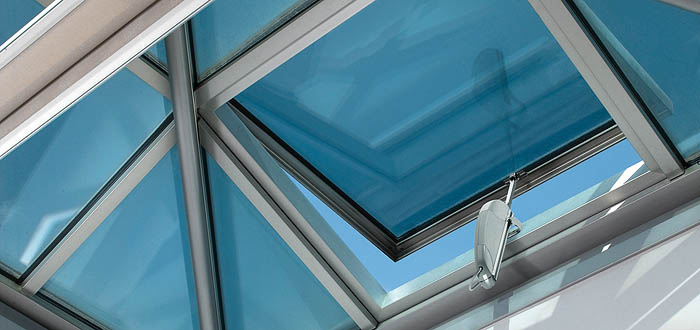

Rack actuator for opening/closing SHED top-hung windows, skylights, brise soleil blades and domes.
The box contains all the parts and equipment you need to make set up and connection as easy as possible.
The Raywin actuator range are in compliance with Directives EC (EMC, LVD and R&TTE directives) as amended.
Package contents: Rack type actuator provided with electric supply cable, anchor bracket and adjusting screws, fixing bracket for top-hung windows and domes and multi-lingual user’s guide.
Technical features:
- Model: Airwin A65 24V;
- Electrical power supply: 24V;
- Operation: S2 4min;
- Thrust force: 650N;
- Tension force: 650N;
- Stroke speed unloaded: 10 mm/s;
- Protection class: IP44;
- Double insulation: Low voltage;
- Power consumption: 1,85 A;
- Power: 45 W;
- Operating temperature: - 5 ° / + 50 °;

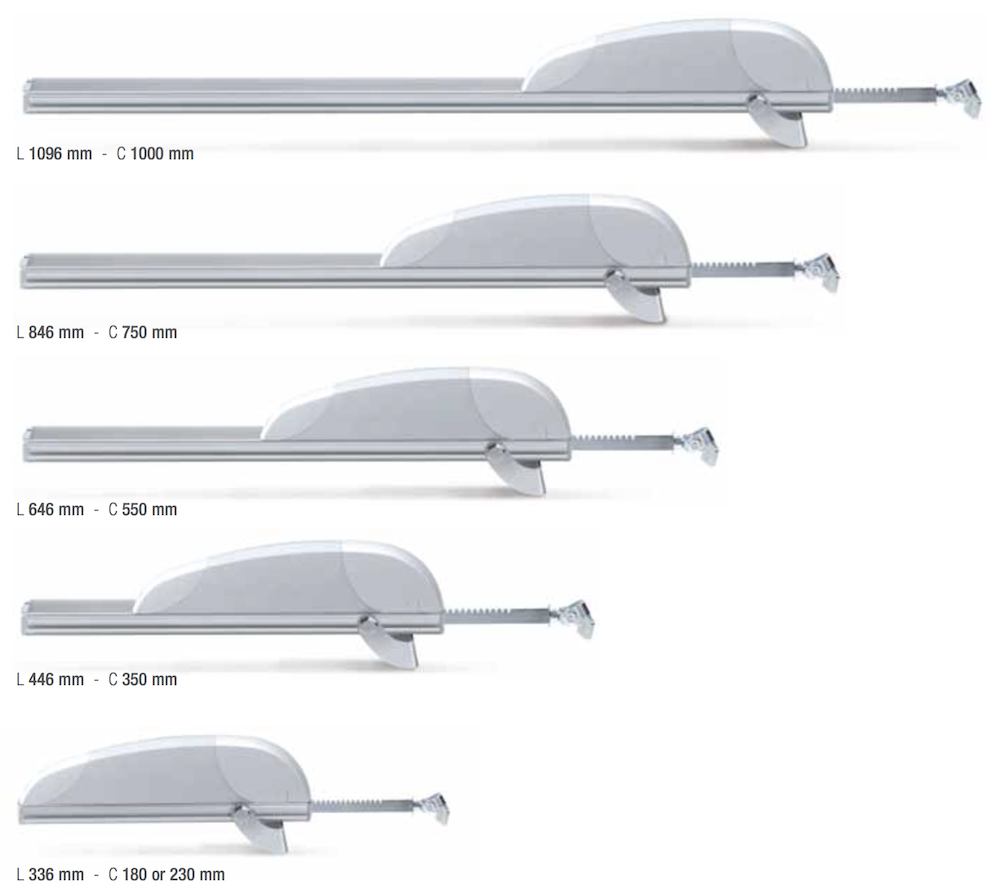

- Strokes available: 180 – 230 – 350 – 550 – 750 – 1000 mm;
- Open limit switch: on impact;
- Closed limit switch: on impact;
- Soft Start / Soft Stop: Yes / Yes;
- Obstacle detection: Yes;
- Parallel connection: Yes (max 30 actuators);
- Synchronization: No;

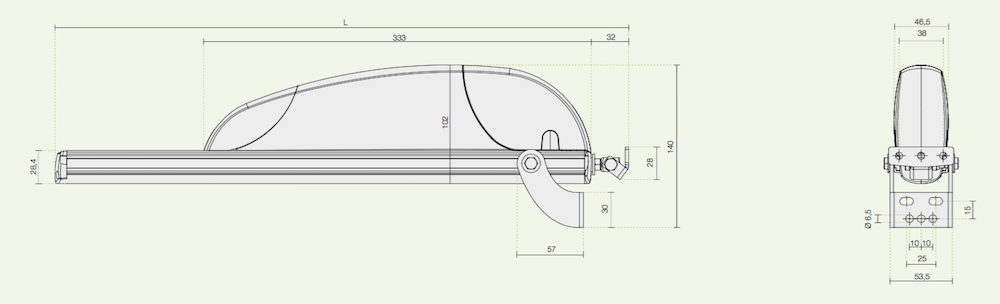

- Dimensions: 96 + stroke x 103 x 47 (except stroke 180) mm.
