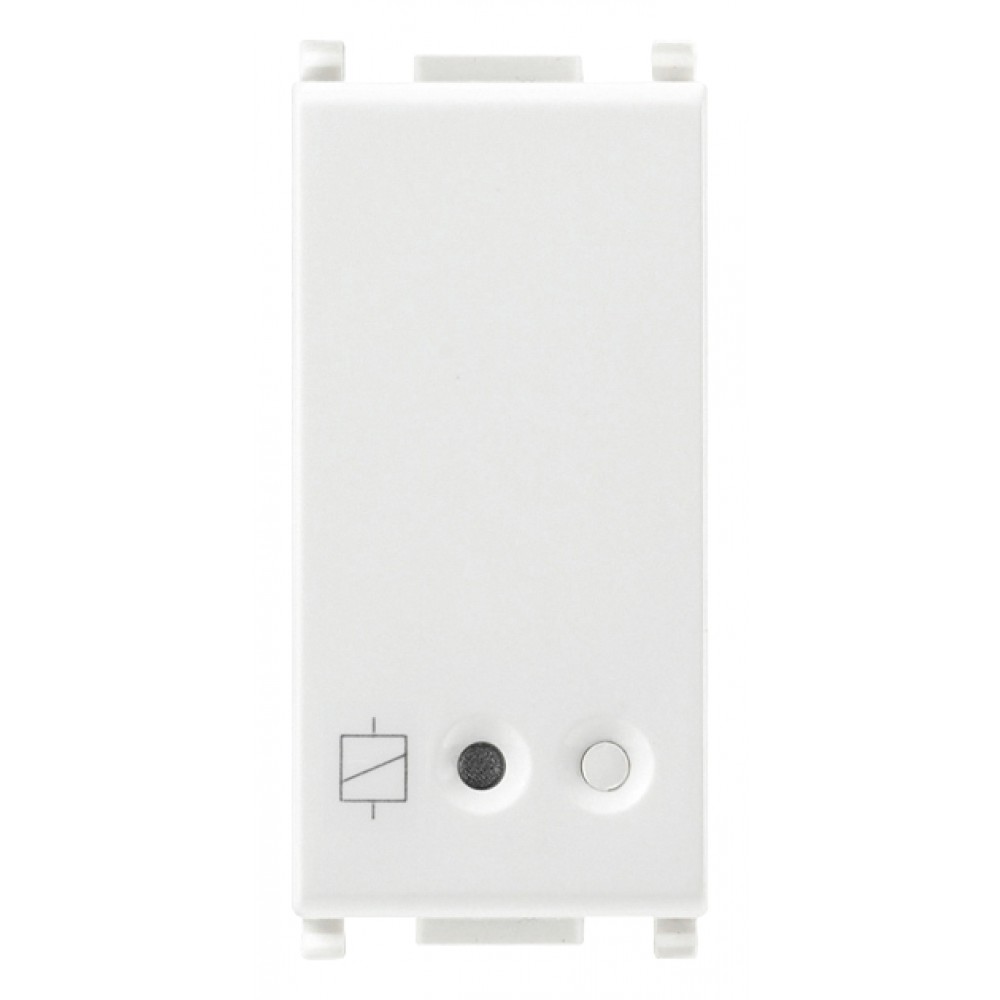

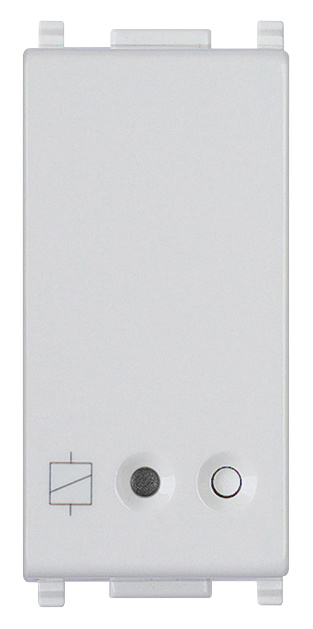

16A IoT Connected Actuator - 14593 Plana Vimar - White or Silver
VIEW Wireless electronic control device with NO 16 A 100-240 V ~ 50/60 Hz relay output, local control with button or remotely.
Vimar connected actuator with double IoT technology on Bluetooth 5.0 standard for creating VIEW Wireless mesh system and on Zigbee 3.0 standard, instant power and energy consumption measurement function and load disconnection threshold, RGB LED detection in the dark with intensity adjustment , power supply 100-240 V 50/60 Hz, white or silver.
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Compatible with Alexa, Google Home and IFTTT, through the appropriate Zigbee gateway or hub.
The
connected actuator for the Plana civil series is equipped with a relay output with current meter and a front button with which to reset the load and carry out the configuration / reset.
Realizes the overcurrent protection function by disconnecting the load when the threshold value set by the View Wireless app is exceeded; the disconnection of the load is signaled by the red flashing of the LED on the front of the device. The reactivation of the load, as well as from the front button, can also be performed from the App View. The App View also allows you to view the instantaneous power consumed.
2 alternative operating modes between them:
Bluetooth or Zigbee .
Technical data 14593 Plana Vimar
- Group: bus systems for plants;
- Class: switch for system lines;
- EIB / KNX bus system: No;
- KNX radio bus system: No;
- Radio bus system: Yes;
- LON bus system: No;
- Powernet bus system: No;
- Other bus systems: others;
- Two way radio: Yes;
- Mounting Type: Recessed;
- Width in subdivision units: 1;
- Local / manual control: Yes;
- With LED indicator: Yes;
- Max number of switching outputs: 1;
- Sizing Current: 16A;
- Nominal operating voltage: 100.00 - 240.00v;
- Various phases that can be connected: No;
- Bus coupling included: Yes;
- Removable bus module: No;
- Modular expansion options: No.
Characteristics of Vimar 14593 connected actuator for Plana civil series
- Nominal supply voltage: 100-240 V ~, 50/60 Hz;
- Power dissipated: 0.85 W;
- Transmitted RF power: <100mW (20dBm);
- Frequency range: 2400-2483.5 MHz.

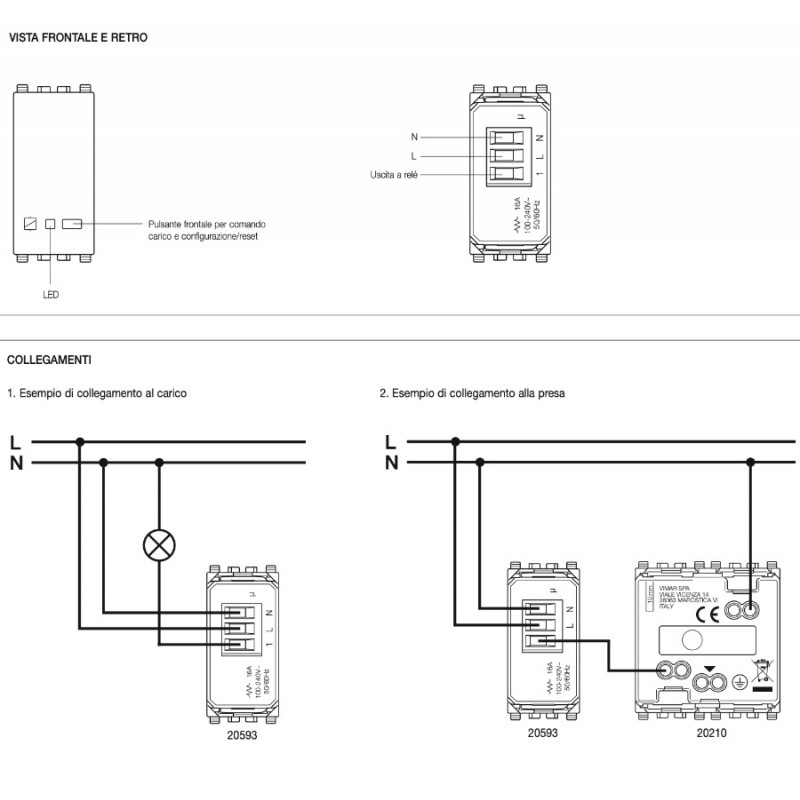

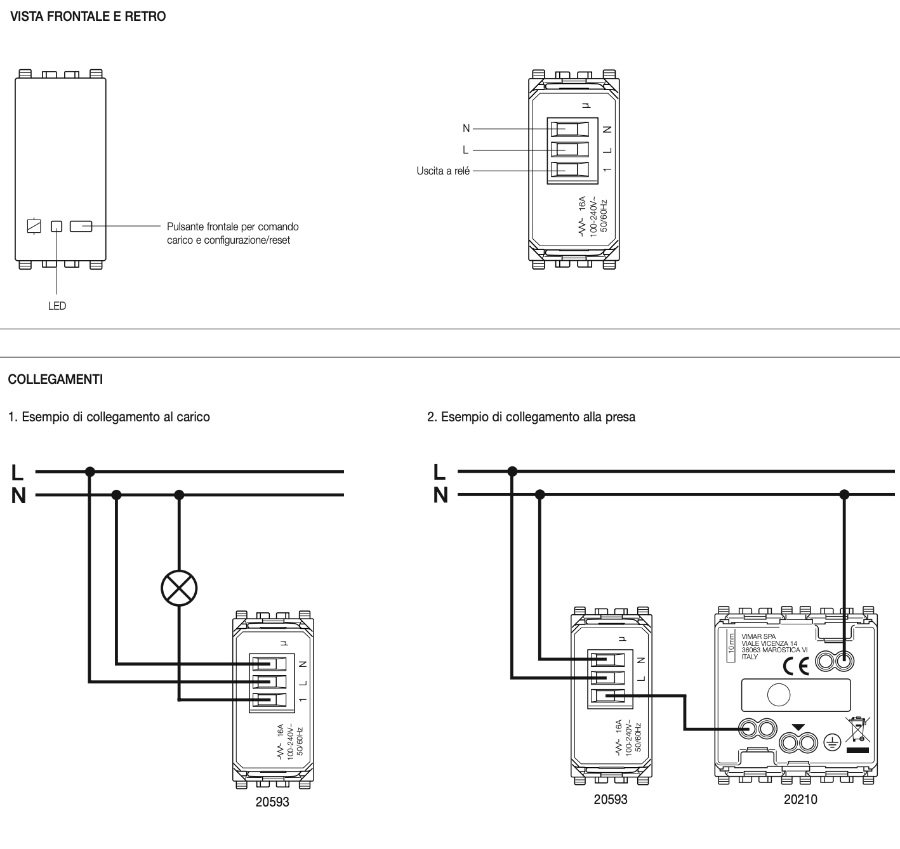

Clamps:
- 2 terminals (L and N) for line and neutral
- 1 terminal (1) for the voltage relay output
- 1 front button for load control and configuration / reset.
If configured in the “Energy” application, it forcibly activates the output for the time set on the View app.
- RGB LED that signals the output status (settable from the App View Wireless) and the configuration status (flashing blue);
- In Bluetooth technology mode, up to 2 radio devices (art.03925) can be associated with the device, allowing the actuator to be controlled or a scenario to be activated.
- Operating temperature: -10 ÷ +40 ° C (for indoors);
- Degree of protection: IP20;
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Can be controlled from App View.
Plana Vimar connected devices prices online
Vimar is the Italian company that produces
home automation and electrical equipment : connected domestic ranges, wireless smart home products, video door entry systems, security, plates, electrical switches, plugs, sockets, adapters and much more.
The design of
the Plana Vimar domestic range stands out for its rigorous geometry in the corners and delicate in its dimensions. Essential lines, even in the keys, for unlimited color combinations.
The
Vimar Wireless View App allows the configuration of the connected domestic series devices which represent the ideal solution in new systems or renovations where basic smart functions are required.
