Draft Excluder Comaglio 1750 Comax DIY for Door Various Sizes

Draft Excluder Comaglio 1750 Comax Series - Do It Yourself - Ideal for Door

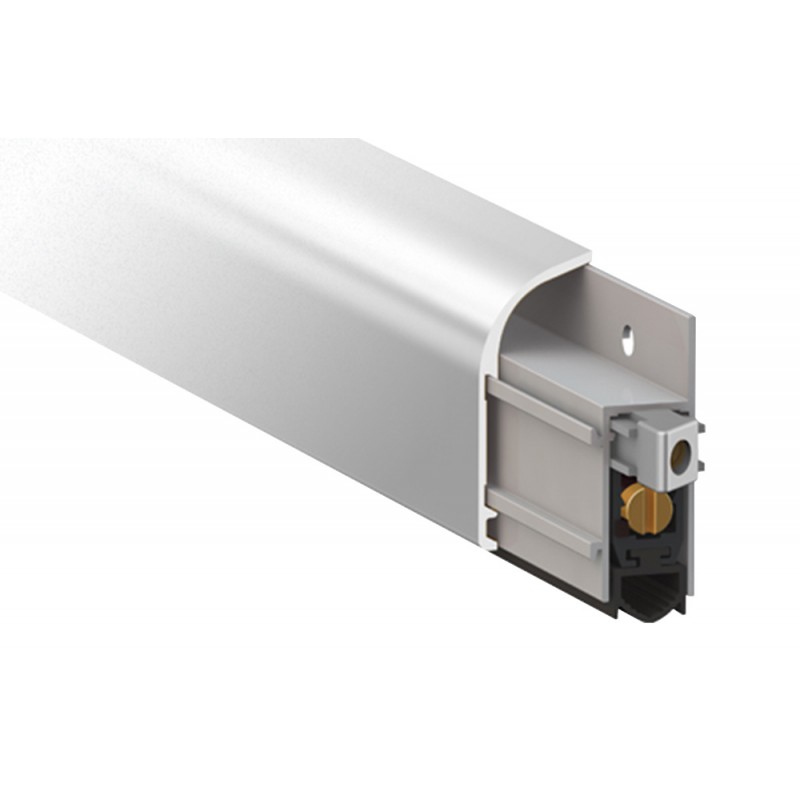

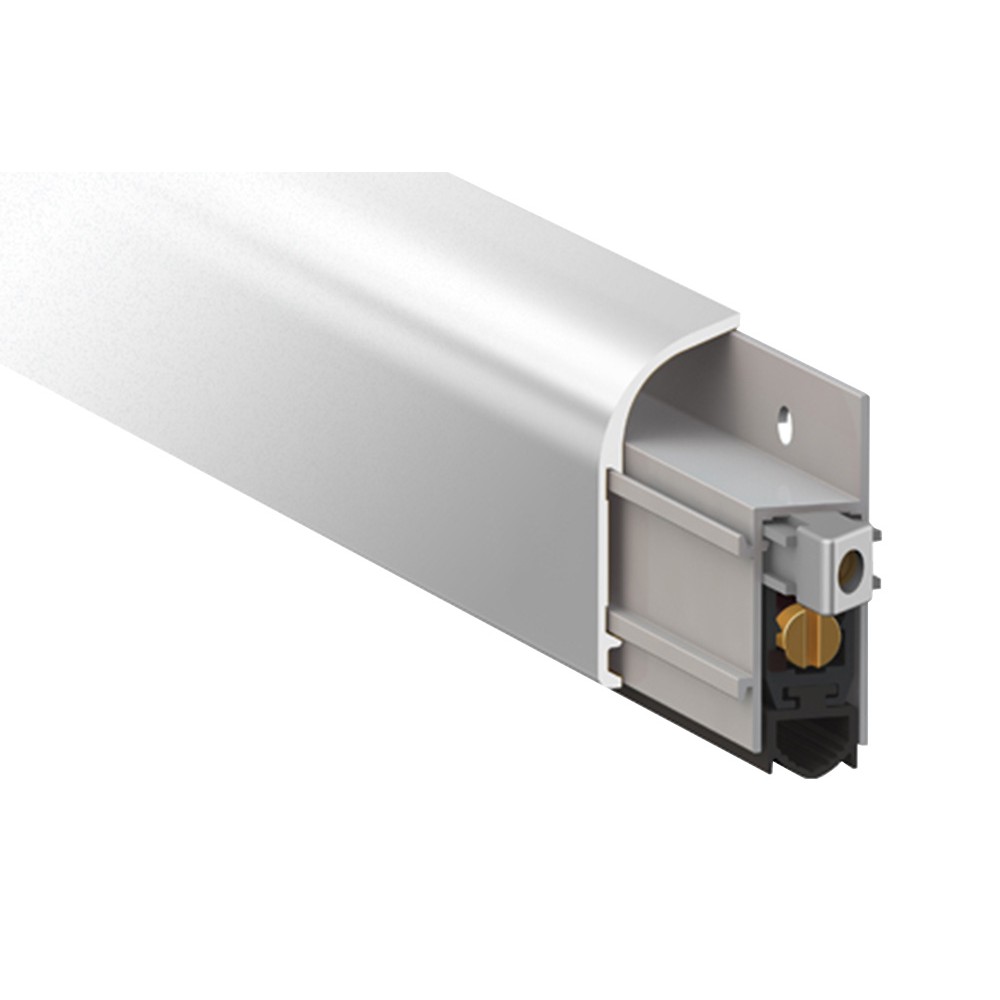

Comaglio 1750 automatic draft excluder with patented system that can be fixed with screws

• Article: 1750 Comaglio.
• Dimensions: 53-63-83-103-123-133cm.
• Shortenability: 10 cm.
• Doors: steel, aluminium, armored, wood, PVC.
• Comax Series for DIY   with double register mechanism (DR).

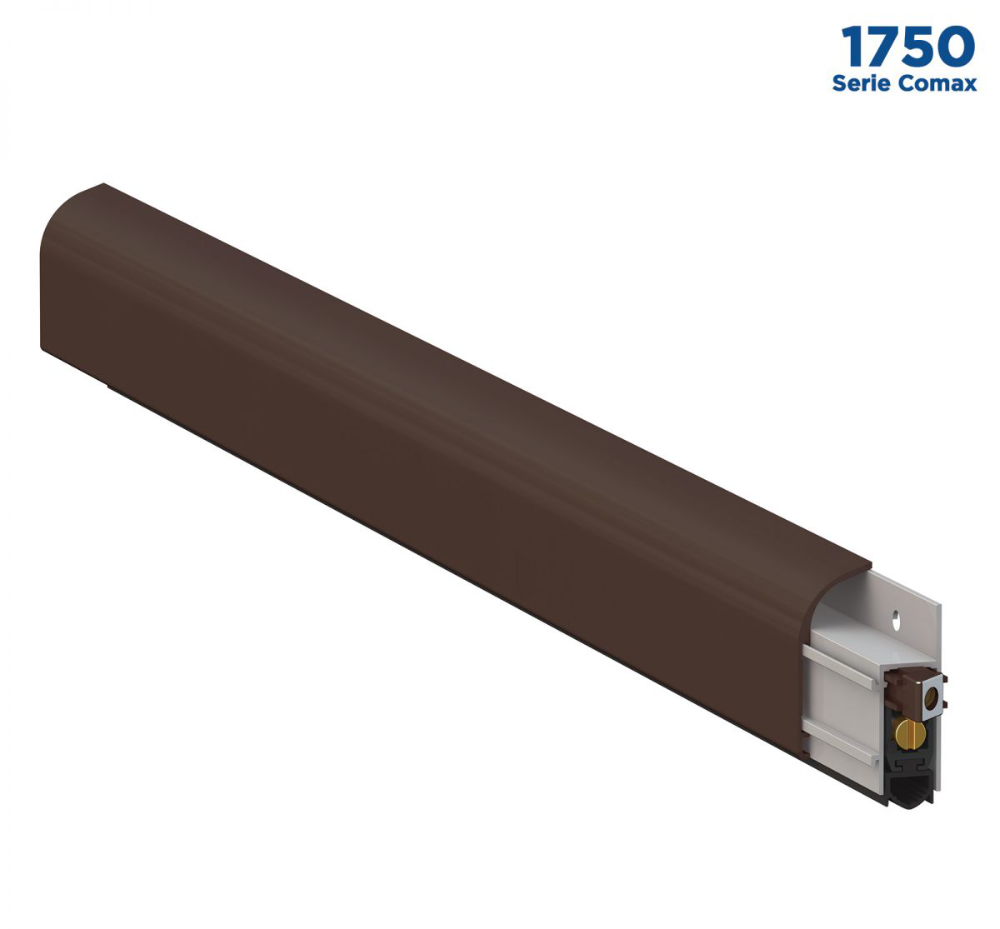

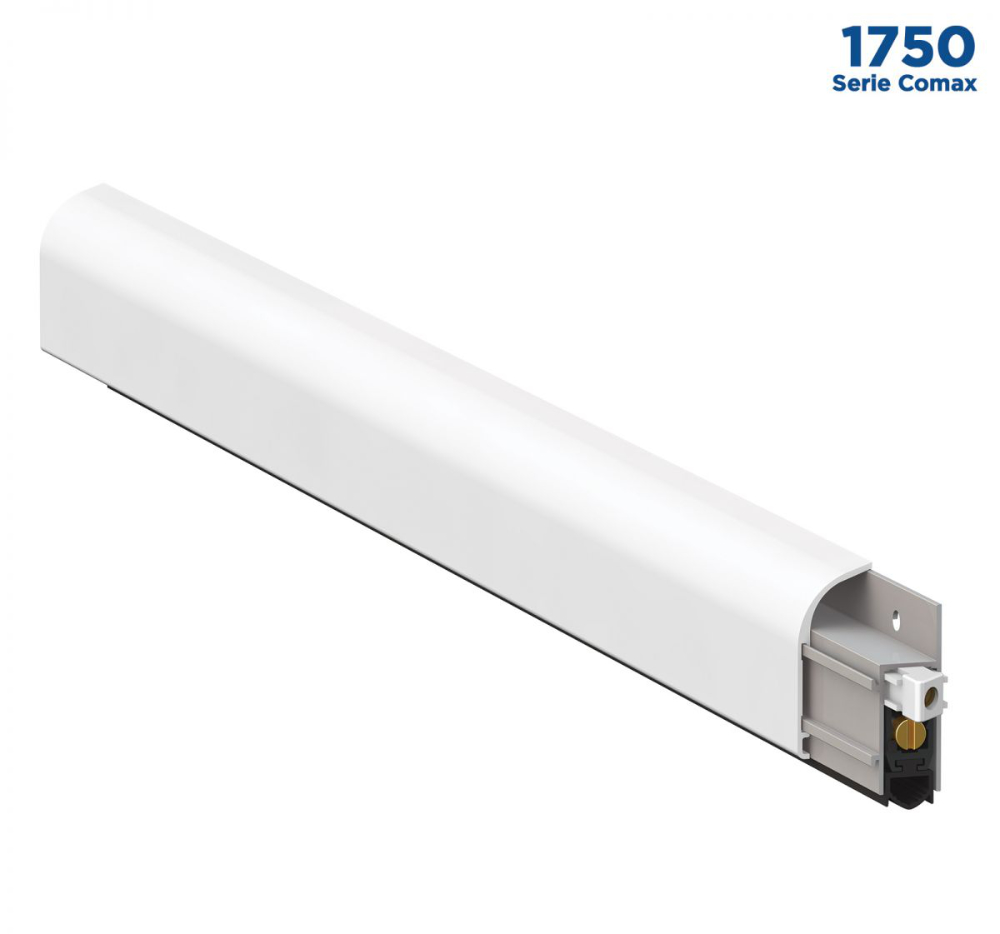

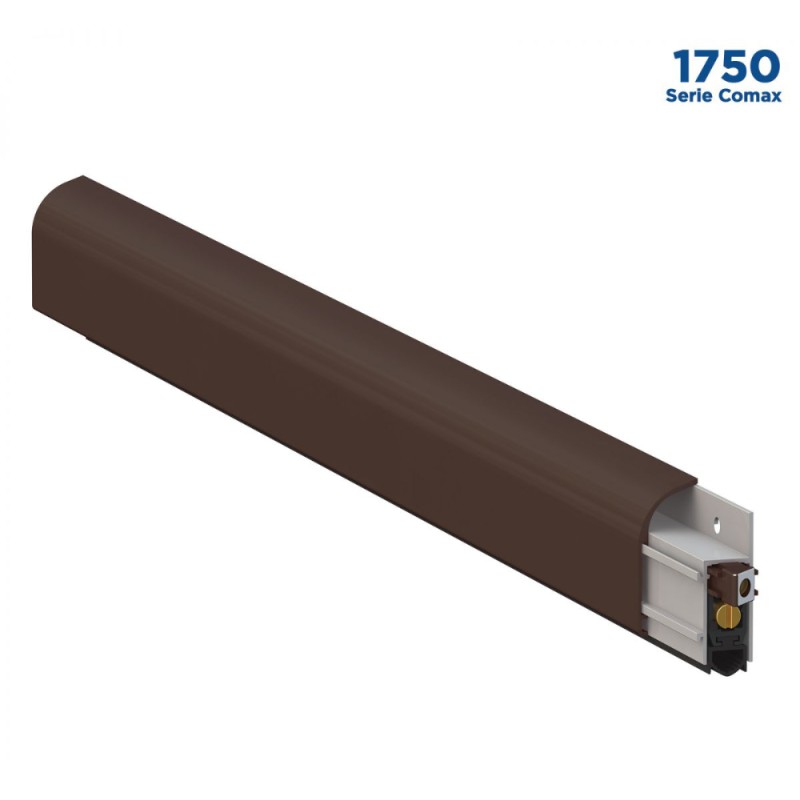

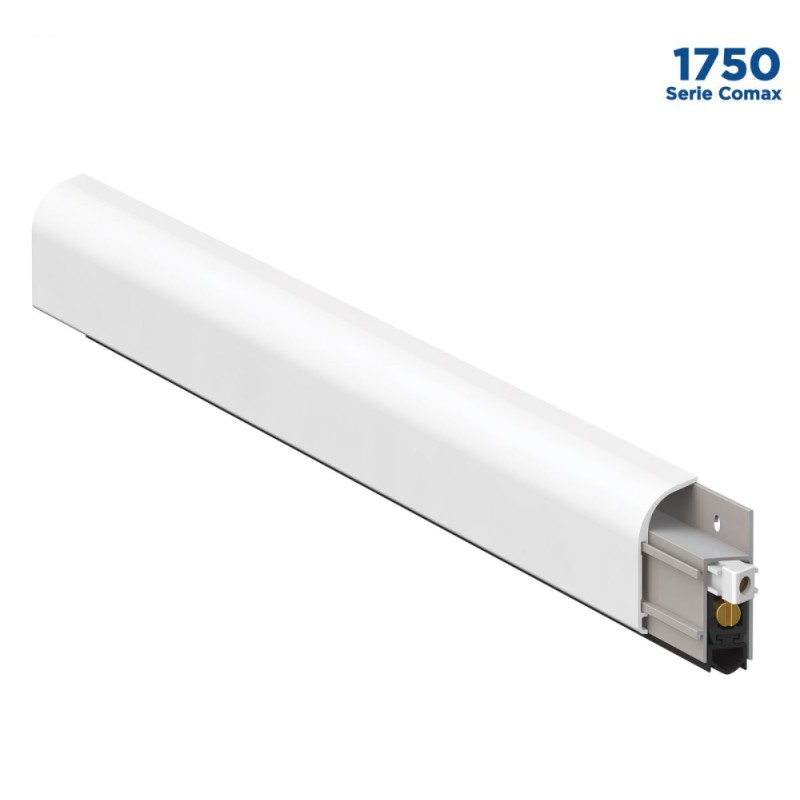

• COLORS AVAILABLE: anodized bronze, silver and black; painted white RAL 1013, white RAL 9010, brown RAL 8017.

Draft Excluder Comaglio Comax Series

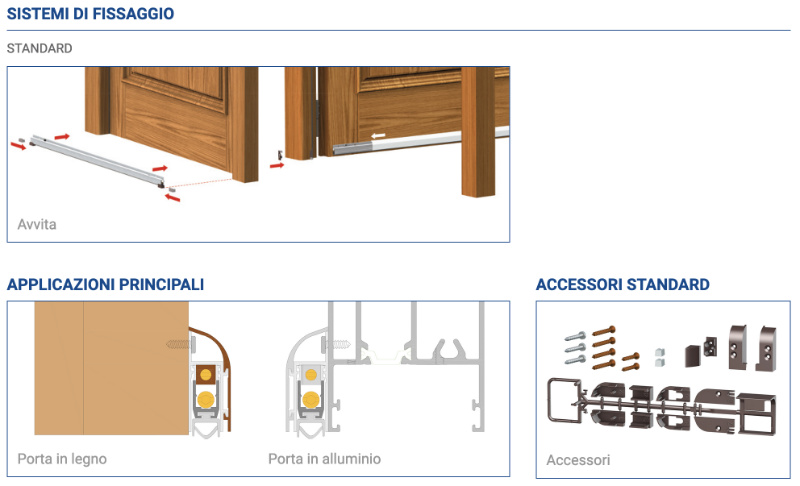

• Fixing with screws;
• Balloon EPDM gasket;
• Rounded plastic push button.

What is the difference between the 1750 and 1450 Comaglio draft excluders?

The difference between the 1750 Comax and 1450 Comax is essentially the mechanism : the former is more elaborate and performing.

The 1750 draft excluder has a patented mechanism, characterized by double adjustment, in the sense that it is possible to adjust not only the descent, but also the inclination of the same. Added to this is the new Soft Closer version which combines a strong homogeneous pressure along the entire length of the door with a controlled descent limited to the last fraction of the door closing, reducing friction on the floor to a minimum.

The Comaglio 1450 draft excluder, on the other hand, has a tilting mechanism with a single adjustment. It is characterized by the controlled movement of the mobile profile with gasket that descends from the hinge side and then from the opposite side. Registration acts exclusively on the descent.




With Comaglio draft excluders, nothing will pass under your doors!

• 1750 Comaglio Comax (263,82 KB)

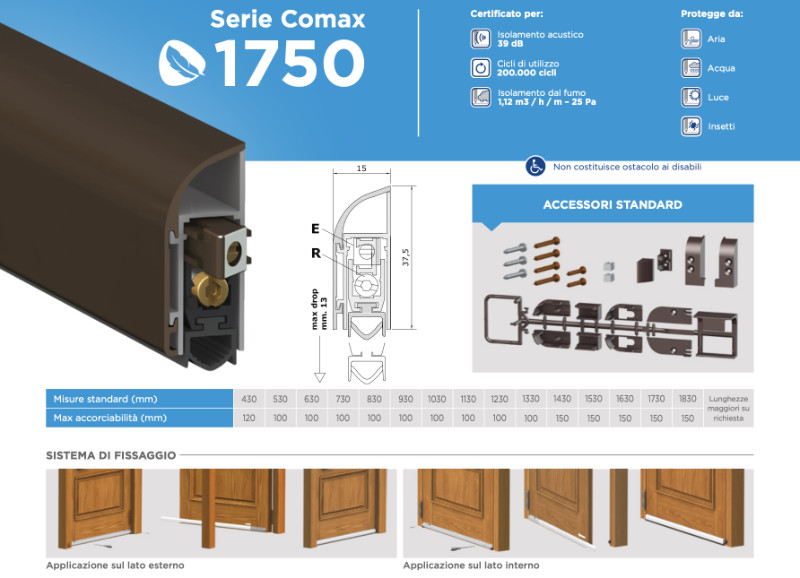

• Technical Data Sheet 1750 Comaglio (519,75 KB)
• Fitting Instructions Comaglio 1750 Comax (1,73 MB)
