Drive Evo 0 Mingardi Rack Actuator with Brackets

Drive Evo 0 Mingardi Rack Actuator with Brackets

Drive Evo 0 Mingardi offers maximum flexibility thanks to its different configurations.

Why choose the Drive Evo 2 Mingardi gearmotor?

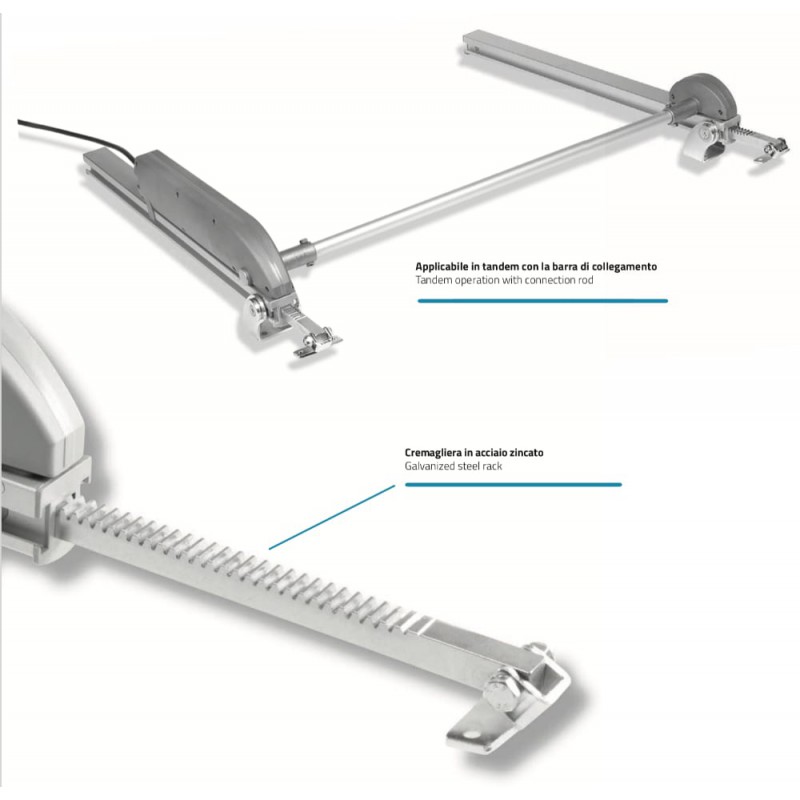

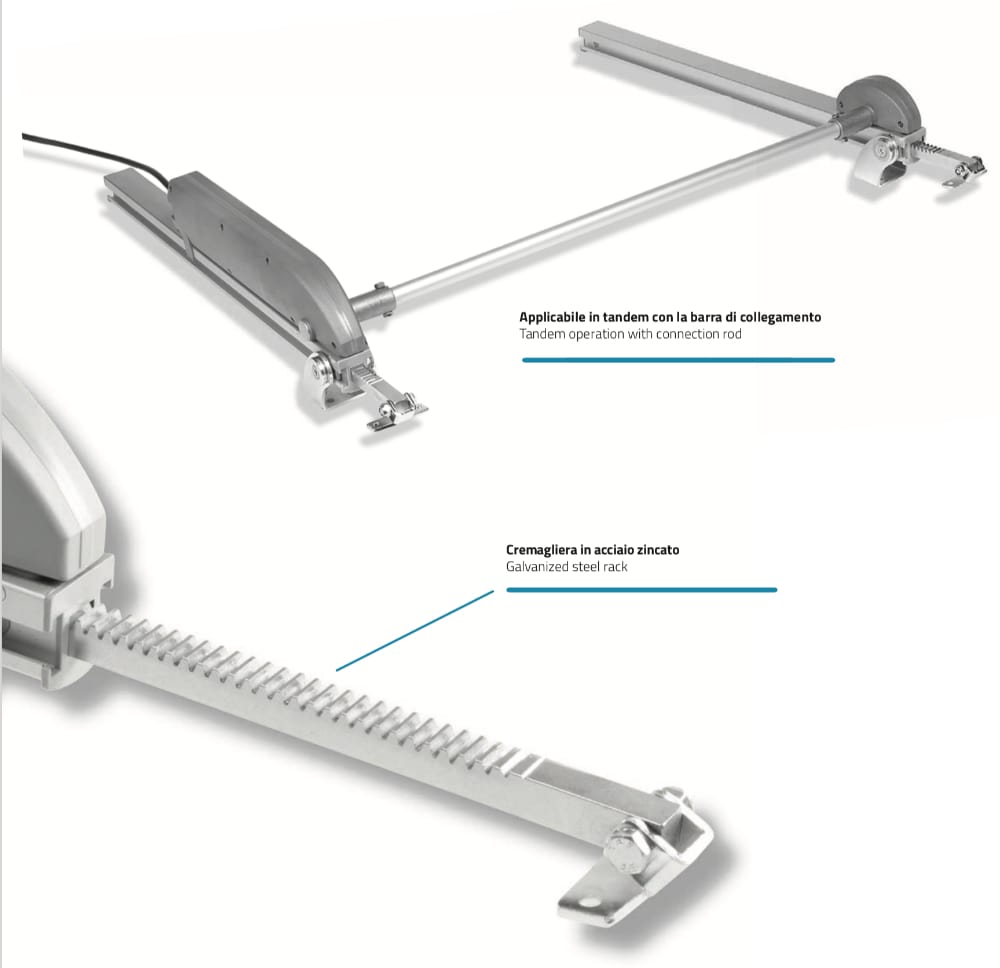

• Suitable for large windows in tandem application;
• Strokes up to 1000 mm;
• Extended voltage 110 - 240V AC (50 / 60Hz);
• Double electrical insulation: Class II;
• Degree of protection: IP 55 electrical parts;
• Soft stop closure to preserve the window:
• Steel rack;

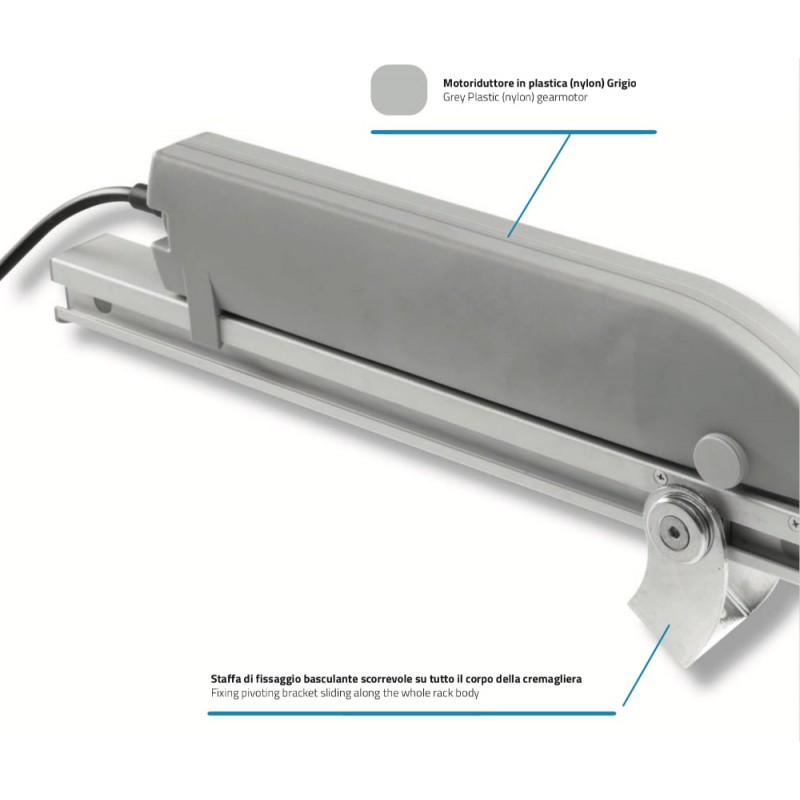

• Tilting fixing bracket sliding on the whole rack body.

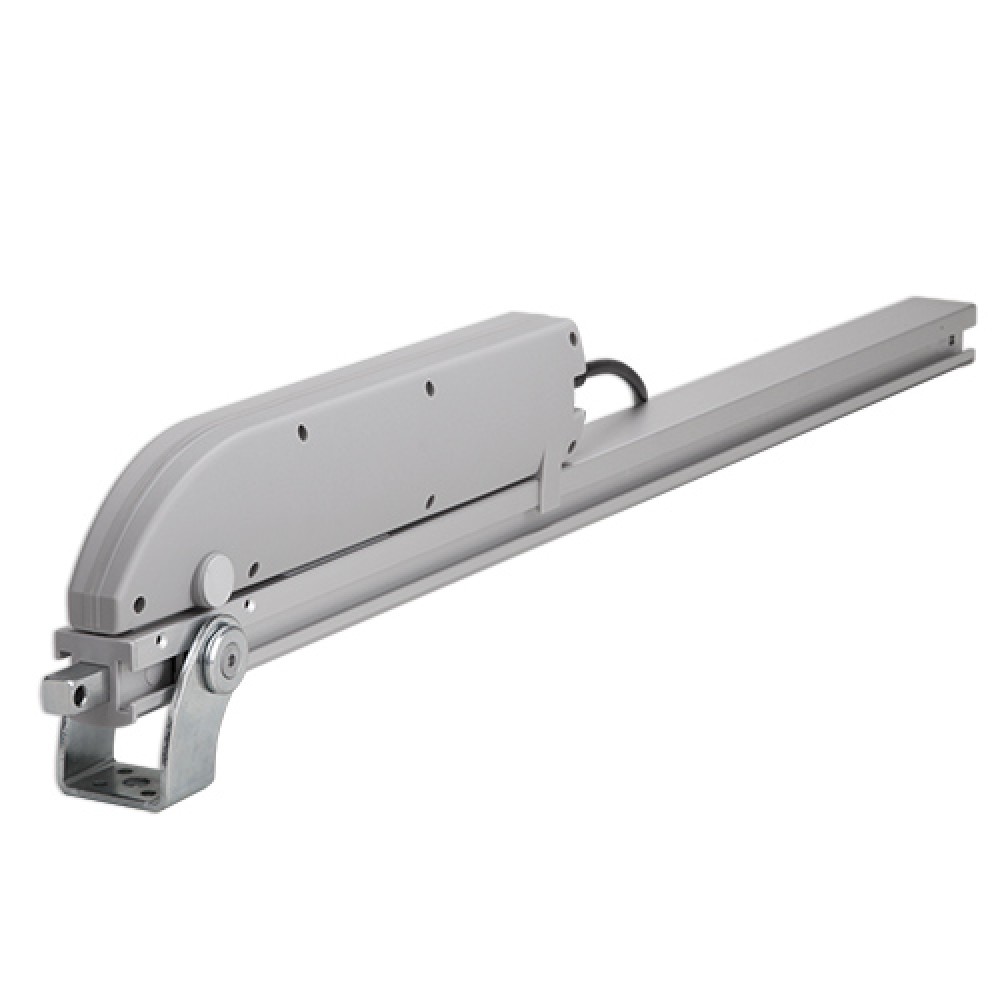

Drive Evo 0, the rack and pinion motor with an aluminum body

• Electric linear rack actuator 12x12 section contained inside the tubular aluminum body ;
• Operation with power supply voltage 110 - 240 V AC (50/60 Hz);
• Compliant with the relevant European Directives;
• Equipped with electronic limit switch system in opening and closing with overload protection;
• Parallel connectable, gearmotor body in plastic (nylon);
• Colors: gray gearmotor (G), silver tubular body complete with fixing accessories .

Technical features Drive Evo 2 Mingardi rack actuator:

• Force: Thrust - Traction: 500N;
• Voltage: 110 - 240V AC (50 / 60Hz);
• Opening and closing limit switches: Electronic;
• Degree of protection (for internal use): IP55 electronic parts;
• Operating temperature: -10 ° C + 40 ° C;
• Black cable: PVC L. 1500 mm;
• Certifications: CE.

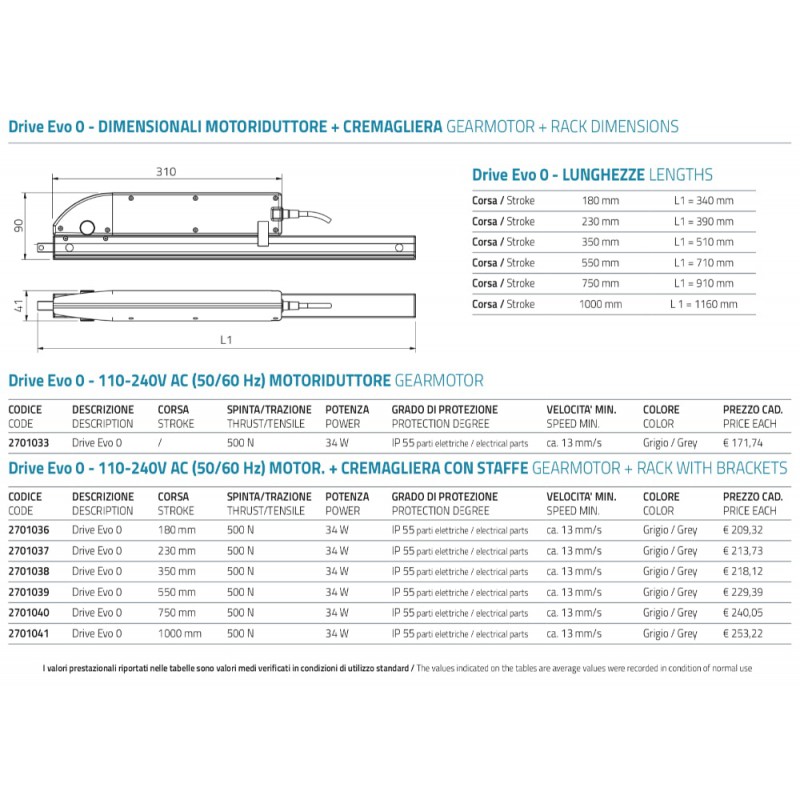

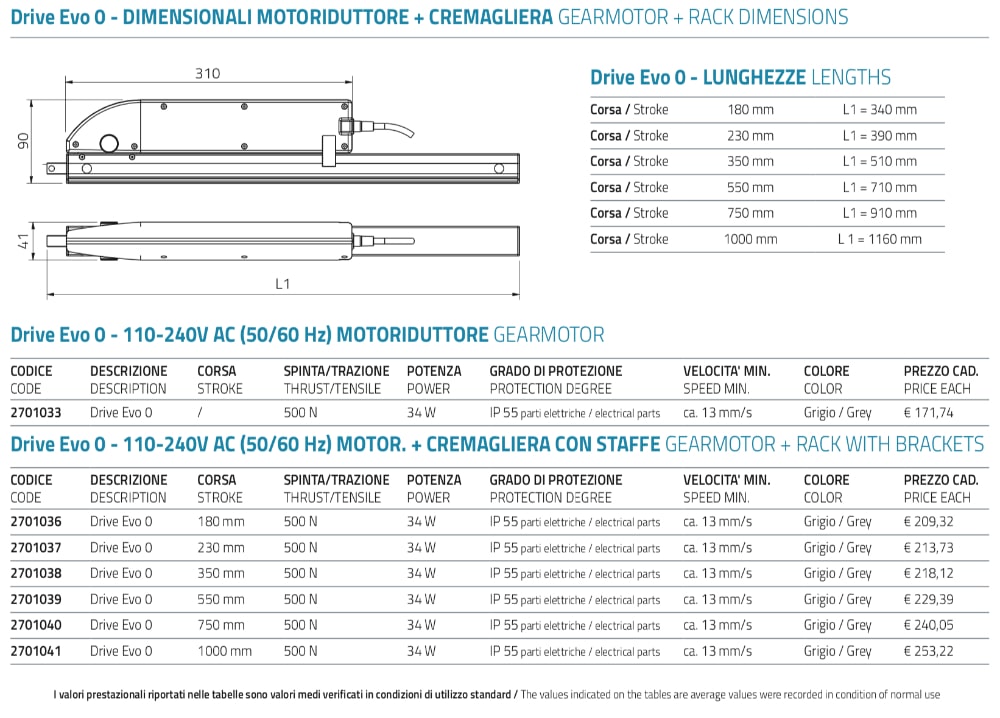

Drive 0 Mingardi Strokes:

• Stroke 180mm - L1 = 340 mm;
• Stroke 230mm - L1 = 390 mm;
• Stroke 350mm - L1 = 510 mm;
• Stroke 550mm - L1 = 710 mm;
• Stroke 750mm - L1 = 910 mm;
• Stroke 1000mm - L1 = 1160 mm.
