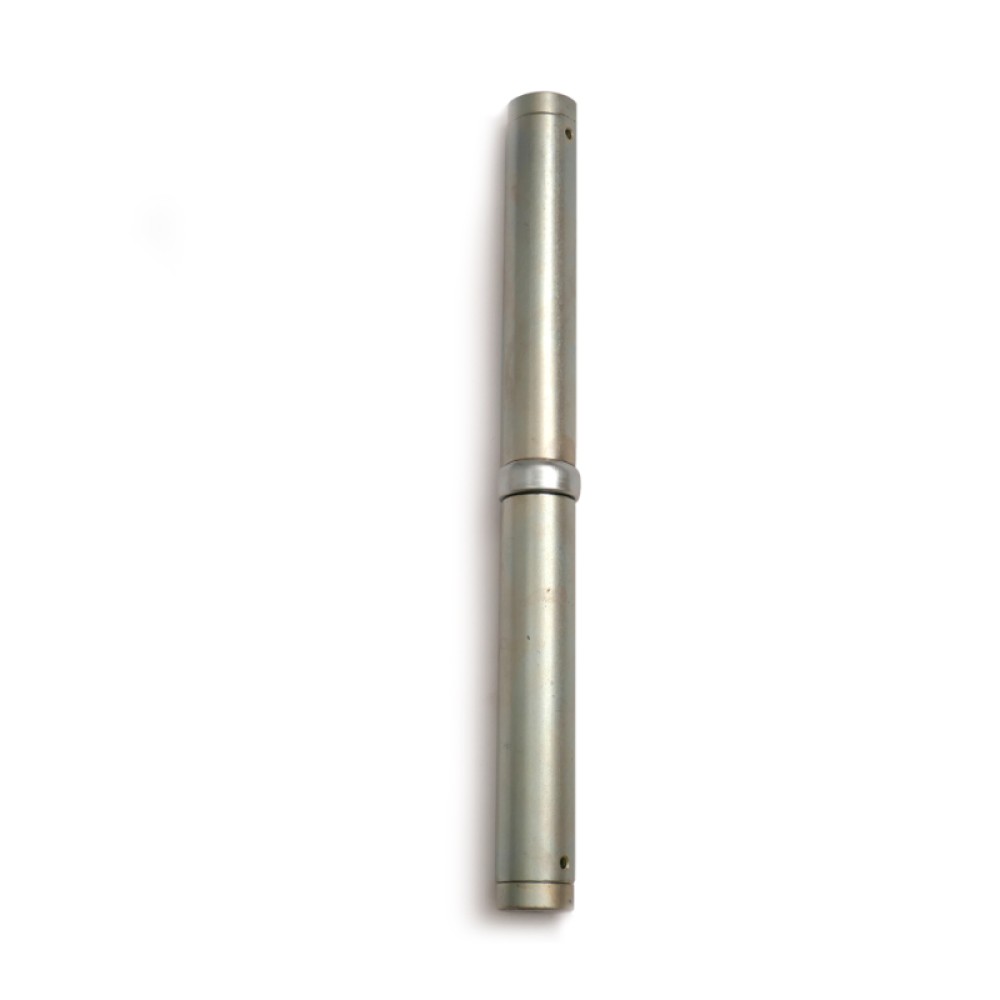

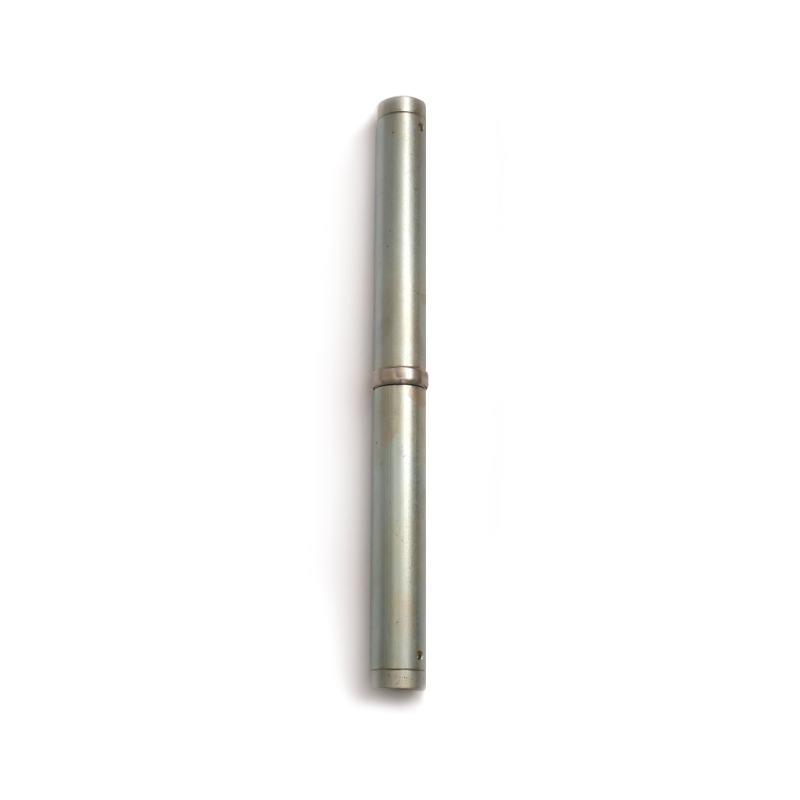

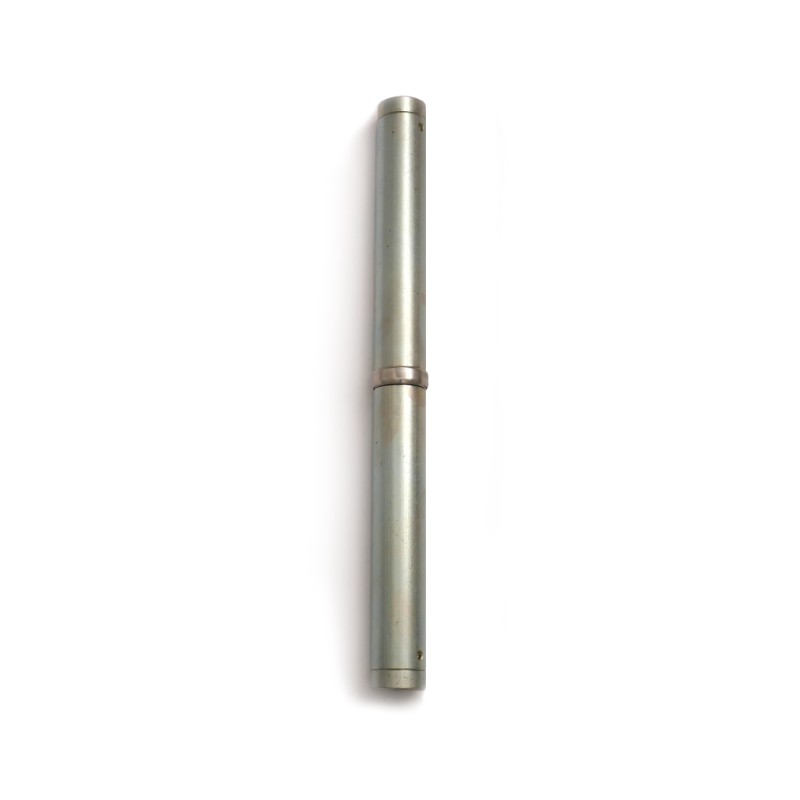

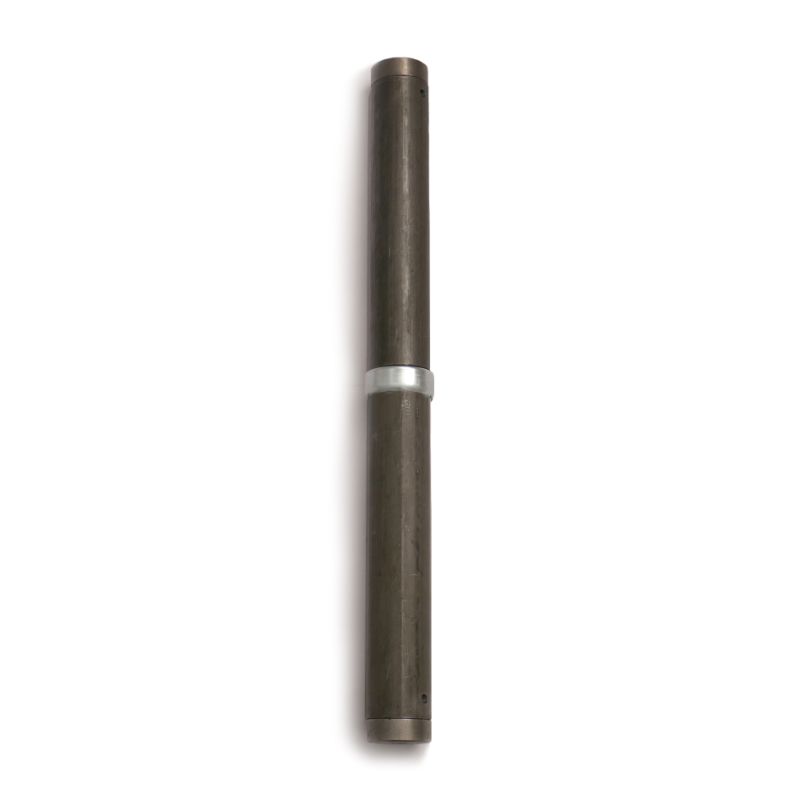

Drop Pin with Weld Bearing - Justor PG CR - Case of 2 Pieces
Drop pin with bearing for mounting in doors by welding.
The
Justor PG CR pin has an assisted opening and closing by means of a bearing on the central axis instead of a washer, this allows to double the capacity.

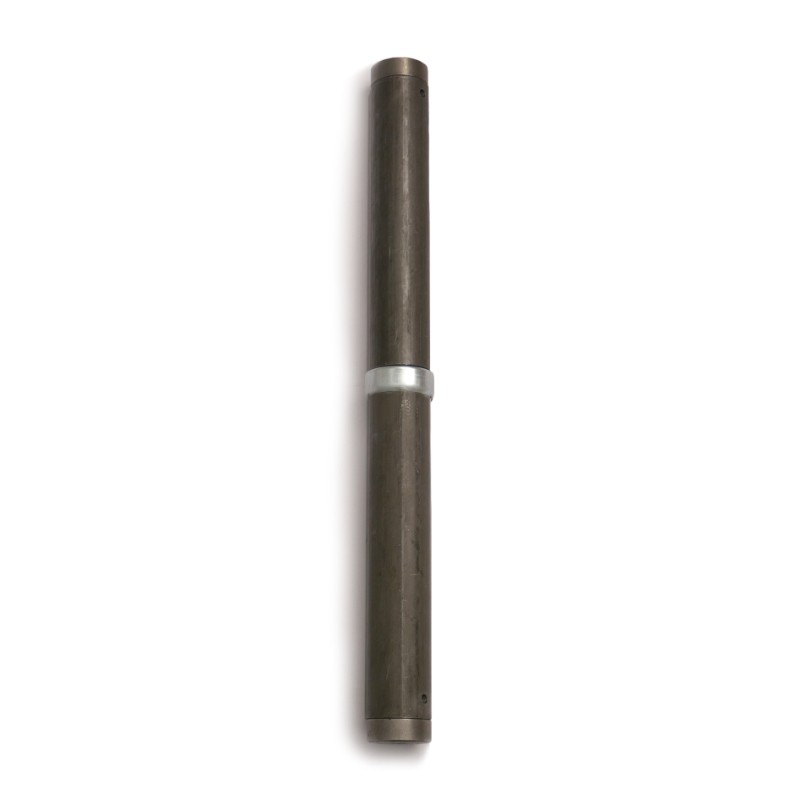

Justor pins manufactured in
iron or galvanized iron or stainless steel . Select the model you want based on your specific needs.
Why choose an axle with Justor bearing?
The
bearing reinforced with metal balls increases the durability and performance of this drop pin.
For heavier doors, up to 250 kg, we recommend the 240 drop pin with bearing plus (PG CRP code 240).

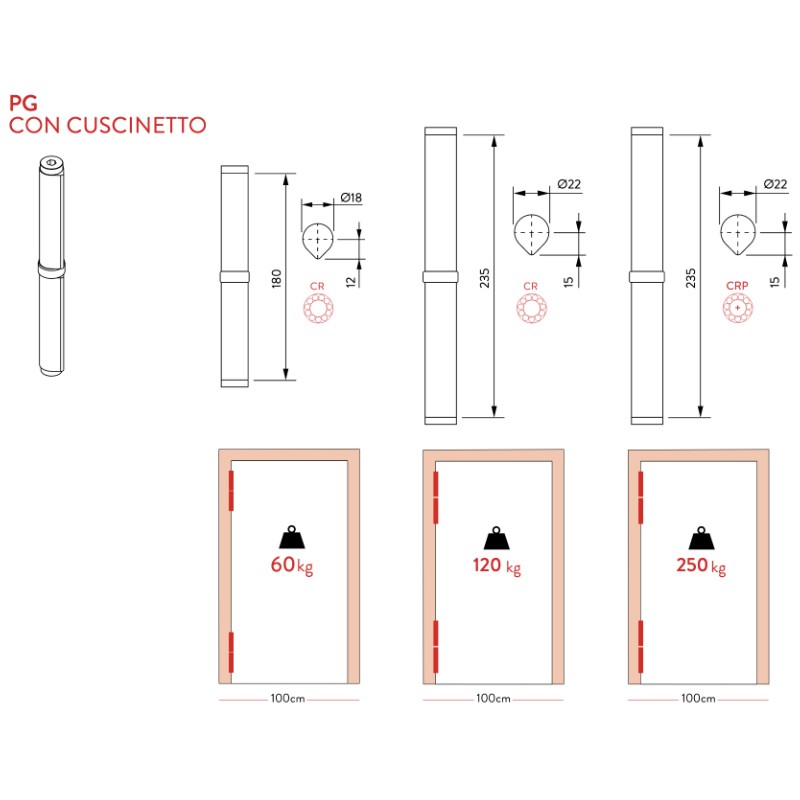

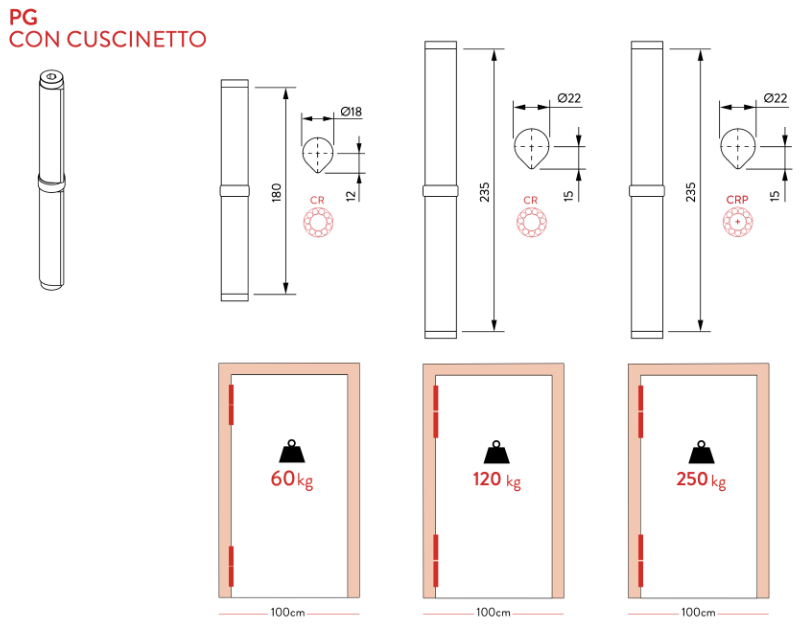

Drop pin with bearing - Justor PG CR 180
- Units installed 2;
- Door width 100cm;
- Door weight 60 kg.
Drop pin with bearing - Justor PG CR 240
- Units installed 2;
- Door width 100cm;
- Door weight 120 kg.
Drop pin with bearing - Justor PG CRP 240
- Units installed 2;
- Door width 100cm;
- Door weight 250 kg.
External materials of the teardrop pins with bearing
- Body: steel;
- Adjustment cap: carbon steel;
- Bearing: steel (CRP model stainless steel).
Internal materials of the teardrop pins with bearing
- Shaft inside: AISI 304 stainless steel (180) or steel (240);
- Internal spring: steel plate set with protective grease.

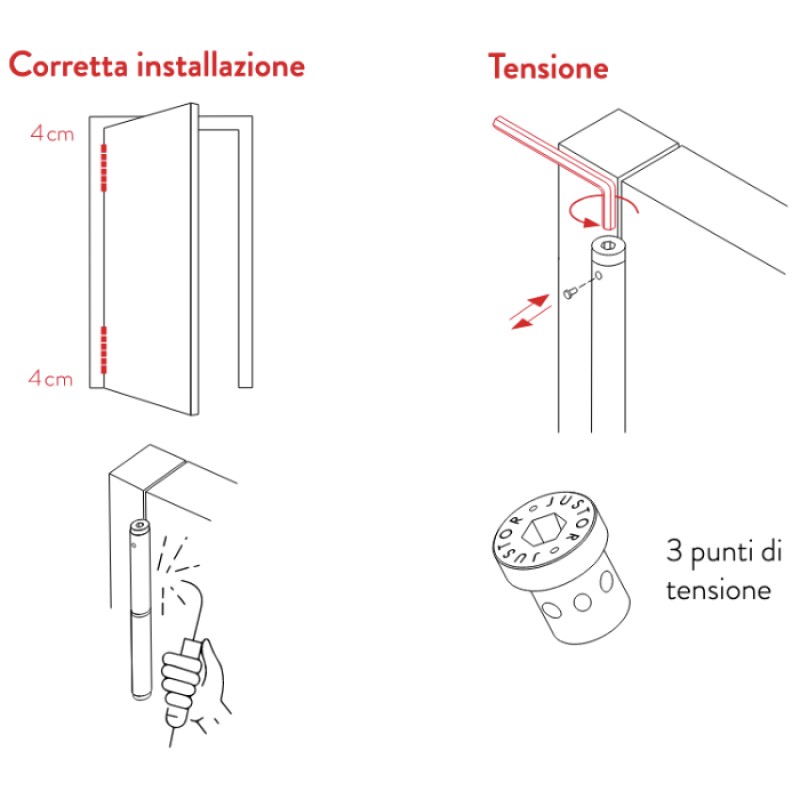

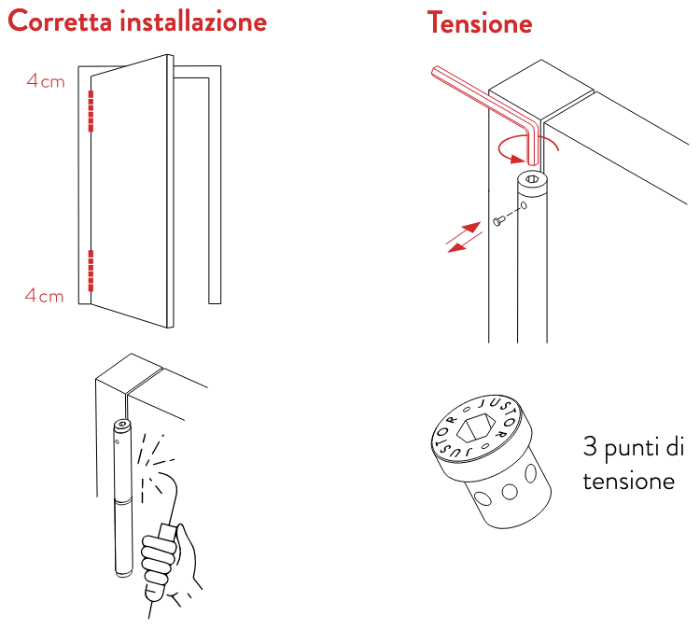

Operation of the Justor PG CR pin
- Application: Suitable for interior and exterior doors;
- Automatic return: yes;
- Power regulator: yes;
- Maximum opening: 180º;
- Cycles: more than 500,000.
