Duero 40 PVC and aluminum roller shutter with thermal insulation

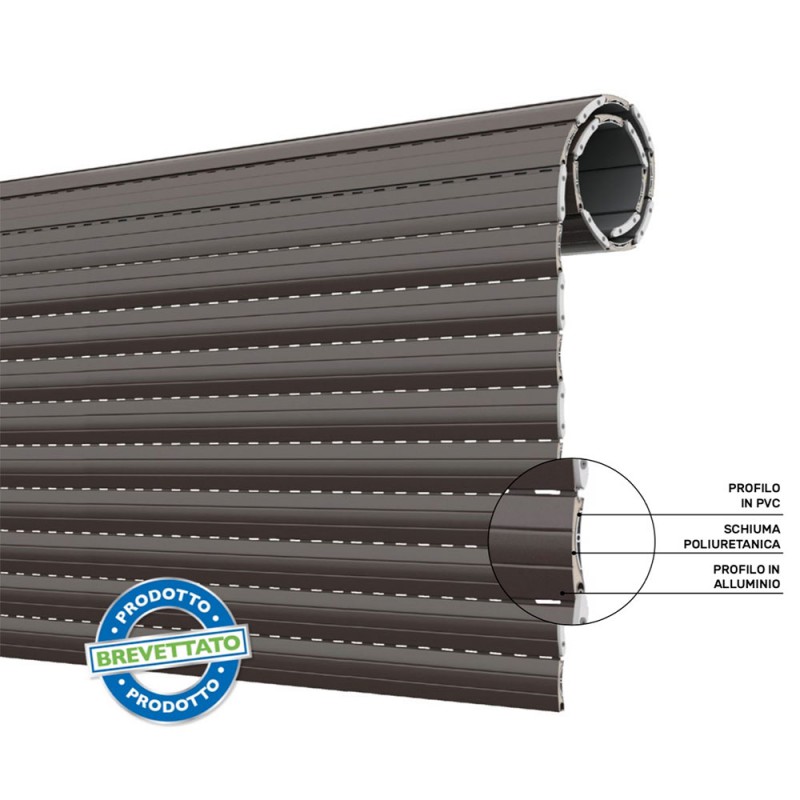

Duero 40 Pinto roller shutter with insulating foam between PVC and Aluminum profile
- The profile of the slats is copied from: Pvc profile + Insulating foam + Aluminum profile;
- Guarantees good energy savings in summer and winter.
Attention: the aluminum terminal is included in the price.
Description: how does this roller shutter with insulation work?

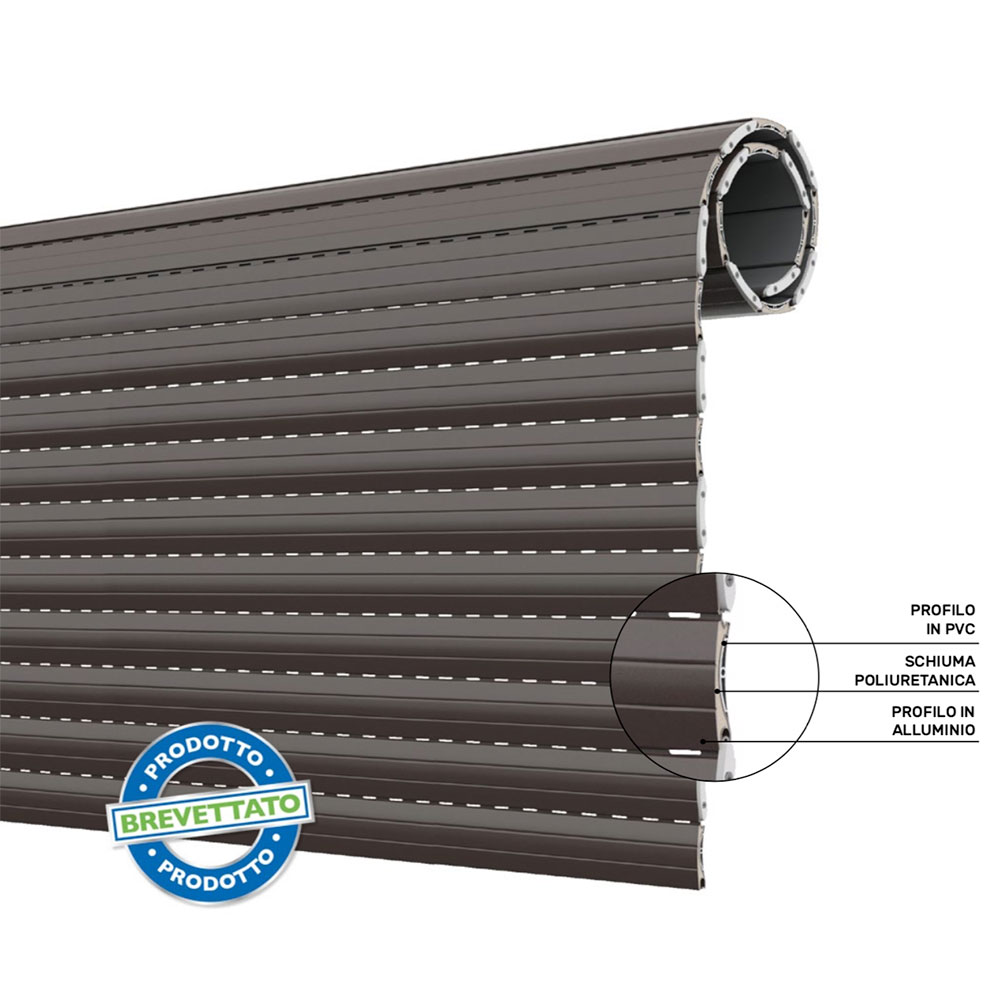

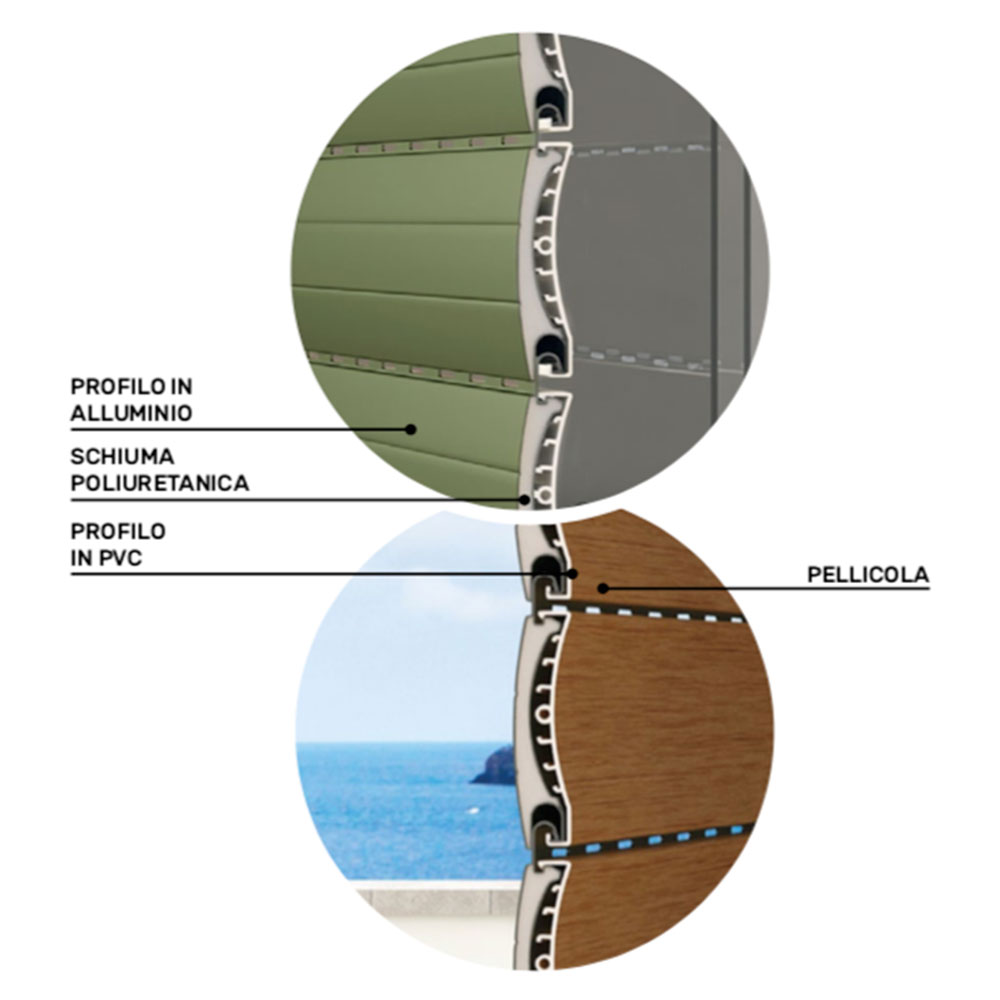

Duero40 is made up of an aluminum roller shutter profile with interposition of polyurethane foam coupled by interlocking with a self-extinguishing PVC profile. The central gap between the two materials creates a hive air chamber. The aluminum profile is filled with polyurethane foam with a density of 160 kg / m3. The dimensions of the cue are as per drawing.
The particular coupling system between the two sides of the slat interrupts the thermal conductivity of the metal, making a cut in the thermal transmittance between the external and internal environment.
The particular coupling system between the two sides of the slat interrupts the thermal conductivity of the metal . Therefore, with the aluminum positioned outside and the PVC placed inside, there is an interruption of the thermal transmittance between the external and internal environment.
The energy-saving roller shutter in summer and winter
Winter - This shutter guarantees less heat dispersion, since there is an interruption of continuity of heat between the PVC profile (inside) and the aluminum one (outside). Consequently there is an effective energy saving.
Summer - Thanks to the interruption of the conductivity of the metal of the external part, which is strongly heated because it is exposed to the sun, the PVC profile (facing inside) manages to maintain lower temperatures, not transmitting heat inside the house. In this way, the internal temperature will remain lower, so that less energy is required in the case of air conditioning.
Cue measurements
Read the dimensions of the slats of this PVC roller shutter.

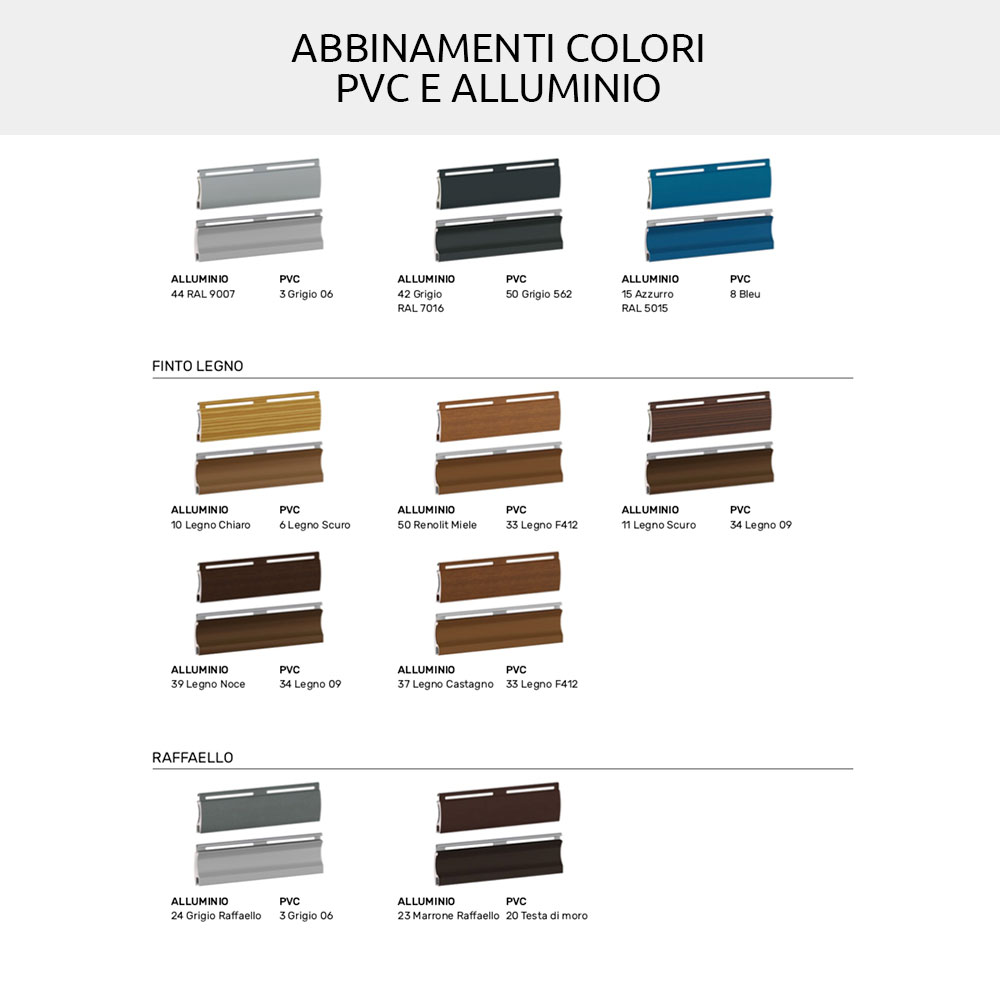

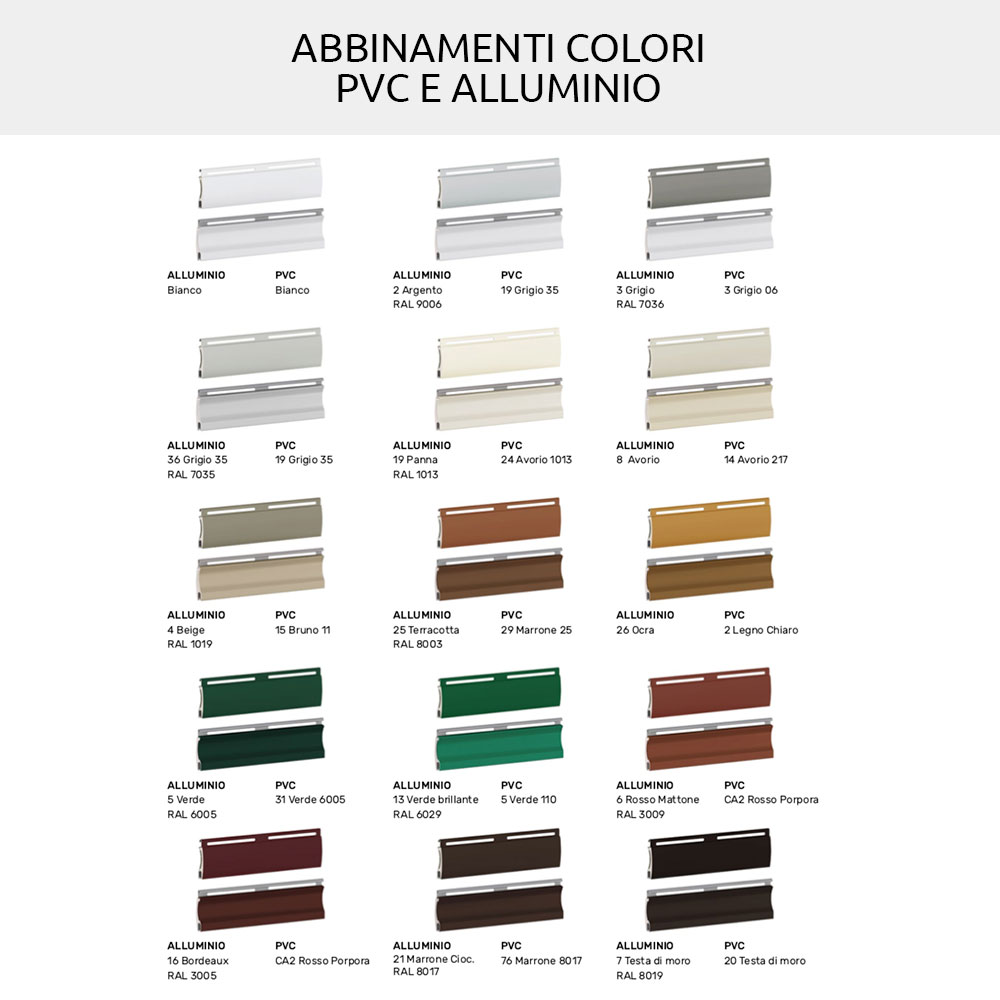

Colors: choose your favorite combination of your aluminum + PVC roller shutter
ATTENTION: this roller shutter is made in 2 different materials, so the colors are also different: for internal PVC and external Aluminum.
How to choose the color?
To facilitate the choice, we propose combinations with colors that are most similar to each other: you can see them better in the large photos above.
The combinations consist of 2 colors : the top color is that of the external aluminum, the bottom color is that of the PVC inside the house.
If you want other combinations, send us an email to ask for information.
You can add the safety bolt (on request)
The deadbolt is a safety system for the roller shutter.
In practice, it prevents the shutter from being raised, and is very useful especially on the hottest evenings, when we sleep only with the shutters down.
The deadbolt is optional and excluded from this product. Ask to add it to your PVC roller shutter.
Technical characteristics of the Duero40 insulating shutter
- Profile size : 9 x 40 mm;
- Weight per square meter : about 6.5 kg;
- Aluminum thickness : 0.38 mm;
- Number of bars per 1 meter of height : 25;
- Maximum permissible width : 3030 mm;
- Thermal resistance Rsh of the screen in mqK / w : 0.0393;
- ONLY roller shutter (this product does not include belts or motors to raise and lower the roller shutter);
- Aluminum terminal (the terminal is the last stick that rests on the ground).
Duero roller shutter caps are included
Standard splint locking with screwed side cap.

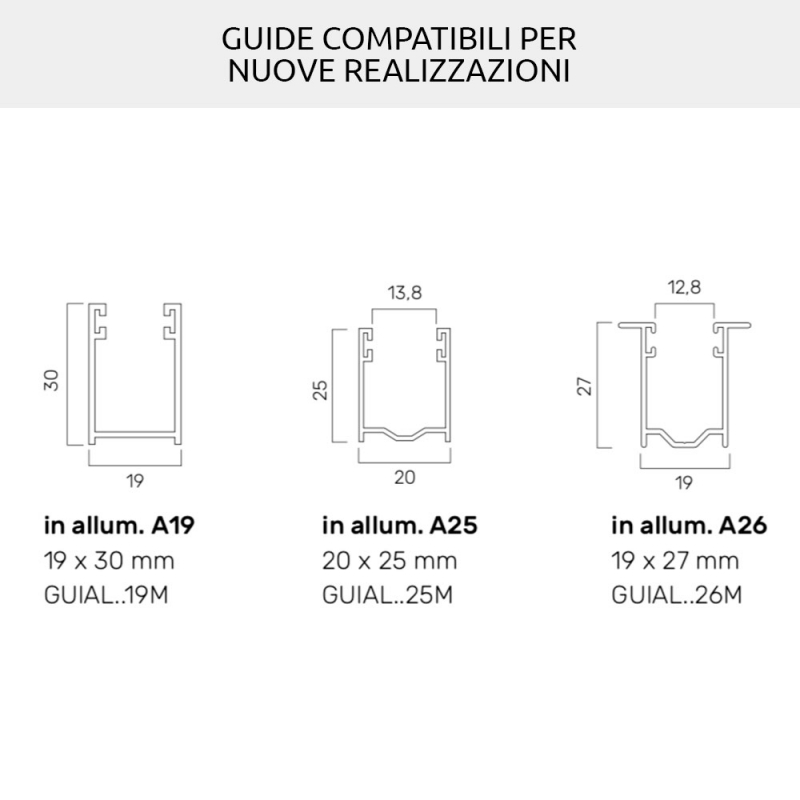

Duero roller shutter guides compatible: look in the photos
Look at the compatible guides of this roller shutter in the photos above.

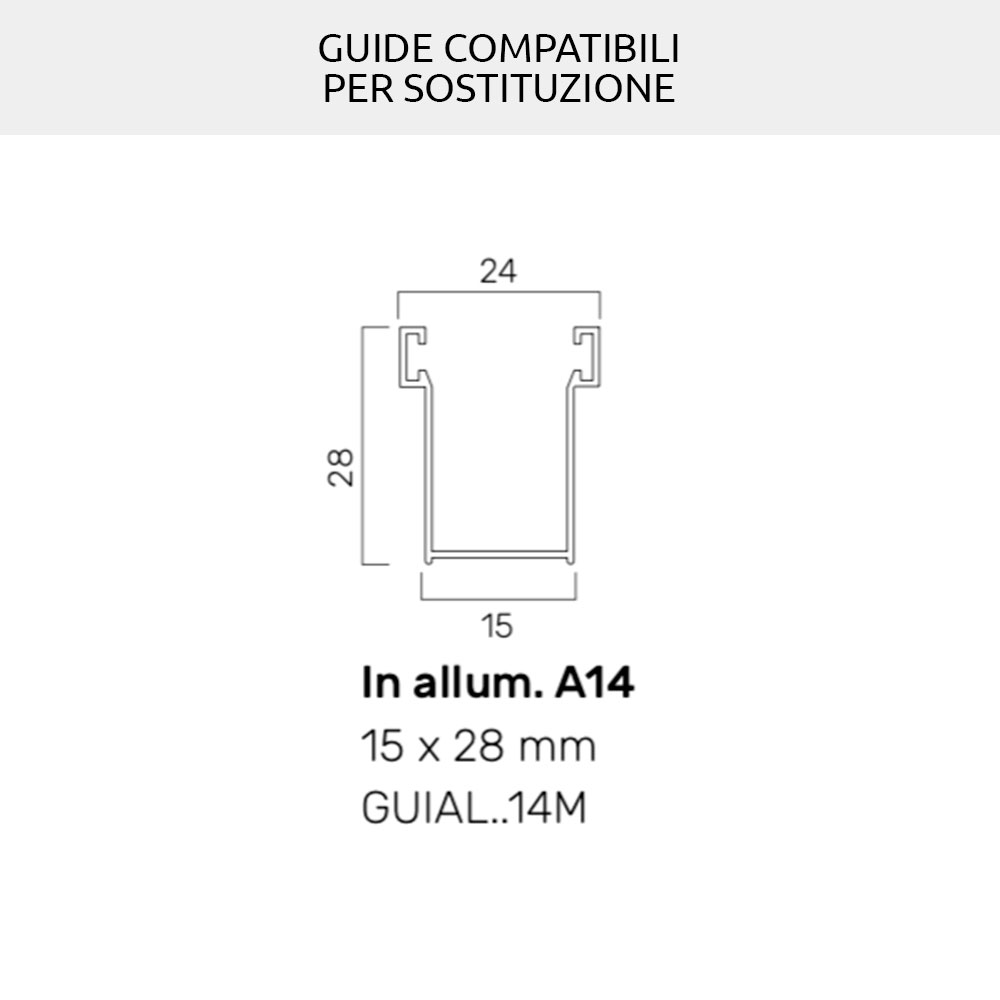

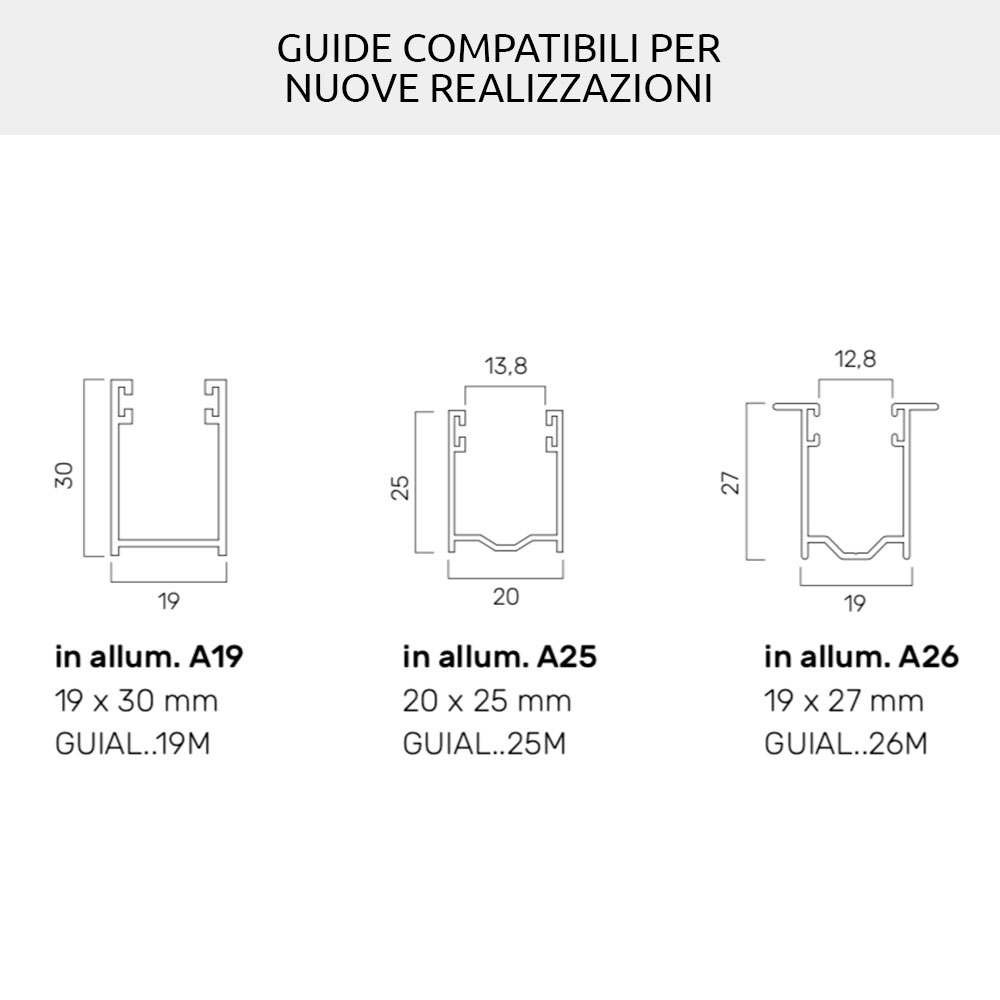

We have put compatible guides for:
- New achievements;
- Replacements of shutters;

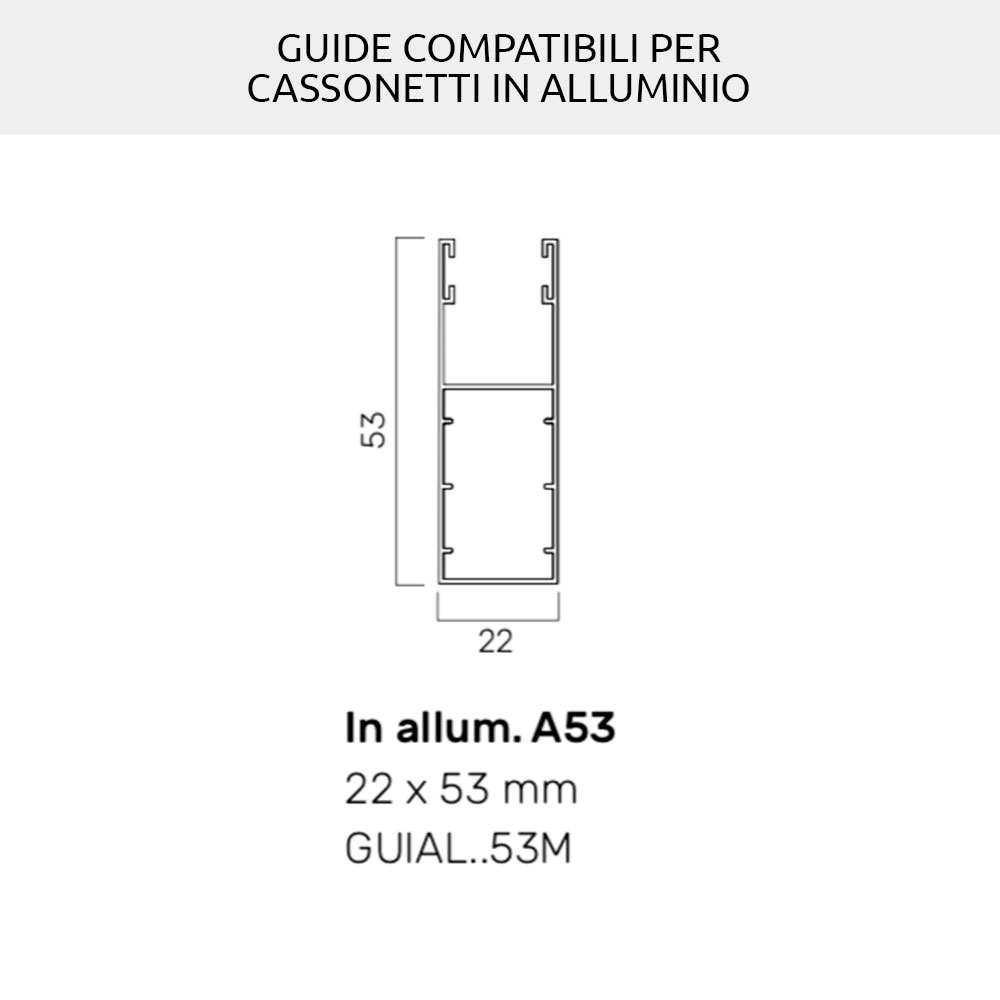

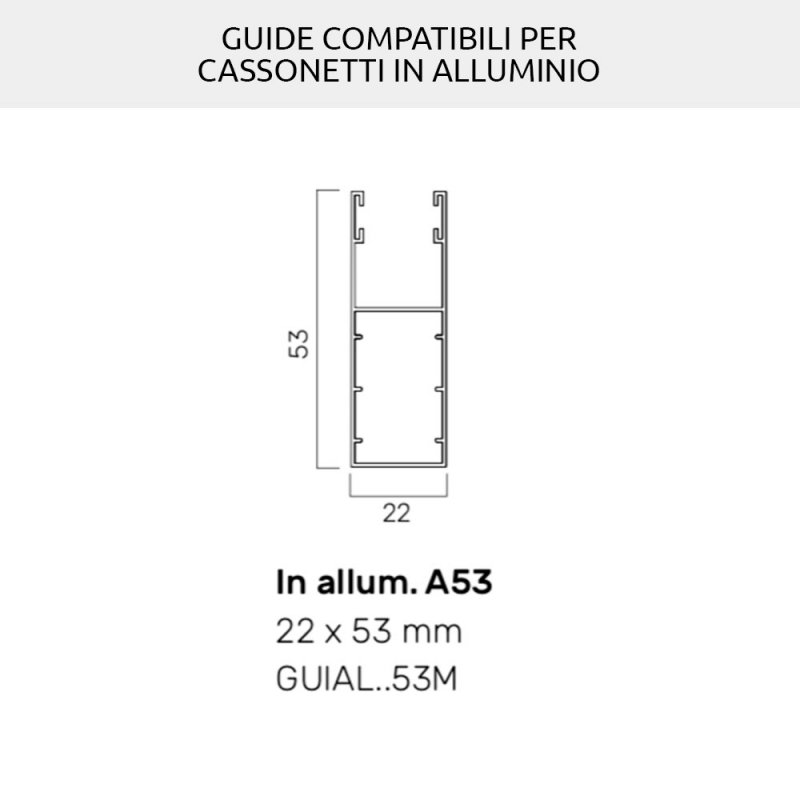

- Aluminum bins.
Before buying: how to measure the pvc roller shutter?
We recommend that you take measurements based on what you need to do:
- Replacement of an existing roller shutter: you can take the measurement of the old roller shutter.
- Replacement or new installation of roller shutters and sliding guides: for the width of the roller shutter, with reference to the guides to be used, the necessary tolerances must be taken. You can use the old guides if they are in good condition and if they have at least 16.5mm of usable space inside.
- Enter the finished measurements, in millimeters (base and height). By finished measurements, we mean the total measurements of the product, including any side caps and completion accessories.
- For the choice of the shutter profile, if you need to make a replacement, measure the height of the single plank without considering the connecting hook between the slats.
Pinto Tapparelle: roller shutters for sale online on Windowo
Pinto is an Italian company specialized in the design and production of PVC and Aluminum roller shutters.
The Pinto factories are in Italy in Polla (SA) and Polesine Parmense (PR).
Are you looking for online shutters made to measure in Italy and made with certified materials?
Buy Pinto roller shutters in the Windowo shop.
