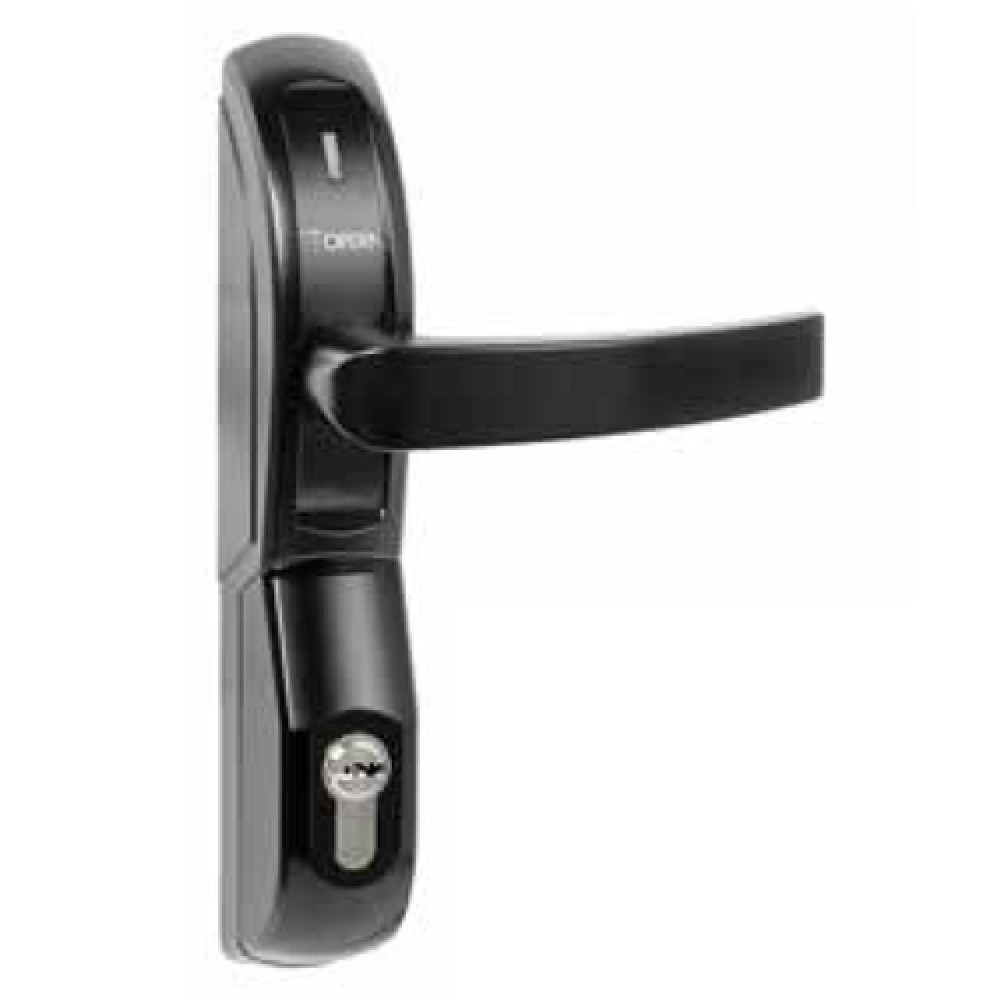

Electrically Operated Handle Black Plated for Rim Panic Exit Bars 40620N Opera
Use
For rim panic exit bars.
Not suitable for outdoor installation.
Variant timer:
Without timer
With timer: it allows to change the closing time
Variant with no power:
Fail safe - enabled: green LED
Fail secure - disabled: red LED
Technical info
Black plated.
Brushed metal body and handle.
Case-hardened steel internal mechanisms.
Dimensions: mm 232 x 55 x 38, handle height mm 84.
Handle panel can be rotated 45° or 60° depending on the type of panic bar used.
Mechanical enabling through flat key cylinder.
Mounting on the door, no additional holes required.
Power supply 12/24 V AC/DC.
Absorbed current: at 12V - 700 mA peak/ 500 mA holding at 24V - 300 mA peak/200 mA holding.
Electronic opening holder.
Version without timer
Use: replacement of traditional mechanical handle mounted outside door.
The handle, normally free turning, can be enabled by:
- De-energizing (
fail safe - enabled version).
- Or renergizing (
fail secure - disabled version) through a button contact or access control system. Action is limited to the duration of the impulse.
Version with timer
Use: replacement of traditional mechanical handle mounted outside door.
The handle, normally free turning, can be enabled by:
- Closing a NO button contact or access control system. In this version power supply is always on.
Additional features over the previous version:
Internal timer adjustable from 0-60 s (optional).
Open collector output can be coupled with a micro external relay to report handle enabled (art.
05258 available on Windowo).
Two colours red/green LED signalling the handle status enabled or disabled.
Blue LED to light the bottom of door.
Ouverture Series Opera
Electronic handle for fire doors and emergency exits.
To be matched with all fire doors locks.
Can be mounted on narrow metal frames.
Electronics control unit with internal microprocessor.
Optic and acoustic integraded signalling.
Blue/White LED for floor lighting
