FIS C 700 HP PRO.1 Fischer 410ml - Vinylester Injection Resin for Anchoring on Masonry
Fischer FIS C 700 HP PRO.1 injection resin in hybrid vinylester certified for anchoring in cracked concrete, construction joints and masonry.
Hybrid vinylester chemical anchor in a practical 410 ml coaxial cartridge .
Product
Art.
Content

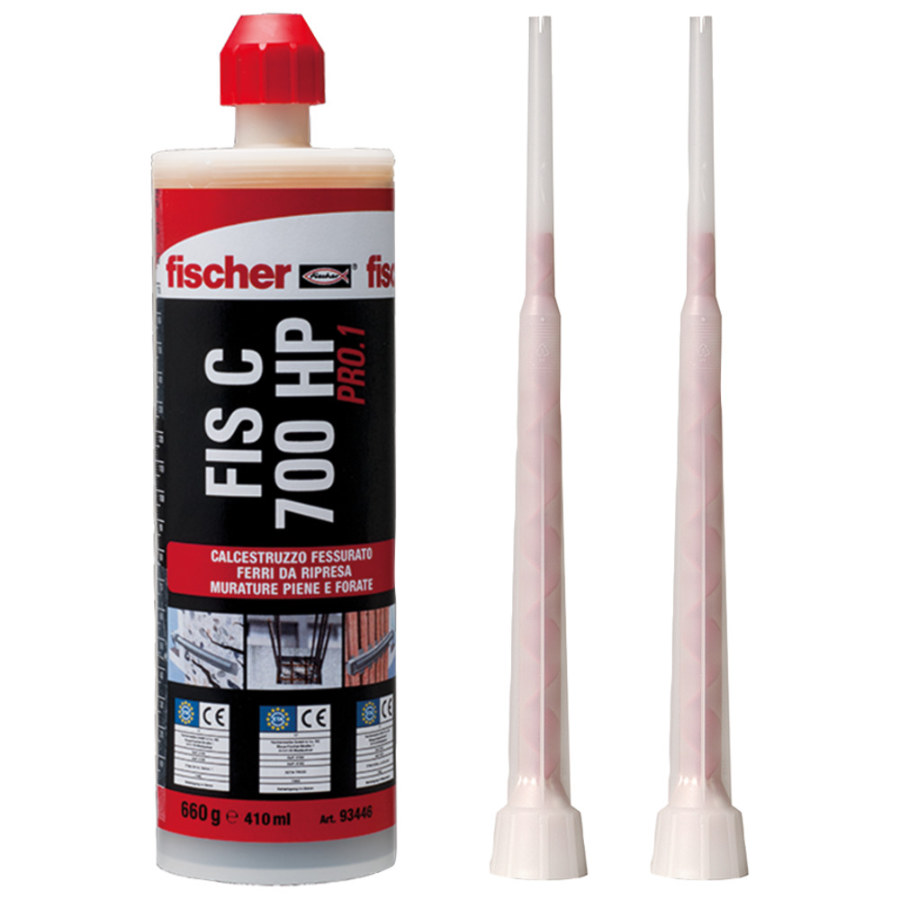

FIS C 700 HP PRO.1
93446
1 cartridge + 2 FIS S mixers
Advantages Fischer FIS C700 HP PRO.1 anchoring resin
FIS C700 HP PRO.1 is a chemical anchor certified for use in cracked and non-cracked concrete and masonry;
Injection resin can be used in moist and water-wet holes;
The Portland cement contained in the chemical anchor FIS C700 HP PRO.1 allows to maintain high load levels for the temperature range between - 40 ° C up to +120 ° C;
The wide range of accessories is ideal for the FIS C700 HP PRO.1 family of injection resins. It ensures great system flexibility and therefore allows a wide range of applications ;
FIS C700 HP PRO.1 can be used with guns for chemical anchors in coaxial cartridge.
Fischer certified chemical anchor for anchors in:
Concrete with class from C20 / 25 to C50 / 60, cracked (M 10, M 12, M 16 and M 20) and non-cracked;
Solid brick in brick;
Solid calcium silicate brick;
Semi-solid brick (vertically perforated) in clay;
Semi-solid brick (vertically perforated) in calcium silicate;
Normal concrete hollow block;
Lightweight concrete hollow block;
Autoclaved aerated concrete (cellular).
Certificate for connection of post-installed reinforcing bars in:
Concrete with class from C20 / 25 to C50 / 60, cracked and non-cracked, for bars with improved adhesion with a diameter from 10 to 20 mm;
Also suitable for: C12 / 15 concrete.
Injection resin for use with:
Threaded rod FIS A, for concrete and masonry;
RG MI internally threaded bush, for concrete;
FIS E internally threaded bush, for masonry;
FIS HK mesh anchors, FIS HN sock and FIS HL mesh bushes, for masonry.
For fixing :
Metal constructions;
Wooden constructions;
Facades;
Stairs;
Steel shelves;
Cars;
Awnings;
Canopies;
Gates;
Console;
Grilled;
Satellite antennas.
Choose the polyester resin for applications on masonry T-BOND (Art.93179, available in the "Sealants" category) or FIP C 700 HP (the article you are looking at at this moment) based on the characteristics of your silicone gun.
Safe : system composed of a polyester-based chemical anchor certified for solid and hollow brick masonry applications. Hybrid: Portland cement contained in the polyester chemical anchor guarantees excellent resistance to temperatures up to + 120 ° C.
Complete system: the different formats and the complete range of accessories makes the system extremely flexible and allows numerous applications.
Assembly FIS C700 HP PRO.1 chemical anchor
FIS C700 HP PRO.1 is a bi-component hybrid injection chemical anchor .
Resin and hardener are in two separate containers and are not mixed or activated until extrusion takes place through the mixer.

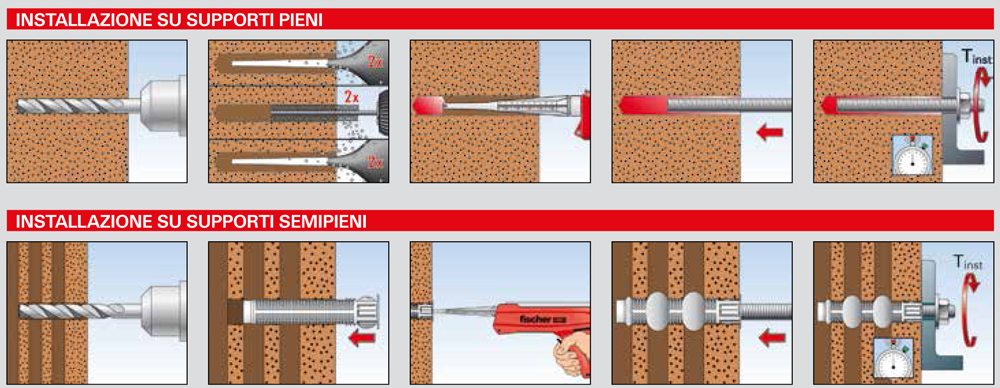

Before installing, clean the hole according to the instructions given.
Extrude the resin starting from the bottom of the hole, taking care not to leave it free of air bubbles.
Insert the bar manually by rotating it until it reaches the base of the hole.
The resin adheres to the entire surface of the anchor rod and the surface of the hole, sealing it.
The two cartridges are quick and easy to use with fischer pistols.
Partially used cartridges can be reused simply by replacing the mixer.
