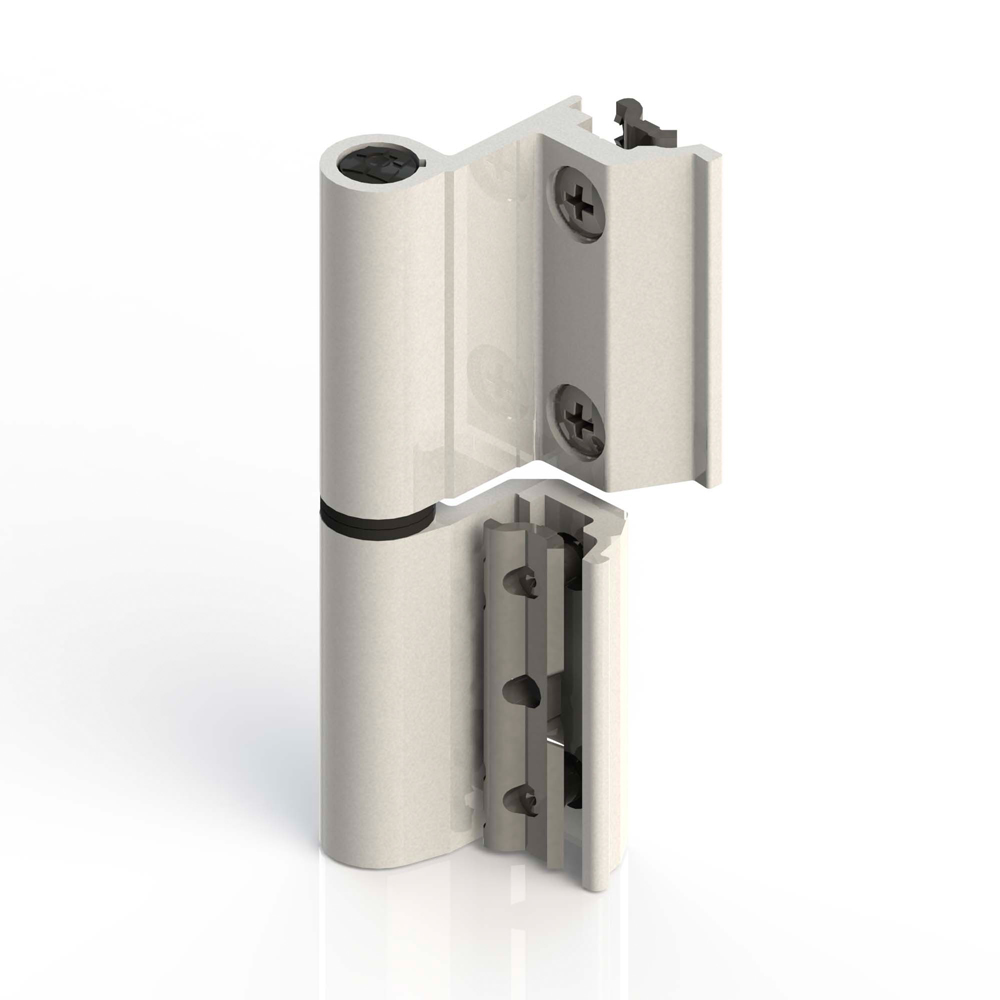

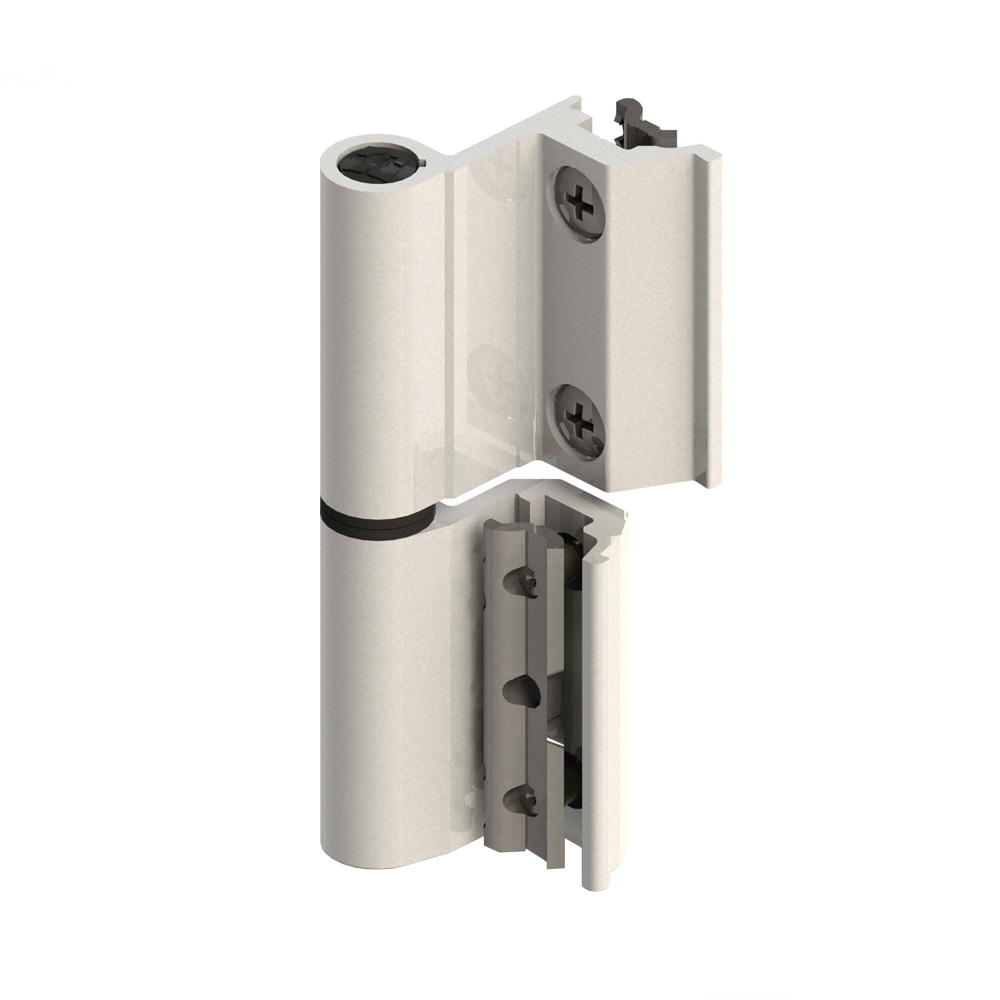

Hinge for Aluminum Windows - R50 Cold - Giesse Flash
ATTENTION:
- Hinge usable on R50 Cold profiles.
- Not suitable for R40, R40 Thermal Break (TT) and R50 Thermal Break (TT) profiles (see art. 00128U Giesse for sale on Windowo).
Giesse Flash Base hinge functions
- Ambidextrous hinge for open joint aluminum windows and doors.
- It has the same reliability and precision requirements as traditional Giesse hinges and is applied extremely quickly to the window, even if the latter is already assembled.
Hinge finishes for aluminum windows:
Silver, Bronze, Polished Brass, Satin Chromed Brass, White Ral 9010, Ivory Ral 1013, Black Ral 9005.
Technical characteristics - Hinge for Aluminum Windows - R50 Cold
The Flash Base hinge is supplied pre-assembled and adopts the Giesse-Rapid fixing system.
The particular conformation of the hinge and the plate allow a practical and rapid assembly on the already assembled frame and a perfect positioning of the hinge during the fixing of the screws.
Giesse hinge equipment:
- 2 anchor plates
- 4 TGS M5x10 cross cut screws
Materials:
- Extruded aluminum hinge
- Pin, screws and plates in stainless steel
- Plates in galvanized zamak
- Bushings in black nylon
Load capacities (considered on frames with a height of 2000 mm and a width of 1000 mm):
- with 2 Flash Base hinges: kg 75
- with 3 Flash Base hinges: kg 85
NOTE: For a complete knowledge of the characteristics of the Flash Base Giesse hinge, we recommend reading the PDFs that can be downloaded in this product sheet under the heading "Documents".
In particular
, we recommend reading the document "Nodes Type Swing C" where the nodes and series/systems to which this article is adapted are described .
