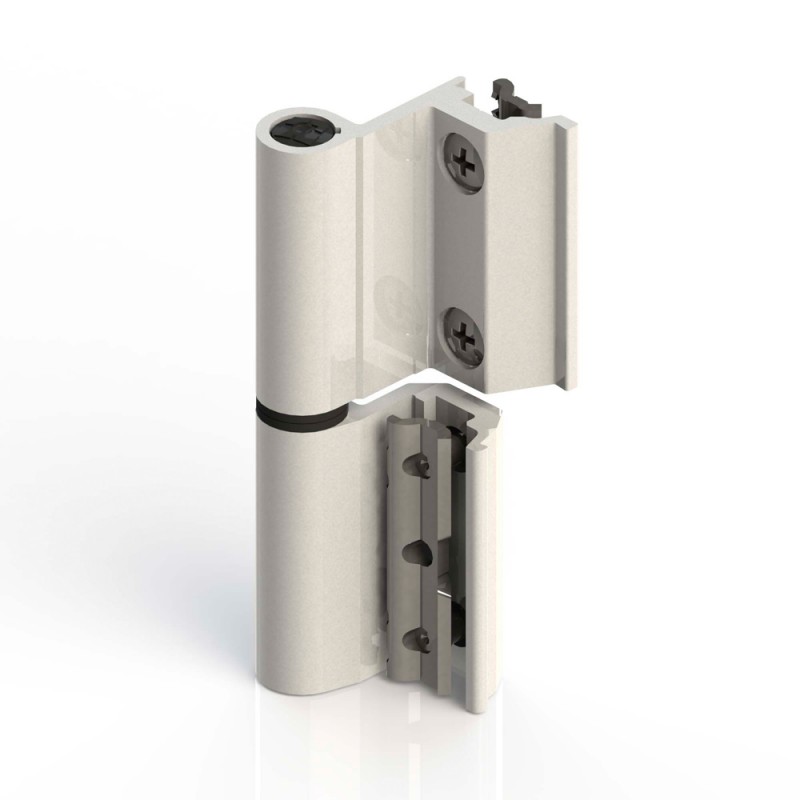

Giesse Hinge - Flash Base Third Door - Series R40 R40TT R50TT - Accessories for Aluminum
ATTENTION:
- Third sash hinge usable on R40, R40 Thermal Break (TT) and R50 Thermal Break (TT) profiles.
- Not suitable for R50 Freddo (see art. 00127U Giesse for sale on Windowo).
Functions - Giesse Flash Base Third Door Hinge:

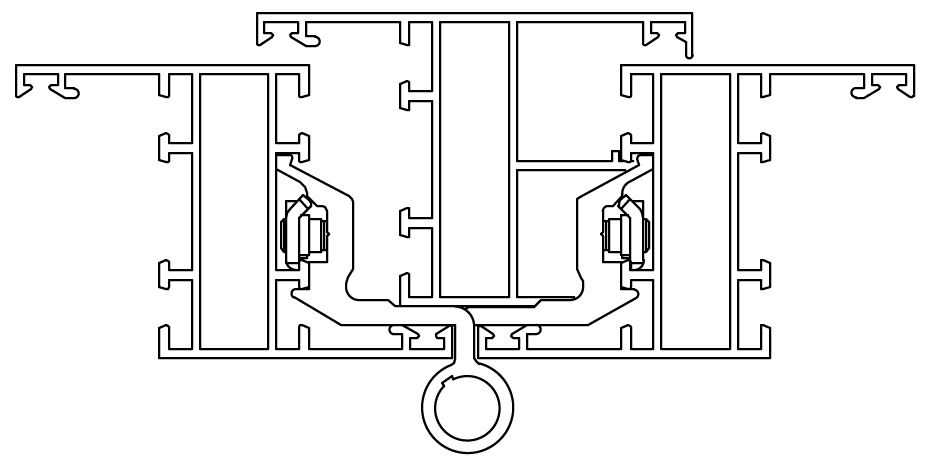

- Ambidextrous hinge for aluminum windows and doors with open joint that is applied to the 3rd sash node.
- It has the same reliability and precision requirements as traditional Giesse hinges and is applied extremely quickly to the window, even if the latter is already assembled.
Finishes - Giesse Flash Base Third Door Hinge:
Silver, Bronze, Polished Brass, Satin Chromed Brass, White Ral 9010, Ivory Ral 1013, Black Ral 9005.
Technical features - Giesse Flash Base Third Door Hinge:

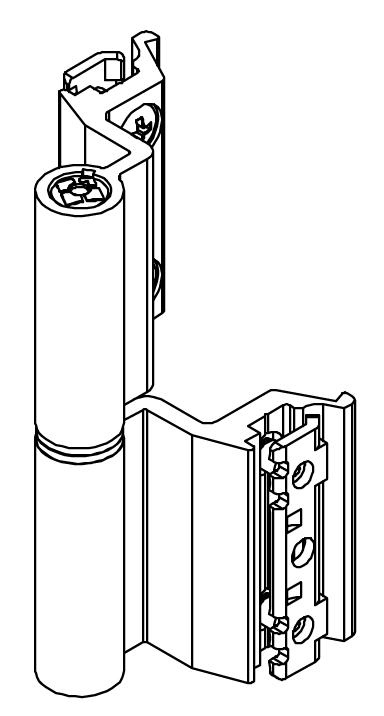

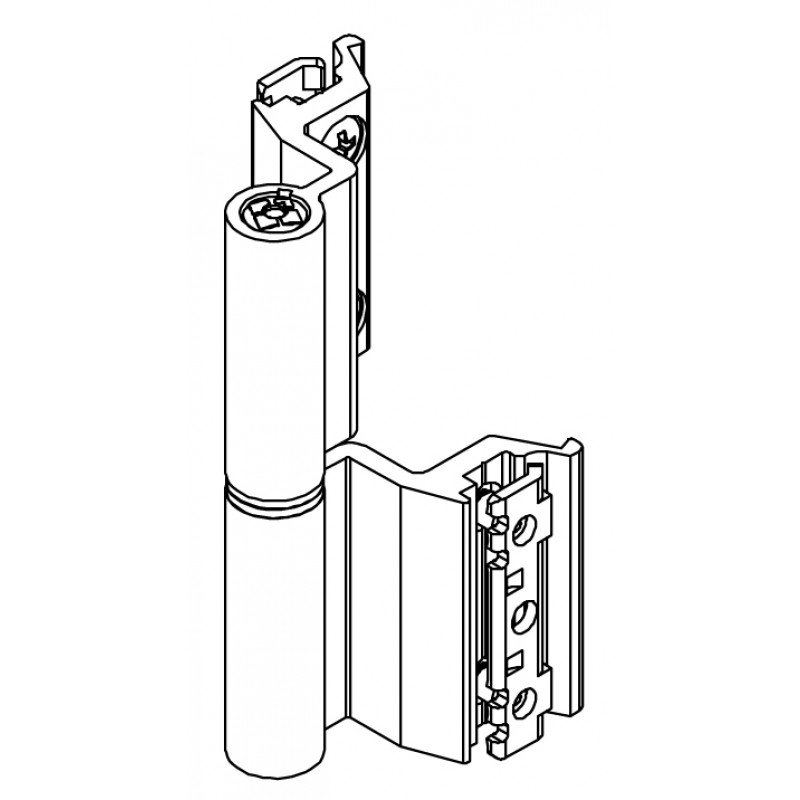

- The Flash-Base hinge is supplied pre-assembled and adopts the Giesse-Rapid fixing system.
- The particular shape of the hinge and the pre-assembled plate allows practical and rapid assembly on the already assembled frame and perfect positioning of the hinge during the screw fixing phase.
Giesse hinge equipment:
- 2 anchor plates
- 4 TGS M5x10 cross cut screws
Giesse hinge materials:
- Extruded aluminum hinge
- Pin, screws and plates in stainless steel
- Plates in galvanized zamak
- Bushings in black nylon
Load capacities (considered on frames with a height of 2000 mm and a width of 1000 mm):
- with 2 Flash Base hinges: kg 75
- with 3 Flash Base hinges: kg 85
NOTE: For a complete knowledge of the characteristics of the Giesse Flash Base hinge, we recommend reading the PDFs that can be downloaded in this product sheet under the heading "Documents".
In particular

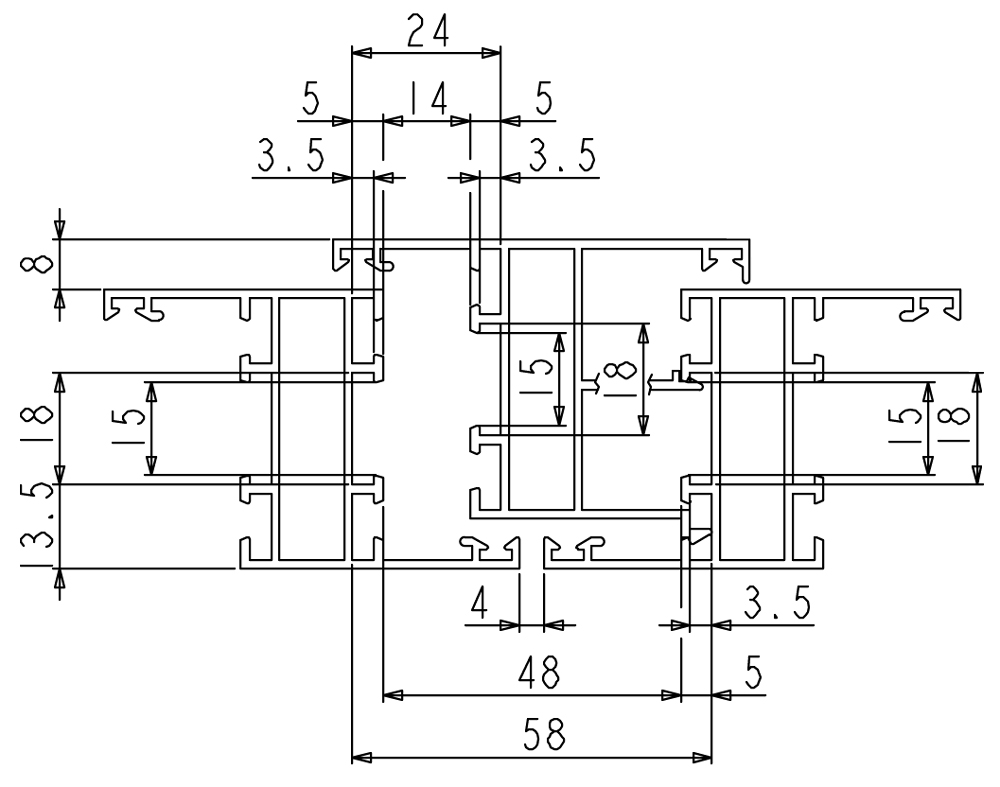

, we recommend reading the document "Nodes Type Swing C" where the nodes and series/systems to which this article is adapted are described .
