Hold Open Electromagnet Flush Wall Mount for Fire Doors 18003 Opera

Opera
Brands: Opera
Code: 18003
-20%
£ 21,74 £ 27,18
Prices excluding VAT
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

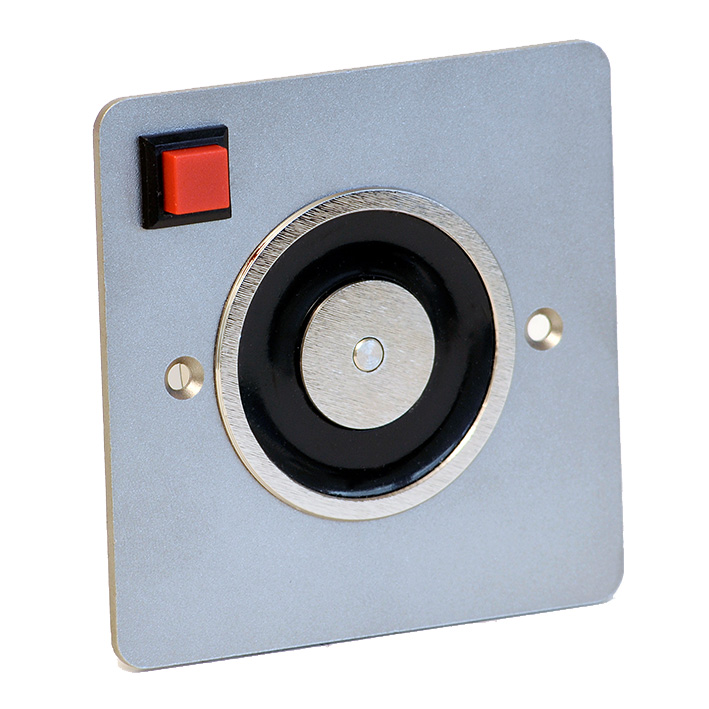

Hold Open Electromagnet Flush Wall Mount for Fire Doors 18003 Opera

Use
Door holding electromagnet for swing fire doors
Componible with item art. 01780 Opera (disponible on our website)

Version
Flush wall mount​
With push button release


Disponible choices
Standard
: as the description below
Reduced force to 20 Kg: prevents the magnet from coming off the wall after repeated bad use

Technical info
Version: flush wall mount
Front plate in stainless steel
Front dimensions (mm): 85 x 85 x 2
Electromagnet dimensions: diameter (mm) 50 x depth 35
Operating voltage: 24 Vdc - Absorbed current: 70 mA
Holding force: > 55 Kg
Residual anti-magnetism pin on the electromagnet body
Screw connection connector with anti-disturb varistor

Compliance: EN 1155

IMPORTANT
Provided without armature plate.
Buy the armature plate separately in our website. Choose:

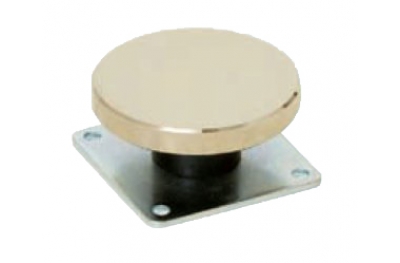

- Fixed Armature Plate  (Art. 01800Z Opera)
- Swinging Armature (Art. 01805Z Opera).

COMPLETED KIT
You can find the completed kit too on our website:
Flush mount electromagnet: art. 18003 Opera
Box for electromagnet: art. 01780 Opera
