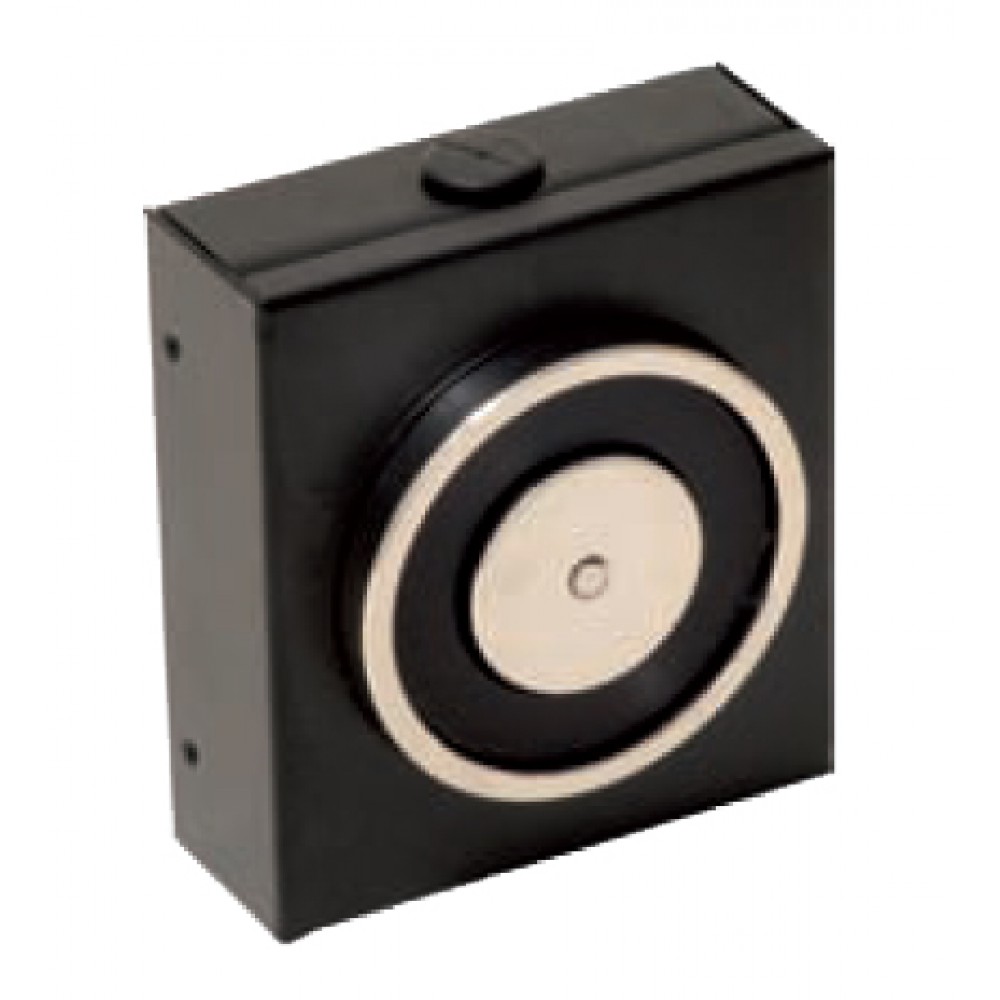

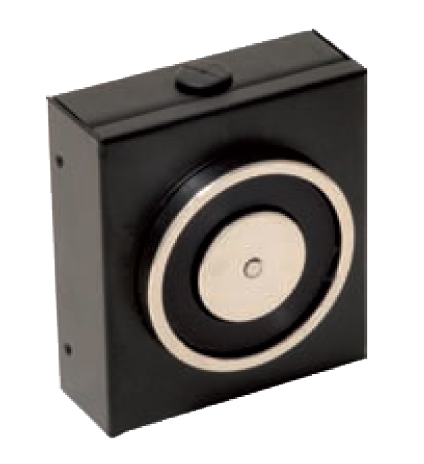

Holding Electromagnet 140 Kg - Opera 18100 - Without Release Button
Holding electromagnet for swing fire doors, without release button.
The
Opera 18100 holding electromagnet is designed to guarantee safety and efficiency in environments where it is essential to keep the fire doors open until a fire alarm is triggered.
Holding electromagnet - version
- Without release button
- Wall fixing
Holding electromagnet - technical characteristics
- Black painted steel box
- Nickel-plated electromagnet block
- Power supply: 24 Vdc/Current absorbed: 70 mA
- Traction force: > 140 kg.
- Anti-residual magnetism pin on the electromagnet body
- Connection connector with anti-noise varistor
Compliance: UNI EN 1155.
On demand
Contact us to add variations:
- 24 Vac power supply
IMPORTANT
Supplied without backplate. The counterplate can be purchased on our website. Choose between:
- Fixed strike plate (Art. 01810Z Opera)
- Articulated strike plate (Art. 01815Z Opera).
