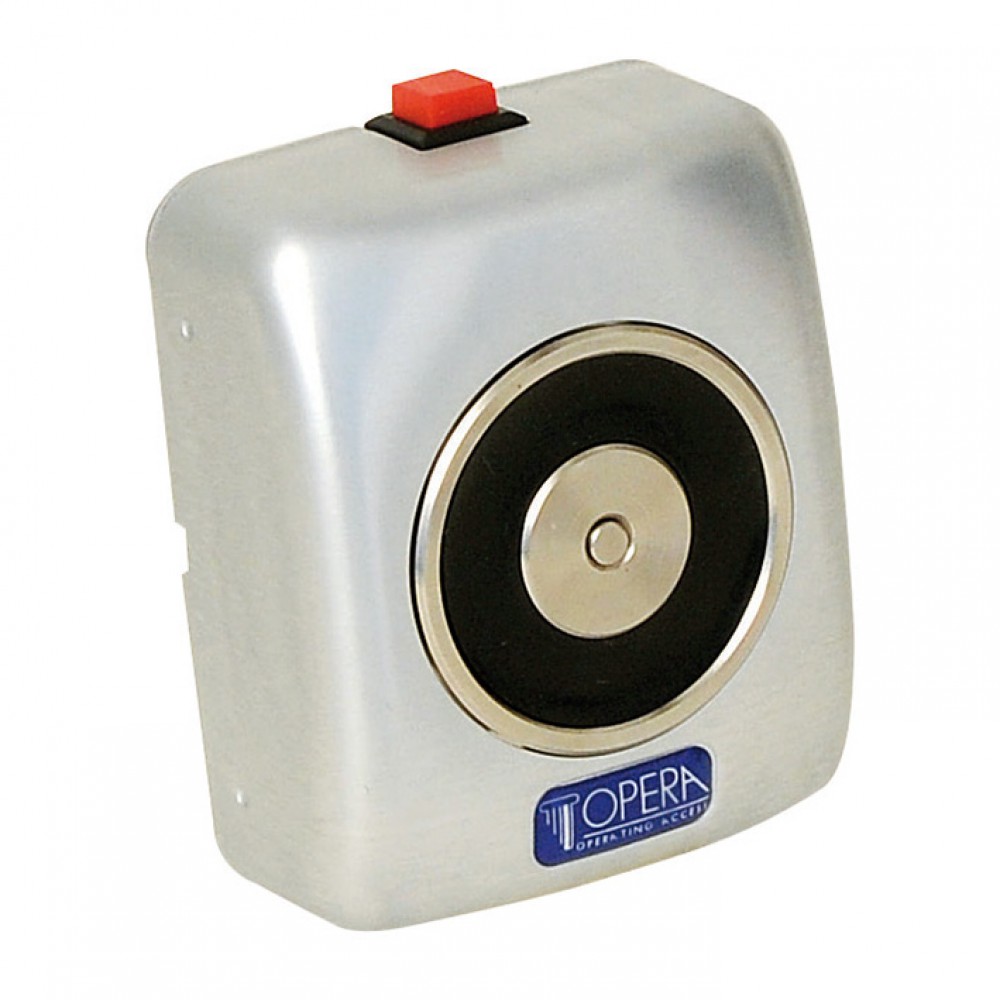

Opera 19002 Holding Electromagnet - Made of Aluminum and with Release Button
Holding electromagnet for swing fire doors,
Opera code 19002 .
The holding electromagnet for swing fire doors with Opera code 19002 is an essential device to guarantee
safety in the event of fire .
It is designed to keep fire doors open under normal conditions and allow them to
close automatically in an emergency , helping to contain flames and smoke.
Opera 19002 holding electromagnet version
- With release button
- Wall fixing
By choice
- Standard : as description below
- Adjustable force : from 10-50 kg (prevents the magnet from detaching from the wall after repeated misuse)
- Dual power supply : automatic selection 24/48 Vdc (useful for the French market)
Technical characteristics of the Opera 19002 holding electromagnet
- Silver anodized aluminum body with galvanized steel base
- Nickel-plated electromagnet block
- Power supply: 24 Vdc - Current absorbed: 70 mA
- Fixed traction force: > 55 Kg
- Anti-residual magnetism pin on the electromagnet body
- Connection connector with anti-noise varistor
Compliance: UNI EN 1155.
On request
Contact us to add variations:
- 12 Vdc power supply
- 12 Vac power supply
- 24 Vac power supply
- 48 Vdc power supply
- Reduced strength 20 kg
- Status sensor
IMPORTANT
Supplied without backplate.
The counterplate can be purchased on our website. Choose between:
- Fixed strike plate (Art.
01800Z Opera)
- Articulated strike plate (Art.
01805Z Opera).
Opera holding electromagnet - Made in Italy
The
Opera holding electromagnet is a high quality device designed and produced in Italy, mainly intended for use on swing fire doors. These electromagnets are known for their reliability, robustness and compliance with fire safety standards.
Designed and made in Italy, the Opera holding electromagnet combines traditional craftsmanship with modern technologies, guaranteeing a high quality product.
