Justor PM 120 - Spring Pin - Left or Right - 2 Pieces
Spring pin Justor PM 120 for wooden doors. Facilitates the work of the installer as it is not necessary to unscrew the pin in case of door removal at any given moment.
Price includes two spring pins. The pair has a load capacity of up to 20 kg.
Justor PM 120 pins differ in
right or left opening (select the one you want).
Features spring pin Justor PM 120

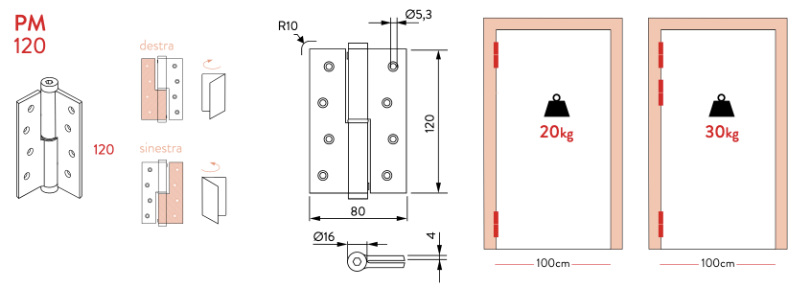

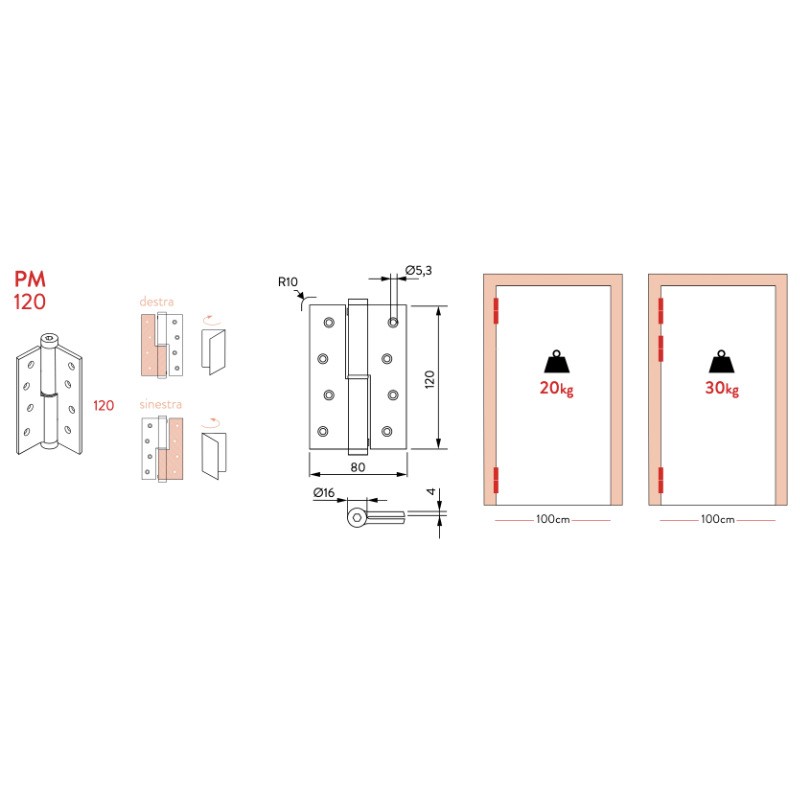

- For 2 installed units : door width 100 cm, door weight 20 kg , number of cycles 250,000;
- For 3 installed units : door width 100 cm, door weight 30 kg , number of cycles 250,000.
Justor PM 120 spring pin - External materials
- Bandella: anodized aluminum;
- Adjustment cap: zamac;
- Washers: polyamide.
Justor PM 120 spring pin - Internal materials
- Inside axis: AISI 304 stainless steel;
- Internal spring: carbon steel sheet set with protective grease.

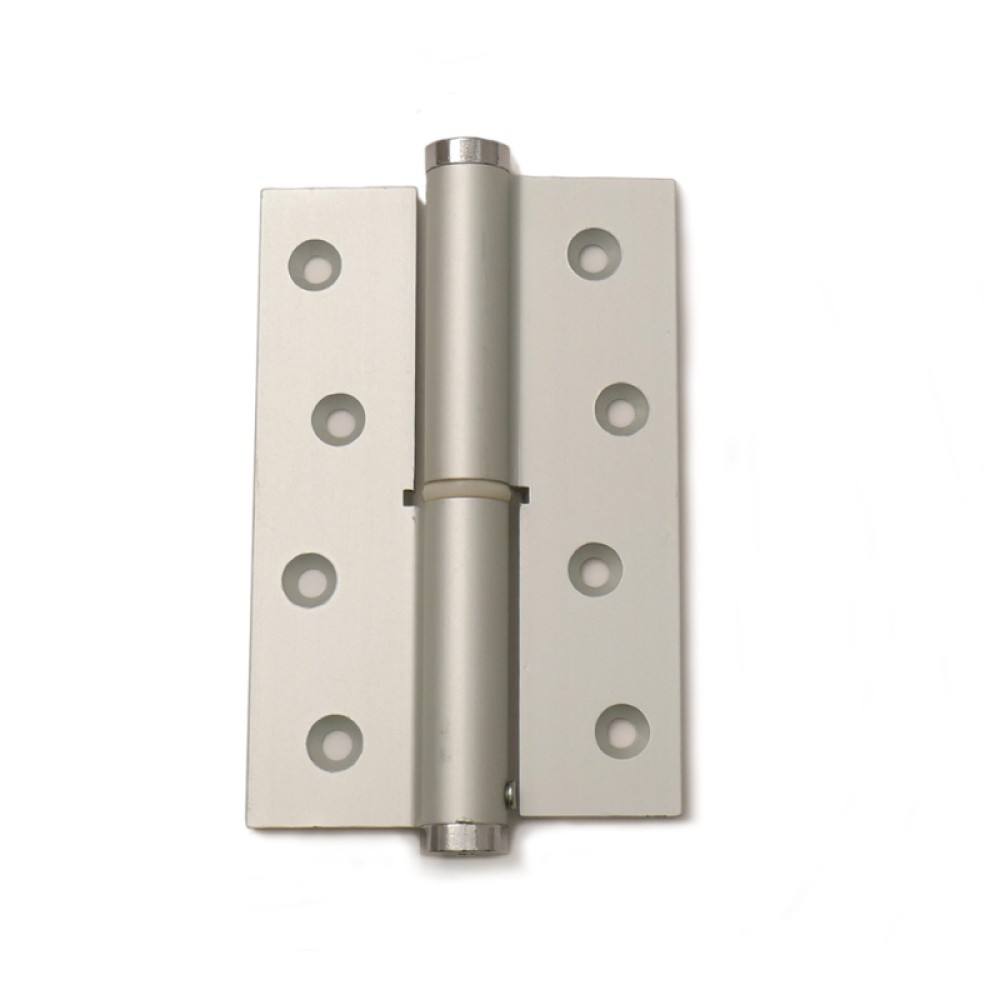

Spring pin Justor PM 120 silver - left version
Spring pin Justor PM 120 silver - right version
Spring pin Justor PM 120 - Operation
- Application: Suitable for interior/exterior doors;
- Automatic return: yes;
- Power regulator: yes;
- Maximum opening: 180º;
- Cycles: more than 500,000.
