CARRERA VDS KIT - Gearmotor for Sliding Gates - Control + Accessories
The
KIT CARRERA VDS model includes a
gearmotor for sliding gate , a control equipment and relative accessories.
This kit contains a
gearmotor for CARRERA VDS sliding gate .
Choose the sliding gate kit version you want (select the variant):
- CARRERA 800 230V VDS KIT for gates up to 800 kg;
- CARRERA 800 24V VDS KIT for gates up to 800 kg;
- CARRERA 1000 230V VDS KIT for gates up to 1000 kg.
Advantages KIT CARRERA VDS gearmotor for sliding gate
- Painted die-cast aluminum gearmotor;
- Machined from solid steel and cast iron gears;
- Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust;
- Maximum silent operation;
- High Performance electric motor;
- Lever release with personalized key;
- Available with and without Encoder;
- Electronic torque regulation;
- Pre-wiring and easy-to-program software;
- Control equipment container with gasket;
- Aerstop against humidity and insects;
- Anti-crushing device (EN 12453);
- Speed slowdown (EN 12453);
- Power supply 230V - 24V.

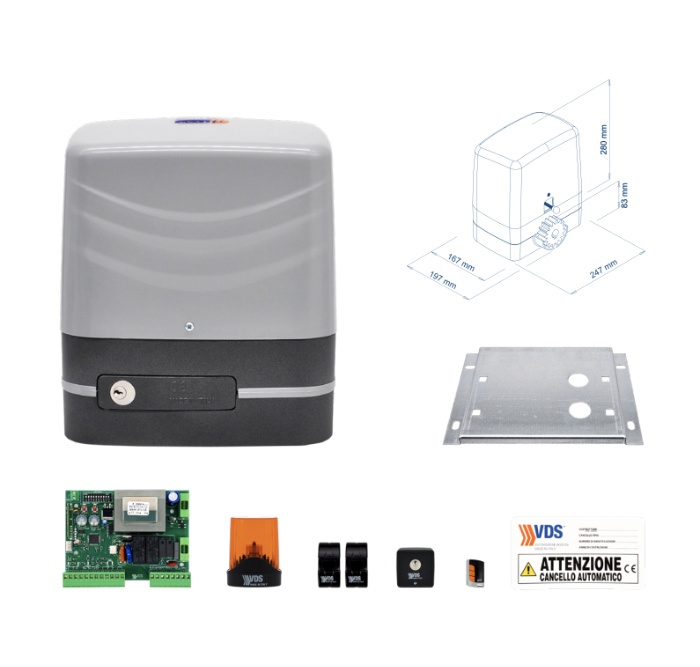

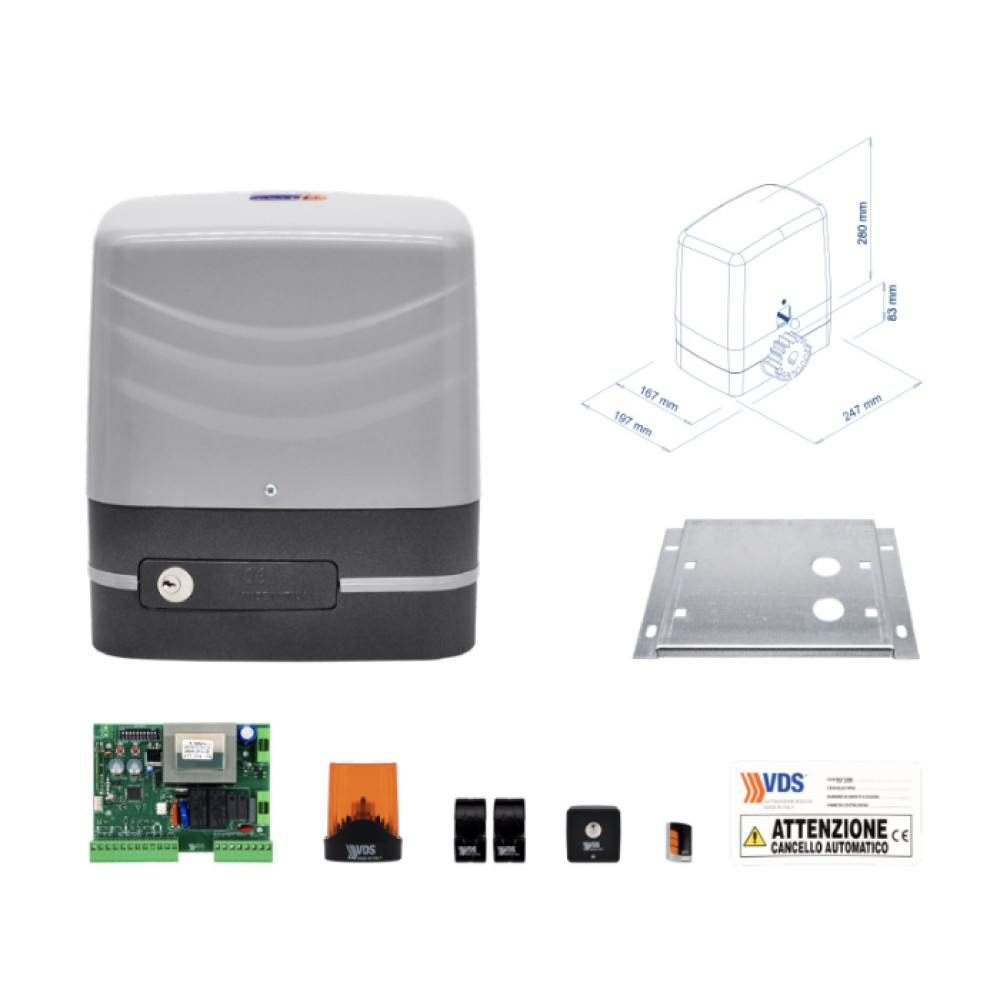

CARRERA VDS KIT: what does it include?
- Gearmotor;
- Counterplate;
- 230V control unit;
- Pair of photocells;
- LED flasher;
- Key selector;
- Transmitter;
- Warning sign.

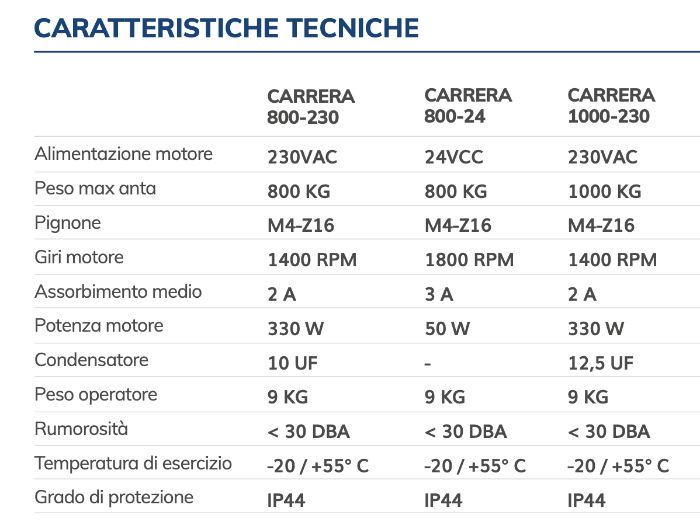

Technical features KIT CARRERA VDS
- Motor power supply: 230VAC or 24VDC (by choice);
- Max leaf weight: 800-1000 KG;
- Pinion: M4-Z16;
- Engine revolutions: 1400-1800 RPM;
- Average absorption: 2-3 A;
- Motor power: 330-50W;
- Capacitor: 10-12.5UF;
- Operator weight: 9 KG;
- Noise: <30 DBA;
- Operating temperature: -20 ° / + 55 ° C;
- Degree of protection: IP44.
VDS Gearmotors for Sliding Gates: Prices and Offers
VDS Automazioni has been working in the automation sector for more than 30 years. The Italian company manufactures products for the automation of gates, barriers, automatic doors and much more.
These
VDS gate automation kits are 100% Made in Utaly, made by specialized personnel with high quality raw materials.
Buy online the best automations for VDS gates on Windowo in special offer.
