Kit Flush Wall Mount Hold Open Electromagnet + Box Opera

Opera
Brands: Opera
Code: 18003+01780
£ 53,09
Prices excluding VAT
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

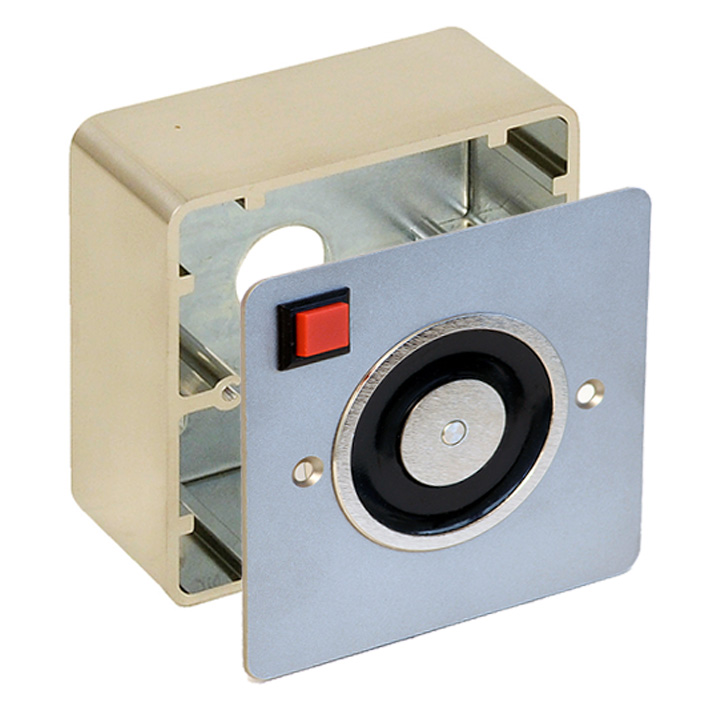

Kit Flush Wall Mount Hold Open Electromagnet + Box Opera

Use
Completed kit ready for installation
Door holding electromagnet for swing fire doors
Box for flush or application mount for electromagnet

Version
With push button release
Flush wall mount​

Disponible choices
Standard
: as the description below
Reduced force to 20 Kg: prevents the magnet from coming off the wall after repeated bad use

Kit composition:
Hold open electromagnet: art. 18003 Opera (disponible on our website)
Box for flush mount electromagnet: art. 01780 Opera (disponible on our website)

Technical info art. 18003
Front plate in stainless steel
Front dimensions (mm): 85 x 85 x 2
Electromagnet dimensions: diameter (mm) 50 x depth 35
Operating voltage: 24 Vdc - Absorbed current: 70 mA
Holding force: > 55 Kg
Residual anti-magnetism pin on the electromagnet body
Screw connection connector with anti-disturb varistor

Elettromagnete di trattenuta

Technical info art. 01780
Body: in silver coloured aluminium
Dimensions (mm): 85.5 x 85.5 x 38.5 mm.

Scatola per elettromagnete

Compliance: EN 1155

IMPORTANT
Provided without armature plate.
Buy the armature plate separately in our website. Choose:
- Fixed Armature Plate  (Art. 01800Z Opera)
- Swinging Armature (Art. 01805Z Opera).
