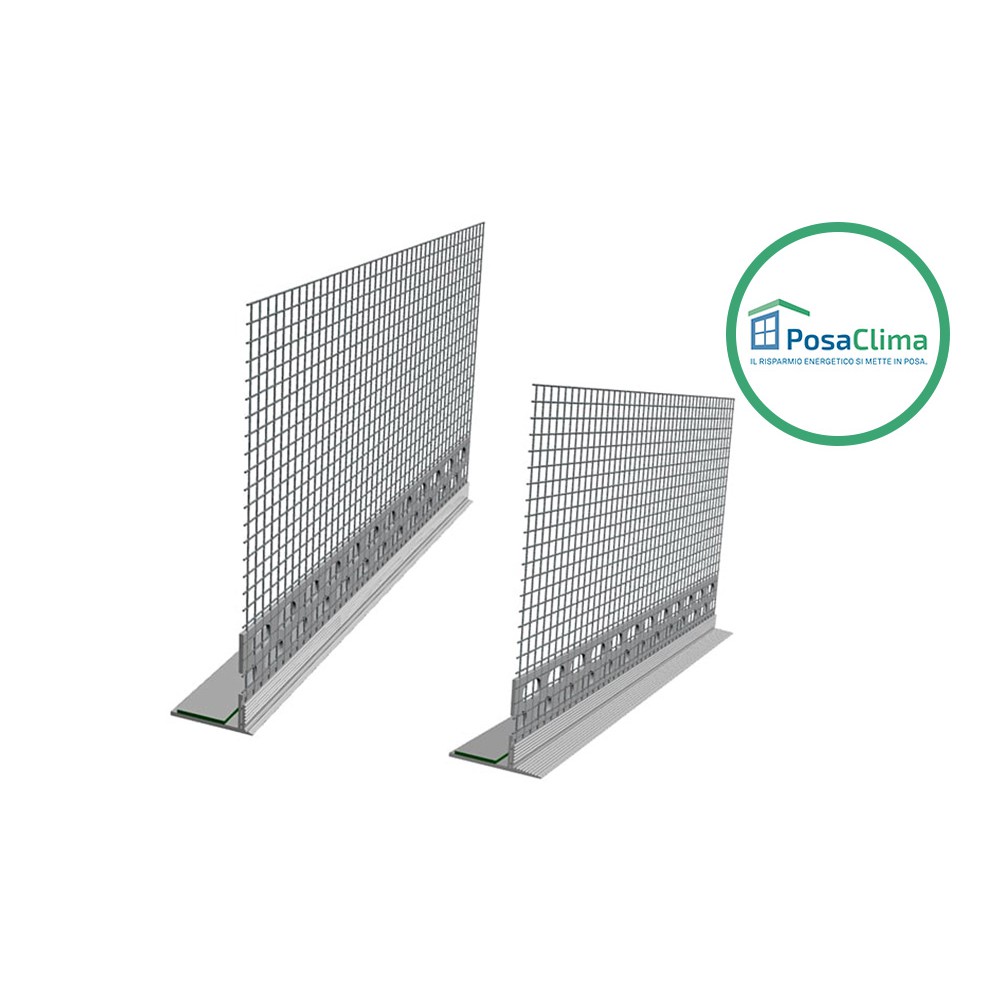

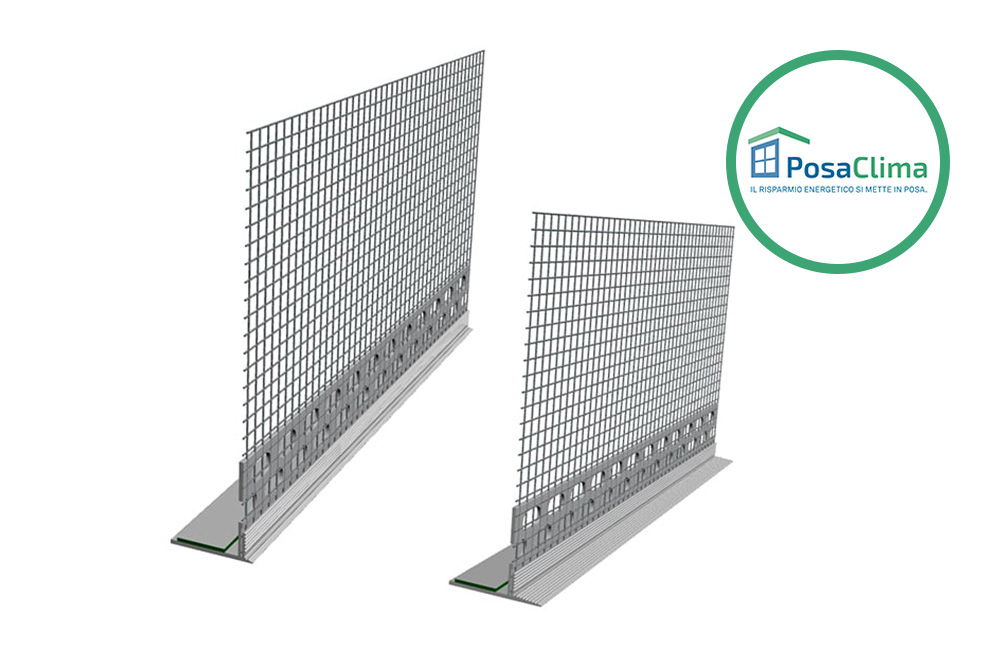

"L" -shaped Plaster Door Profile PosaClima to Hide Shoulder and Counterframe Rebate
L-shaped plaster holder profile to hide the shoulder and the stop of the counterframe
Plaster holder profile for sealing the subframe , built with the coupling of a special PVC profile and a self-adhesive green polyethylene foam mat which thanks to its elasticity allows it to absorb small movements of the wall avoiding the formation of cracks.
The 2781 profile must be used on the outside to cover the wide rebates of the counterframes (typically in wood), while the 2784 profile must be used indoors in constructions flush with the internal wall when you want to plaster the entire shoulder of the counterframe and incorporate it into the plaster avoid the formation of cracks and the internal spinning cover.
Choose from the available profiles
- For indoor use - 2.6 m long bars
- For outdoor use - 2.6 m long bars
Why seal the plaster with PosaClima "L" profiles?
The sealing of the subframe must always be carried out to avoid:
- Cracks between counterframe and masonry
- Interstitial condensation
- Air passage
- Heat dispersion
With PosaClima “L” plaster holder profiles it is possible to make an elastic and long-lasting seal.
Choose between 2 types of "L" profiles
Profile 2781: for wide rebates of wooden counterframes up to a width of 22 mm
- Profile 2781 is a profile specifically designed to cover the wide rebates of wooden counterframes up to a width of 22 mm . The profile must be positioned by gluing the adhesive mat on the internal part of the rebate (positioning the profile exactly flush with the rebate): in this way the PVC part with the net will hide the wooden rebate and will subsequently be shaved externally. For those who will carry out the external shaving on the profile there is a 3 mm tooth that acts as a reference for the external leveling edge. Equipped with external insulation mesh with 4x4 mm mesh.
Profile 2784: for subframe shoulders up to a width of 22 mm
- The 2784 profile, on the other hand, is a profile specifically designed to cover the entire shoulders of the subframe up to a width of 22 mm . The profile must be positioned by gluing the vapor-proof adhesive mat on the inside of the shoulder of the subframe (making sure to position the profile exactly flush with the shoulder): in this way the PVC part with the net will hide the shoulder and subsequently be shaved internally. For those who will carry out the internal plastering on the profile there is a 10 mm tooth that acts as a reference for the internal plaster line. This special profile is equipped with 7x7 mm oversized mesh to better accommodate the internal plaster and can be used on all Posaclima counterframe shoulders (OSB / Multilayer / PVC).
Certifications and performances
- Vicat softening time (DIN 53460): 80 ° C
- Breaking load (ISO 527): 37 N / mm2
- Elastic modulus (ISO 527): 3800 N / mm2
- Processing temperature : From +0 ° C to +40 ° C
- Bond strength (DIN EN 1939): Ca 10 N / 25 mm
- Processing temperature : From +0 ° C to +40 ° C
- Mesh crack resistance (ETAG 004): 1000 N / 5 cm
- Storage : 12 months, in a dry place
PosaClima: accessories for thermal counterframes of doors and windows
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
