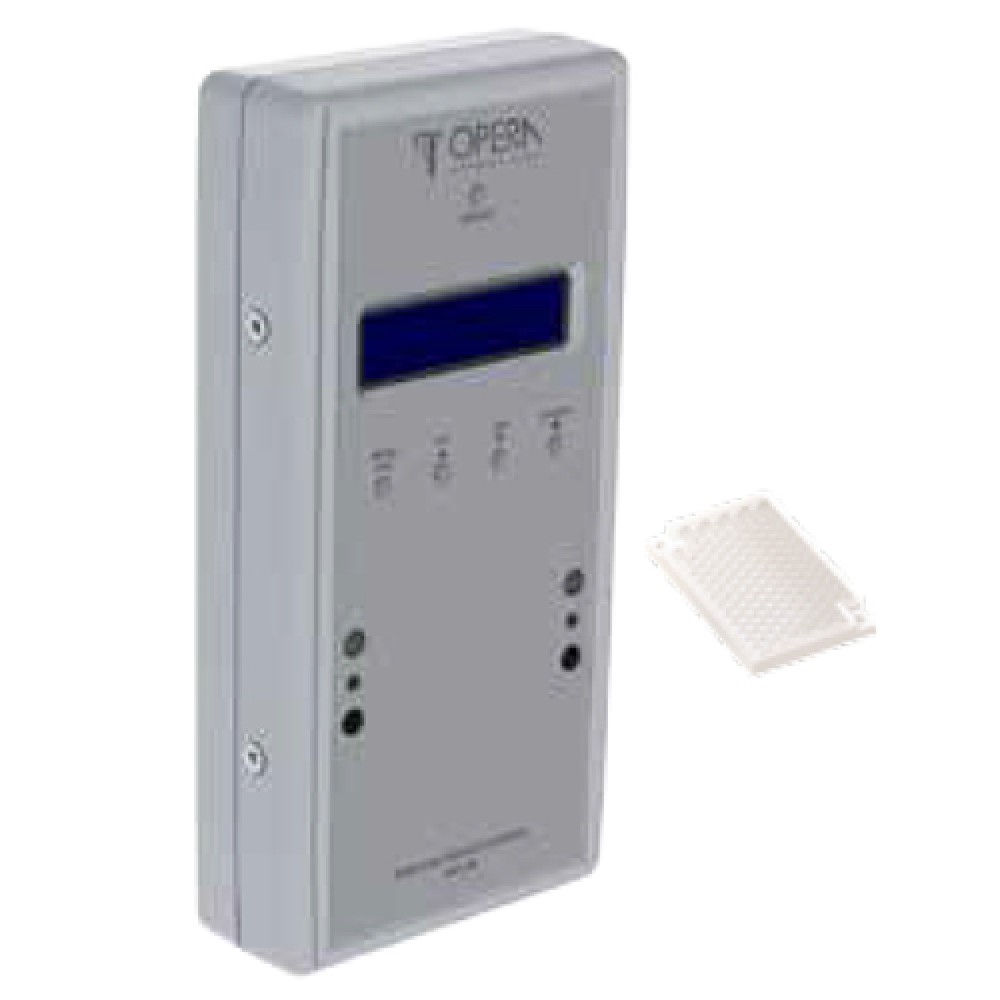

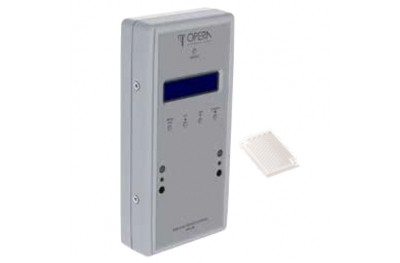

One-way Electronic People Counter Opera 59001
Use of this system to count people
Monitoring of the number of people present inside a room (public offices, exhibitions, museums, conference rooms, supermarkets, etc.).
One-way people counting system.
One-way people counter - available versions:
- Stand alone
- Radio frequency for coupling to the concentrator
Features One-way People Counting System:
- Electronics in ABS boxes.
- Dimensions: mm. 165 x 80 x 35.
- Nominal voltage: 3.6 V Power consumption < 3mW.
- Diet:
- - powered by 3 x 3.6 V AA Lithium Thionyl Chloride non-rechargeable batteries, lasting more than one year. Protection circuit for incorrect battery insertion.
- - from external power supply 12/24 Vdc - 12 Vac.
- Front with 2 x 16 character LCD display: mm. 55 x 16.
- Programming buttons from the Master circuit.
- USB port for firmware updates.
- SD card slot for data storage and transfer to PC when used in stand-alone version.
- Addressing configurable from 1 to 10 when used with the concentrator connected to the PC.
- Data transfer to the concentrator via 433.125 MHz radio frequency module.
- RS-485 serial line for connection to the 59015 series display.
- Real time clock/date.
- Storage and maintenance in non-volatile memory of 12 months' data in 24 hours with detail for each hour.
- Photoelectric barrier in bidirectional or monodirectional version.
Controlled gates:
- 1 for the one-way version with a maximum opening width of 2.5 m. with reflector.
Display views:
- Date and time.
- Total entries.
- Total exits.
- Daily present.
- Total presence from a pre-set date.
Programmable settings for:
- Date and time.
- Activation of "beep" function for each passage.
- Programming access password.
- Configurable gate direction.
- Activate/deactivate reset time.
- Setting maximum number of presences.
- Clearing of data in memory.
- Terminal number.
- Photocell alignment test.
- Factory reset.
- Multilingual support (Italian/English).

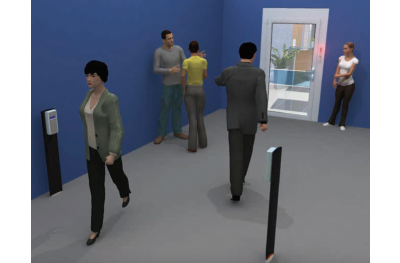

Application example
Control the passage thanks to the People Counter Opera Series
- Advanced wireless system for counting the passage of people.
- Battery powered.
- Stand-alone operation.
- Wi-Fi transmission to the concentrator.
- Concentrator with Ethernet connection (Opera code 05914, to be purchased separately).
