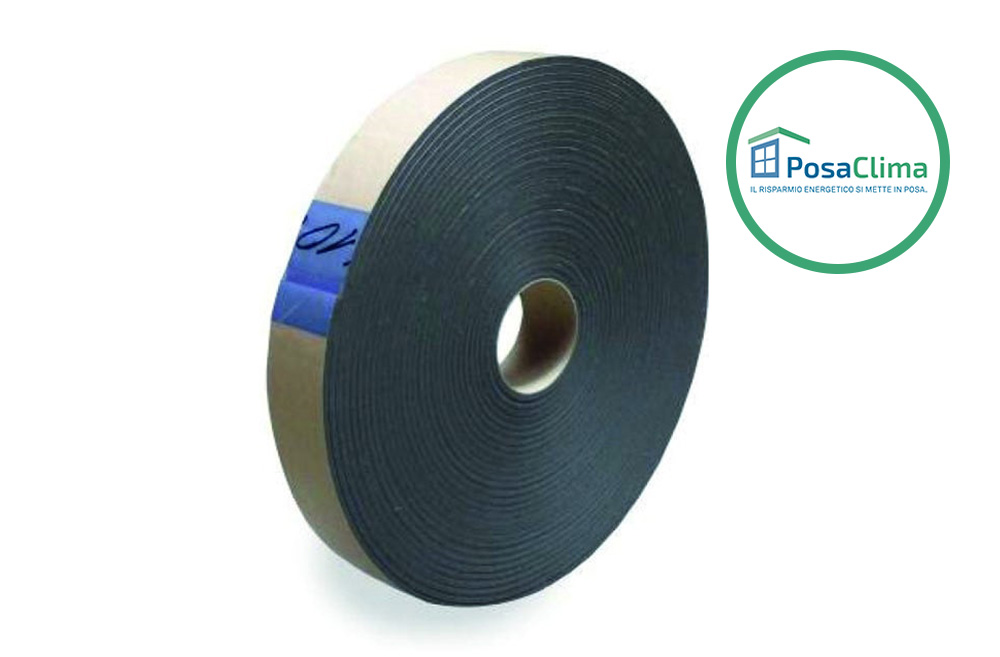

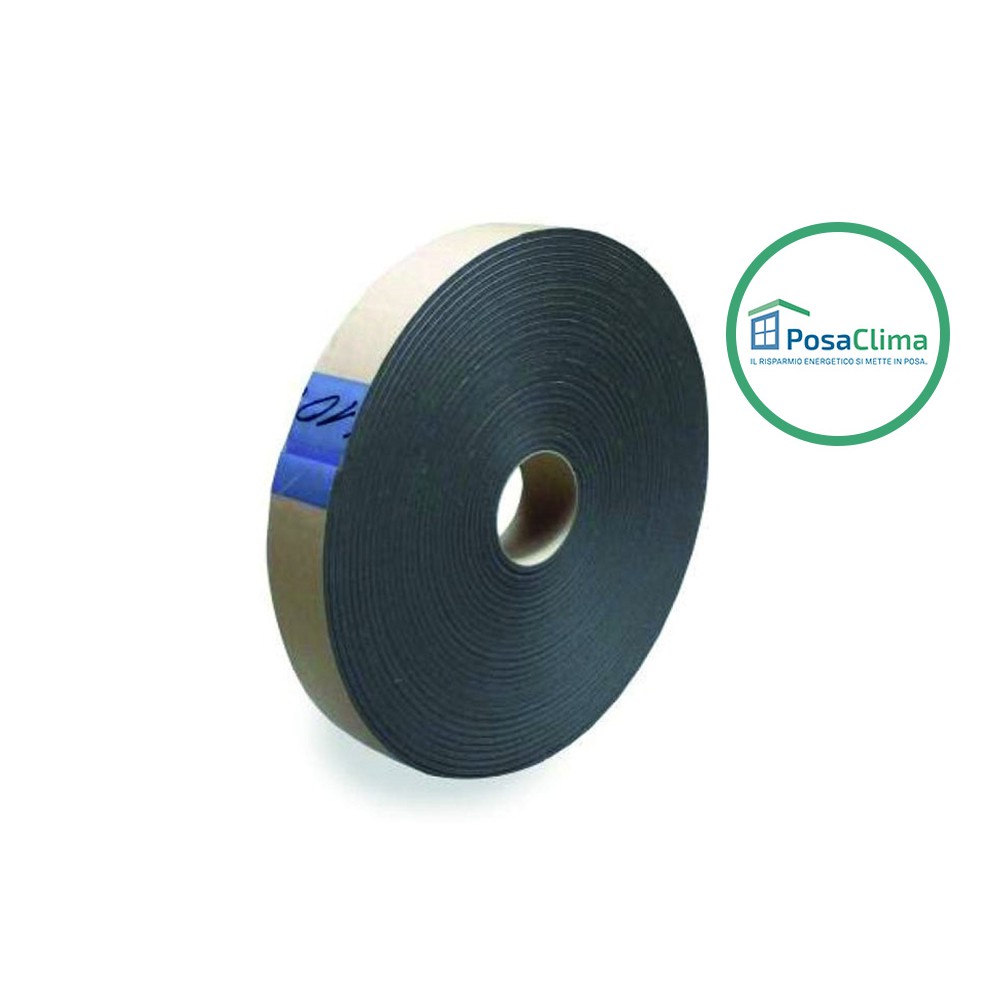

Vitoseal 100: PVC foam tape for the insulation of the PosaClima lower crosspiece
Self-expanding tape to insulate the window from air and steam
Vitoseal 100 compressible closed cell PVC foam tape, specifically designed for sealing the lower crosspiece of windows. Thanks to the structure of the closed cell material it is completely impermeable to water and air.
Its
low density (100 kg / m3) allows it a very important feature: deformability under load. In this way it is able to adapt perfectly to the surface of the crosspiece and to prevent the ingress of water. The underside is self-adhesive to make application quick and easy.
Vitoseal 100 PosaClima is available in rolls with a width of 40, 50, 70 mm, thickness 5 mm and a length of 20 linear meters. Vitoseal 100 is guaranteed for 10 years for application under the lower crosspiece of windows if applied according to the instructions in the technical data sheet.
Select the width from the purchase options
- 40 millimeters
- 50 millimeters
- 100mm (minimum purchase 1 roll)
Lengths available : 20 meters
How Vitoseal 100 insulating tape for counter frames works
To be used exclusively for sealing the lower crosspiece of windows . Complete impermeability to water is achieved with a compression of at least 30%. This means that when taking the measurements of the new window, a space of 3.5 mm must be provided under the crosspiece. Despite the product's complete impermeability to both air and water, it is recommended to always complete the sealing of the crosspiece by applying the MS Powerflex 25 fluid sealant to the outer edges, in order to guarantee complete watertightness even in the event of " out of level ”of the windowsill or on particularly uneven surfaces.
Vitoseal 100 certifications and performance
- Color : Gray
- Reaction to fire (FMVSS 302): <100 mm / min
- Temperature resistance : -30 ° C to +60 ° C
- Thermal conductivity (DIN EN 12667): λ ≤ 0.052 W / mK
- Density : 100 - 125 kg / m3
- Compression force (ASTM 1667): 0 sec 12 - 33 kPa; 60 sec 4 - 16 kPa
- Maximum compression (DIN 53572) <45%
- Stagnant water tightness : Guaranteed
- Storage : 12 months
PosaClima: products for sealing windows
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
