Rod Actuator Raywin R20 200N 230V 50Hz Comunello Mowin

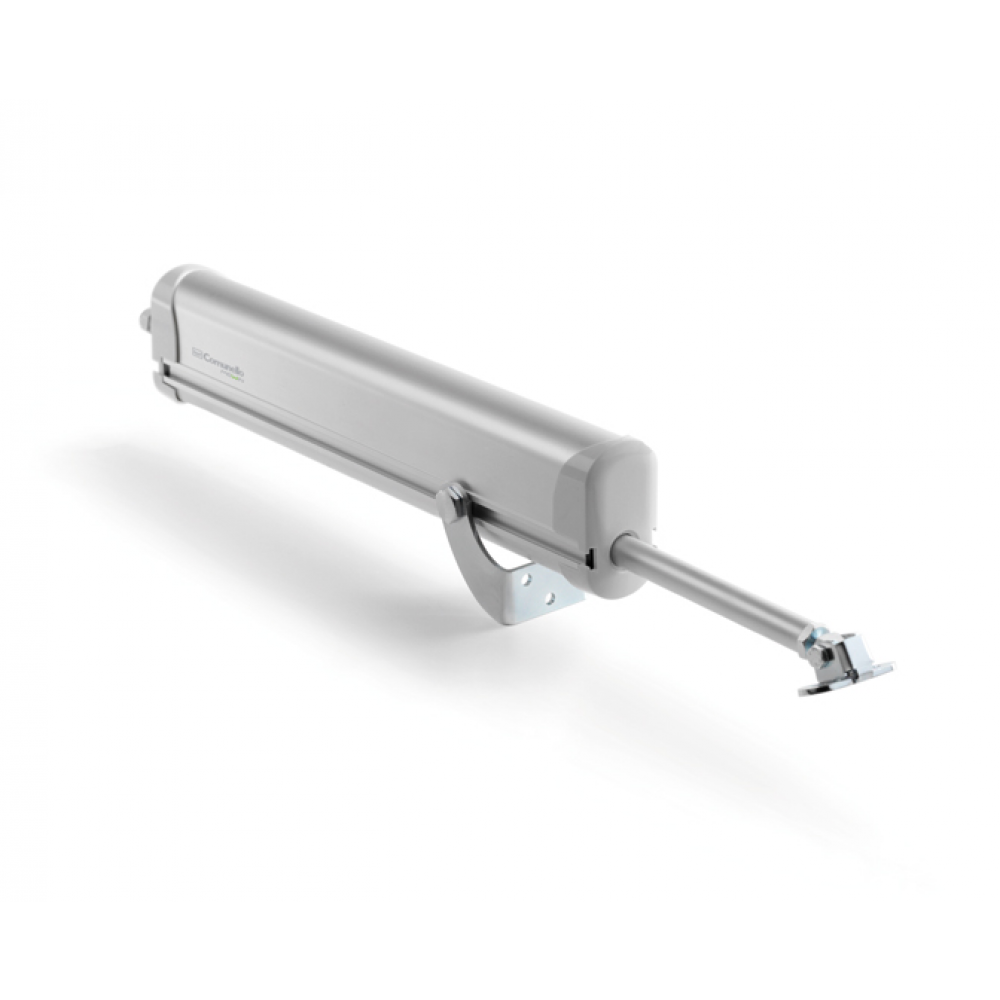

Raywin R20 Comunello electric rod actuator for opening and closing top hinged windows, louvres, sunshade blades and domes.
Comunello Raywin R20 features a compact and discreet design, making it easy to integrate into any architectural context. Its compact size does not compromise on performance, ensuring smooth and precise movement.
Thanks to its versatility and reliability, Comunello Raywin R20 is ideal for both private buildings and public facilities, providing automatic control of hard-to-reach openings and improving ventilation and room comfort.
What does the Raywin R20 Comunello package include?
Inside the package you will find all the elements and tools that make assembly and connection operations with the electrical system simple.
The package contains: Raywin R20 rod actuator with electric cable, anchoring bracket and adjustment screws, fixing bracket for top-hung windows and domes and multilingual instruction booklet.
Technical characteristics Raywin R20 Comunello
Model: RAYWIN R20 230V;
Power supply: 230VAC;
Frequency: 50Hz;
Service: S2 4min;
Push force: 200N;
Pulling force: 200N;
No-load translation speed: 7 mm/s;
Degree of protection: IP44;
Double insulation: Yes;
Absorption: 0.13A;
Power: 17W;
Operating temperature: - 5° / + 50°;
Strokes: 105 / 180 / 300 mm;
Opening limit switch: by absorption;
Closing limit switch: by absorption;
Soft Start / Soft Stop: Yes / Yes;
Obstacle detection: Yes;
Parallel connection: Yes (max 30 actuators);
Sync: No;
Dimensions: 400/600x84x48mm.

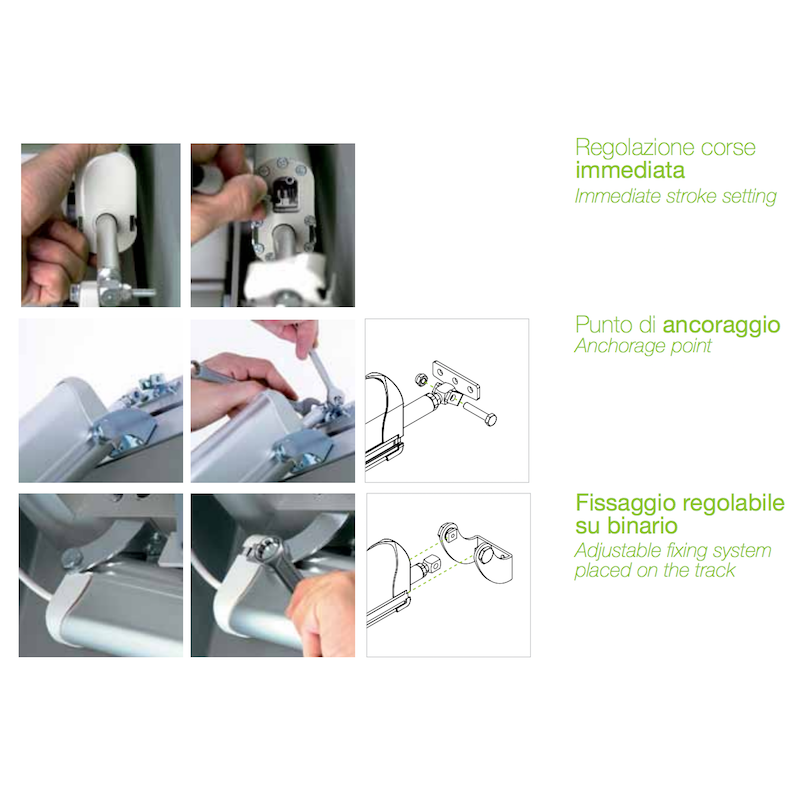

Immediate stroke adjustment - Anchor points.
Adjustable fixing on rail.
Comunello Mowin actuators for sale online
The Mowin project was born from Comunello's 45 years of experience in the mechanical handling of doors and windows. The guarantee of high quality and durability, recognized on Comunello products, continues in the brand new Mowin electromechanical actuators.
A modern design with attention to all its details presents the Mowin series as a product capable of becoming the protagonist even in residential environments.
