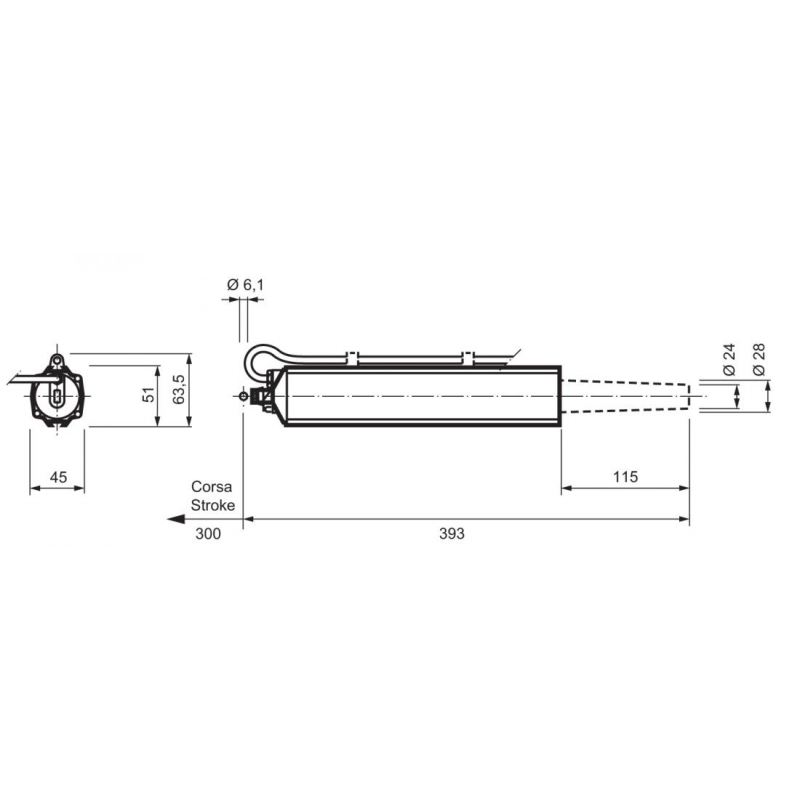

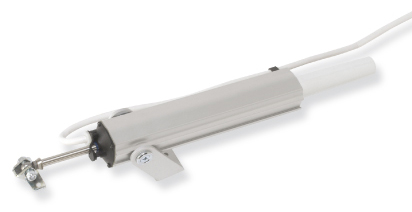

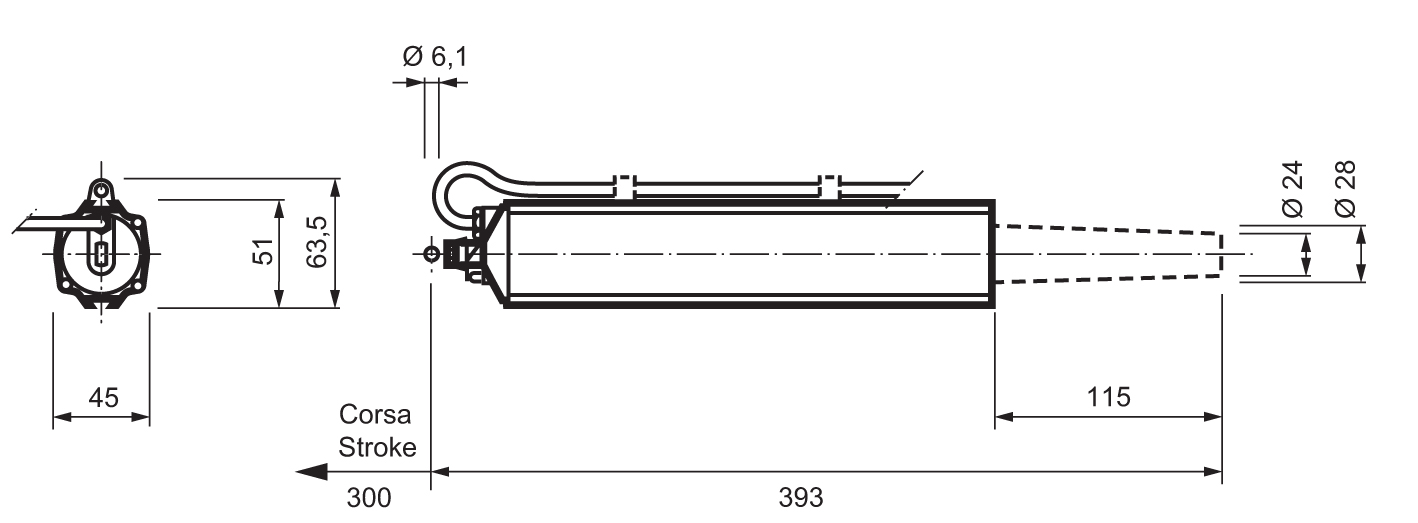

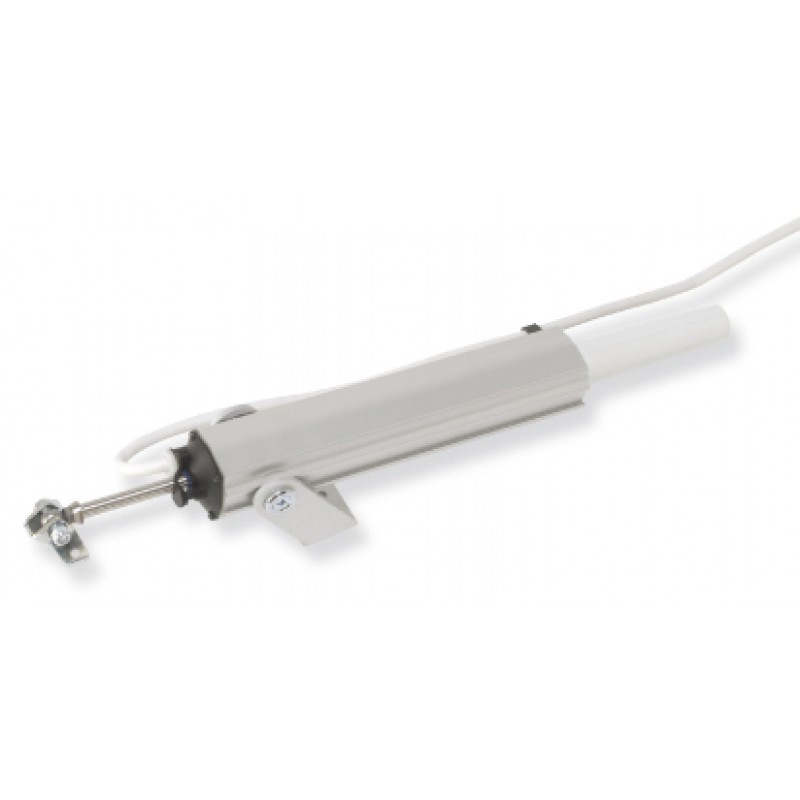

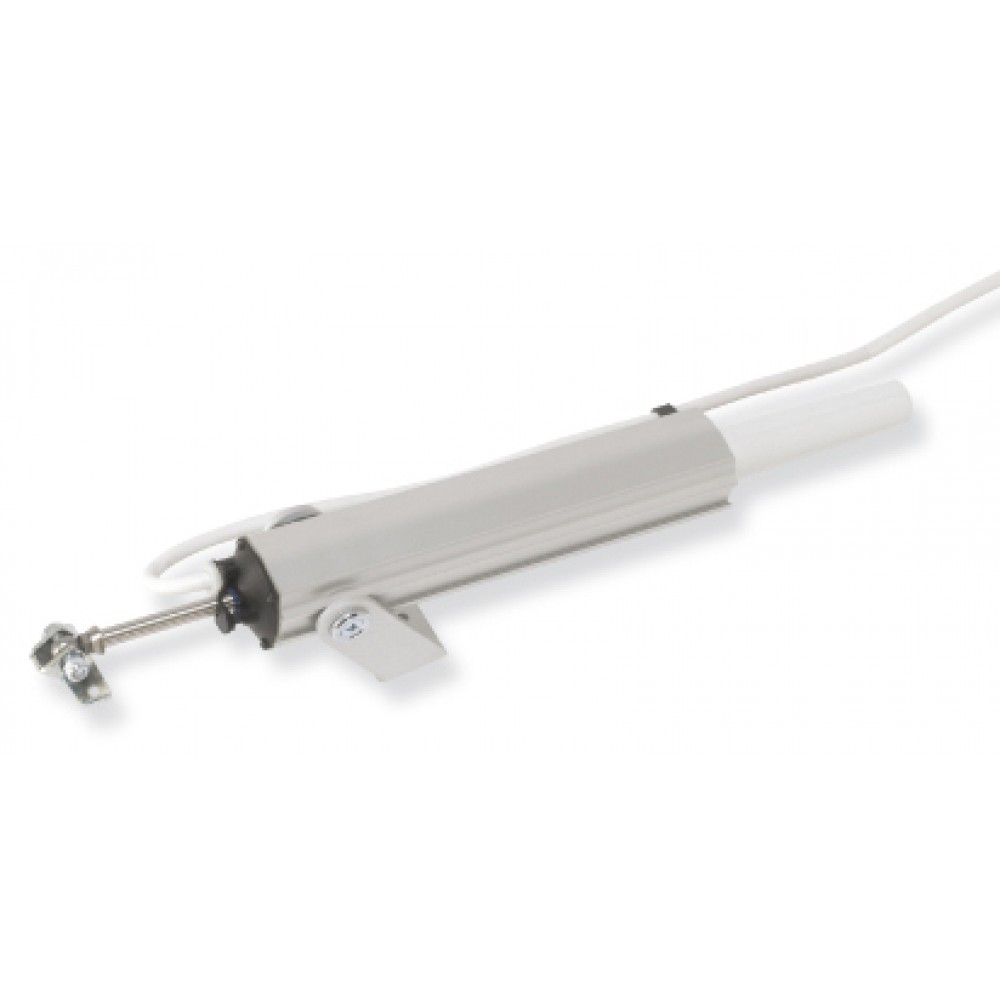

Rod Actuator WAY Mingardi D4 Fce Stroke 300mm
Rod actuator for louvre windows, top hinged windows, domes.
Characteristics:
- Reduced dimensions;
- Fixing bracket sliding along the whole body;
- Maintenance free;
- Protection degree electrical devices: IP 44;
- Limit switch closing-opening: Microswitch;
- Colour: Anodised Silver.
Mingardi linear actuator with rigid rod movement, highly resistant to peak loads.
230V~ 50 Hz power supply.
It complies with 2006/95 LVD - 2004/108 EMC directives.
It is equipped with limit switches and relays for the parallel connection. Incorporated thermal overload protection.
Available colours: anodised silver. Complete with fixing accessories.
Technical Features*
| Code |
Description |
Voltage |
Thrust Tensile |
Stroke |
Power Consumption |
Speed Min. |
| 2700003 |
D4 300 mm - (A) |
230V ~ /50Hz |
200N |
300mm |
160W |
ca. 30mm/s |
*The values indicated on the table are average values were recorded in condition of normal use.
