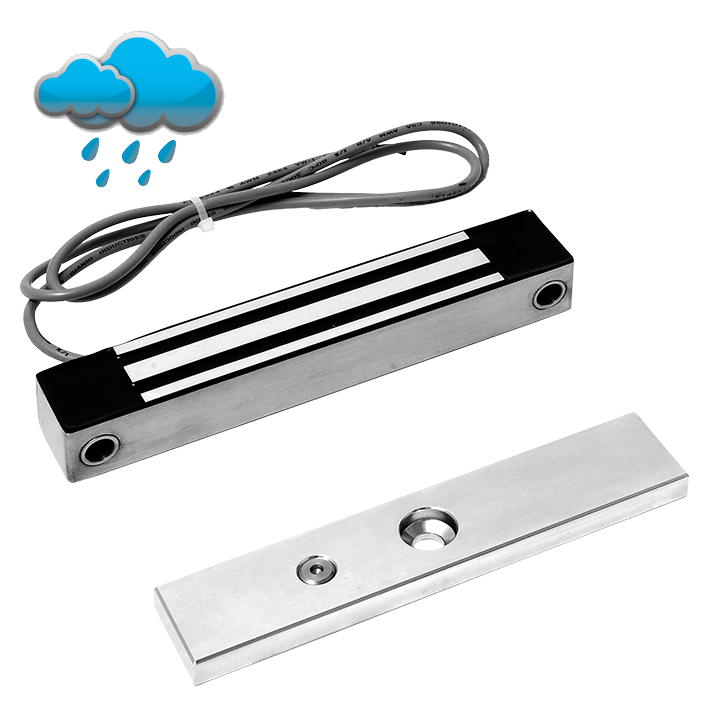

Safety Electromagnet - 150 Kg in Steel to Apply - Micro Opera - Code 12700
- Safety electromagnet - Micro Opera 12700 ;
- Use: locking system for swing doors;
- Version: to apply.
The
150 Kg Safety Electromagnet in Steel to be Applied from the Safety Series is an ideal device for the closing system of swing doors. Thanks to its moisture-resistant stainless steel body, it ensures durability and reliability.
The dimensions of the electromagnet are 170mm long, 32mm wide and 24mm high. The backplate, which is included in the package, is equipped with a residual anti-magnetism pin, with dimensions of 152mm in length, 32mm in width and 8mm in height.
The electromagnet works with a 12 Vdc power supply and requires a current of 350 mA. Its pulling force can reach up to 150 Kg, ensuring a safe and stable closure for swing doors.
Micro 12700 Opera electromagnet technical characteristics
- Body in stainless steel protected against humidity;
- Dimensions: mm. 170x32x24;
- Counterplate with residual anti-magnetism pin: mm. 152x32x8;
- Power supply: 12 Vdc;
- Current: 350mA;
- Traction force: up to 150 Kg.
Opera 12700 electromagnet pack
- Electromagnet,
- flat mounting plate,
- counterplate,
- mounting accessories
The story of the blacksmith of Modena
Why do many condominiums in Modena have electromagnets? In the 60s in Modena there was a blacksmith who wanted to improve the locking of condominium doors. In fact, many condominiums complained of the continuous maintenance costs. One day the blacksmith arrived with a magnet that would solve that annoying problem. Word of mouth did the rest and to this day Modena retains this primacy, obviously no longer with simple magnets, but with modern and more effective electromagnets.
Safety electromagnets - Safety Opera series
- safety electromagnets,
- Ideal for emergency exits and stairway doors of condominiums,
- Silent and resistant,
- Traction forces from 150 to 1,500 kg,
- Applicable on pre-existing doors.
Opera Operating Access branded safety electromagnets
Opera srl, specialized in the design and manufacture of electric handles, was created in 1997 in Modena, in Emilia Romagna, land of food and engines. All the management of the company comes from the experience of Corni locks which has been present in the city of Modena for over a century. The company is characterized by continuous expansion in world markets but with strong roots in Italy.
100% Made in Italy production
Over 40% of our turnover is made abroad, but 90% of our suppliers are local. Almost all of the products are manufactured in our modern industrial plant, with technologies that respect the environment and work quality. We are proud to produce and live in Modena, a town in northern Italy which has been a UNESCO World Heritage Site since 1997.
